Luggage Compartment/Rear of Vehicle Component Views

Luggage Compartment/Rear of Vehicle Component Views

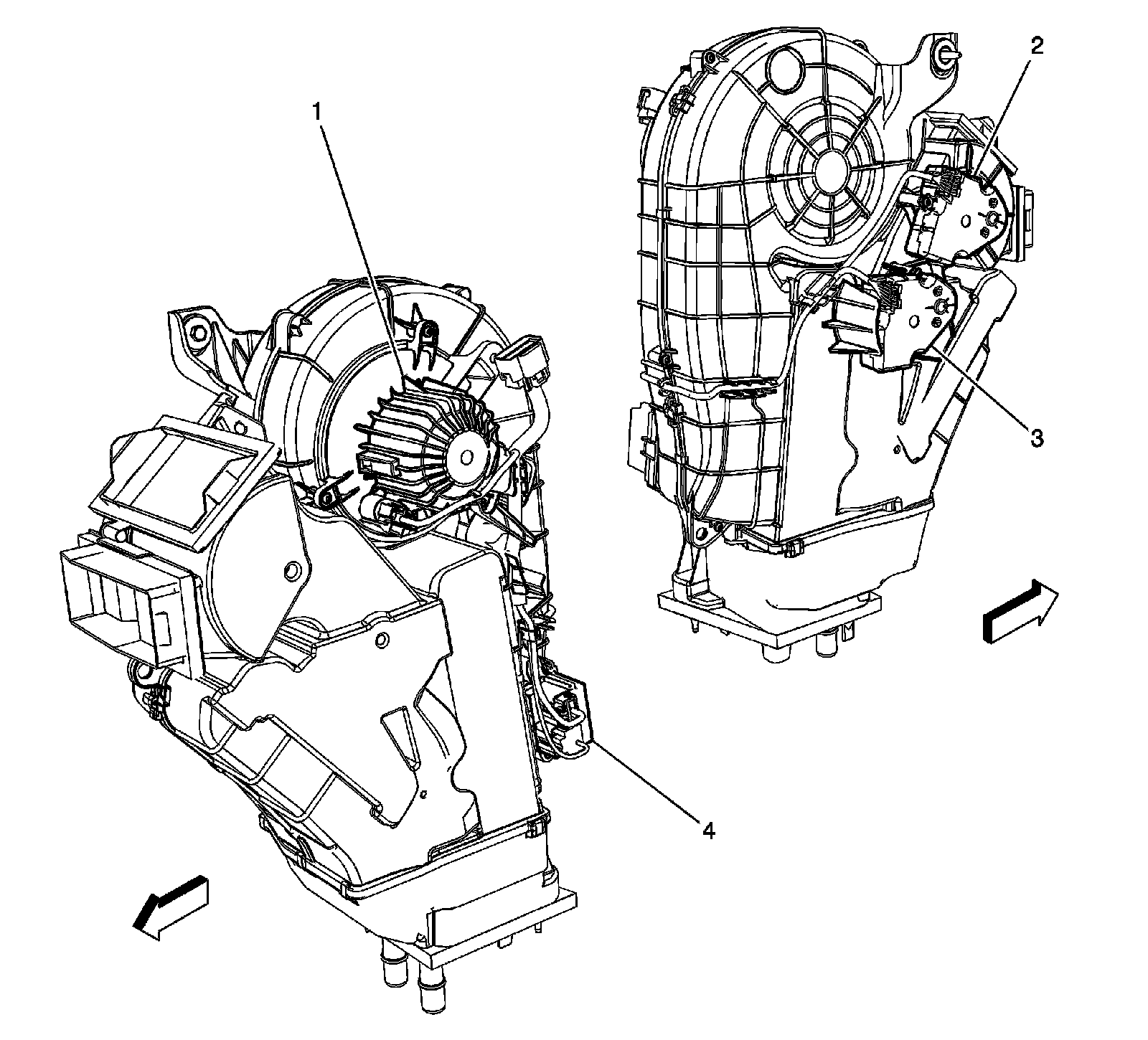

Interior HVAC Module - Rear




1 - Blower Motor - Auxiliary
2 - Mode Actuator - Auxiliary
3 - Air Temperature Actuator - Auxiliary
4 - Blower Motor Control Module - Auxiliary
