Console Views

Harness Routing Views

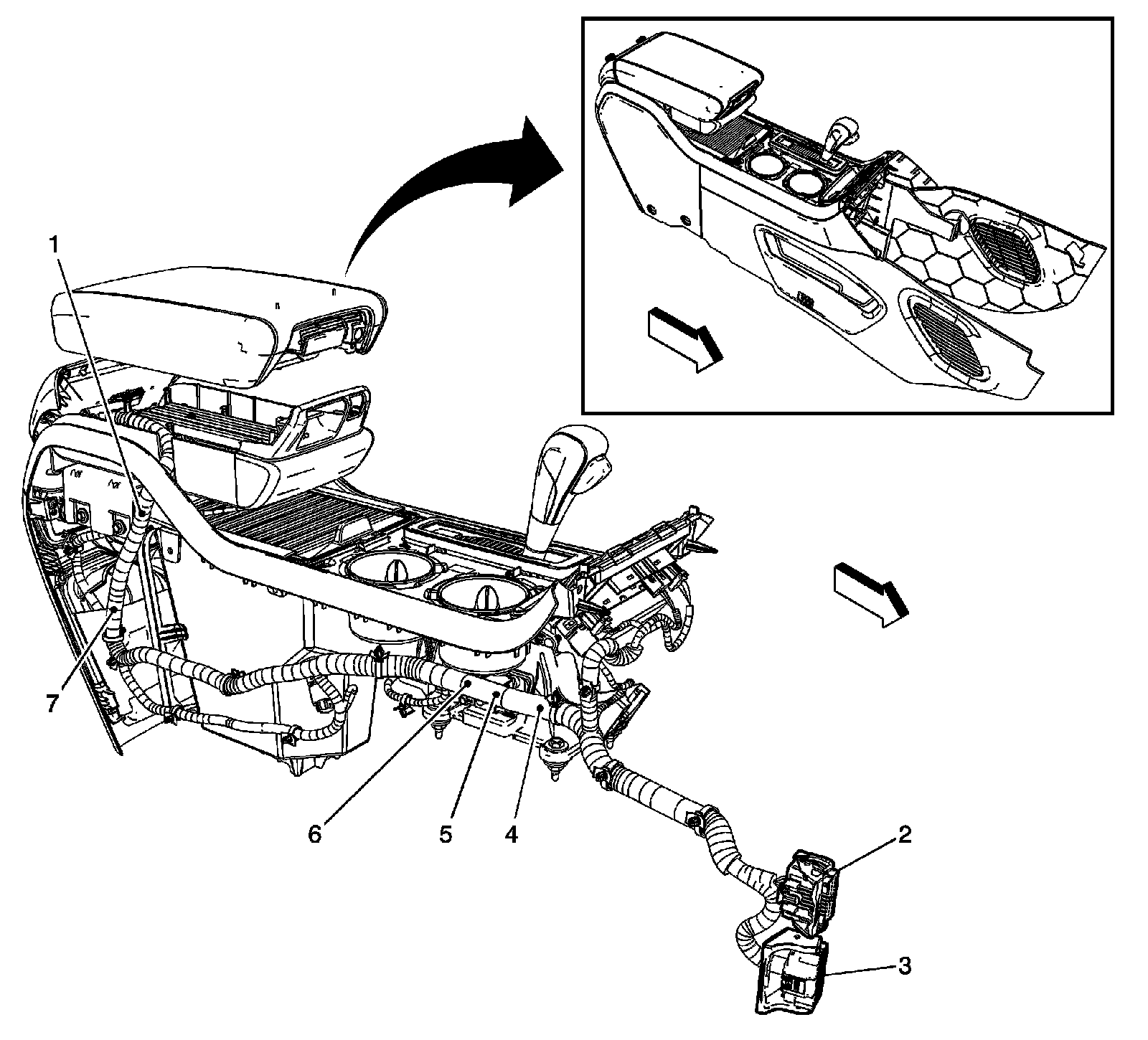

Floor Console Harness




1 - J379 (without UK6)
2 - X240
3 - X340
4 - J371 (without KA1 or UK6)
5 - J373
6 - J375
7 - J377

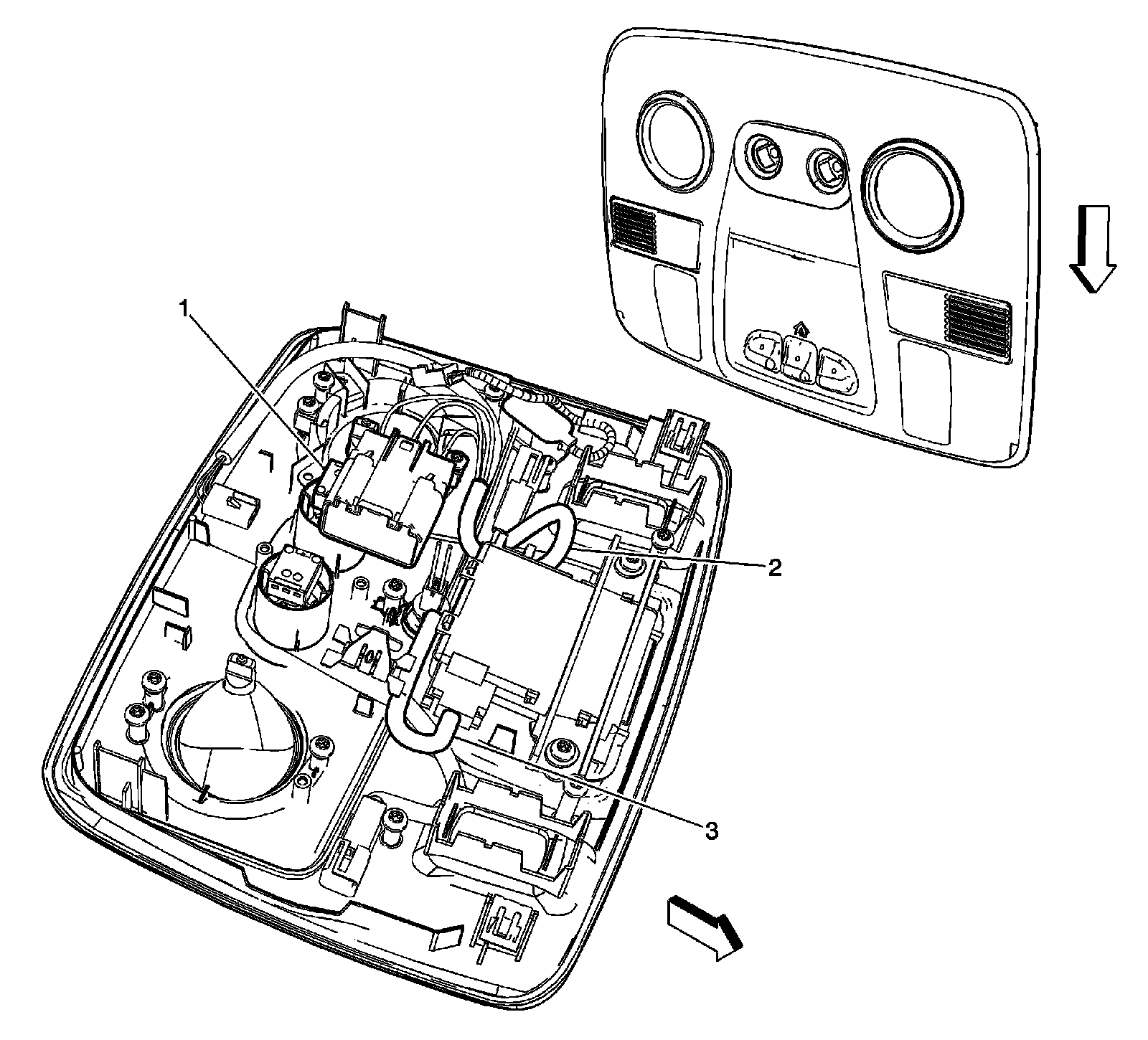

Overhead Console Harness




1 - X343
2 - J328
3 - J364 (C3U)
