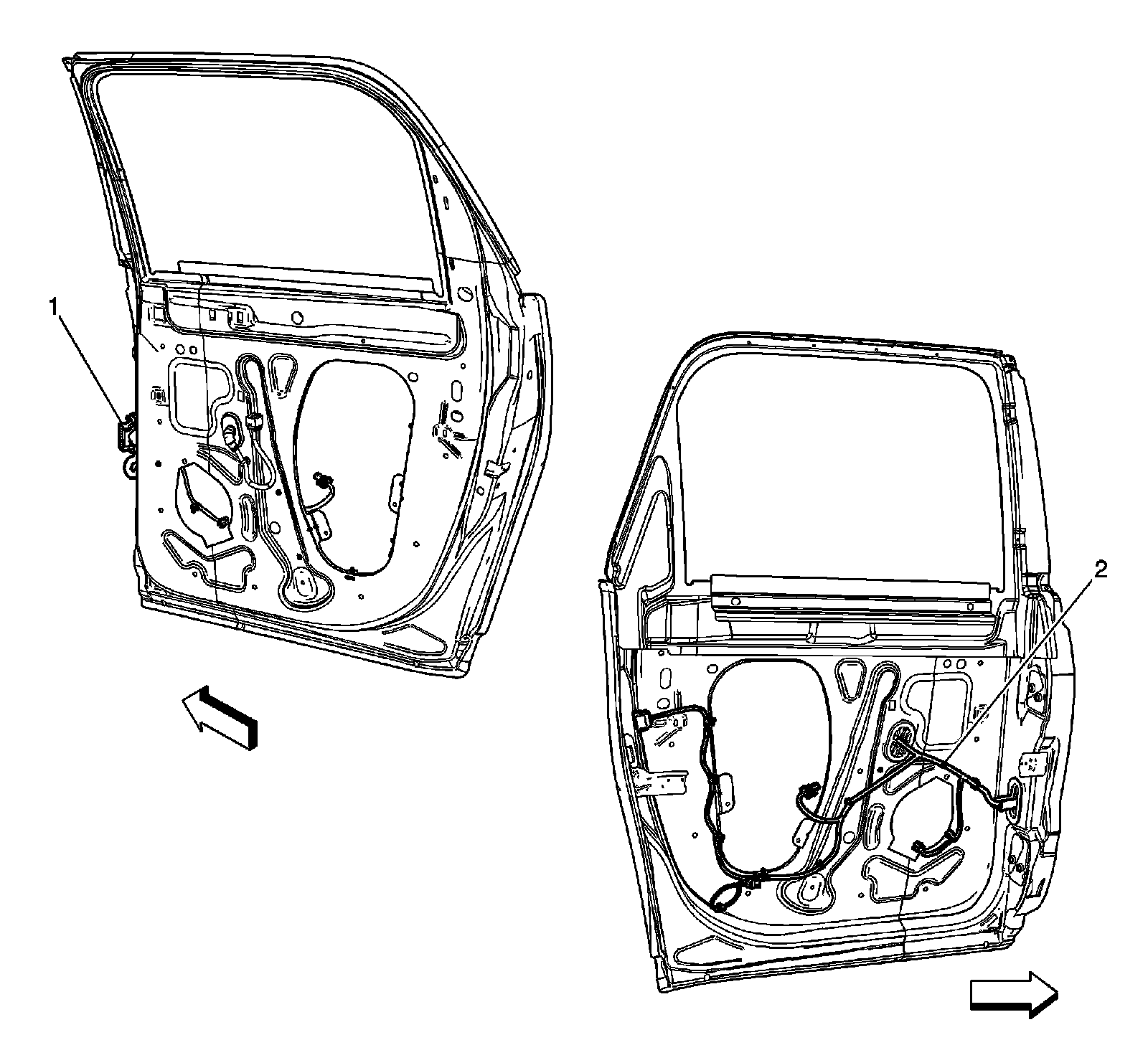

Door Views

Harness Routing Views

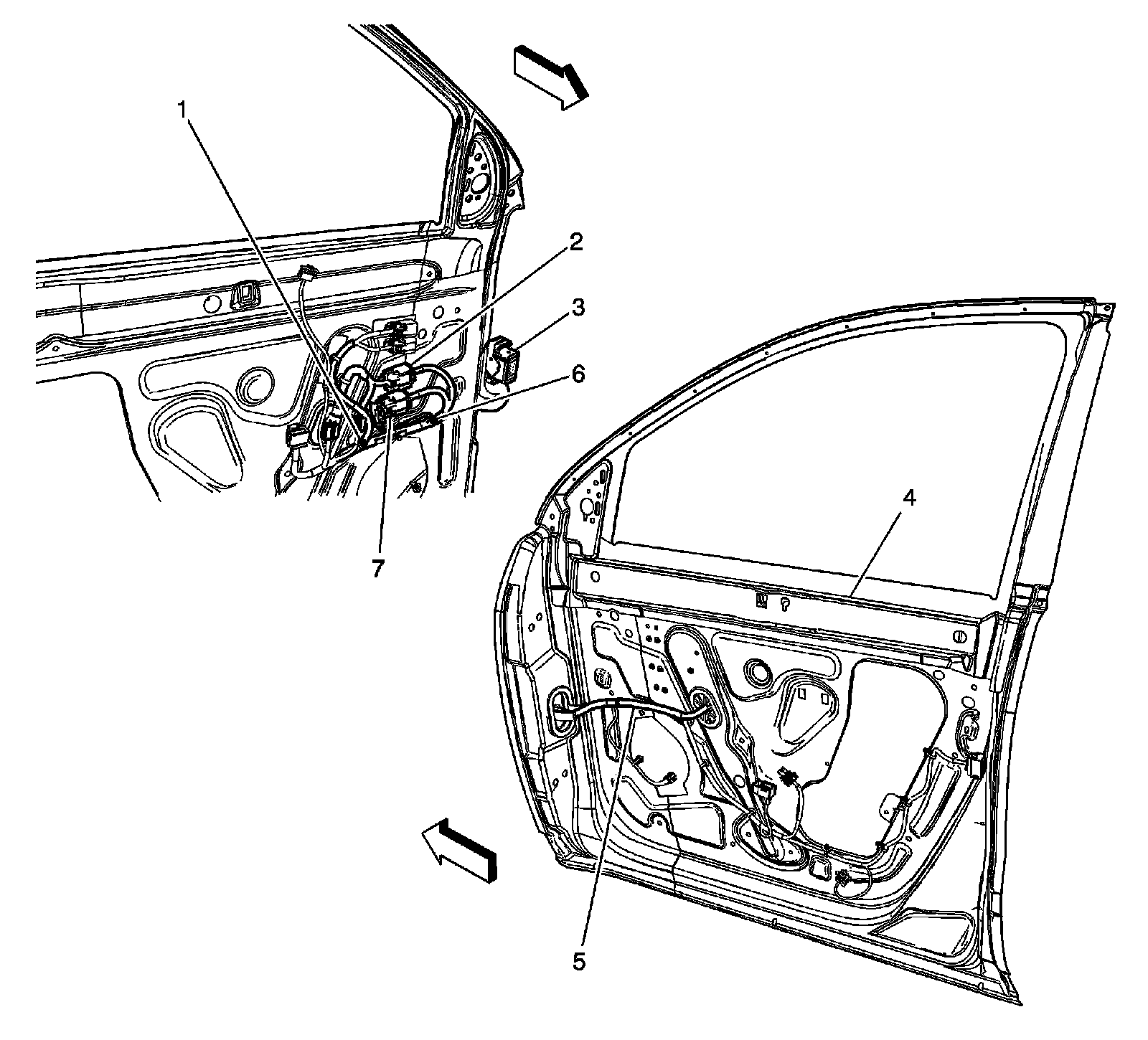

Driver Door Harnesses




1 - J577 (without AXC or AXE)
2 - X553
3 - X500
4 - Door Frame
5 - J555
6 - J575
7 - X555

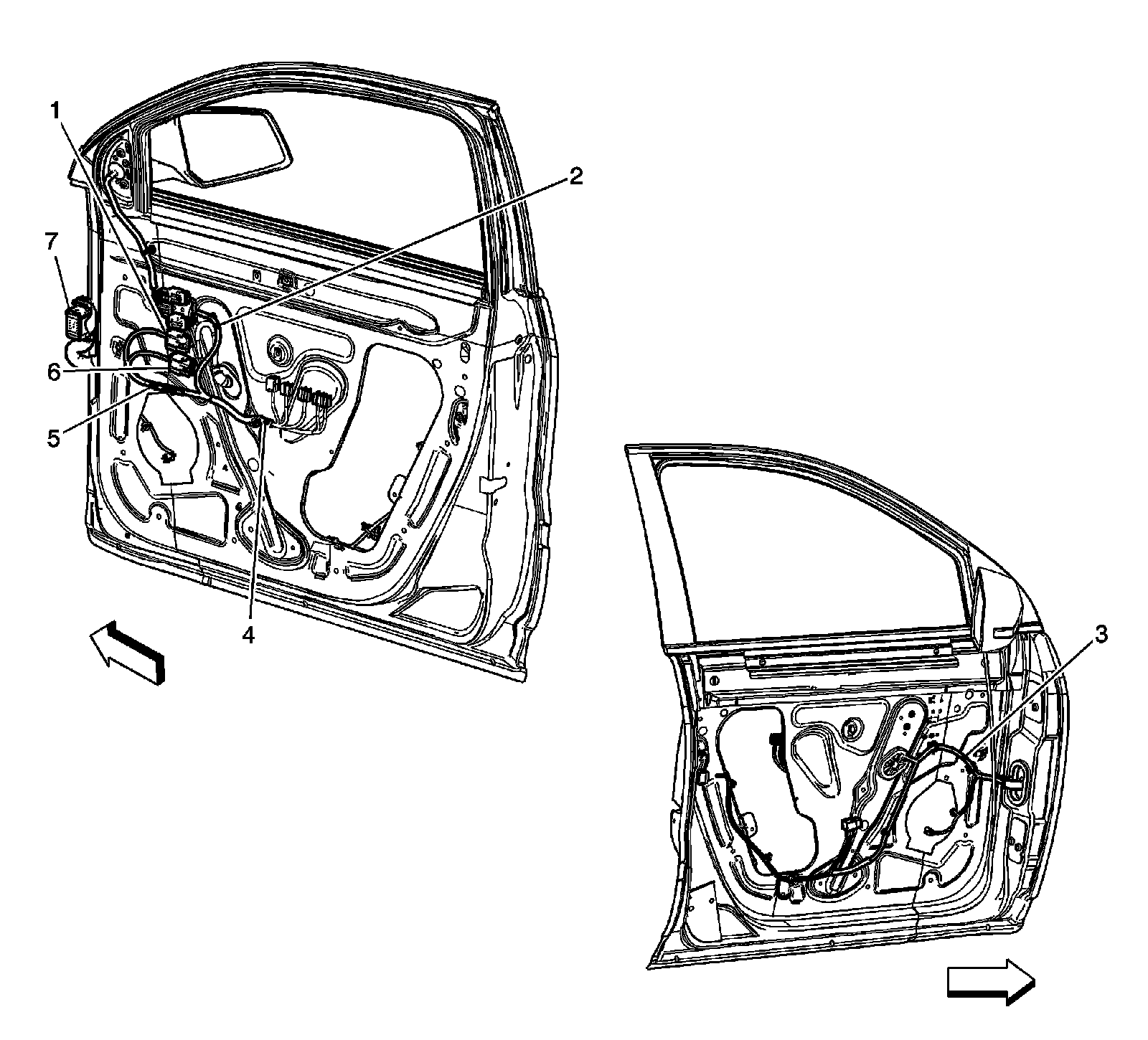

Passenger Door Harnesses




1 - X666
2 - J602
3 - J600 (without AXE)
4 - J666 (without AXC or AXE)
5 - J602
6 - X664
7 - X600

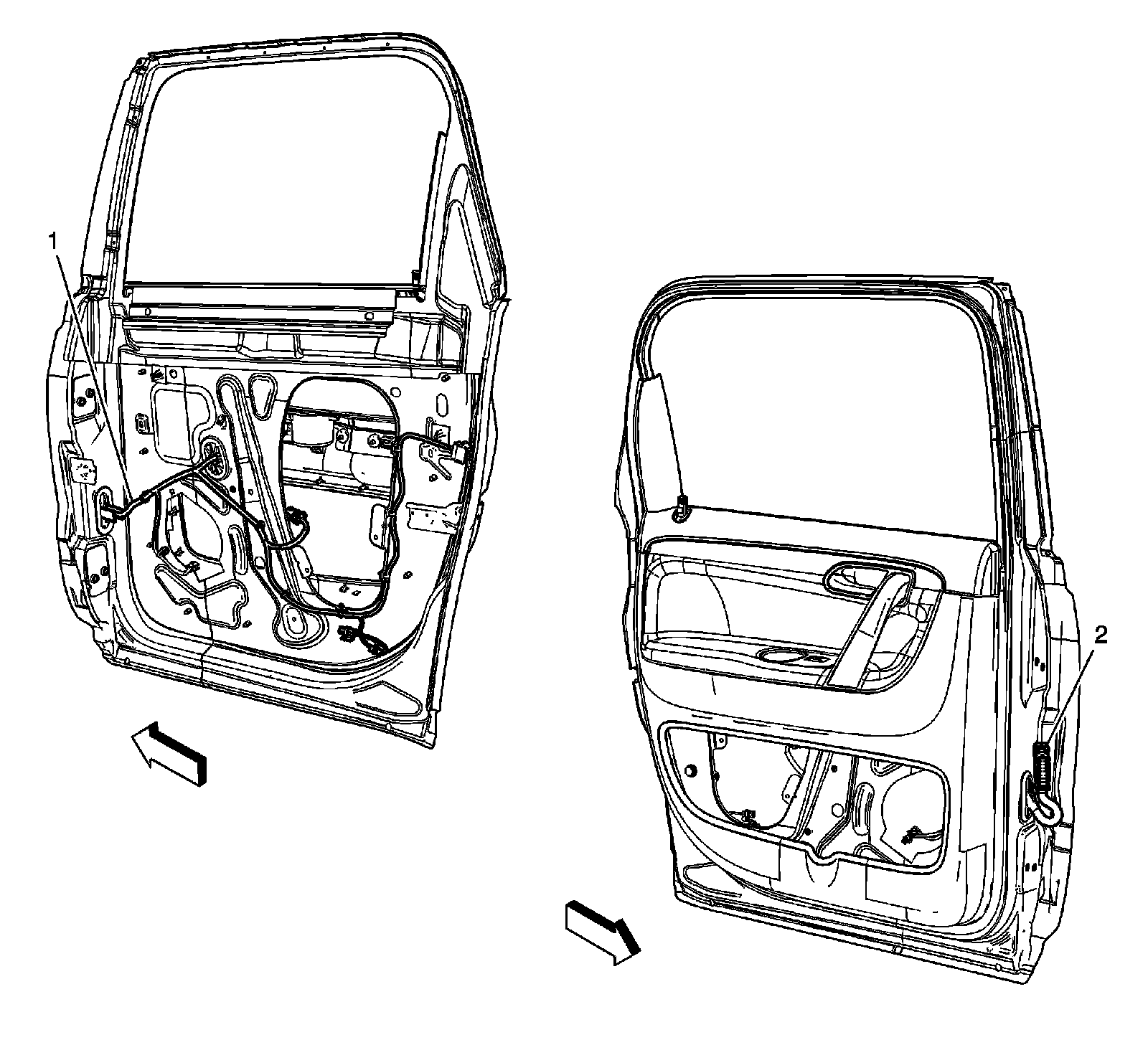

Left Rear Door Harness




1 - J711
2 - X700

Right Rear Door Harness




1 - X800
2 - J800
