Power Distribution Module: Locations

Luggage Compartment/Rear of Vehicle Component Views

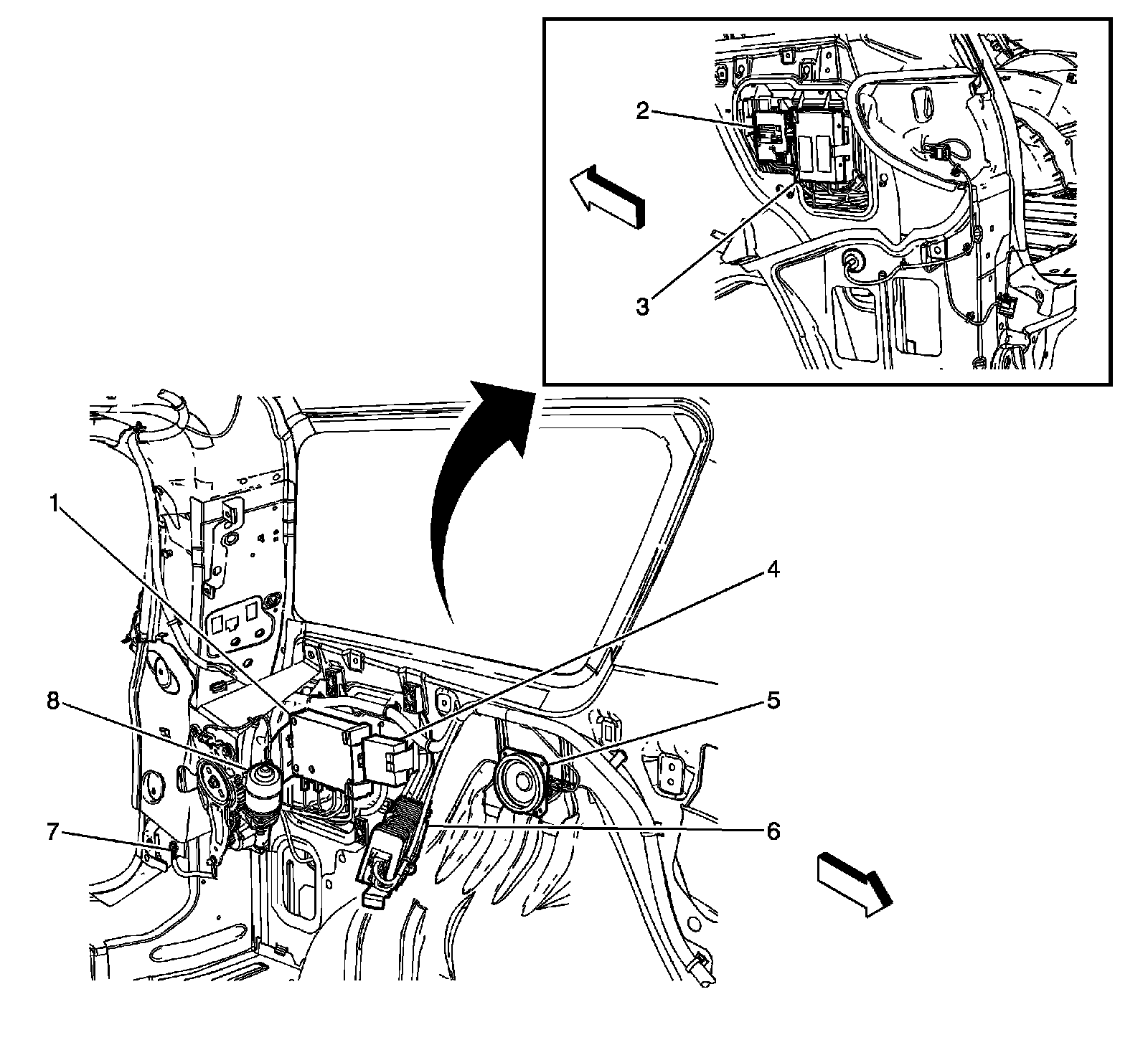

Left Rear of the Passenger Compartment




1 - Vehicle Communications Interface Module (VCIM) (UE1)
2 - Object Alarm Module (UD7)
3 - Digital Radio Receiver (U2K or UBS)
4 - Liftgate Module (LGM) (TB5)
5 - Speaker - Left Rear Compartment (UQA or AQS)
6 - Accessory AC/DC Power Control Module (KV1)
7 - G401
8 - Liftgate Motor Assembly (TB5)
