Electrical Diagrams

ENGINE CONTROLS SCHEMATICS

Module Power, Ground, Serial Data, and MIL

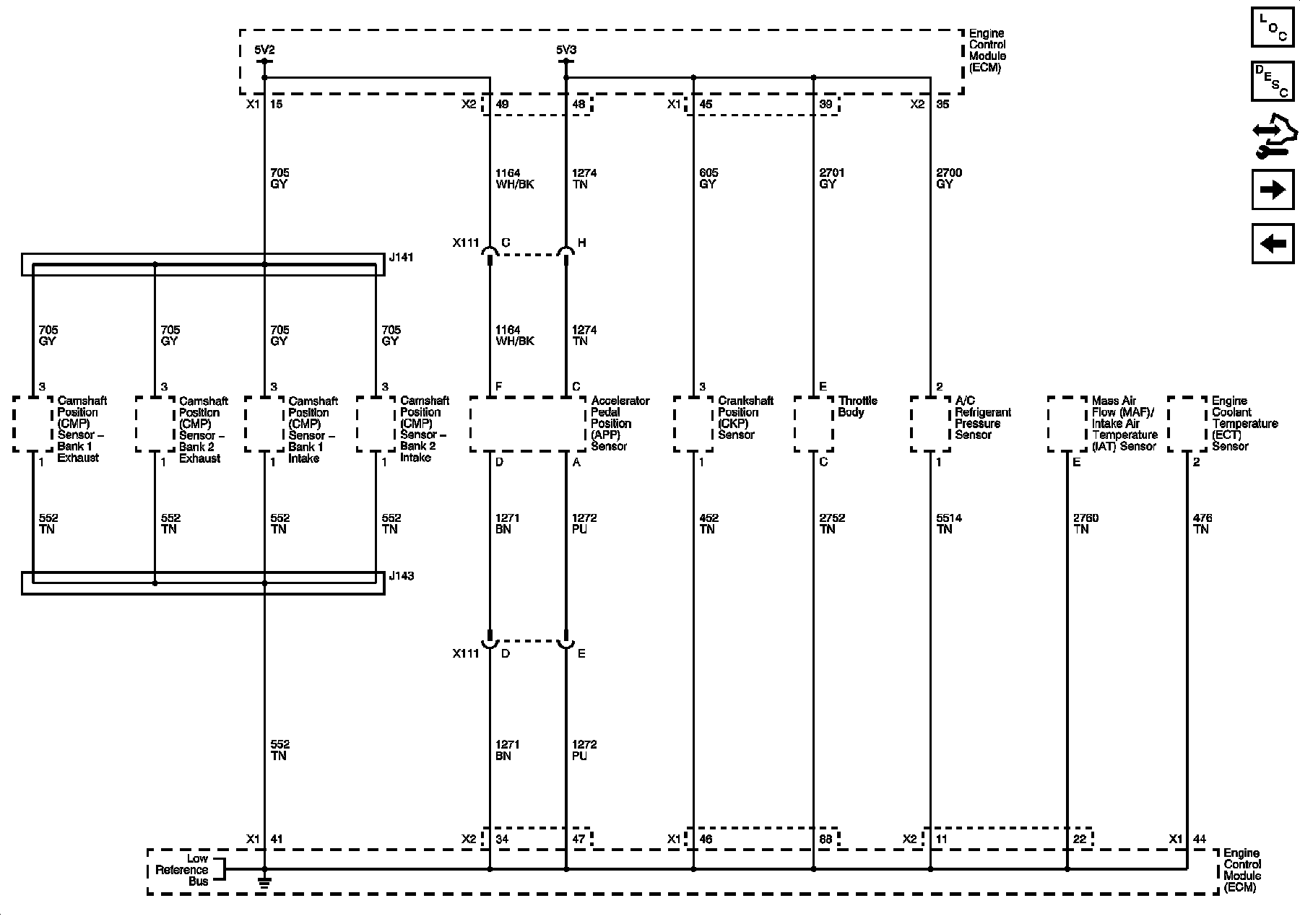

5-Volt 1 and Low Reference Bus







5-Volt 2, 5-Volt 3, and Low Reference Busses

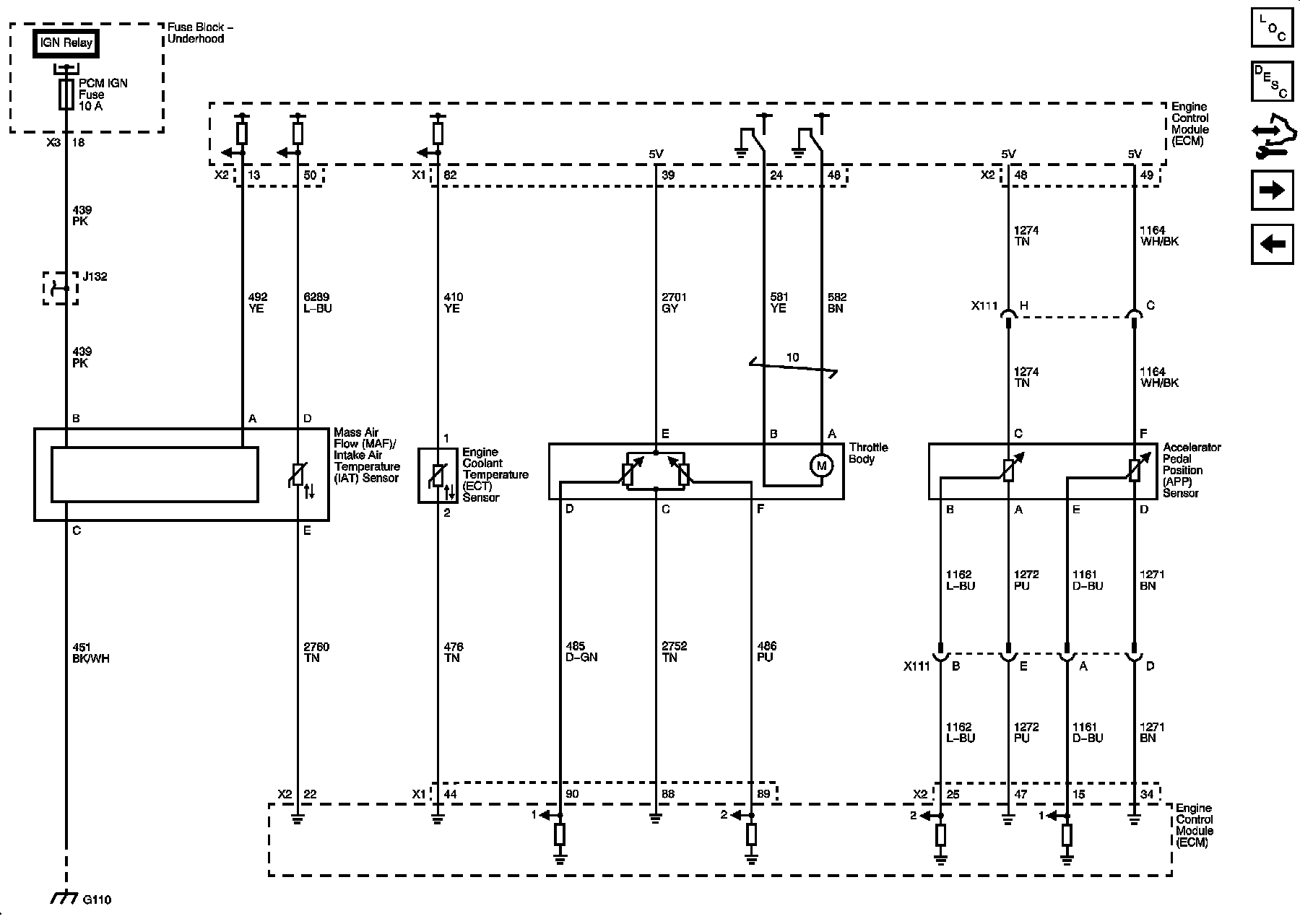

Engine Data Sensors - Pressure, Temperature, and Throttle Controls







Engine Data Sensors - Oxygen Sensors







Ignition Controls - Bank 1 Ignition System







Ignition Controls - Bank 2 Ignition System

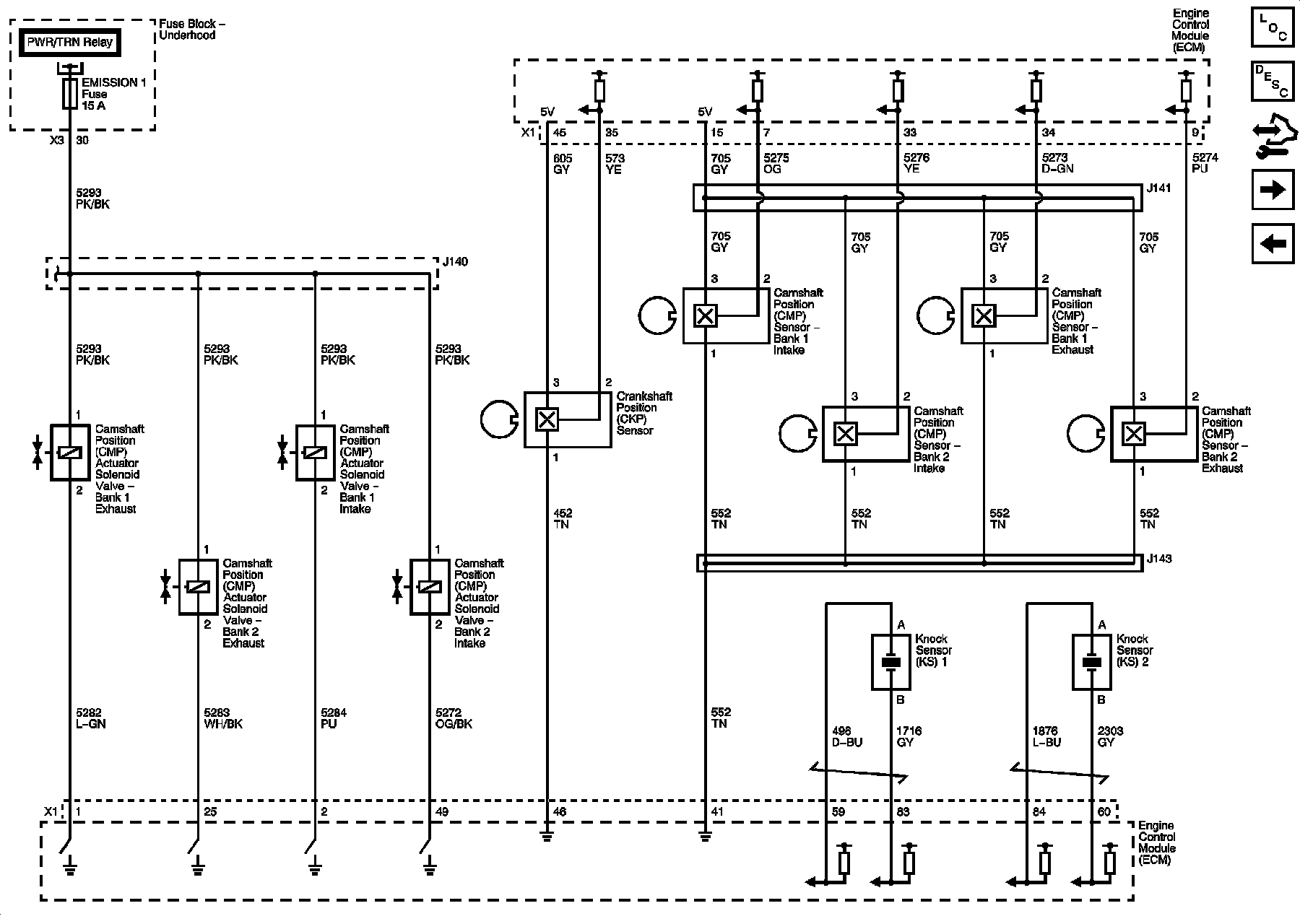

Ignition Controls - CKP/CMP/KS Sensors and CMP Actuator Solenoids

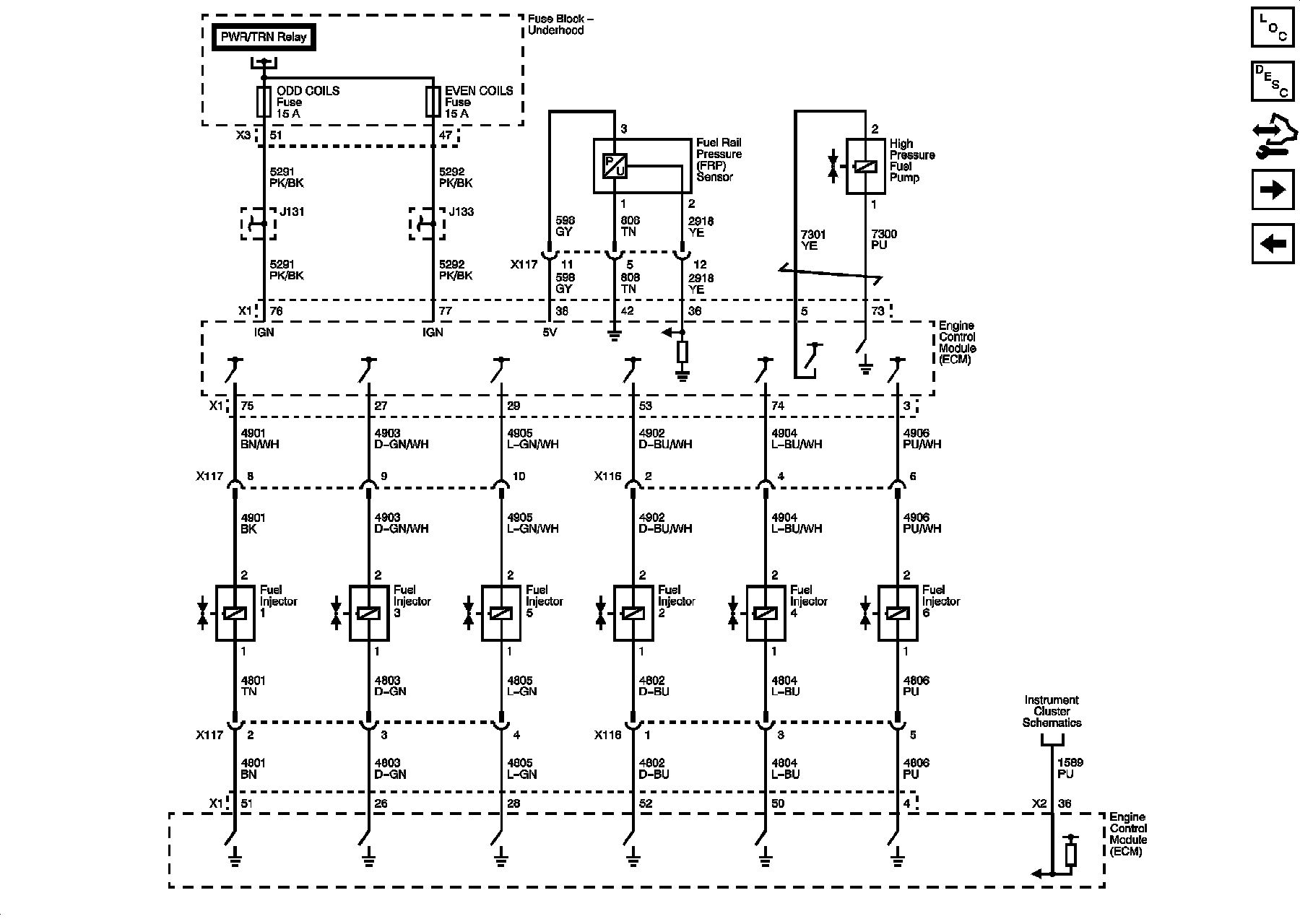

Fuel Controls - Fuel Injectors

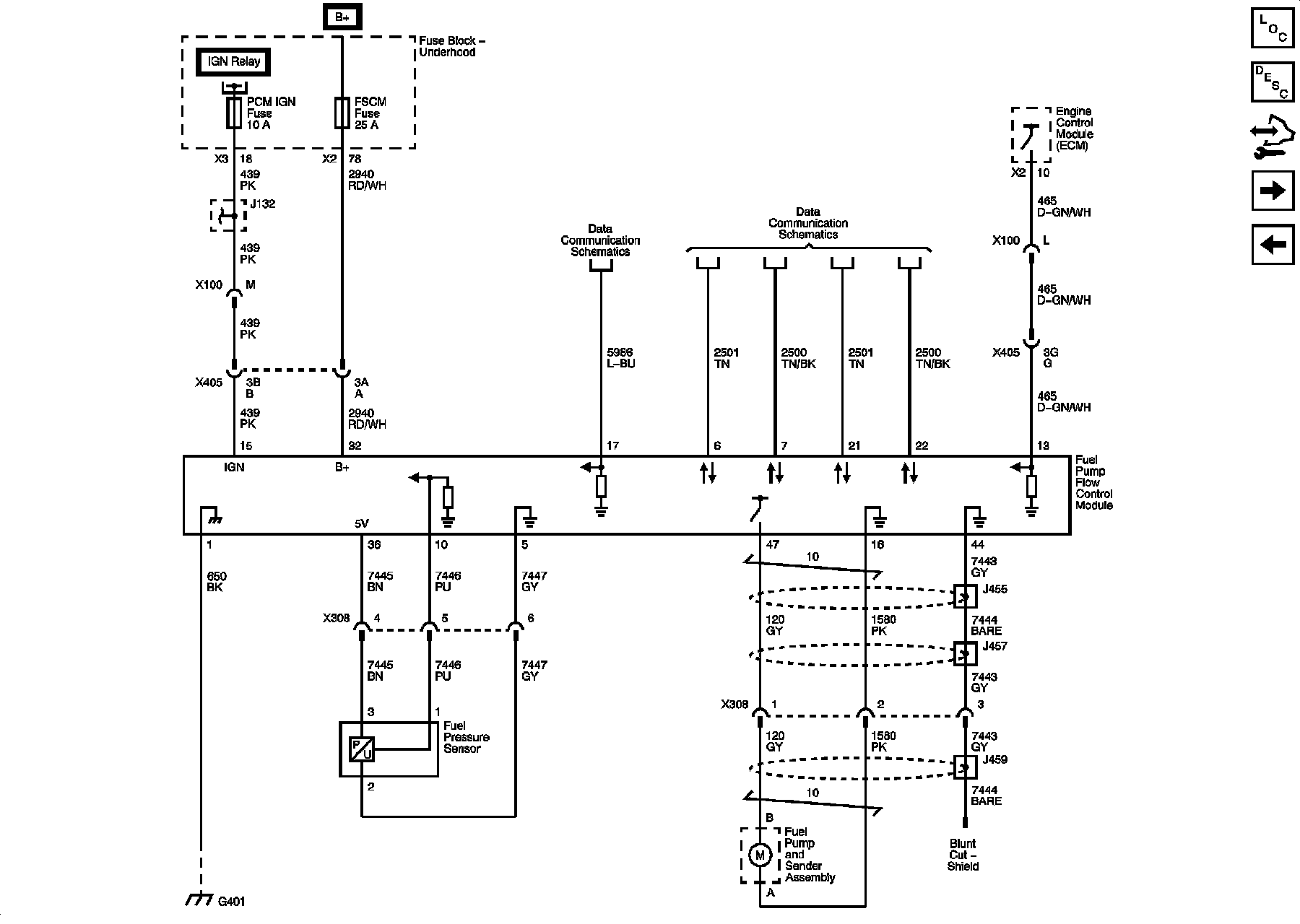

Fuel Controls - Fuel Pump Flow Control







Fuel Controls - EVAP Controls







Subsystem References








Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
