Cooling System

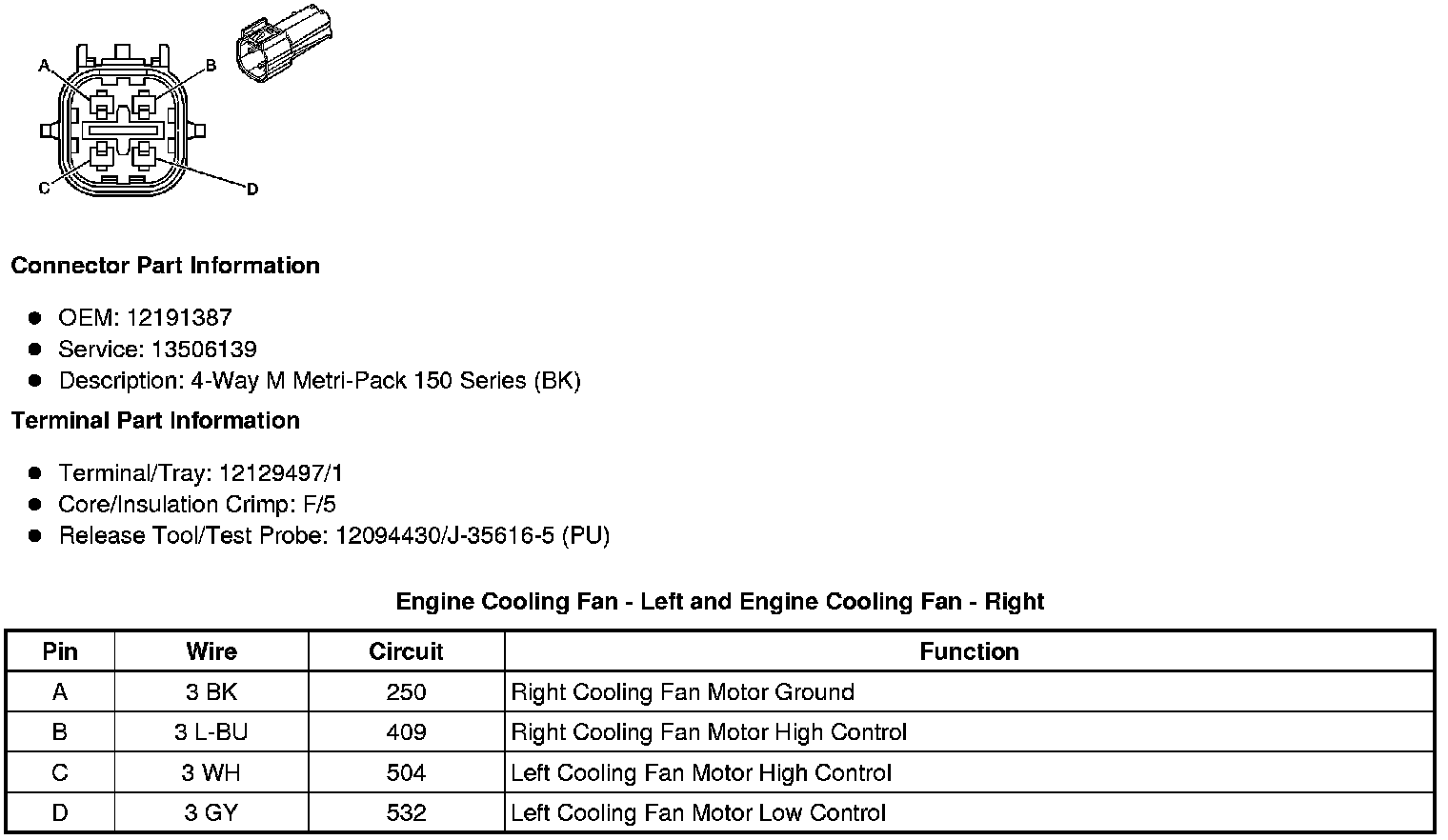

Component Connector End Views
Engine Cooling Fan - Left and Engine Cooling Fan - Right
