Door Control Module Schematics




Door Control Module Schematics

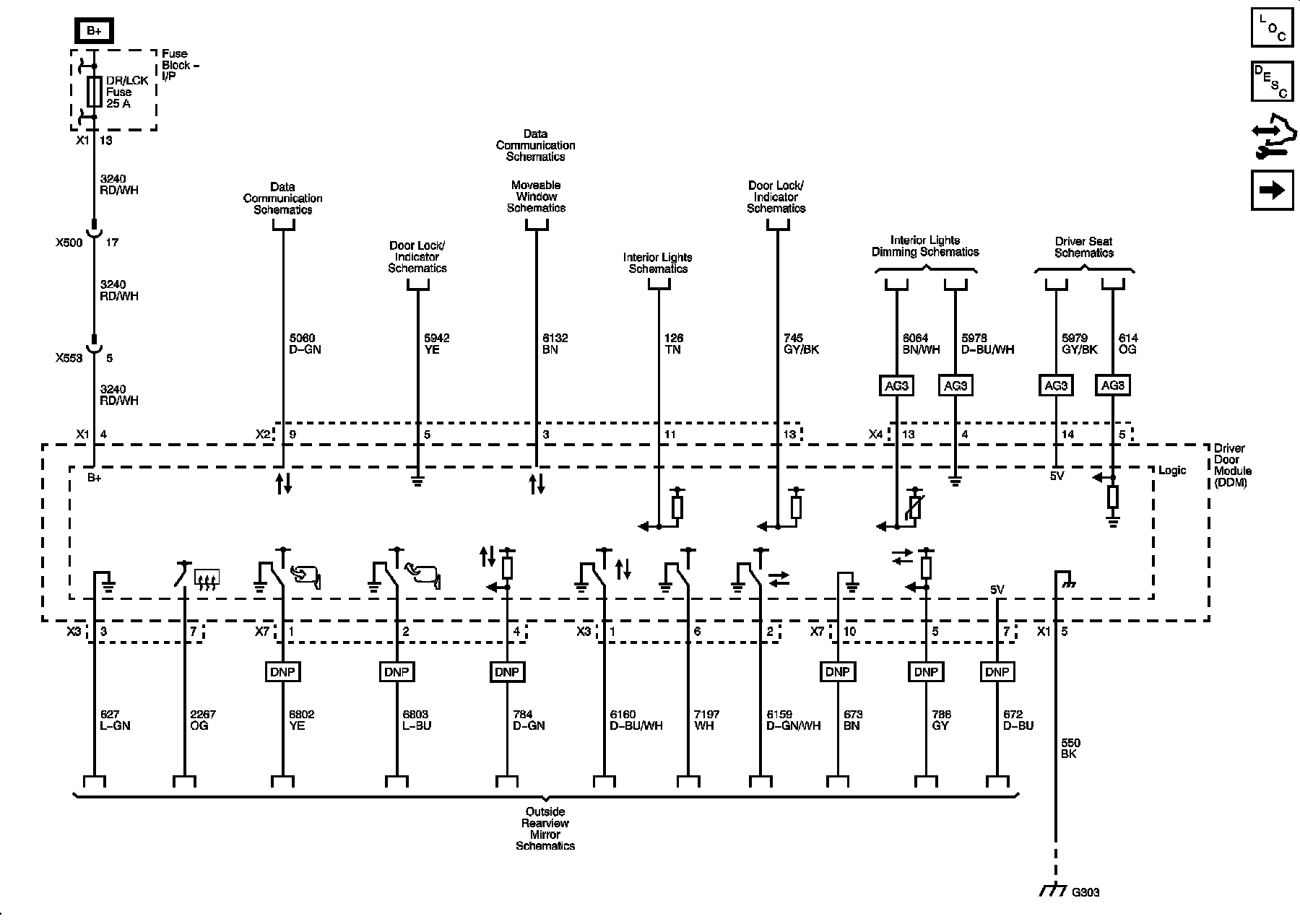

DDM Power, Ground, and all except KA1 or KB6 References

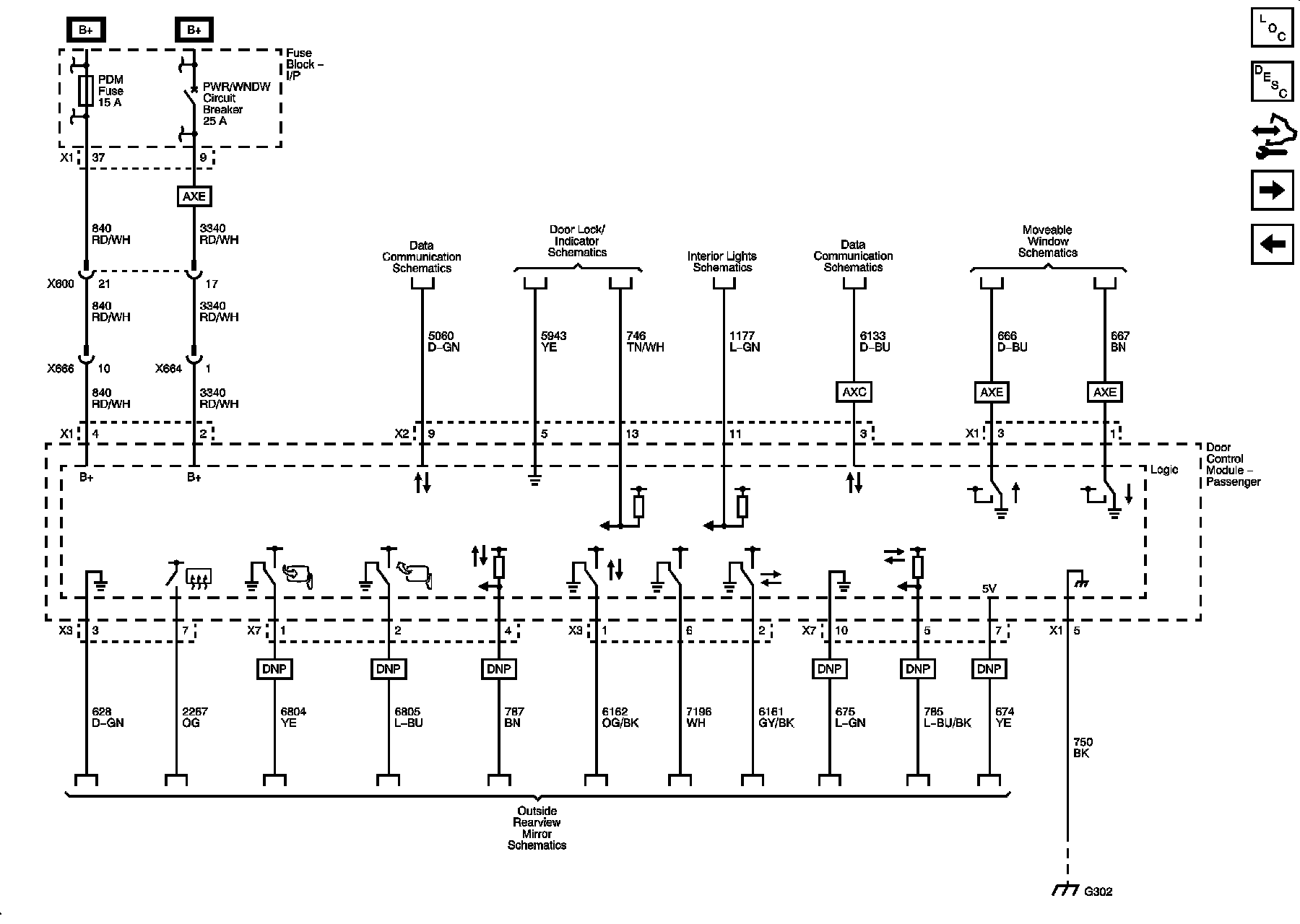

PDM Power, Ground, and all except KA1 or KB6 References

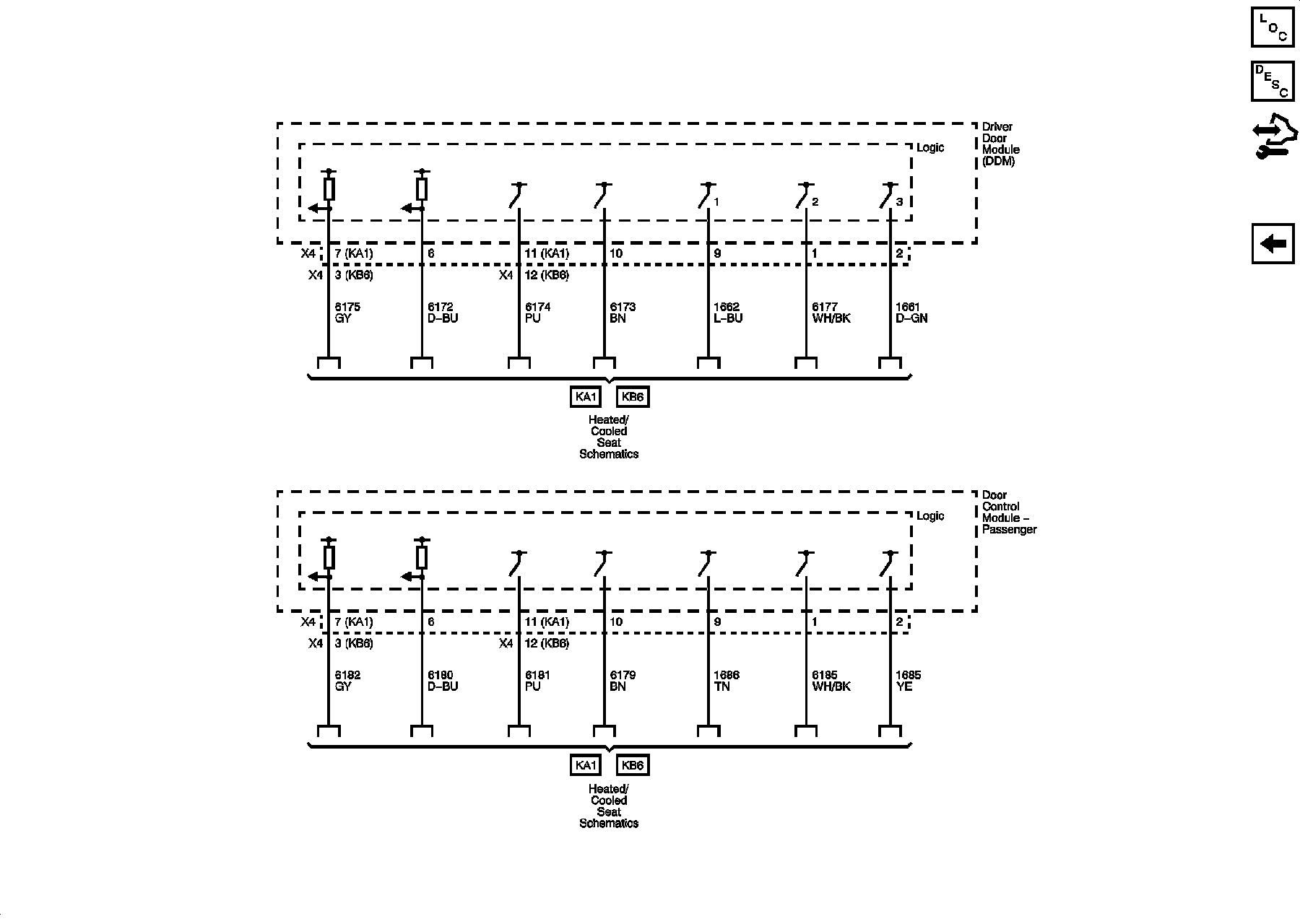

KA1 and KB6 References
