Accessory AC and DC Power Control Module Replacement

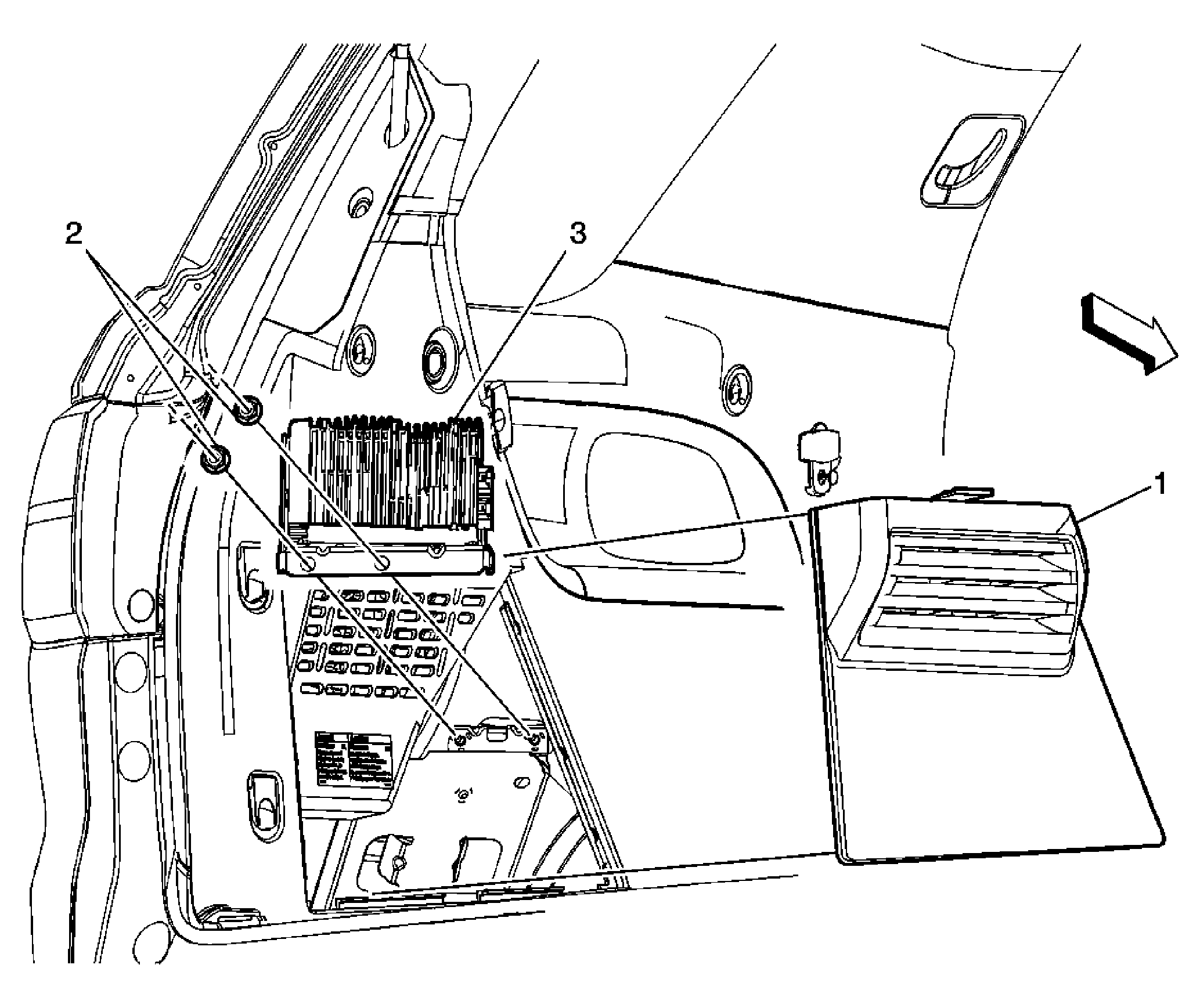

Fig 1: View Of AC/DC Power Outlet Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Side Trim Panel Stow Compartment Door Assembly
2	Accessory AC/DC Power Control Module Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
3	Accessory AC/DC Power Control Module Assembly Procedure Disconnect the electrical connections. Remove the jack assembly.

Callout

Component Name

Body Side Trim Panel Stow Compartment Door Assembly

Accessory AC/DC Power Control Module Nut (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Accessory AC/DC Power Control Module Assembly

Procedure
