Keyless Entry Antenna Replacement

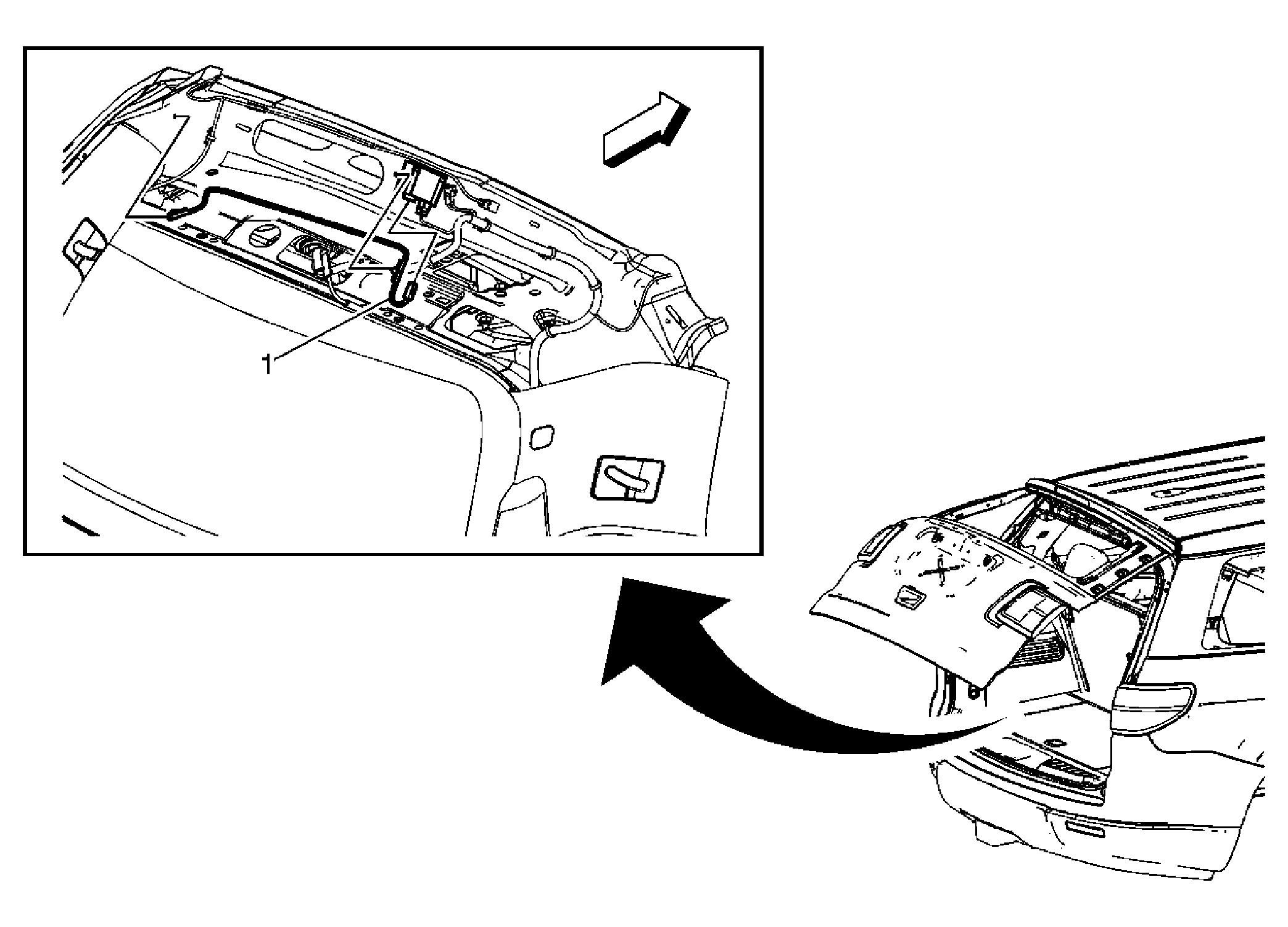

Fig 1: View Of Keyless Entry Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Lower the rear of the headliner trim panel. Refer to Headlining Trim Panel Replacement .
1	Remote Control Door Lock Antenna Assembly Procedure: Disconnect the electrical connector.
