Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

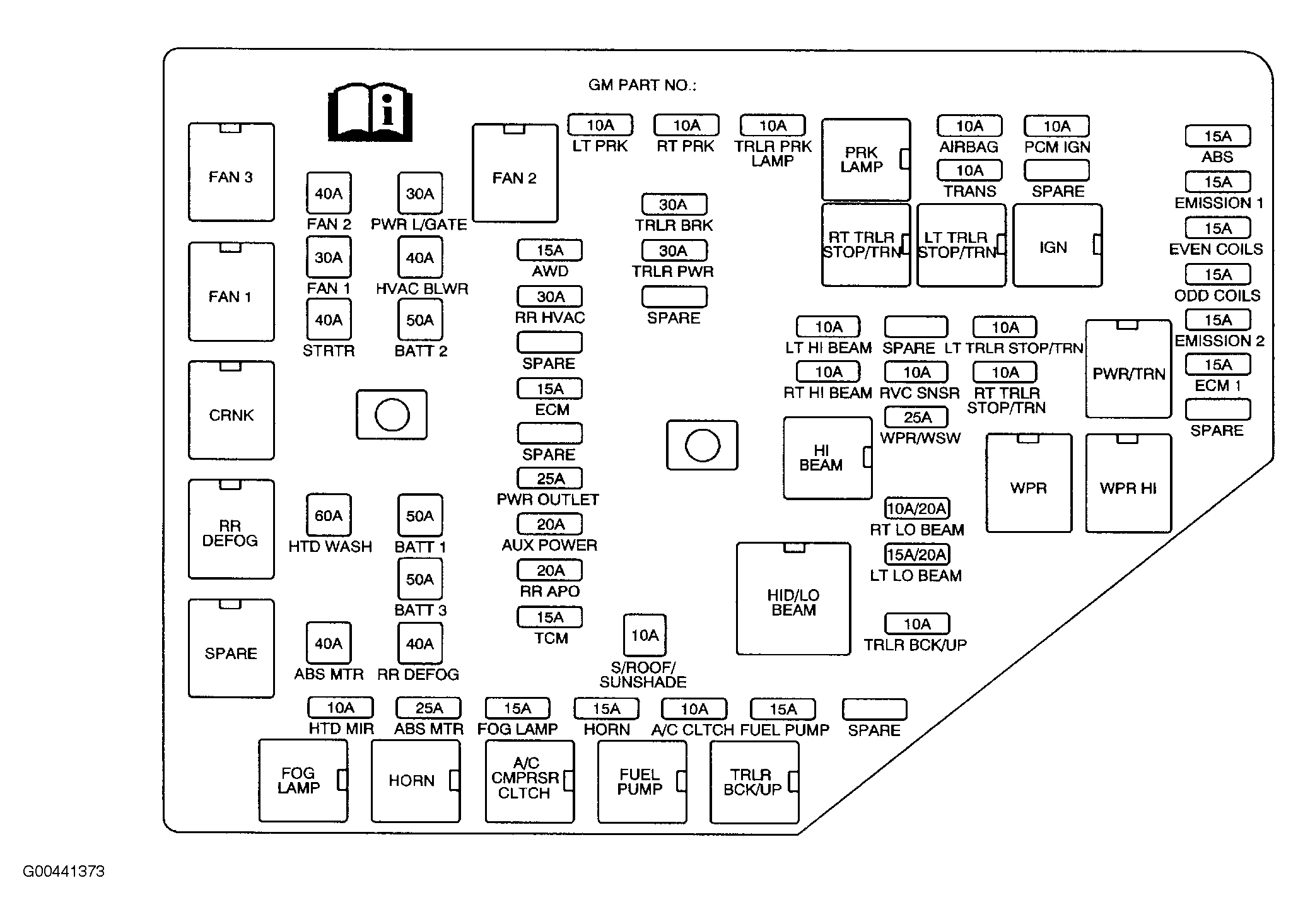

Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

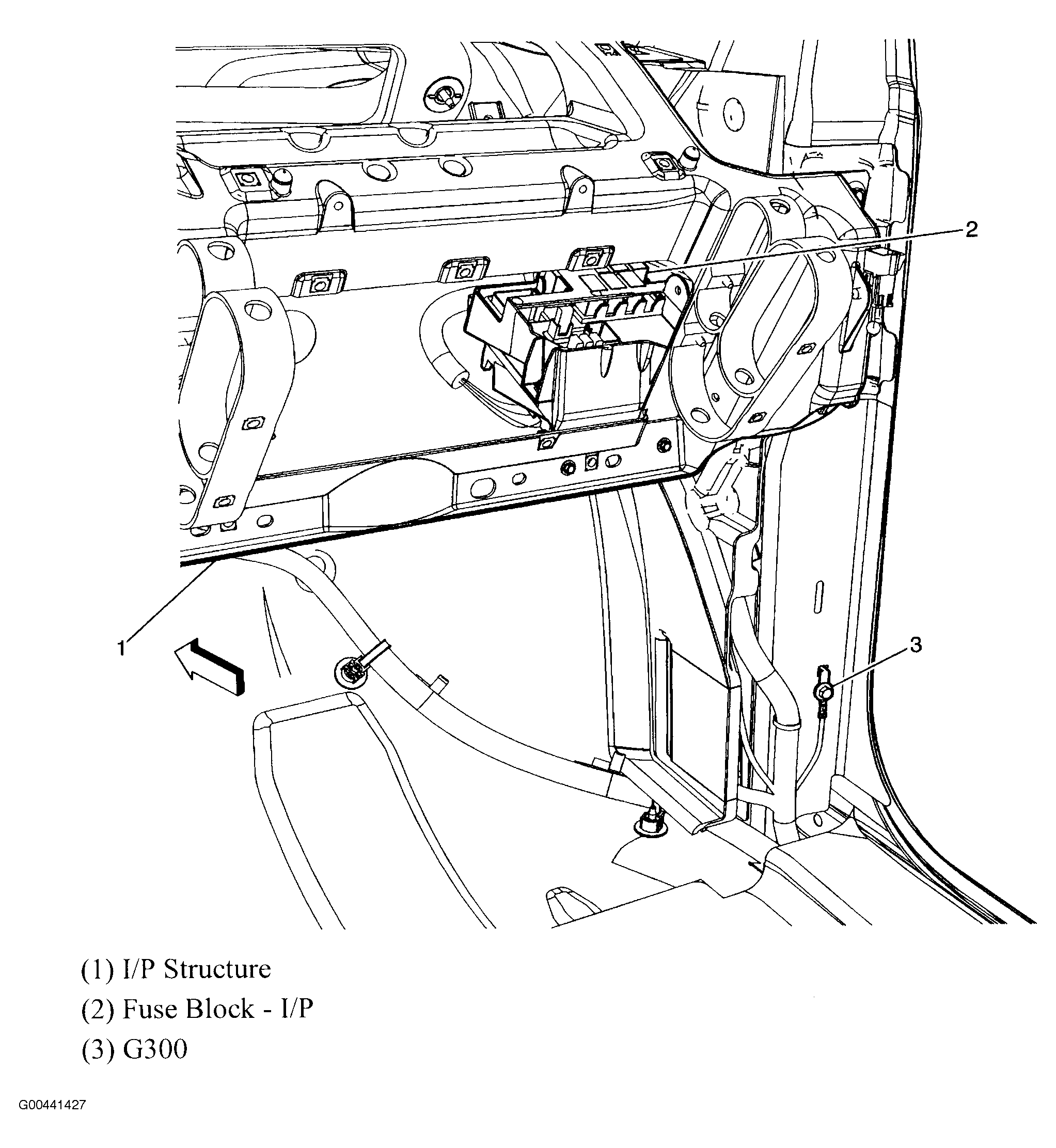

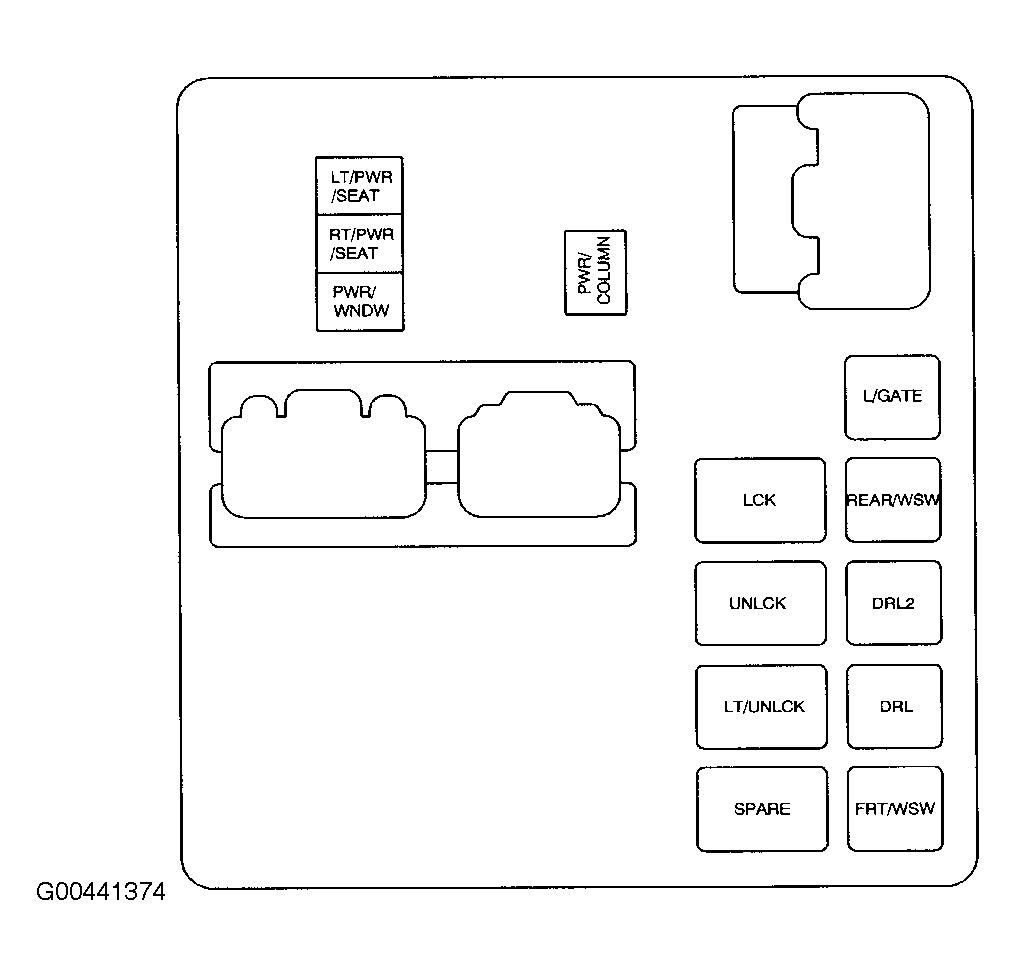

Fig 2: I/P Fuse Block
Courtesy of GENERAL MOTORS CORP.

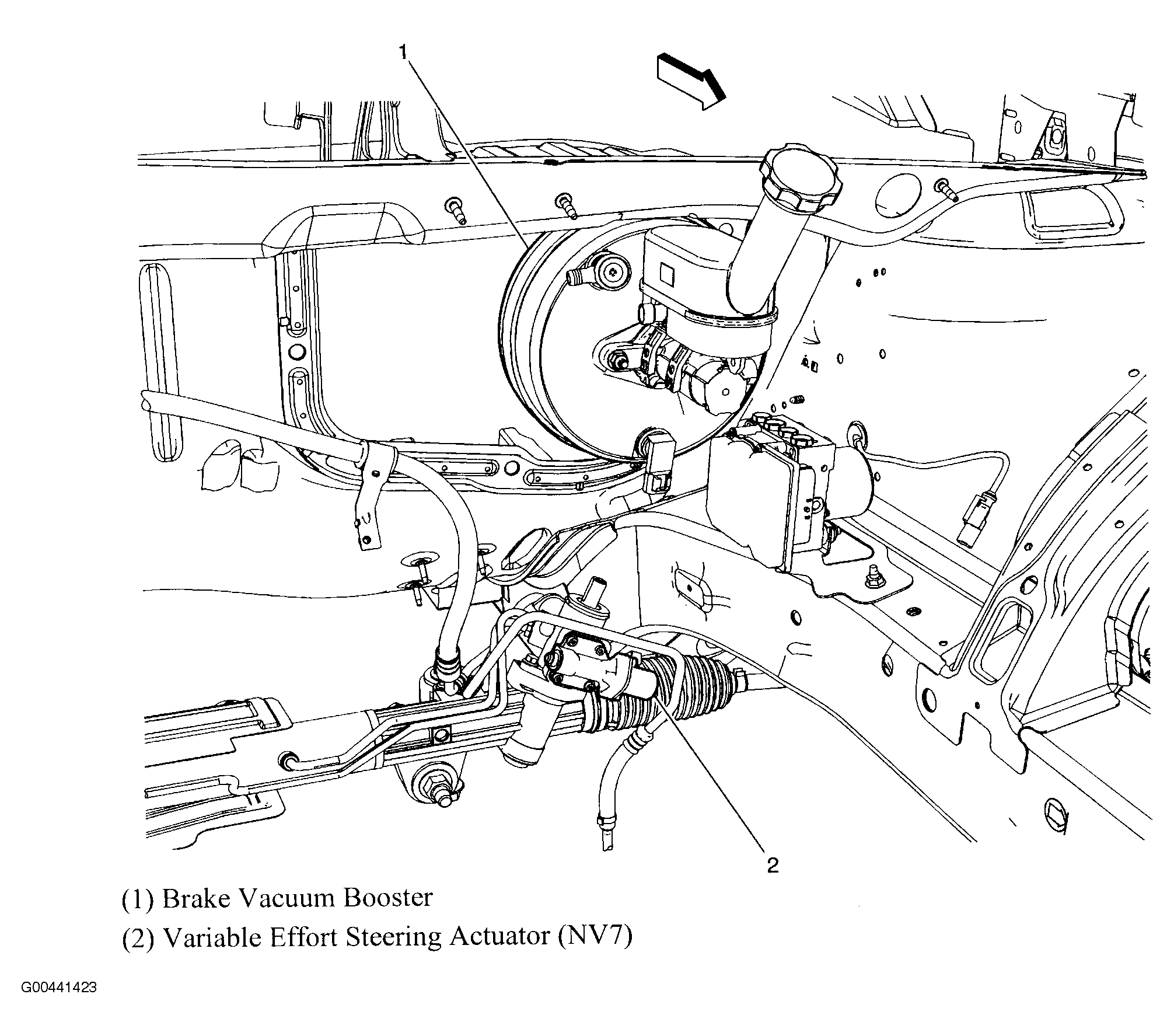

Fig 3: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

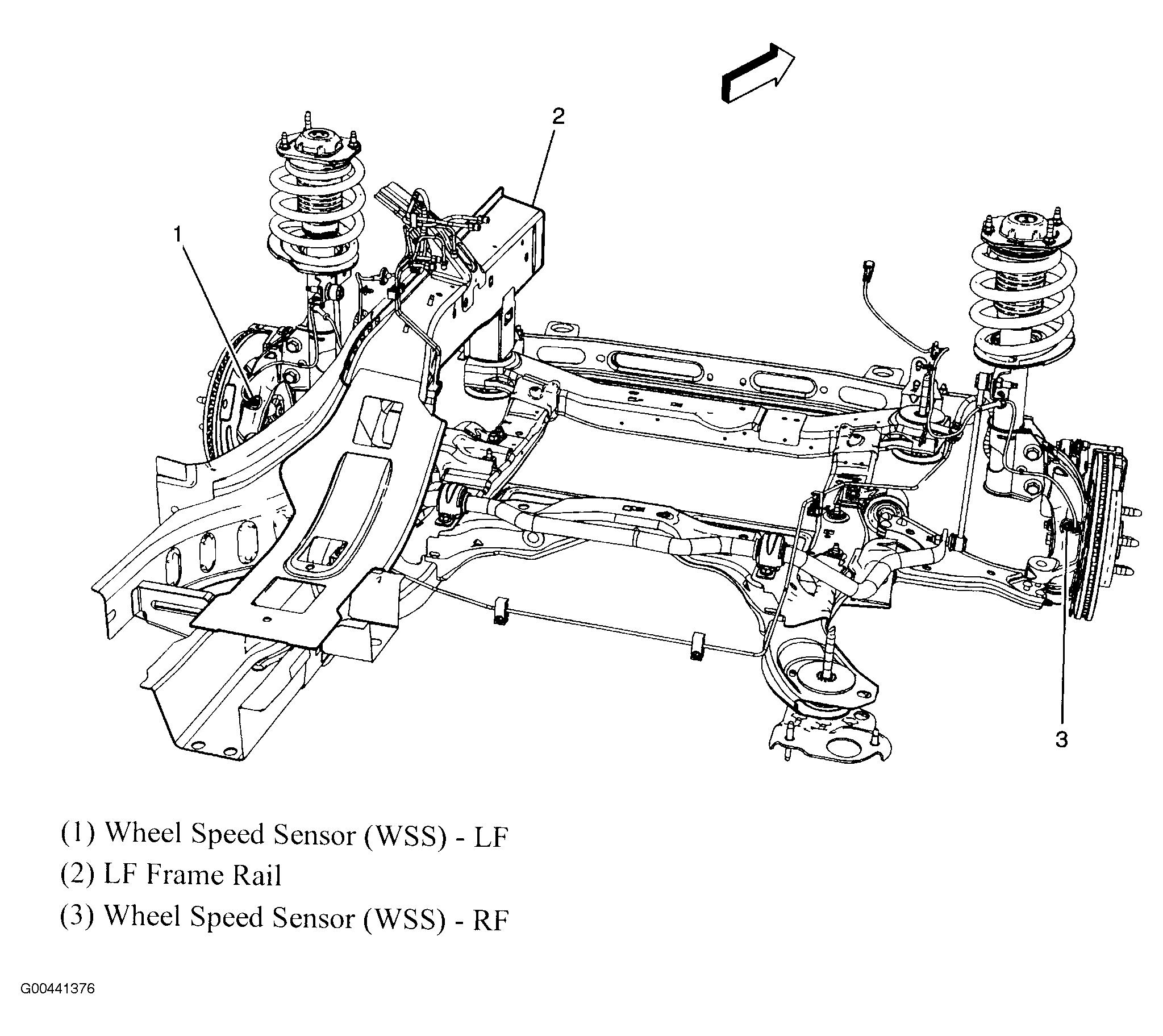

Fig 4: Front Axle
Courtesy of GENERAL MOTORS CORP.

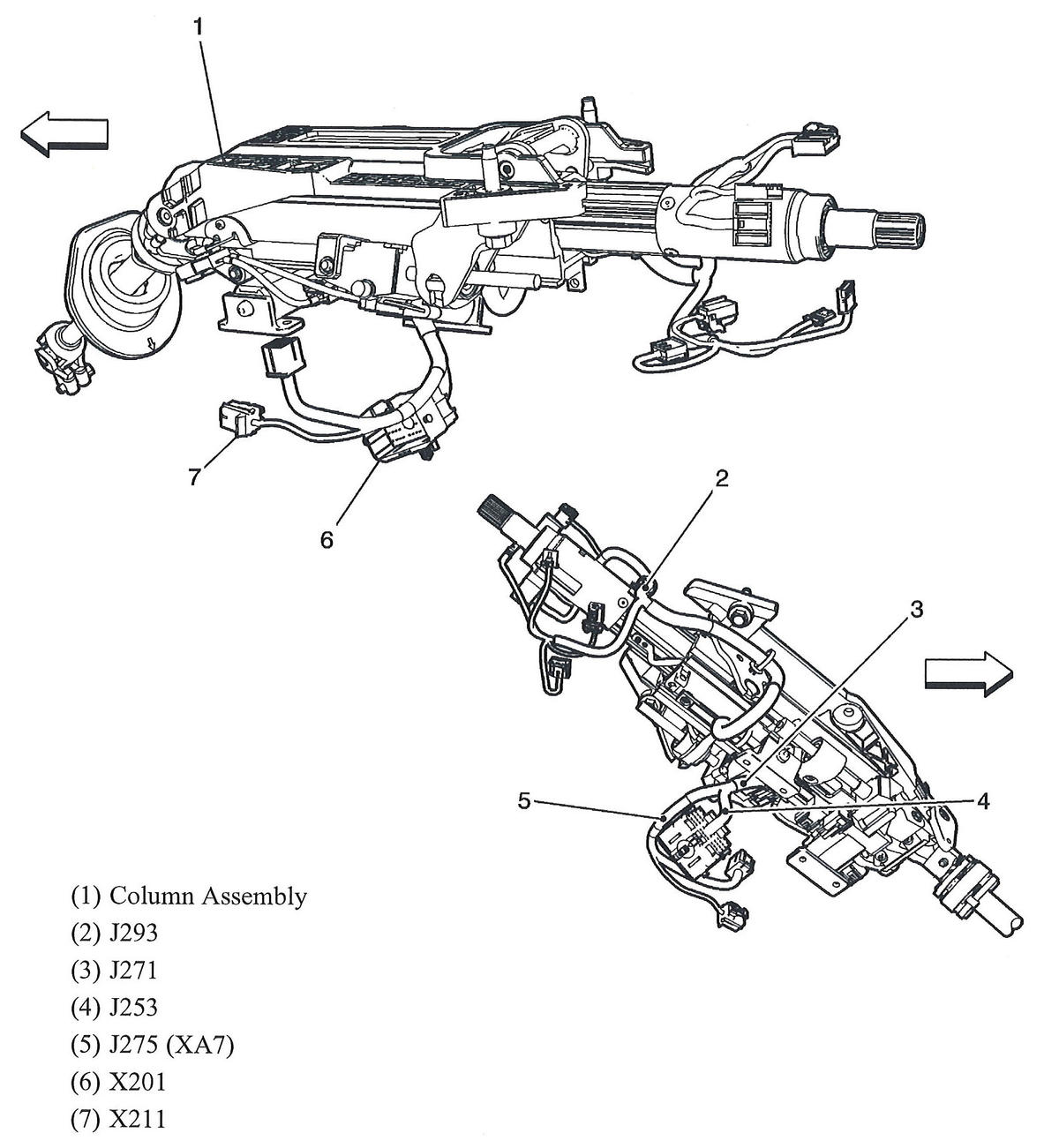

Fig 5: Steering Column
Courtesy of GENERAL MOTORS CORP.

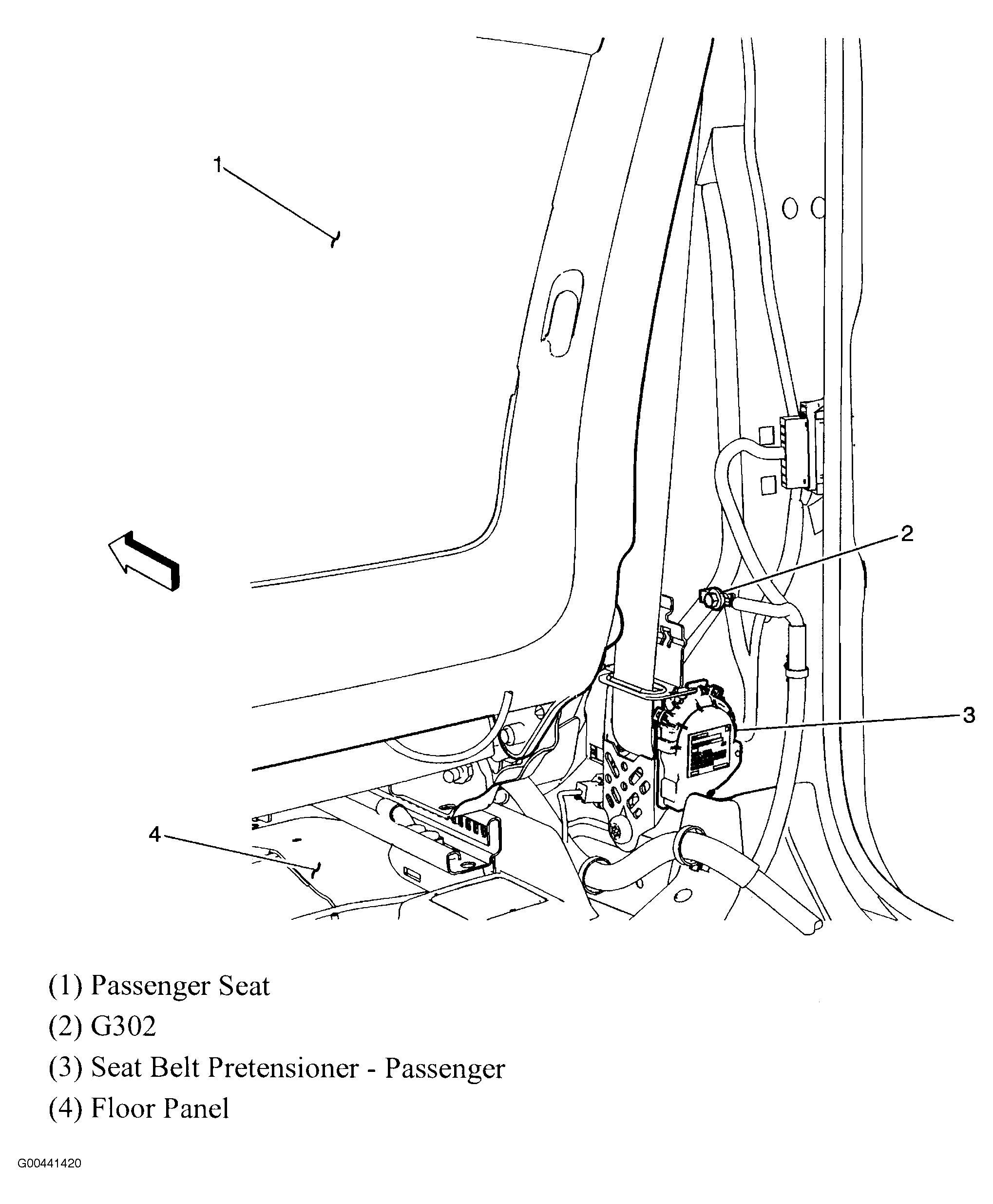

Fig 6: Vehicle Right Front Floor
Courtesy of GENERAL MOTORS CORP.

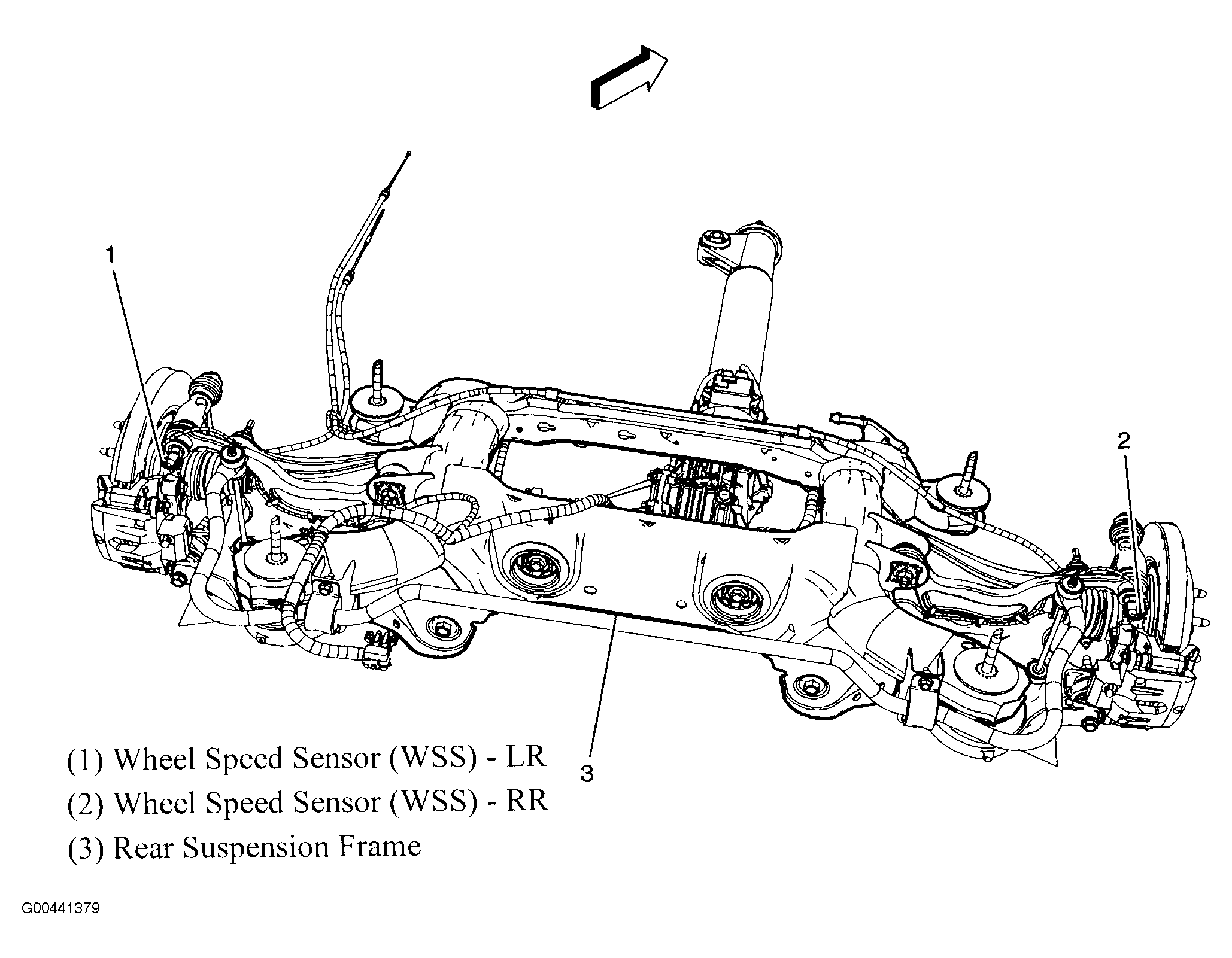

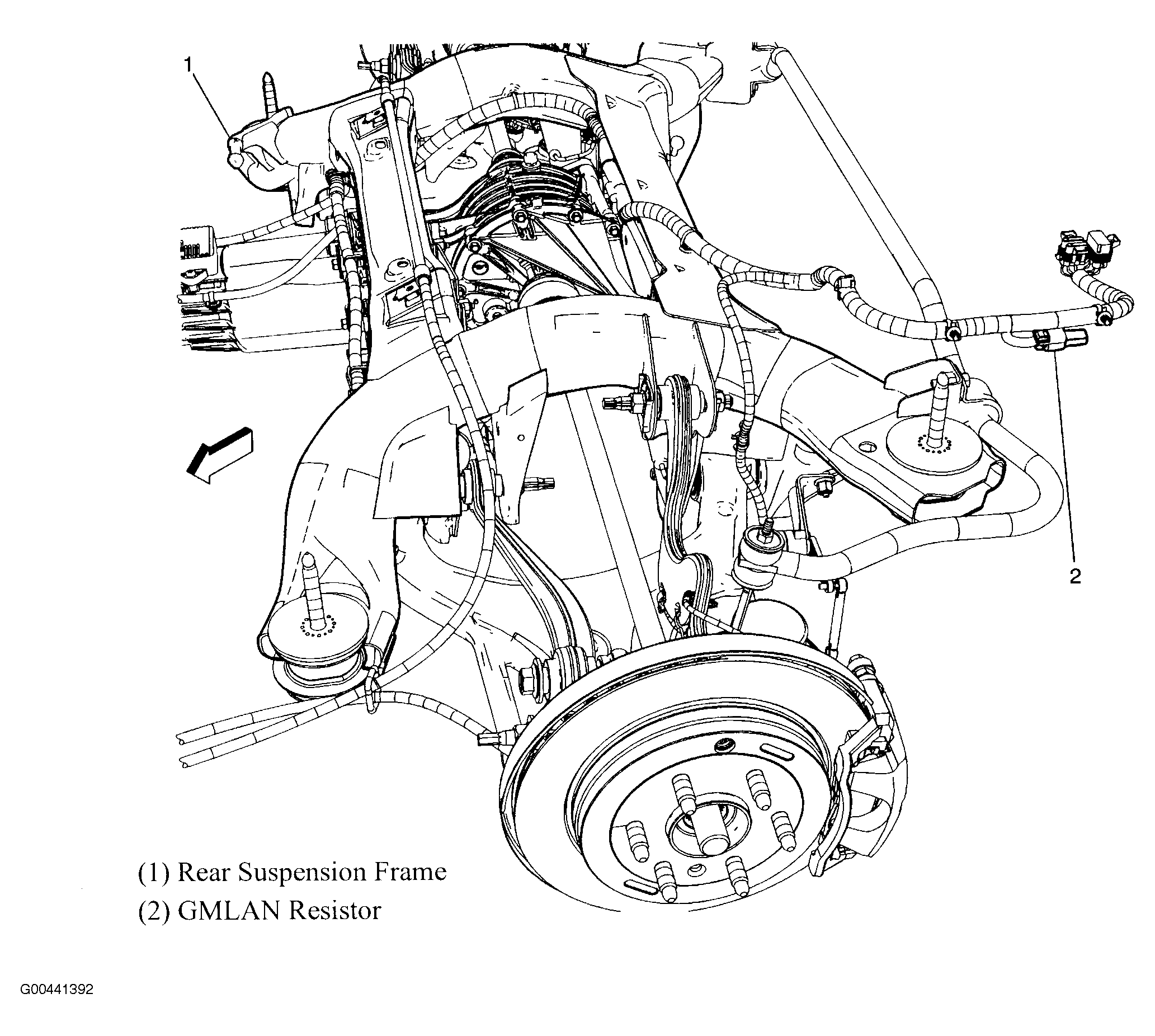

Fig 7: Rear Axle
Courtesy of GENERAL MOTORS CORP.

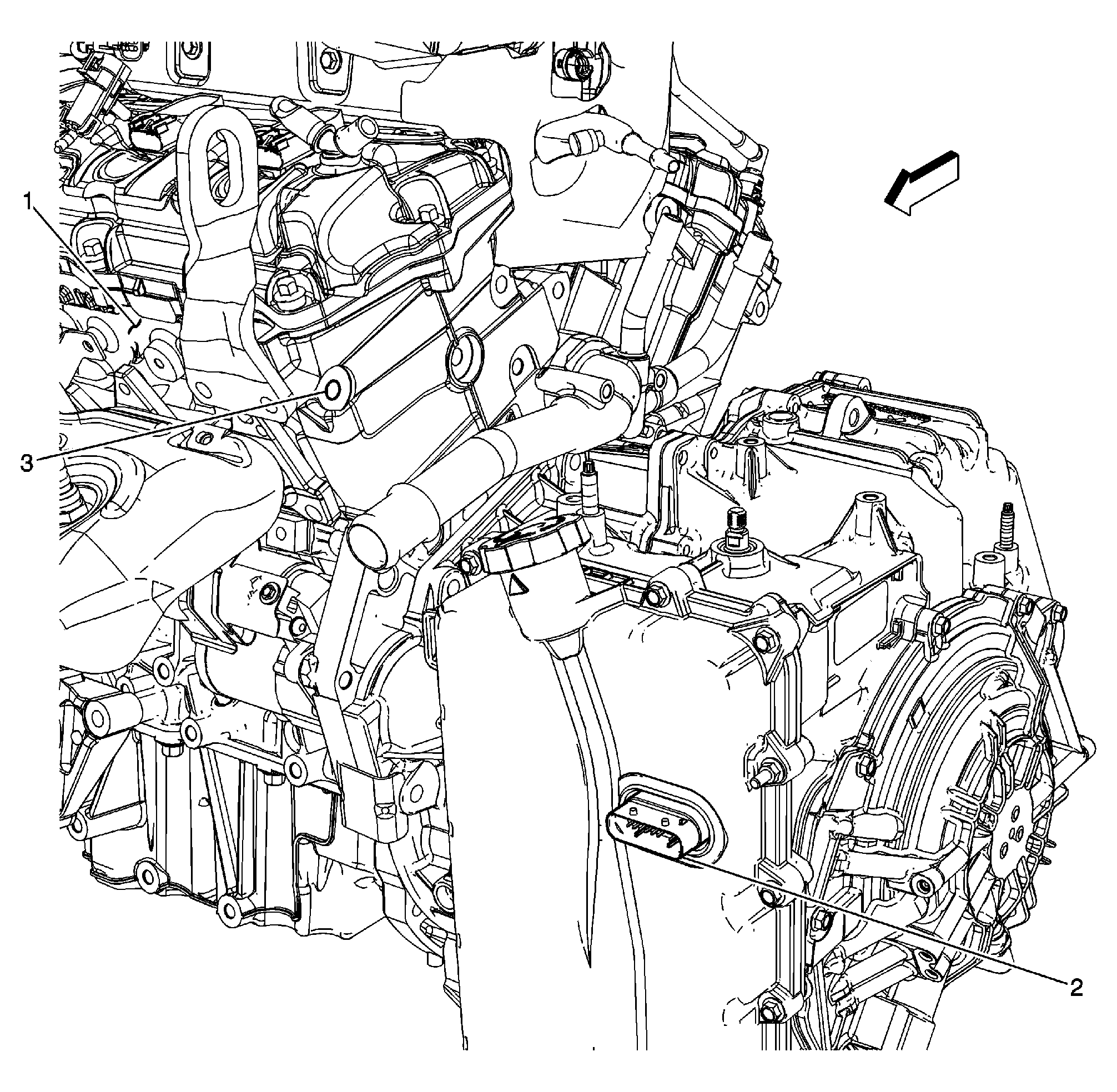

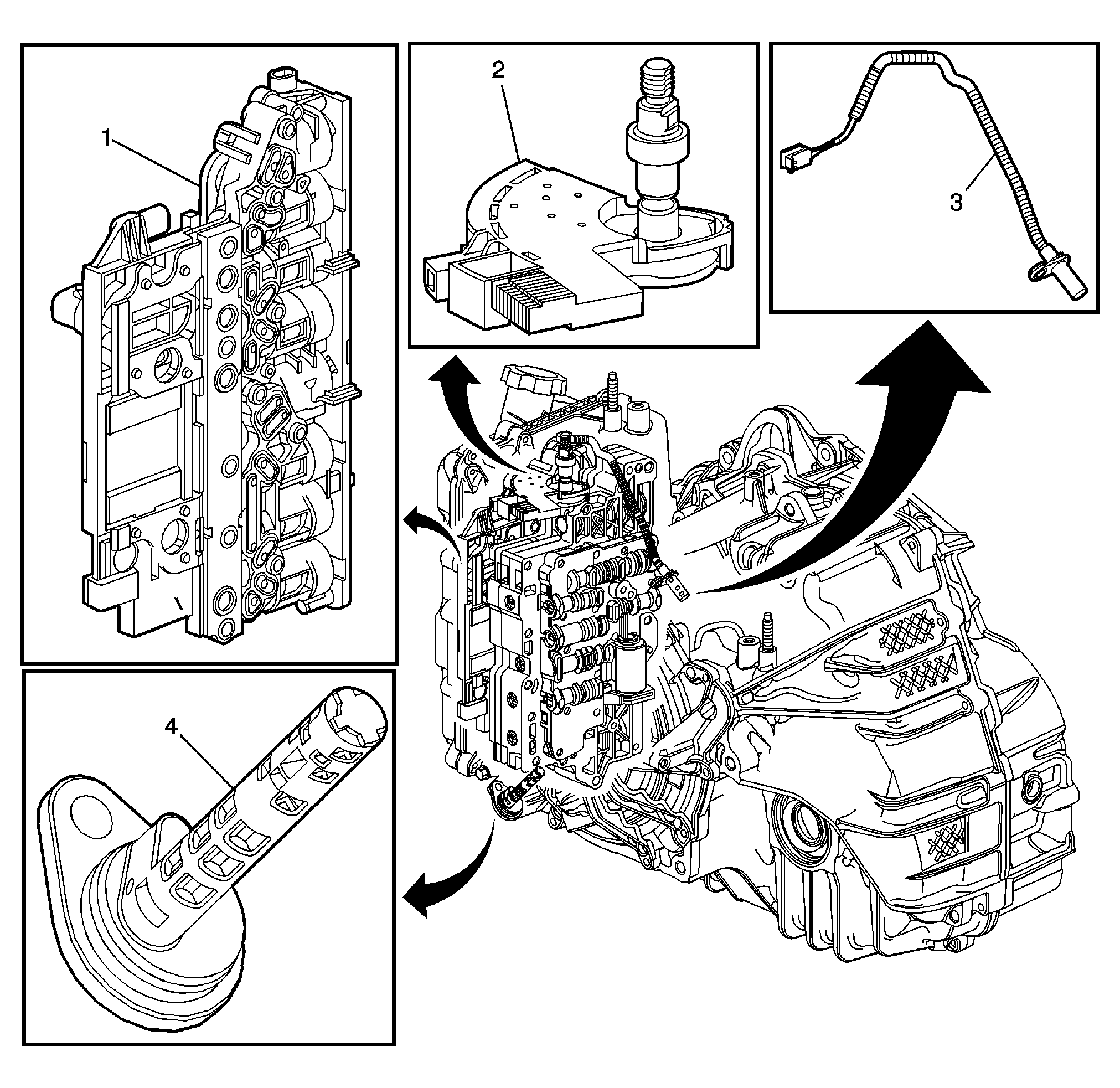

Fig 8: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 9: Behind Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.

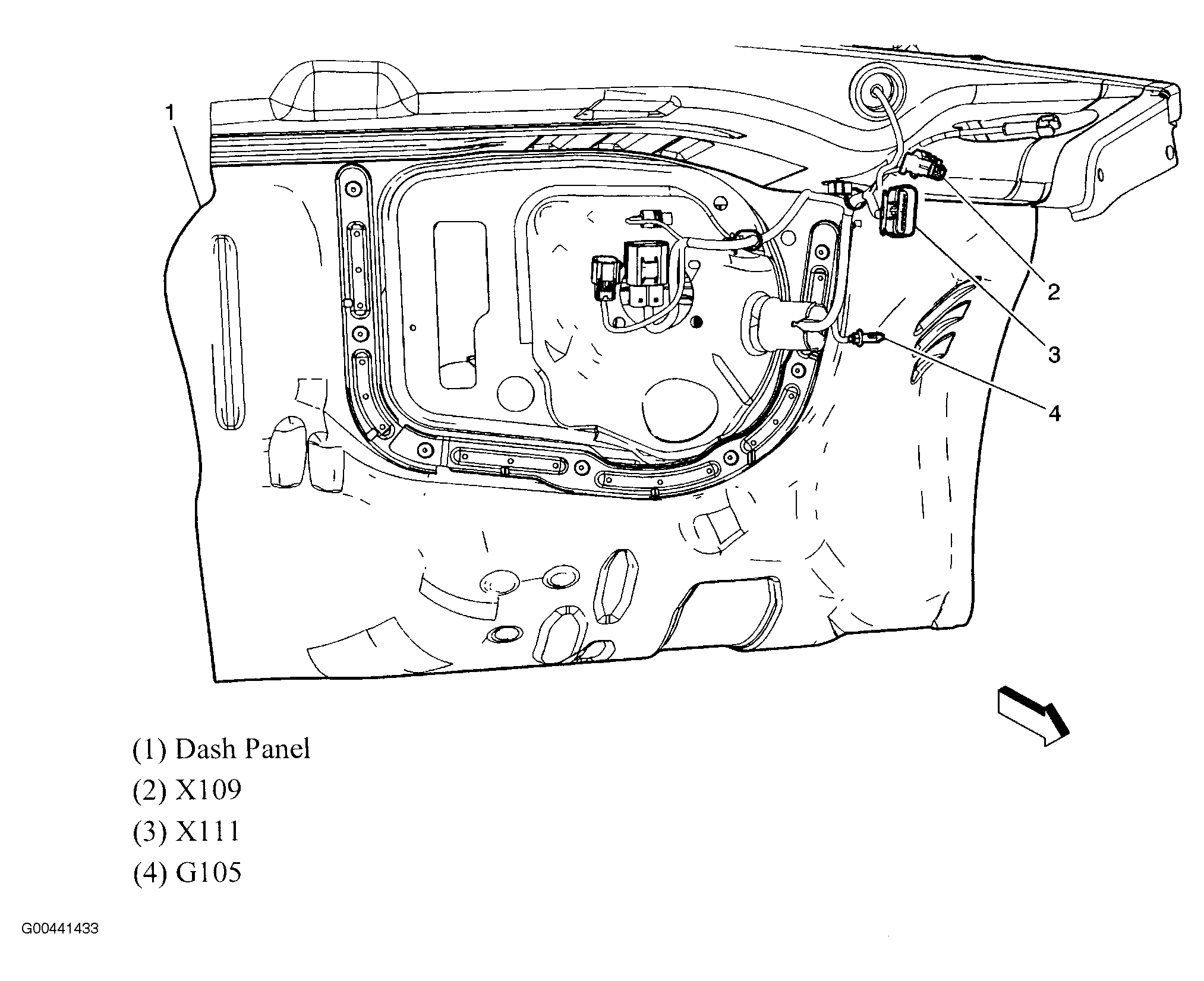

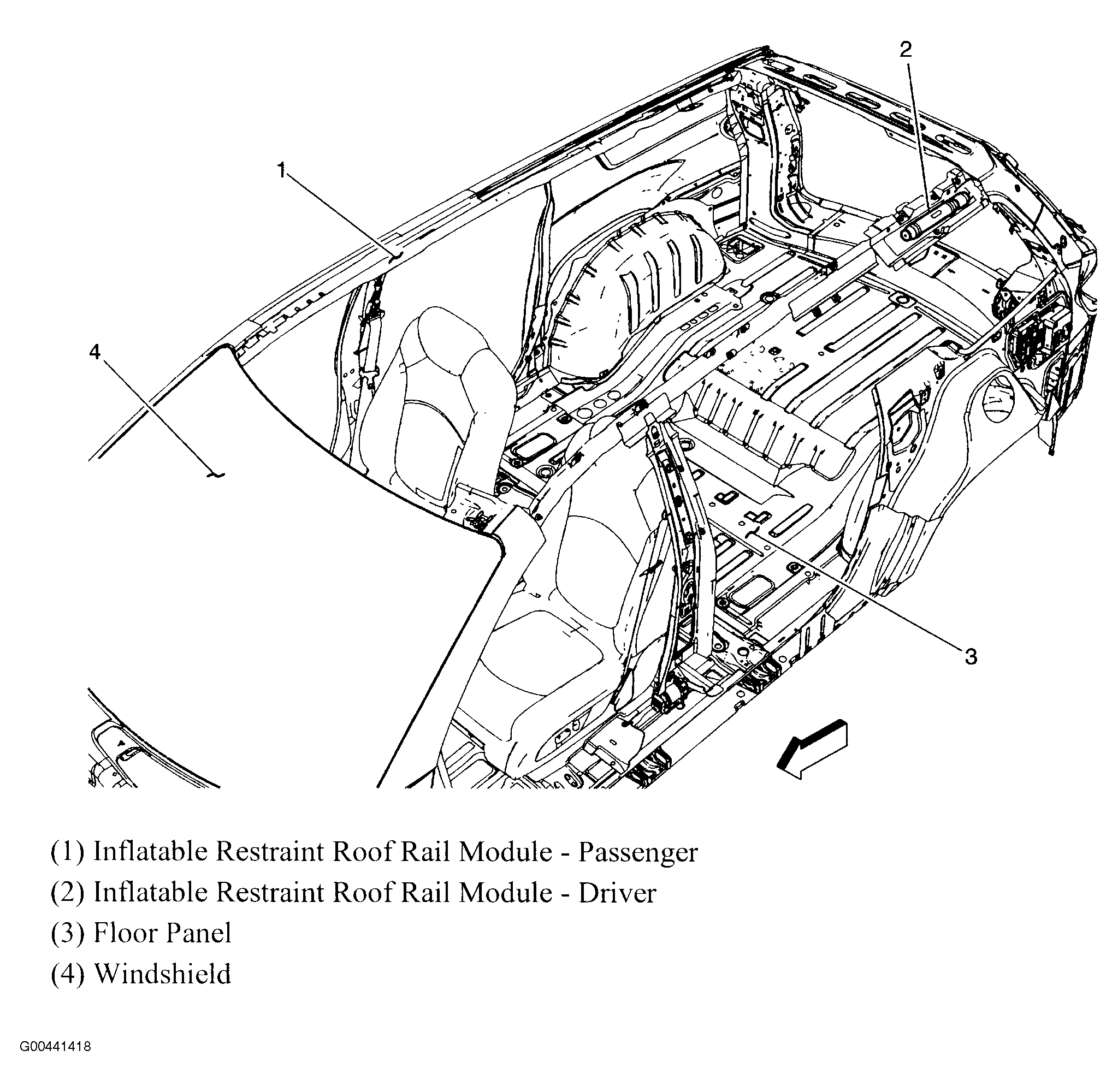

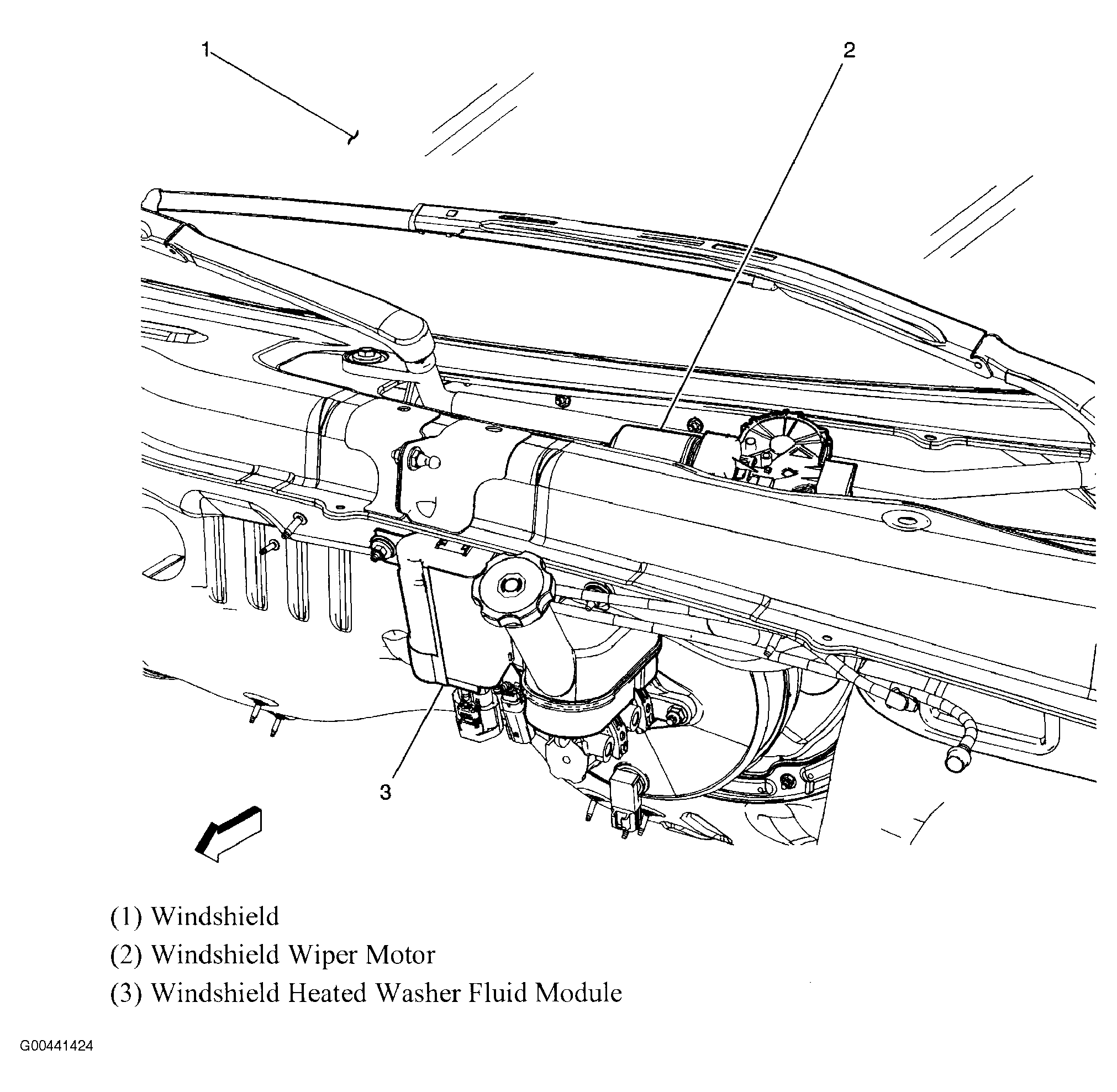

Fig 10: Front Of Dash
Courtesy of GENERAL MOTORS CORP.

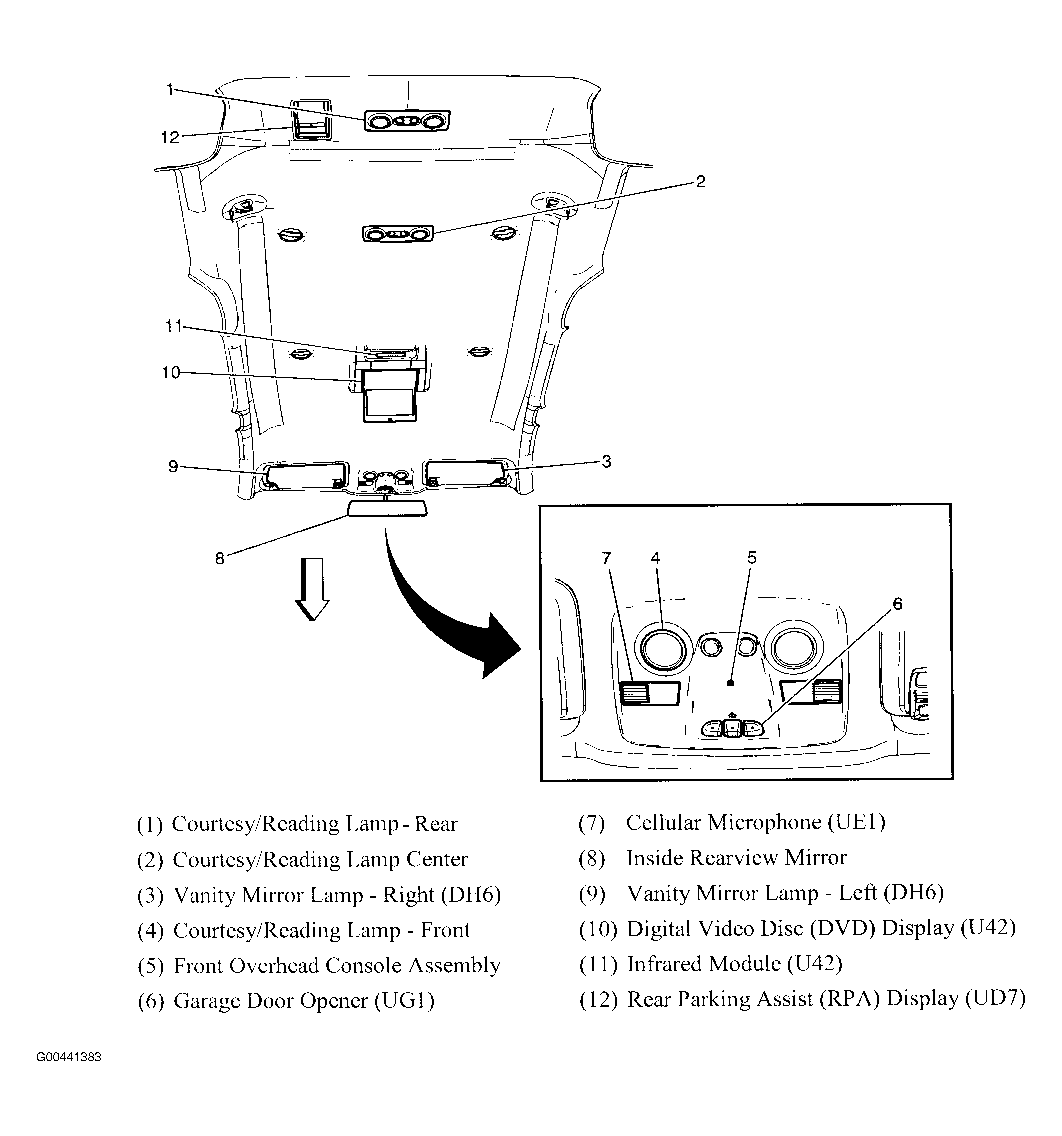

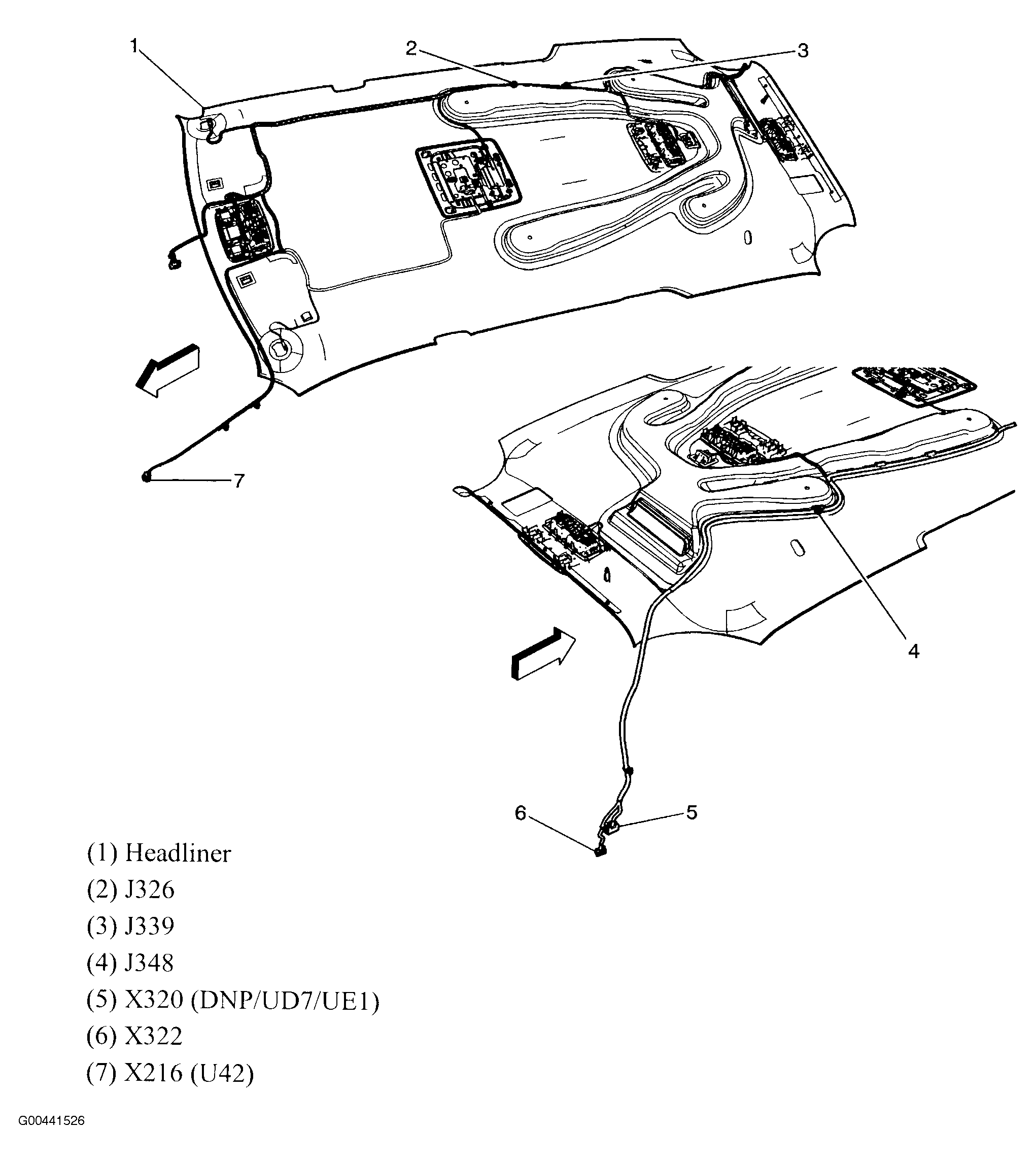

Fig 11: Headliner
Courtesy of GENERAL MOTORS CORP.

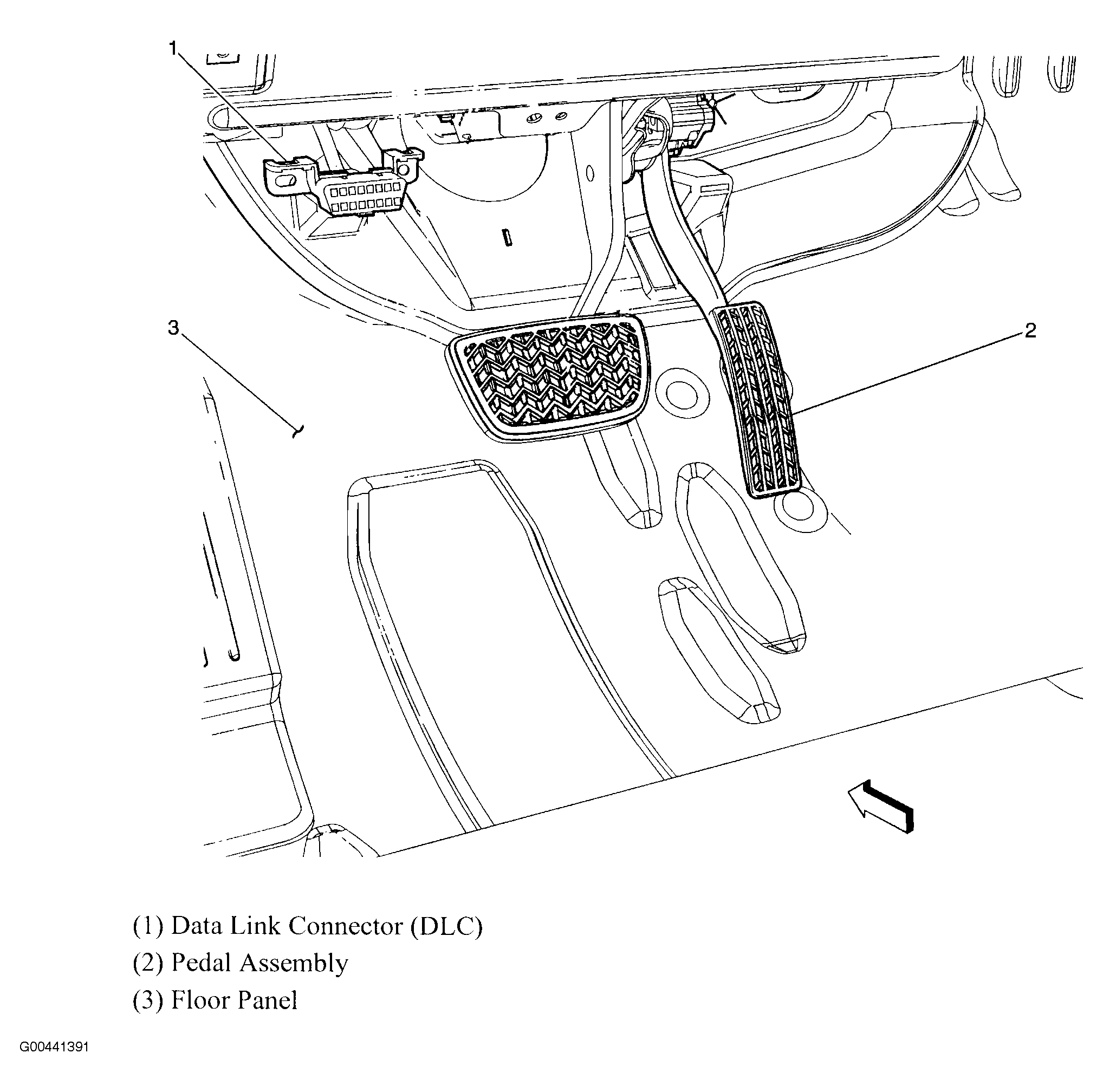

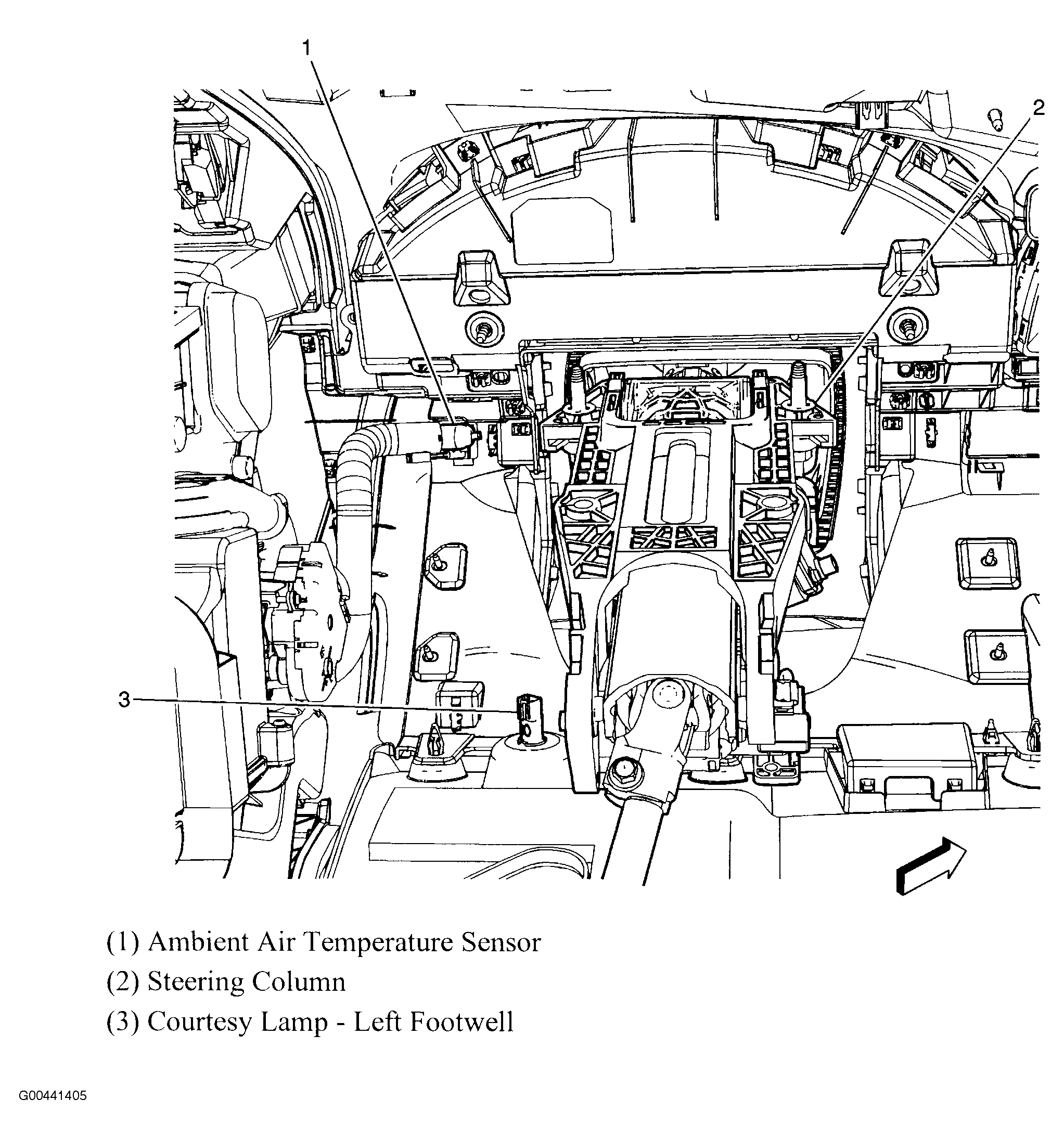

Fig 12: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

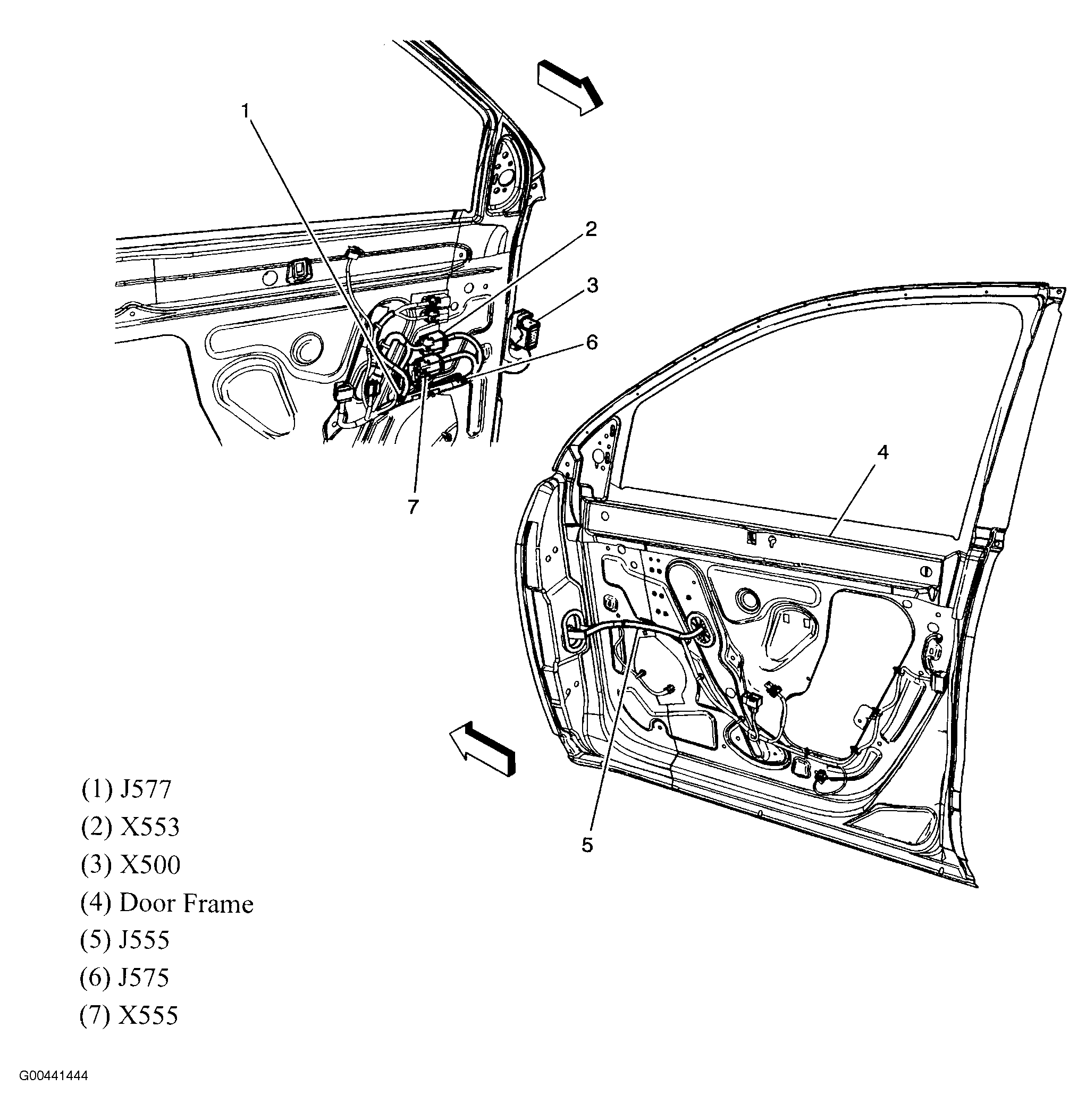

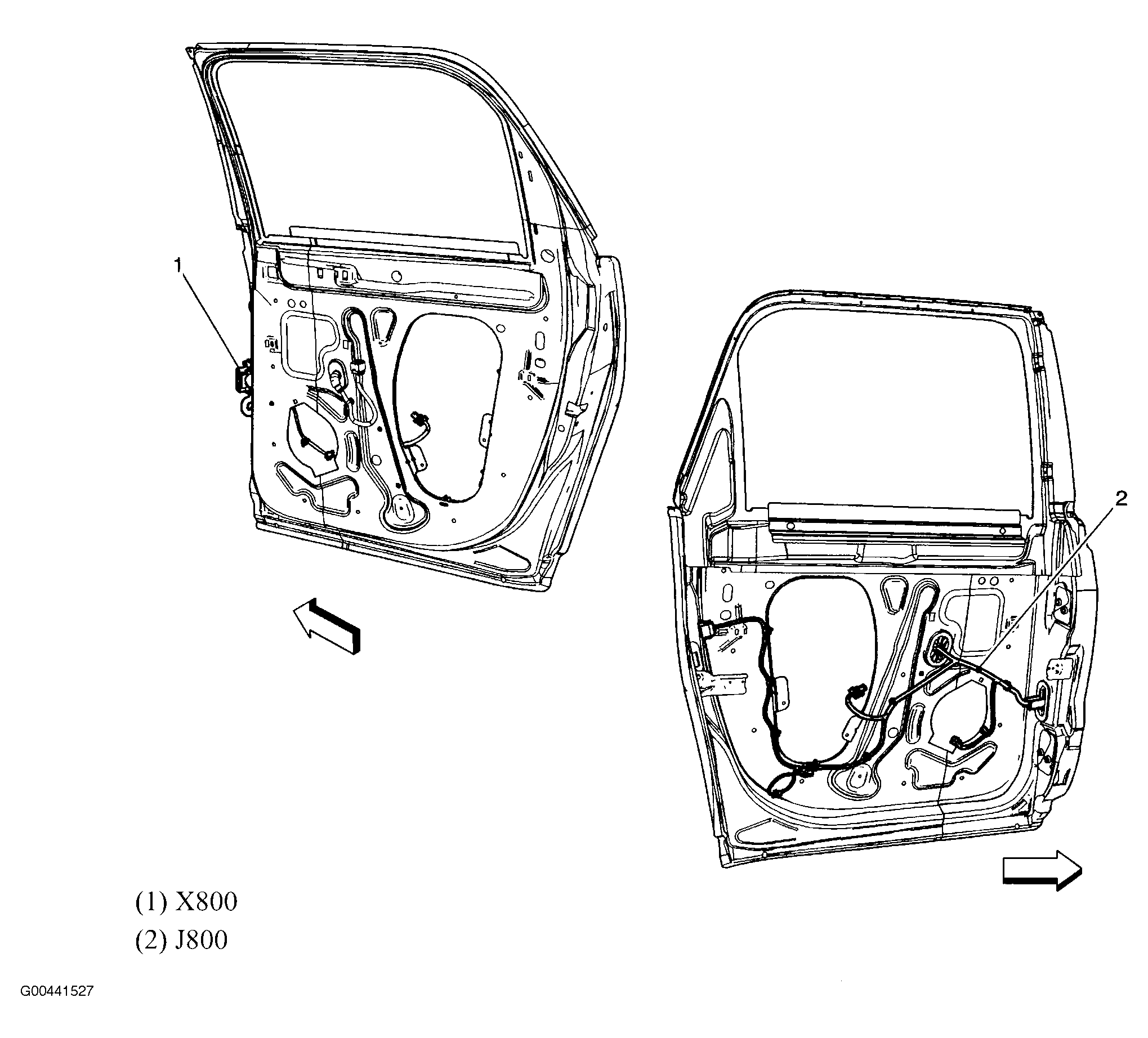

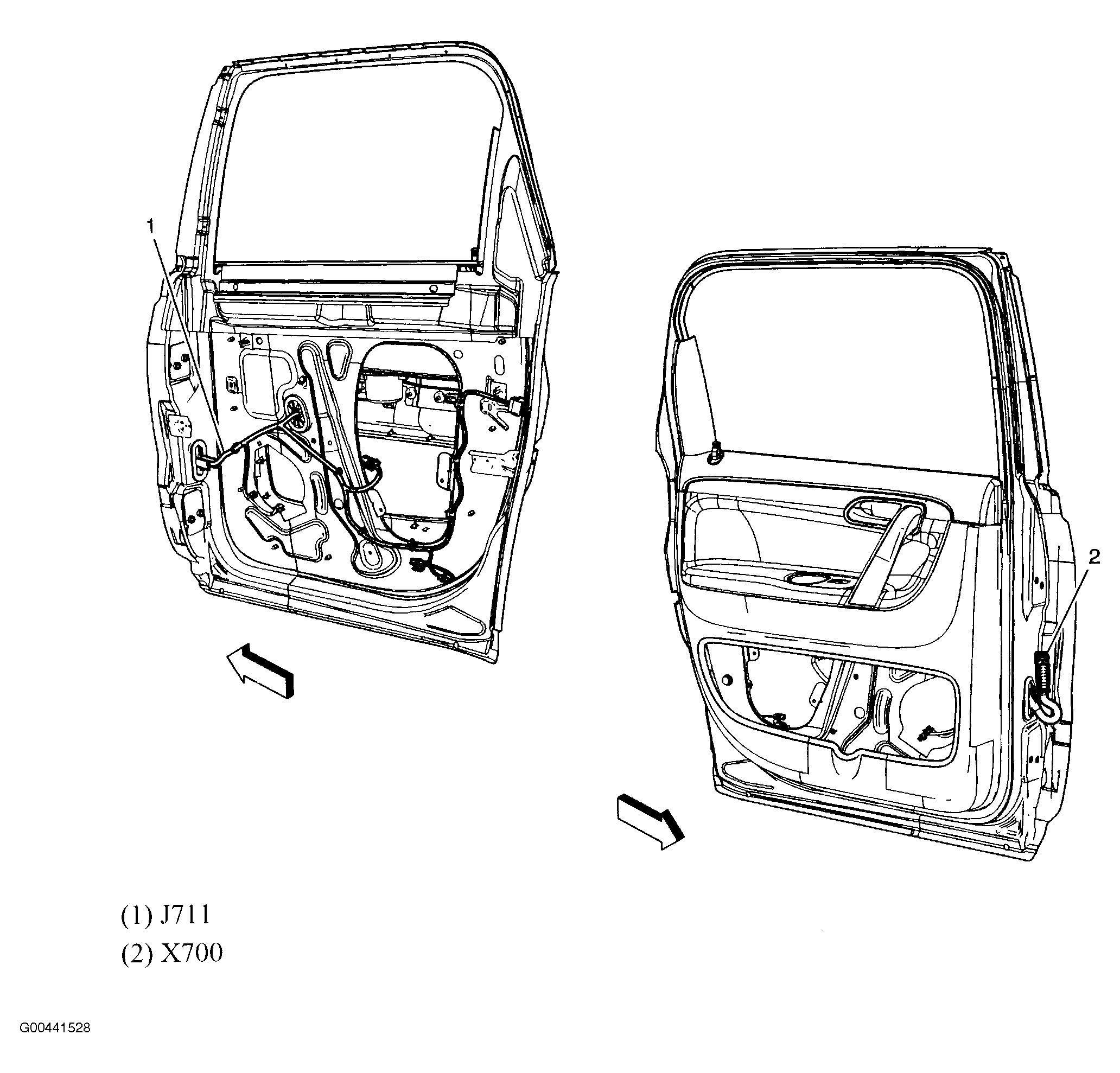

Fig 13: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 14: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.

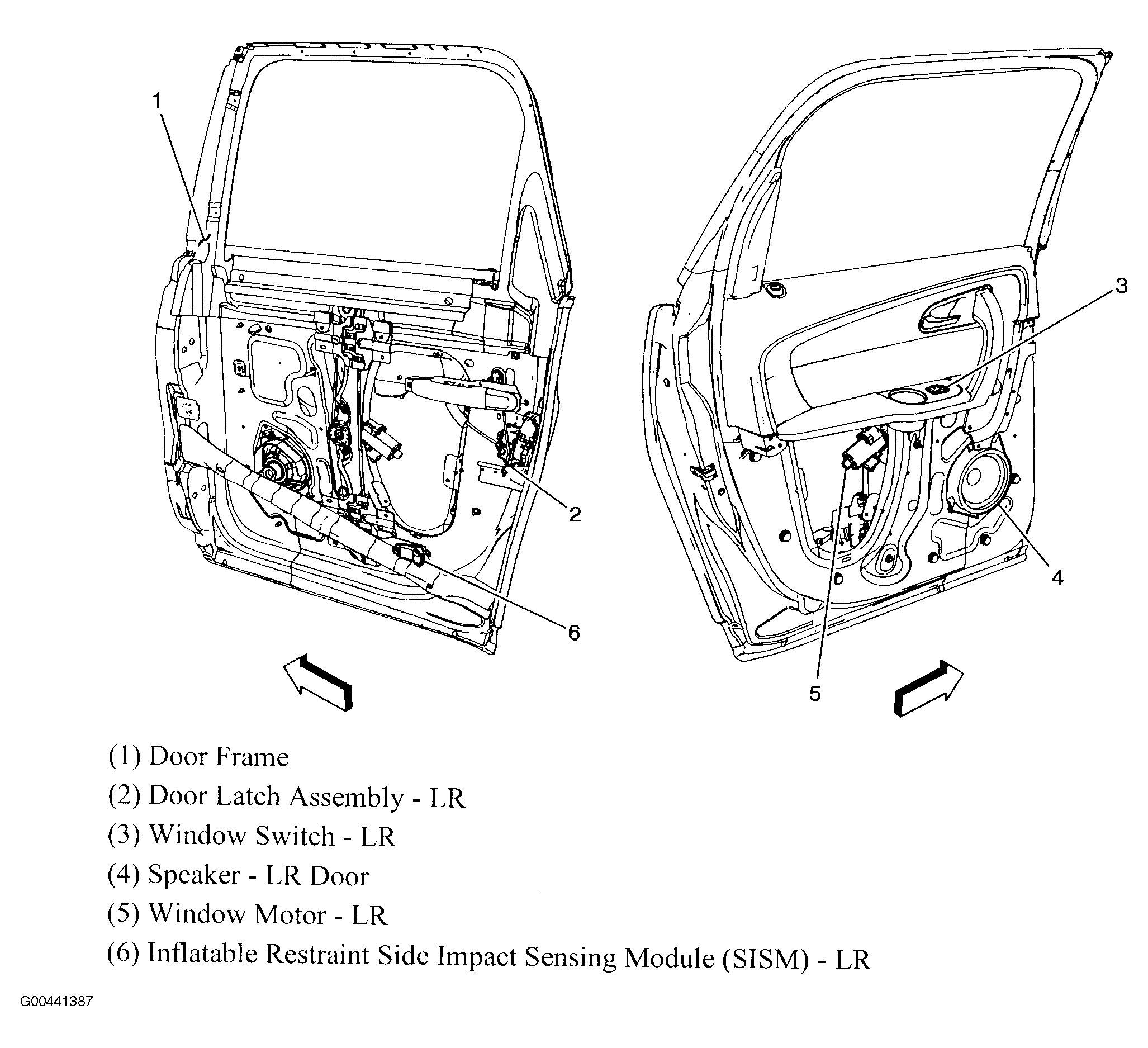

Fig 15: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

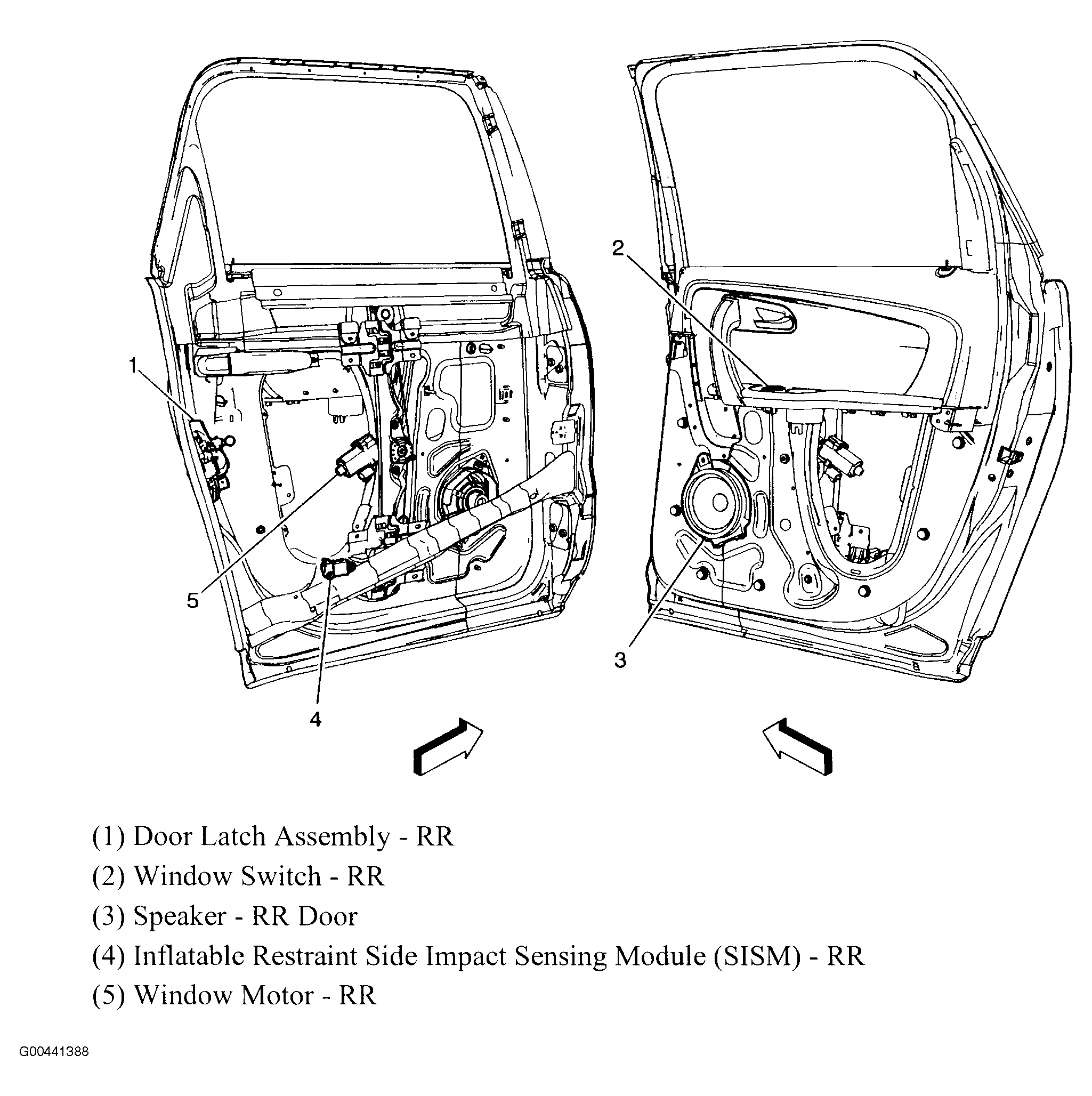

Fig 16: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

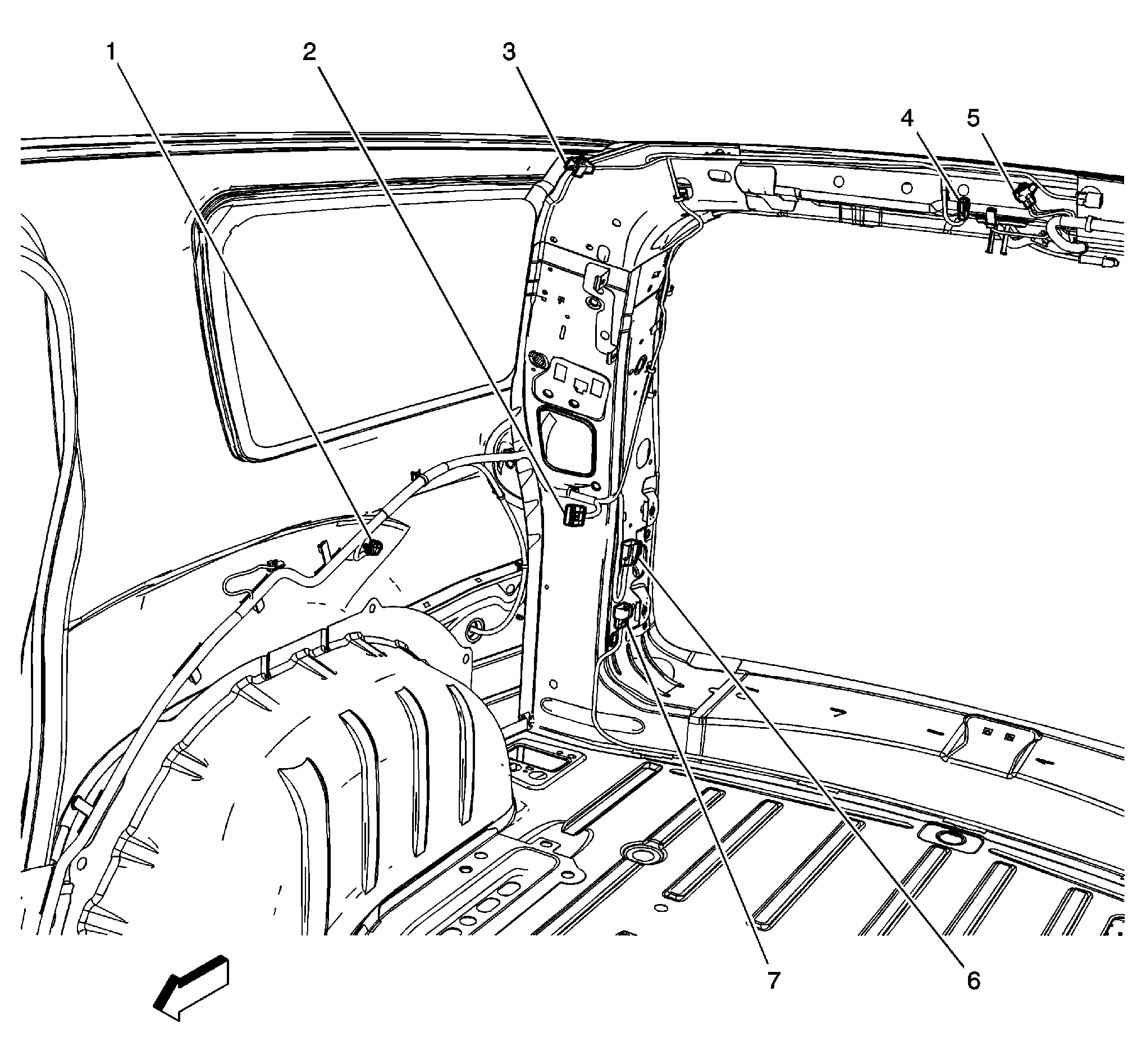

Fig 17: Left Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

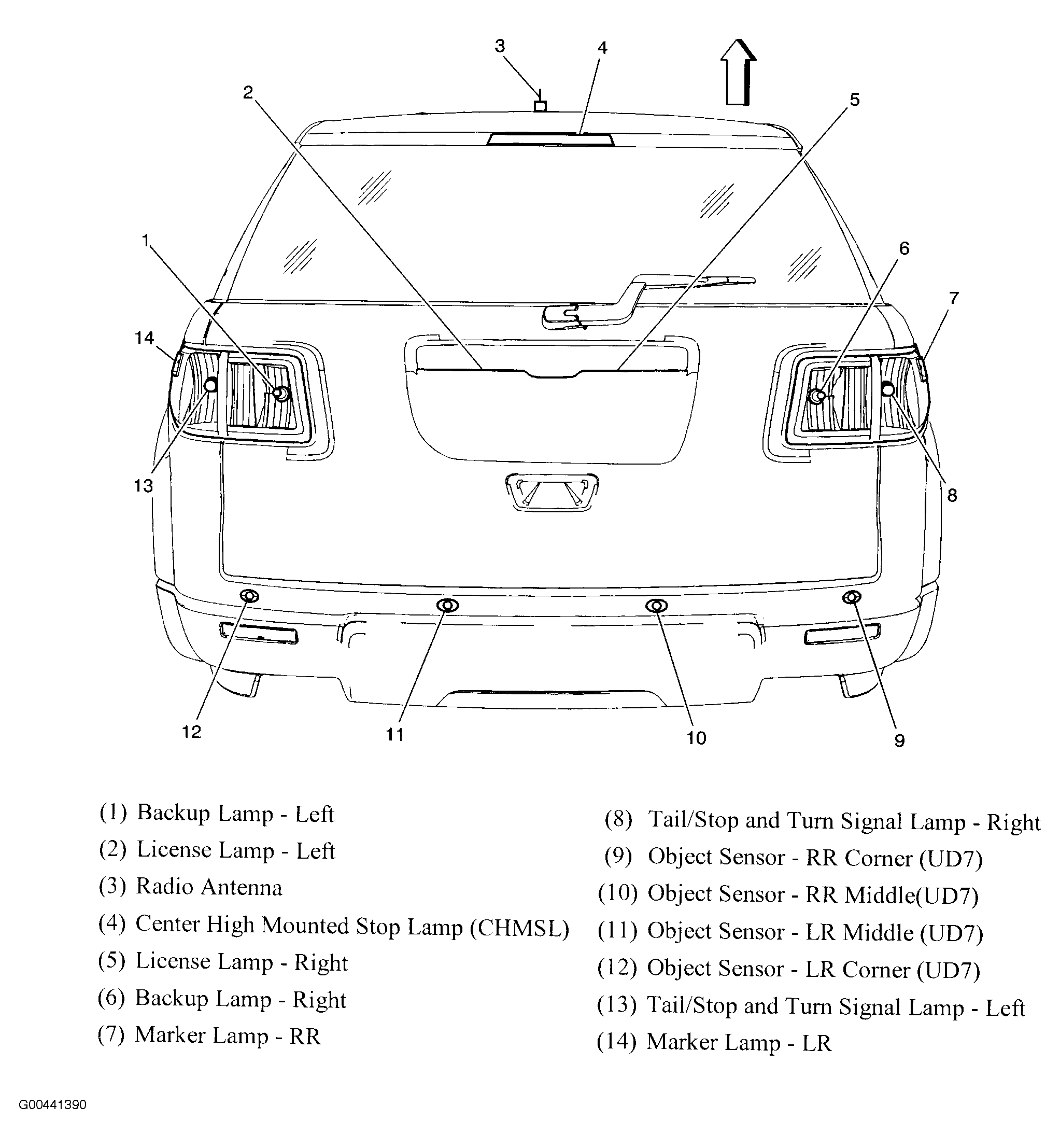

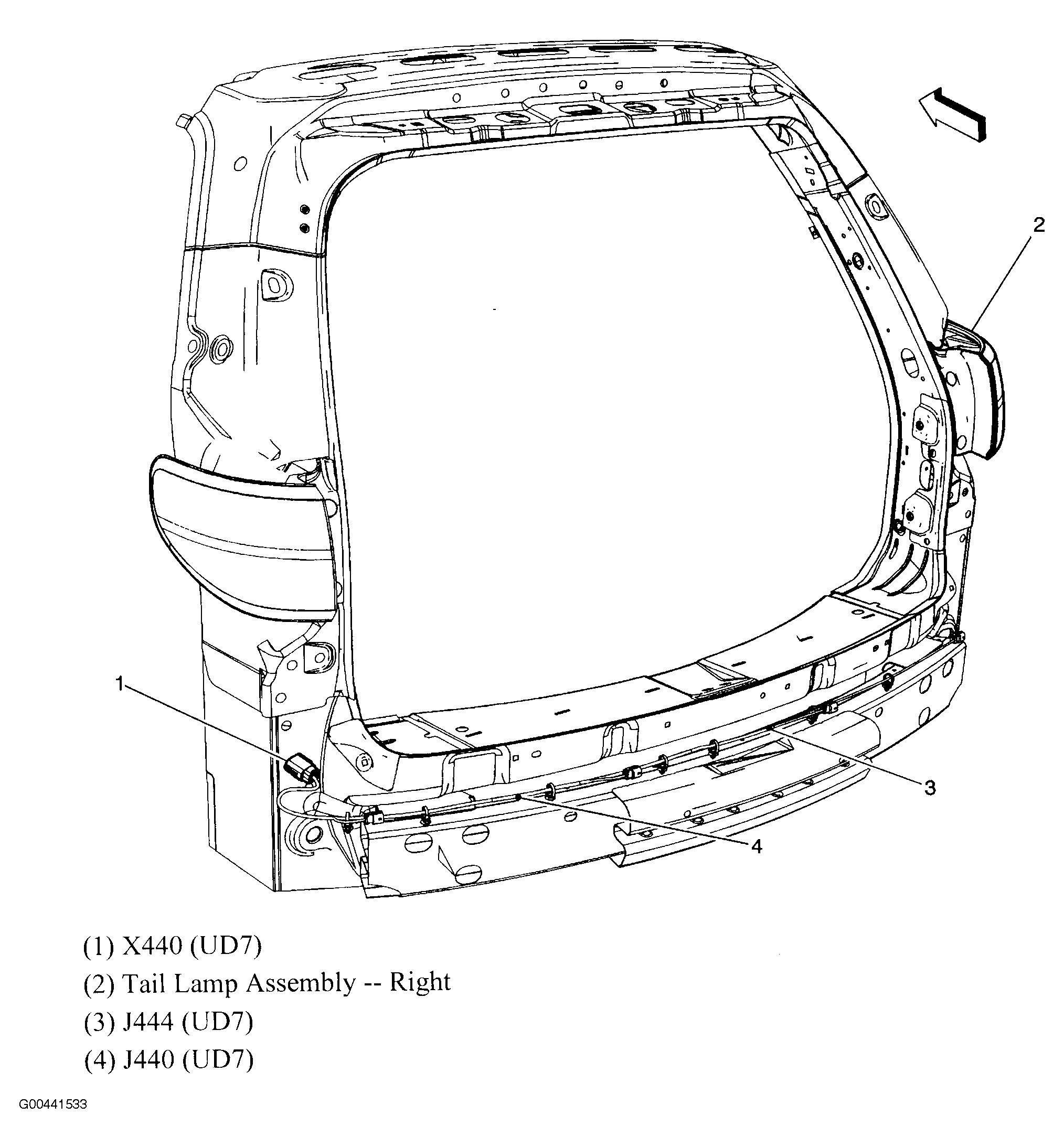

Fig 18: Rear Of Vehicle (Acadia & Outlook)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 20: Rear Chassis
Courtesy of GENERAL MOTORS CORP.

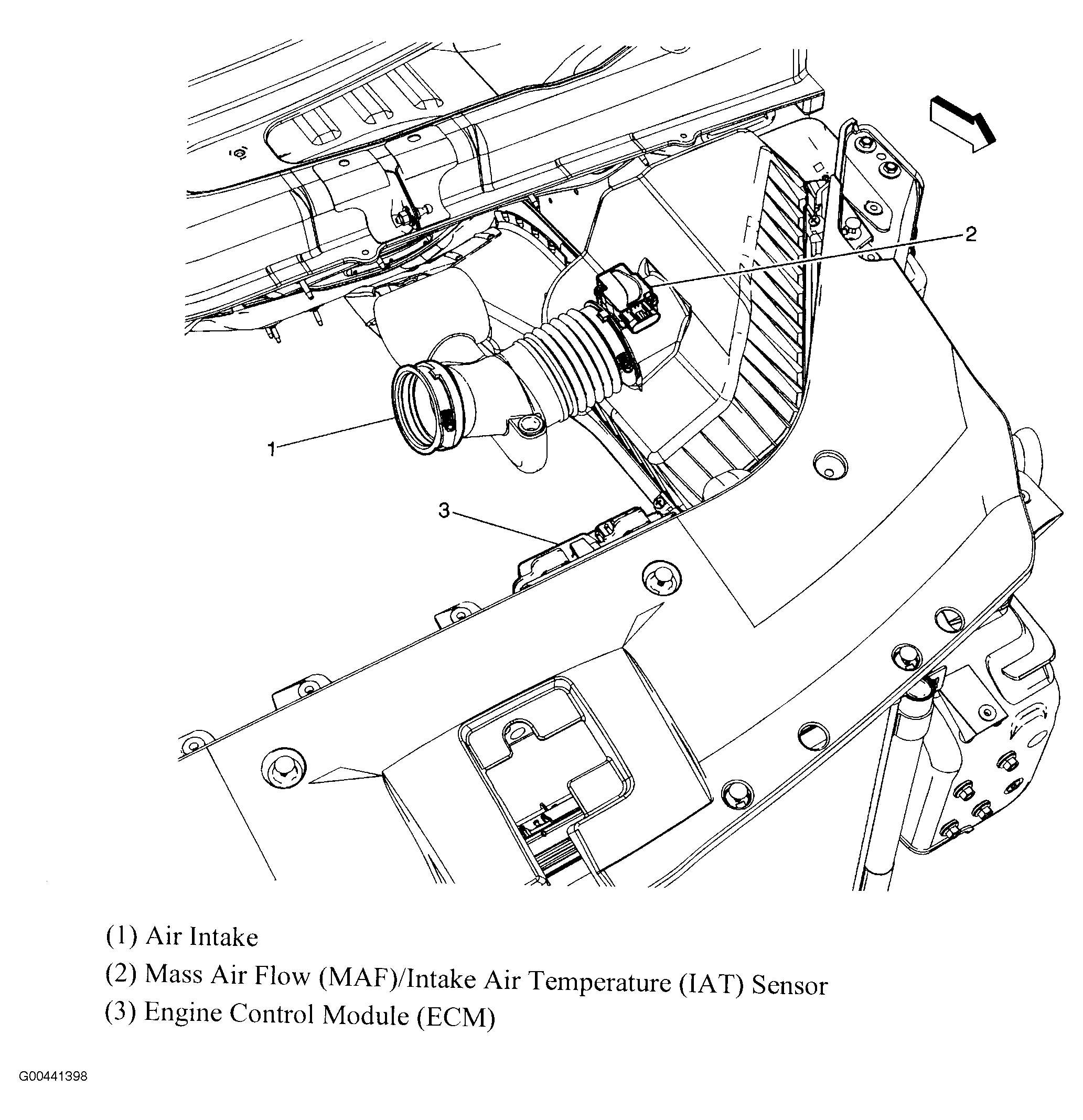

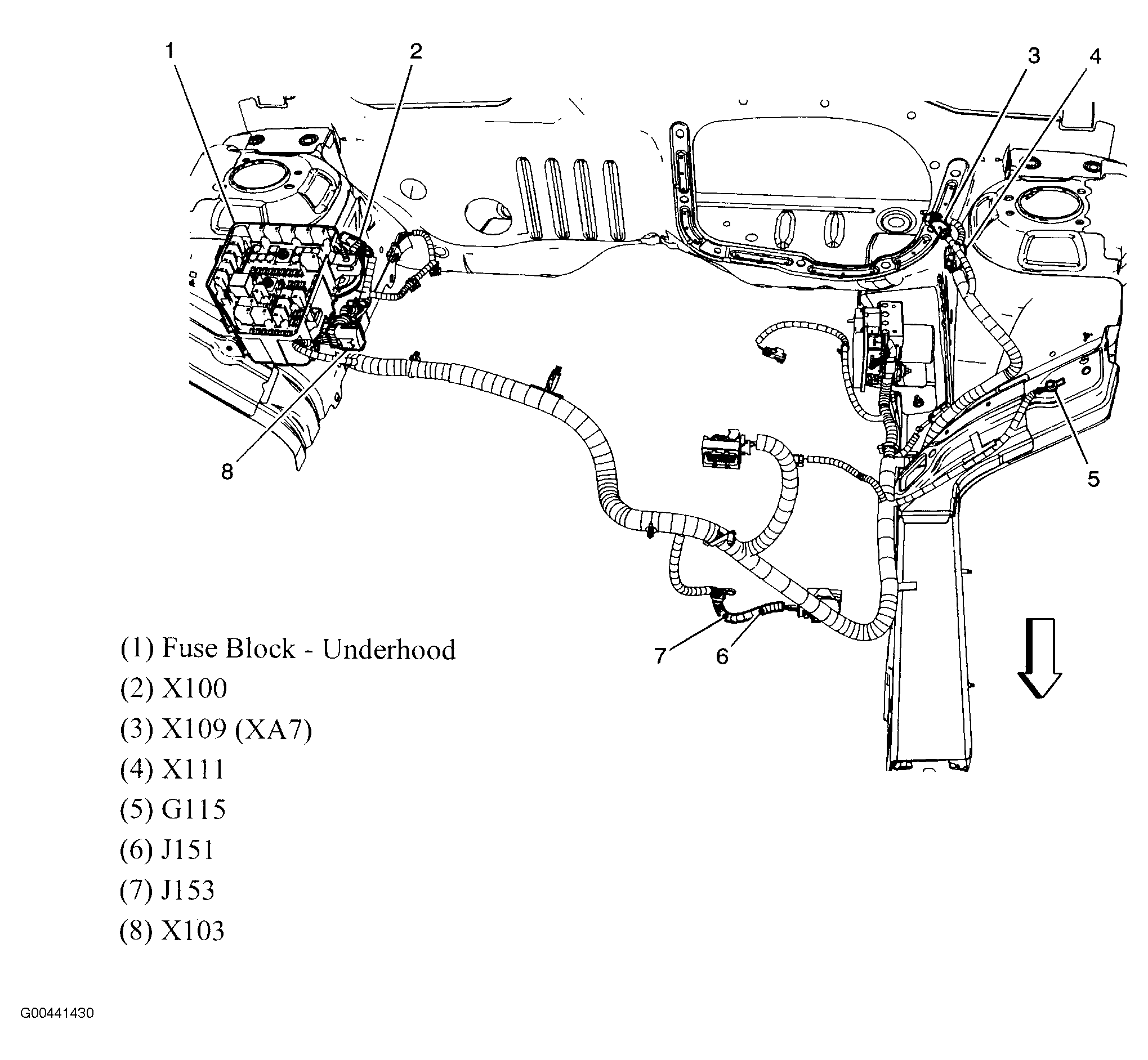

Fig 21: Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

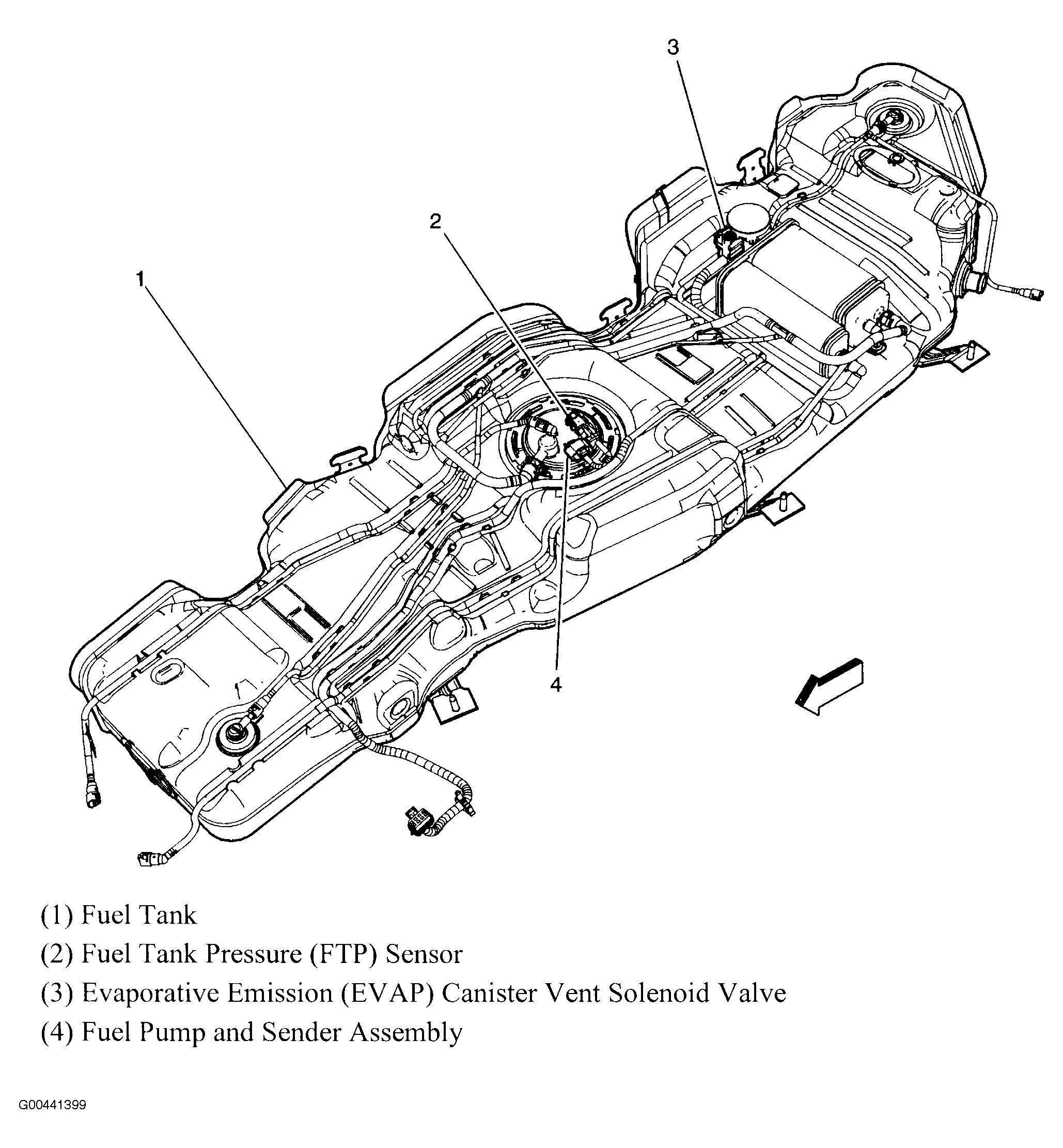

Fig 22: Fuel Tank
Courtesy of GENERAL MOTORS CORP.

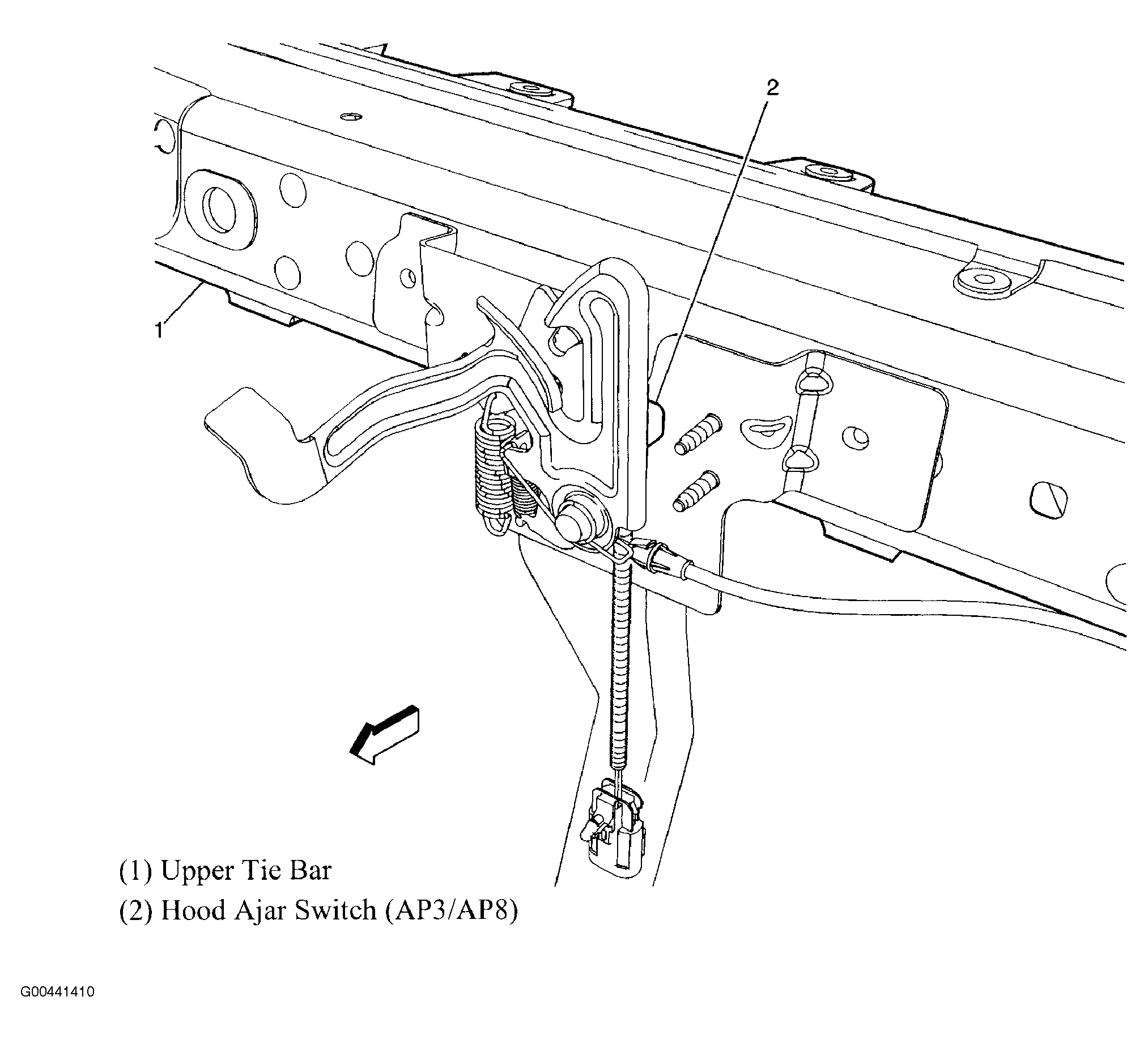

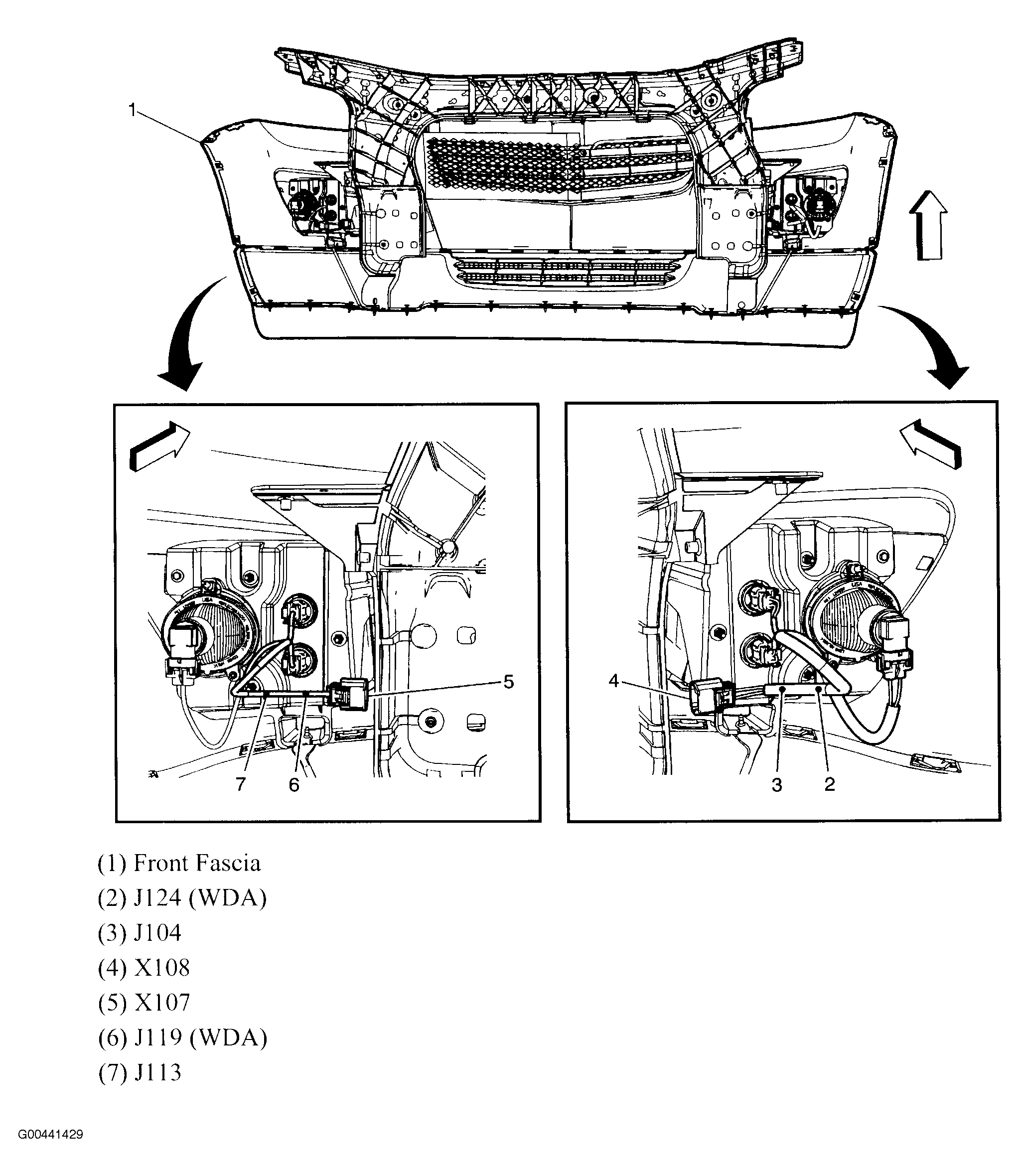

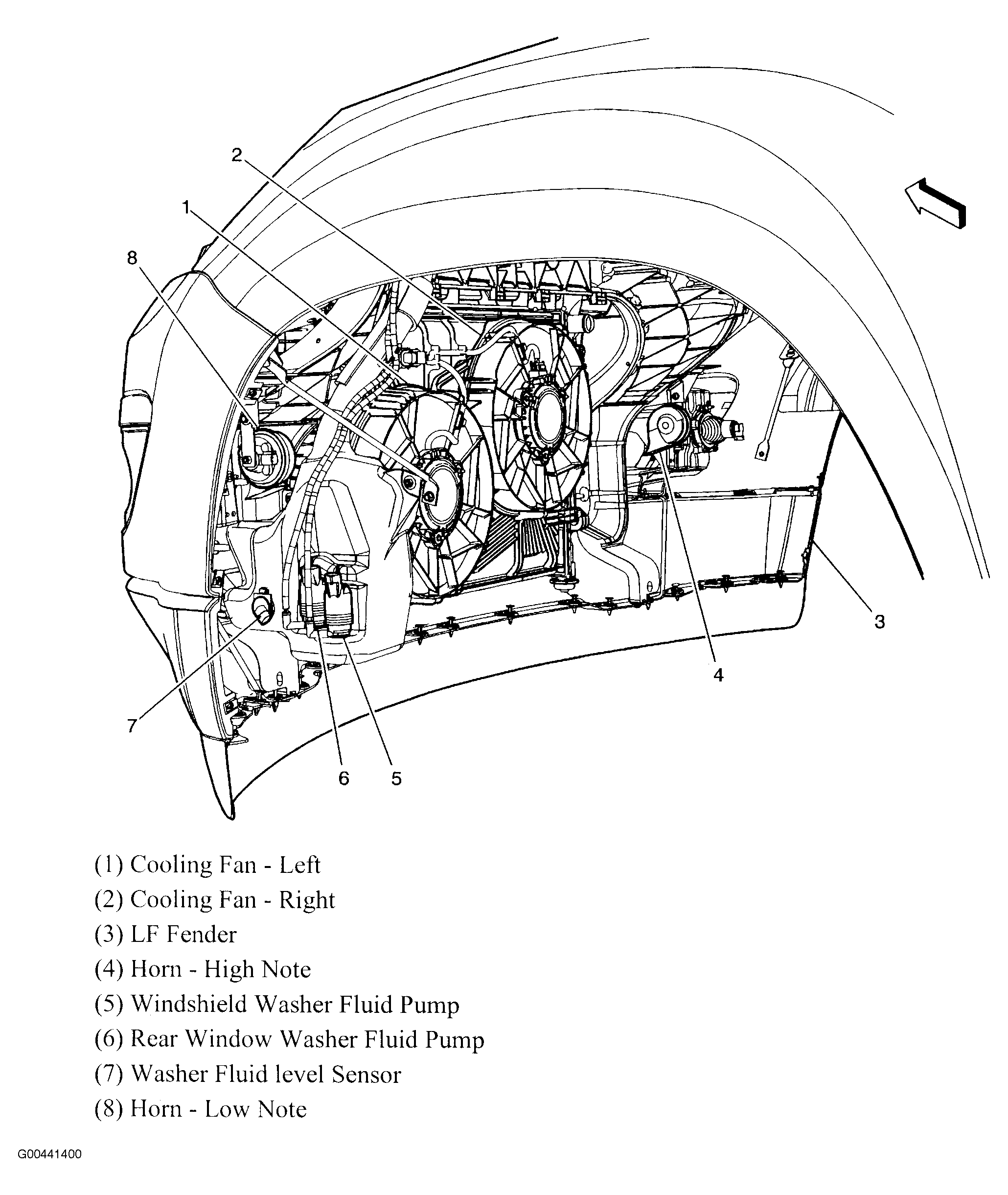

Fig 23: Behind Front Fascia
Courtesy of GENERAL MOTORS CORP.

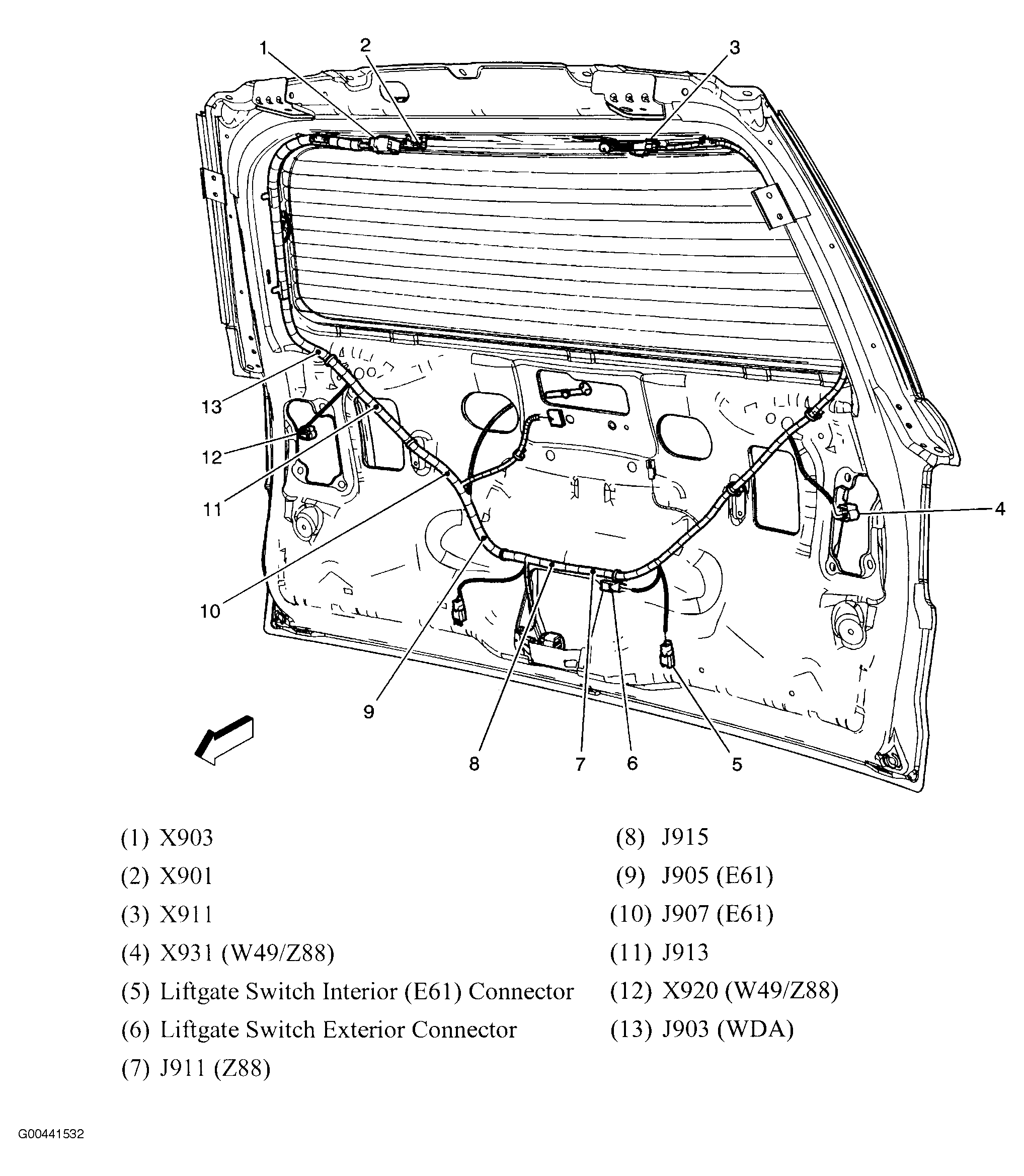

Fig 24: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 25: Behind Front Fascia
Courtesy of GENERAL MOTORS CORP.
Fig 26: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

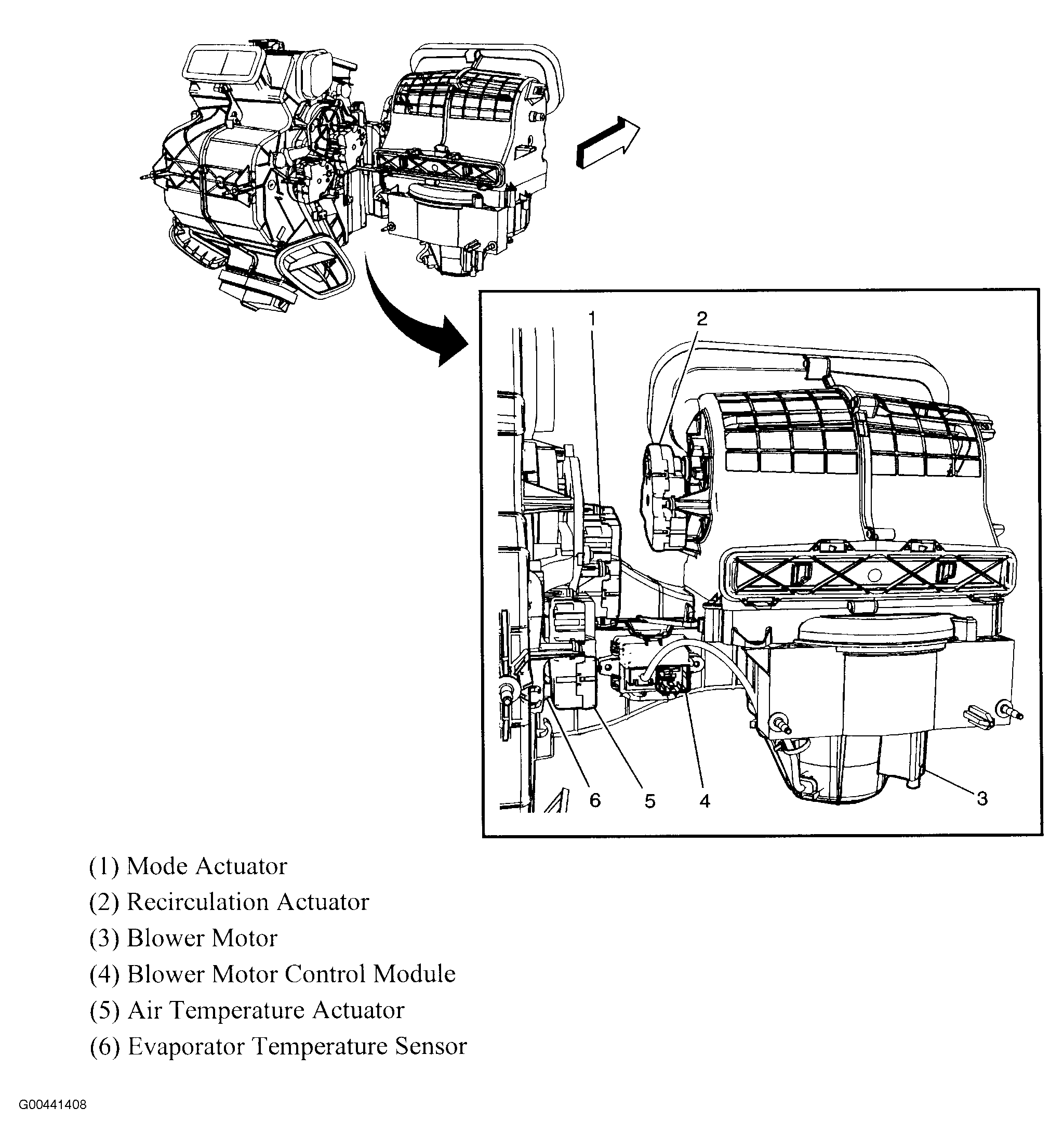

Fig 27: Front HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 28: Rear HVAC Module
Courtesy of GENERAL MOTORS CORP.
Fig 29: Front HVAC Module
Courtesy of GENERAL MOTORS CORP.

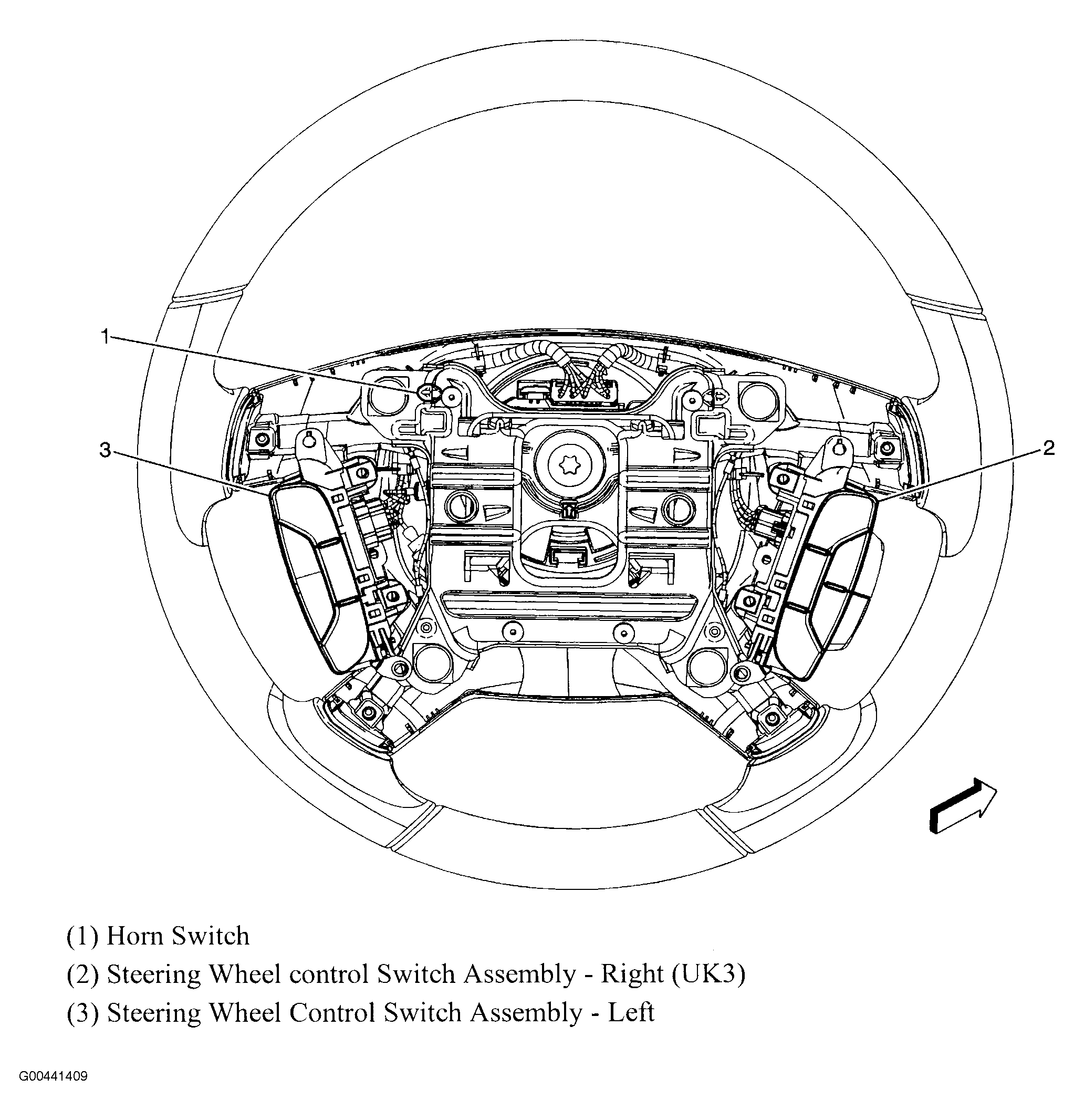

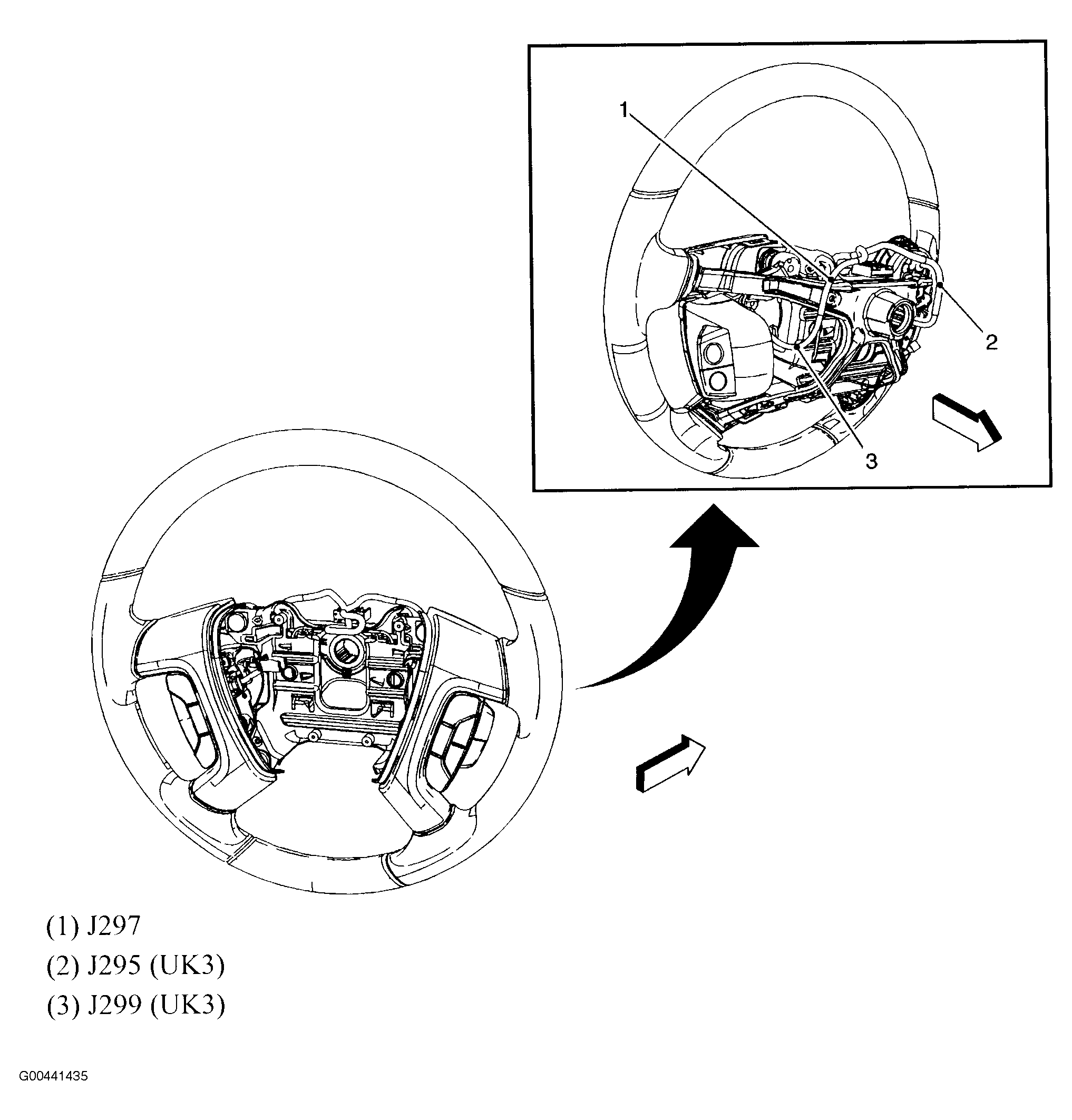

Fig 30: Steering Wheel
Courtesy of GENERAL MOTORS CORP.

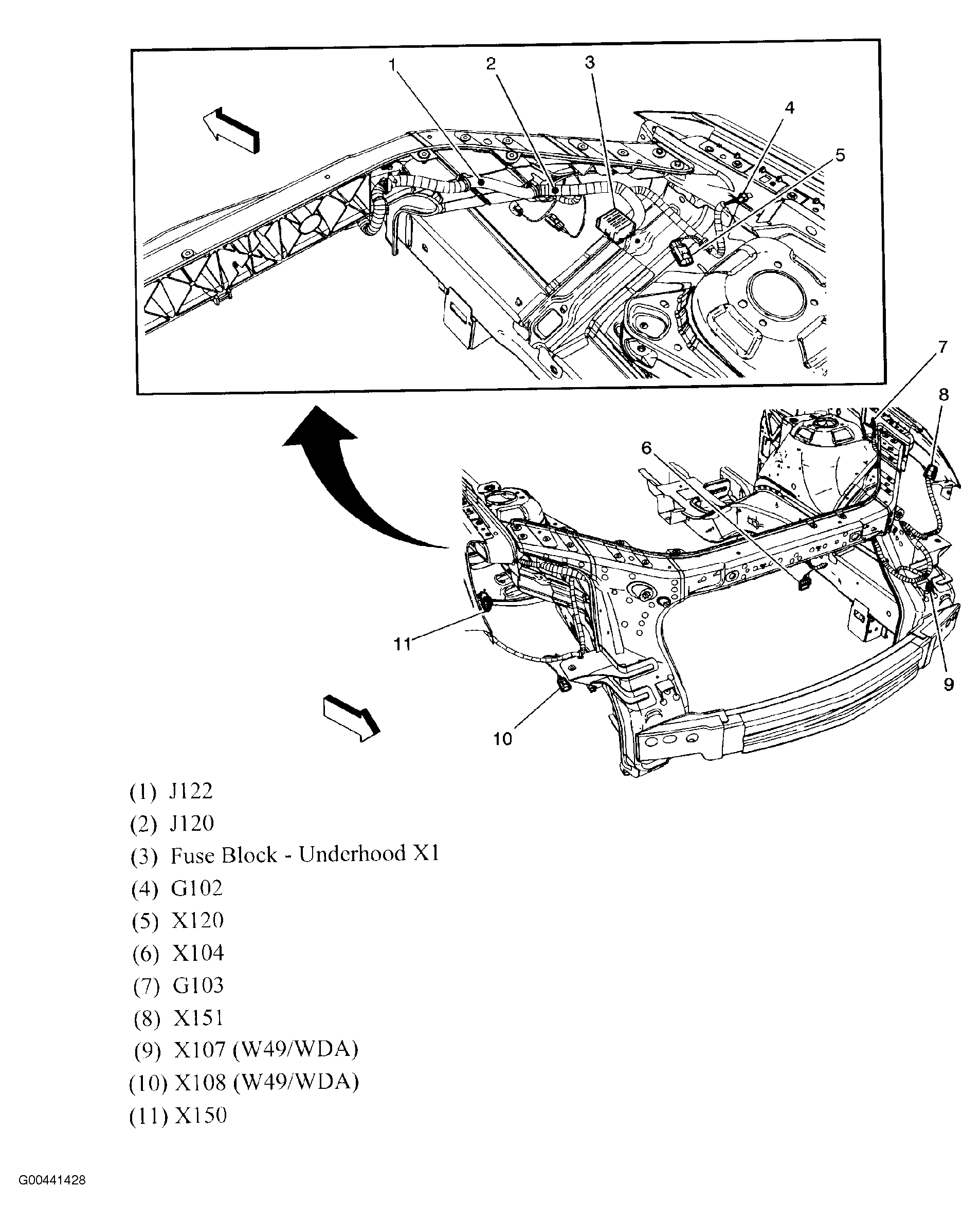

Fig 31: Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

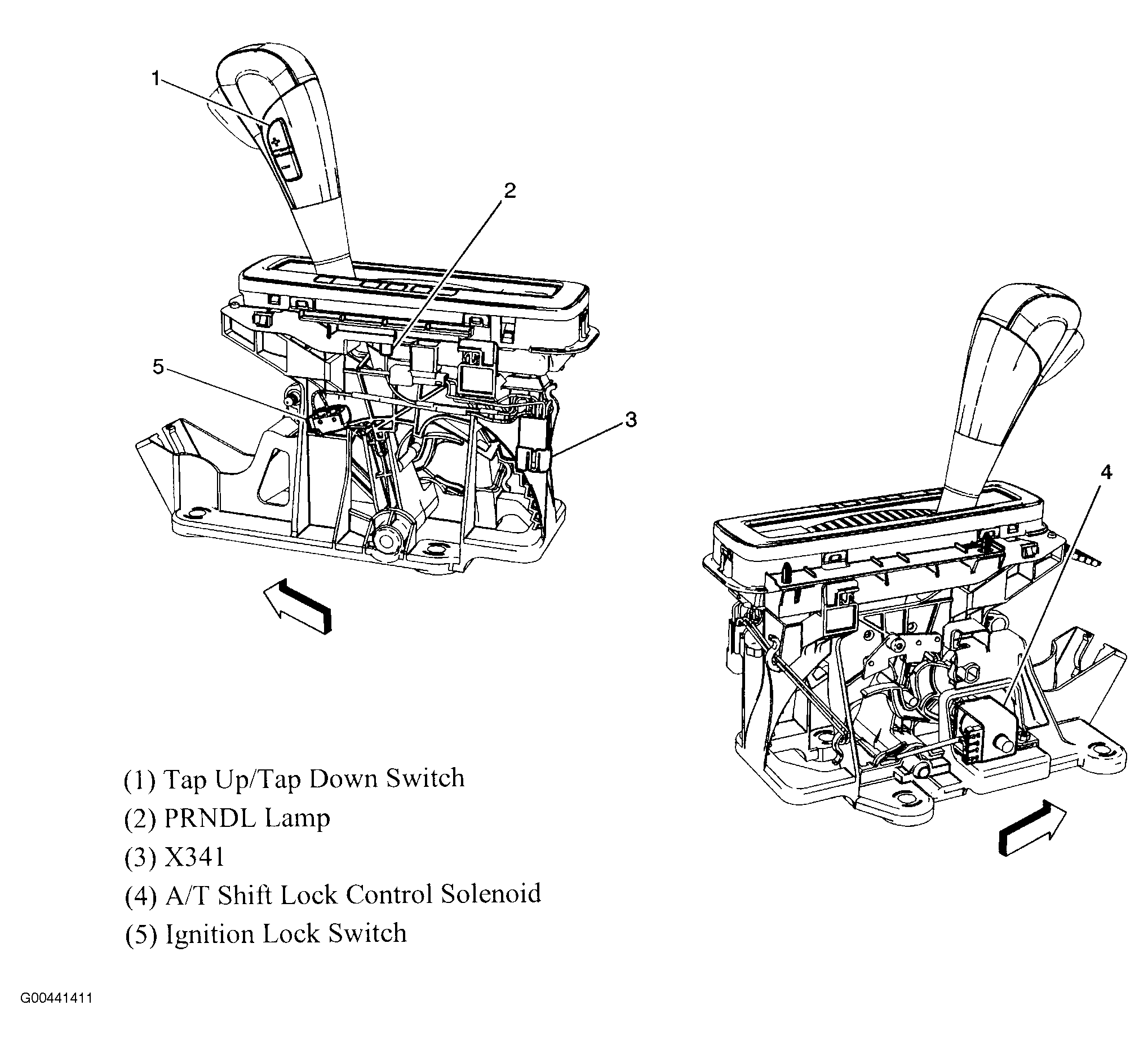

Fig 32: Shifter Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 33: Driver's Seat (Power Seat)
Courtesy of GENERAL MOTORS CORP.

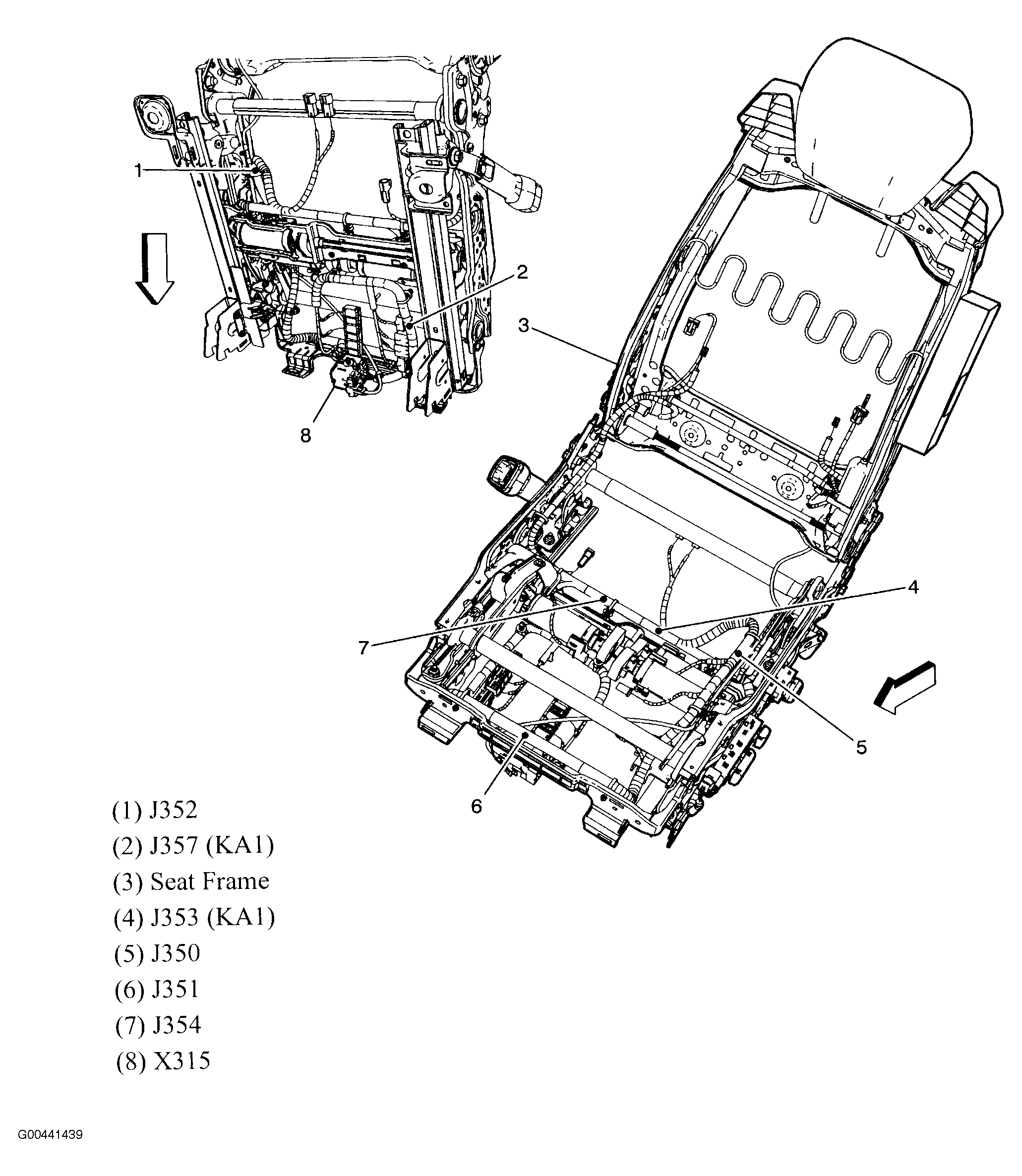

Fig 34: Driver's Seat (Power Memory Seat)
Courtesy of GENERAL MOTORS CORP.

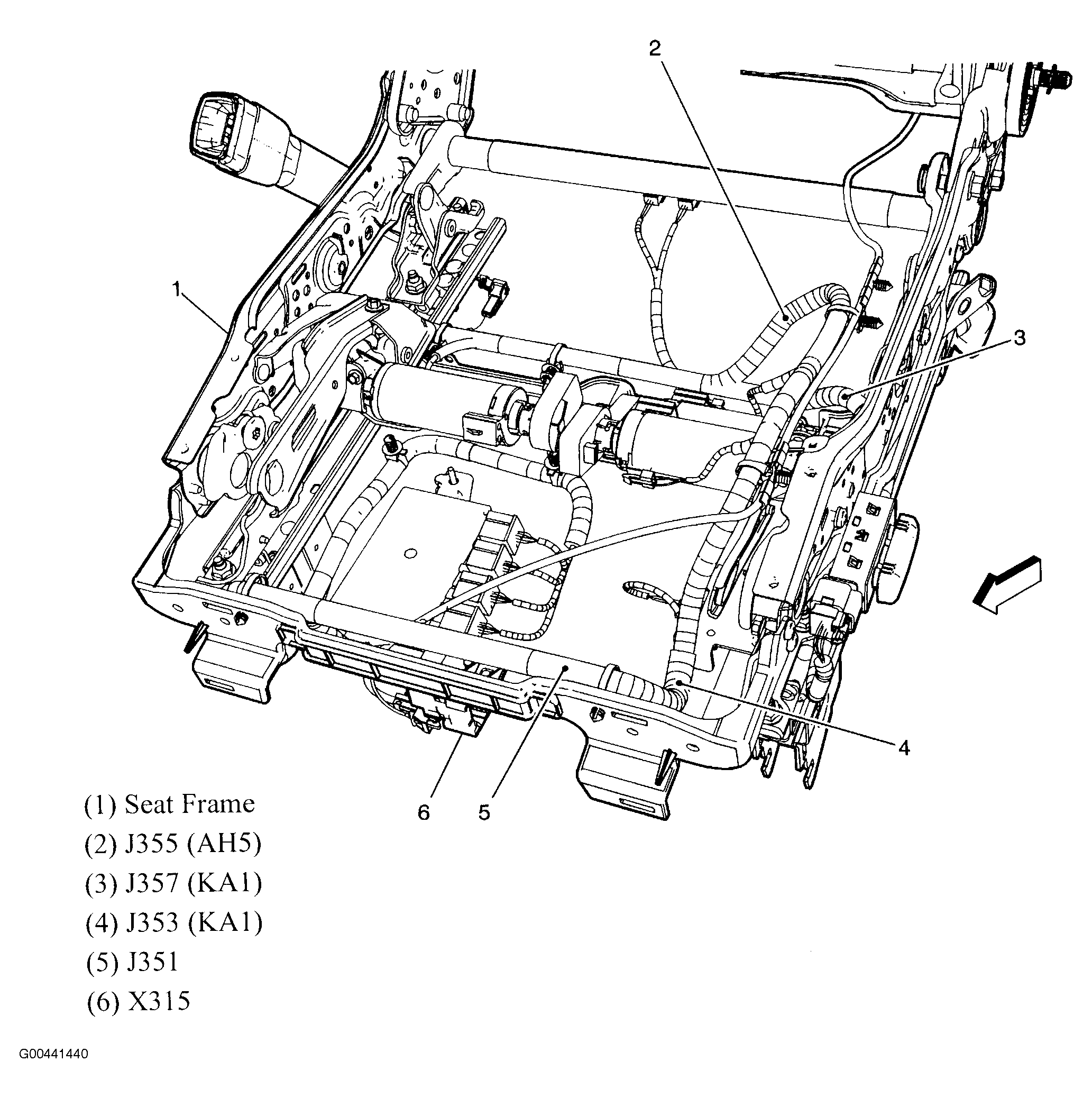

Fig 35: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 36: Roof
Courtesy of GENERAL MOTORS CORP.

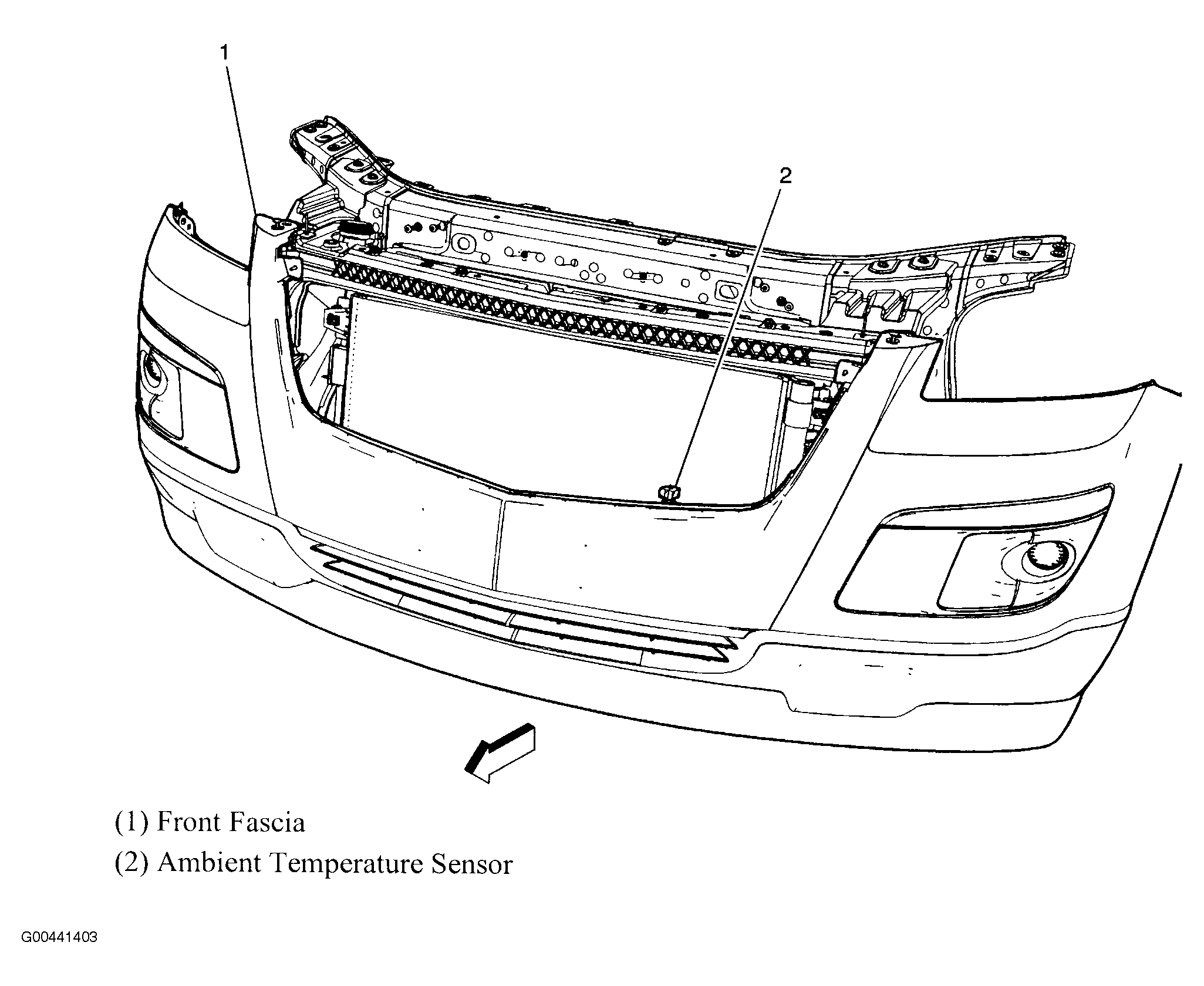

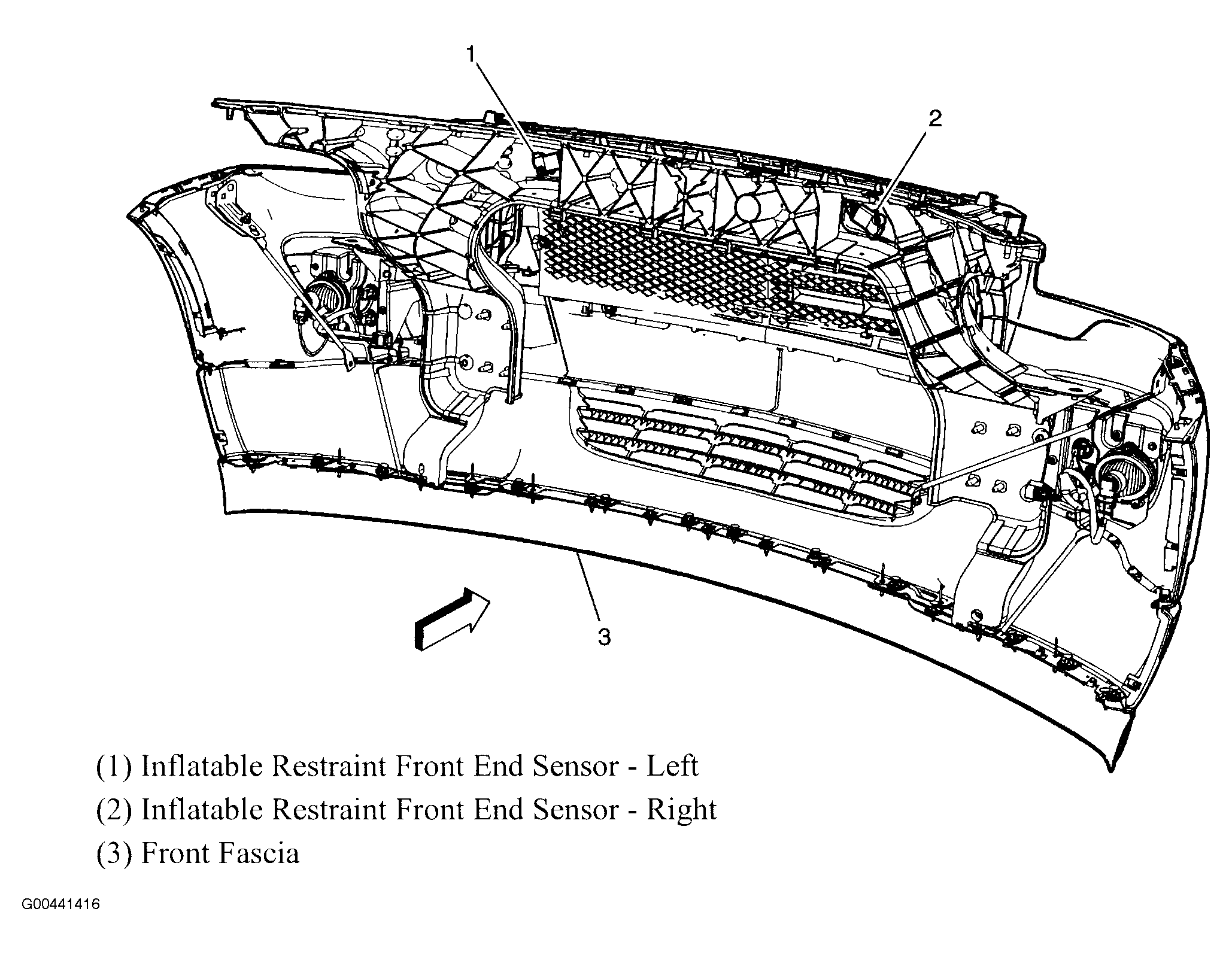

Fig 37: Front Fascia
Courtesy of GENERAL MOTORS CORP.

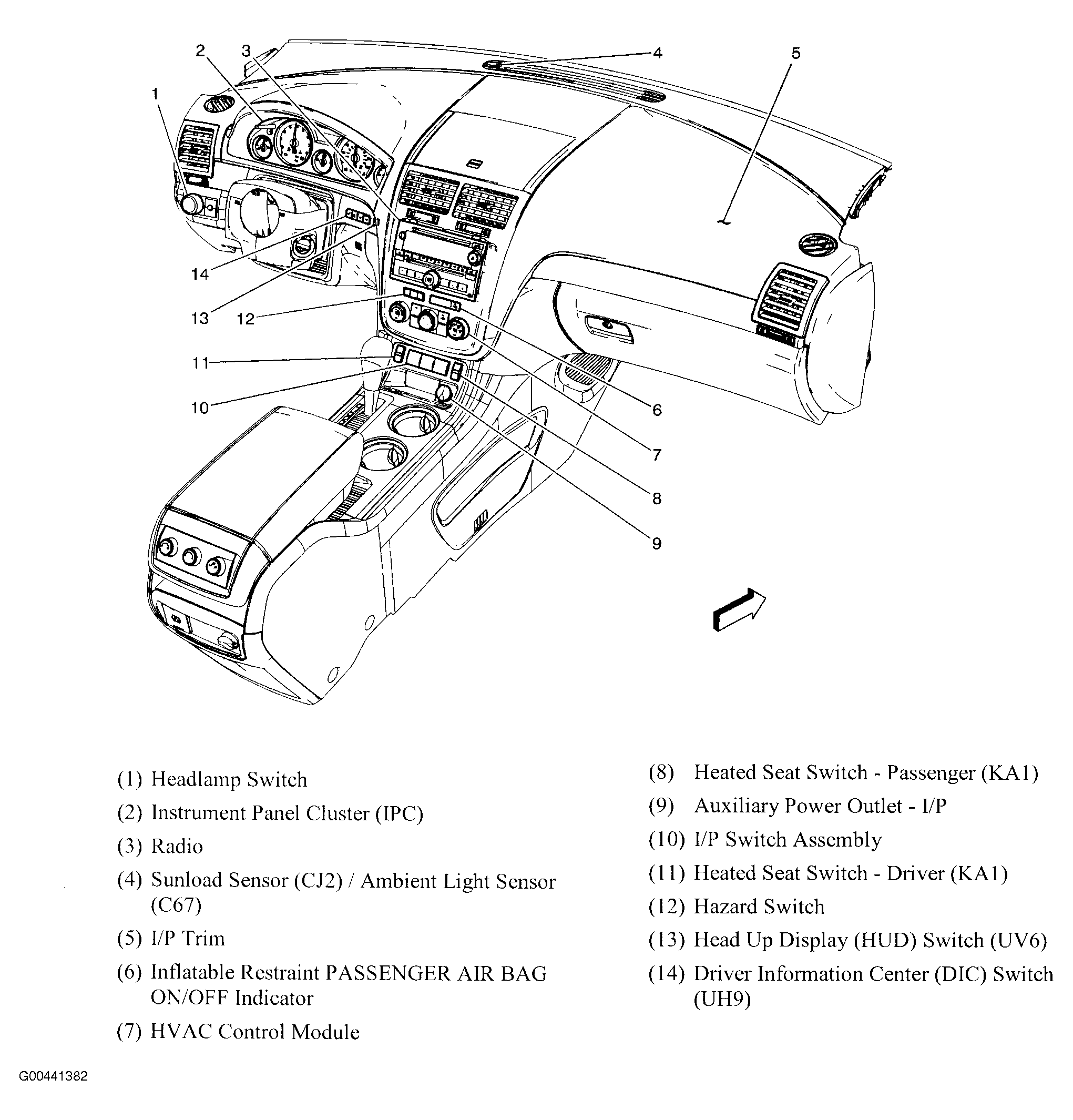

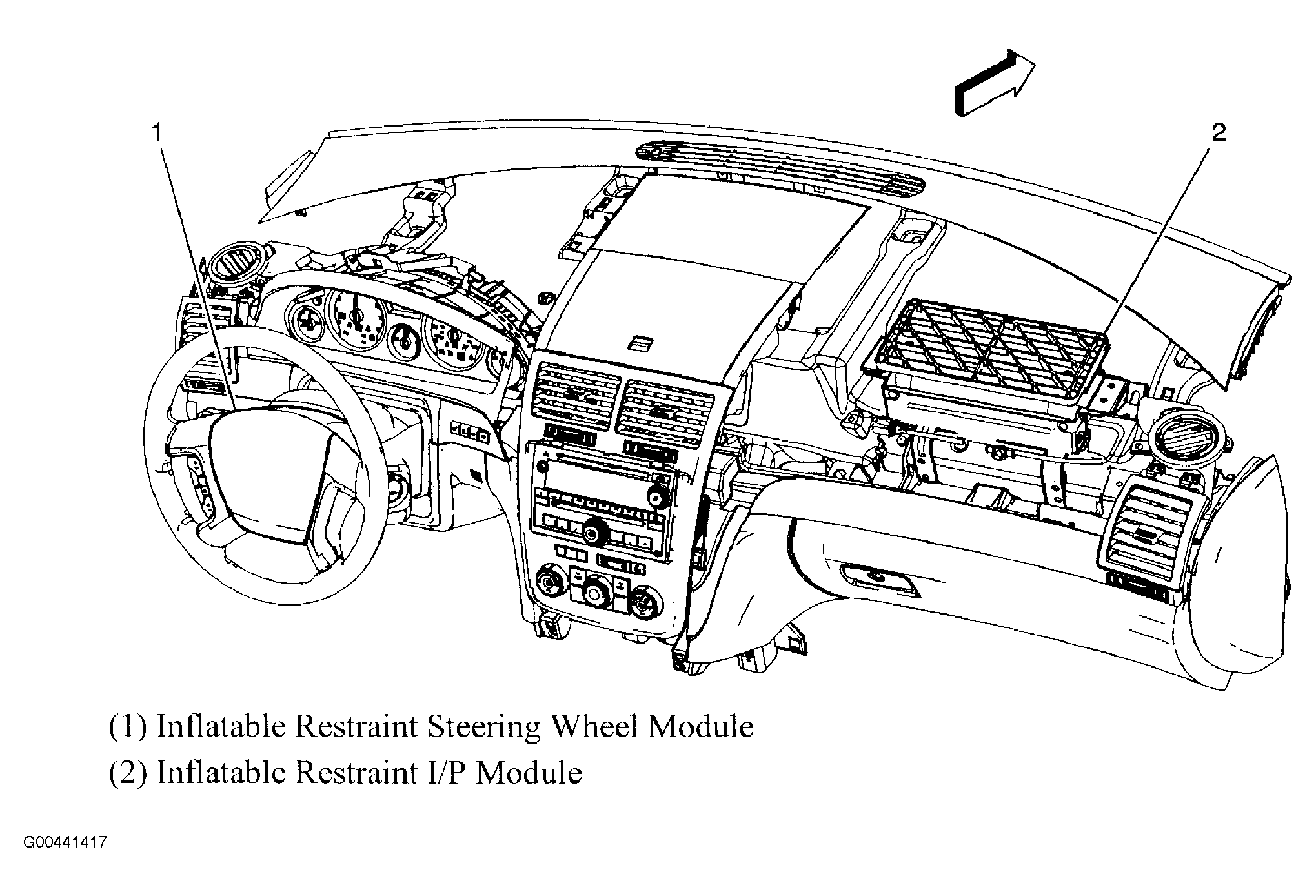

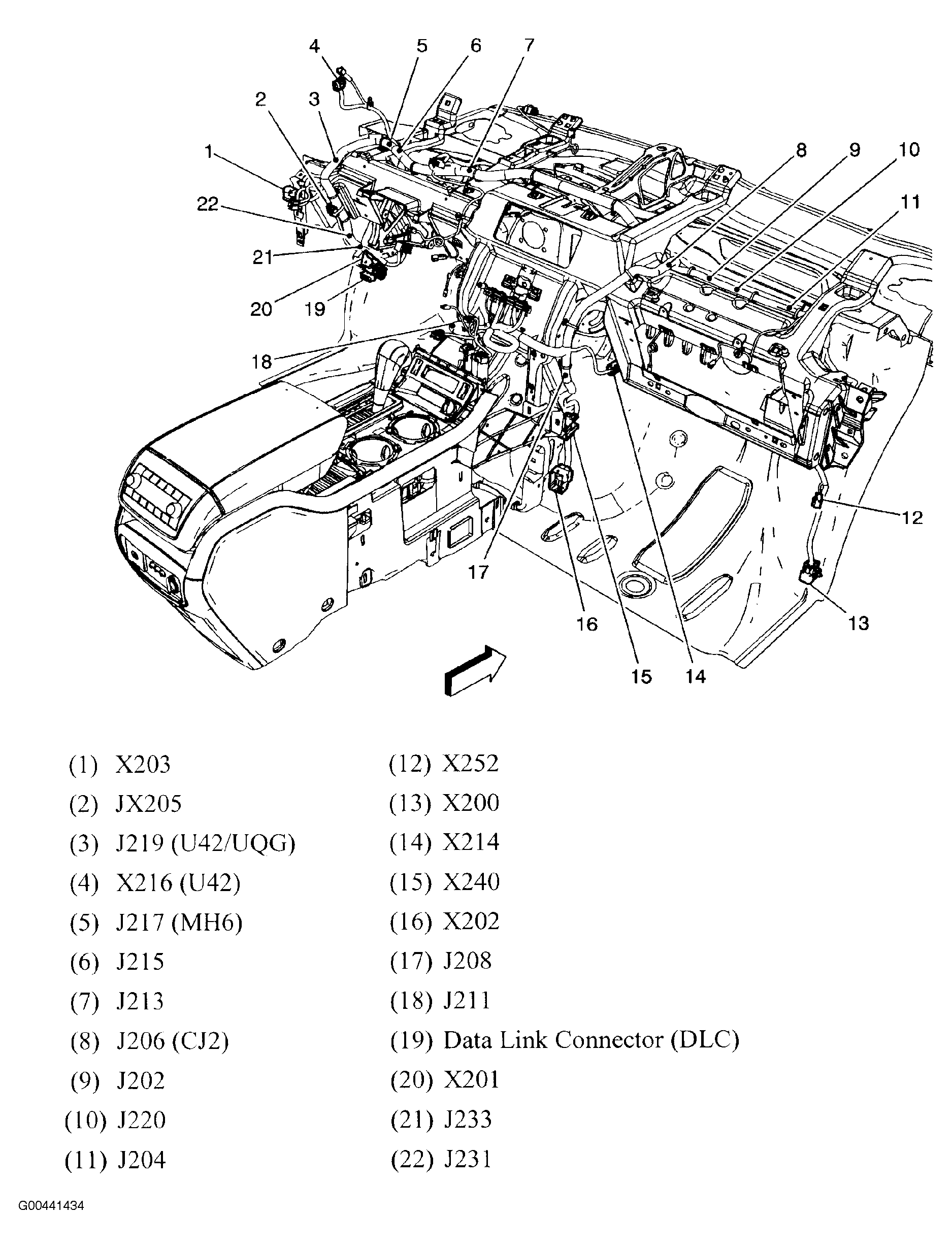

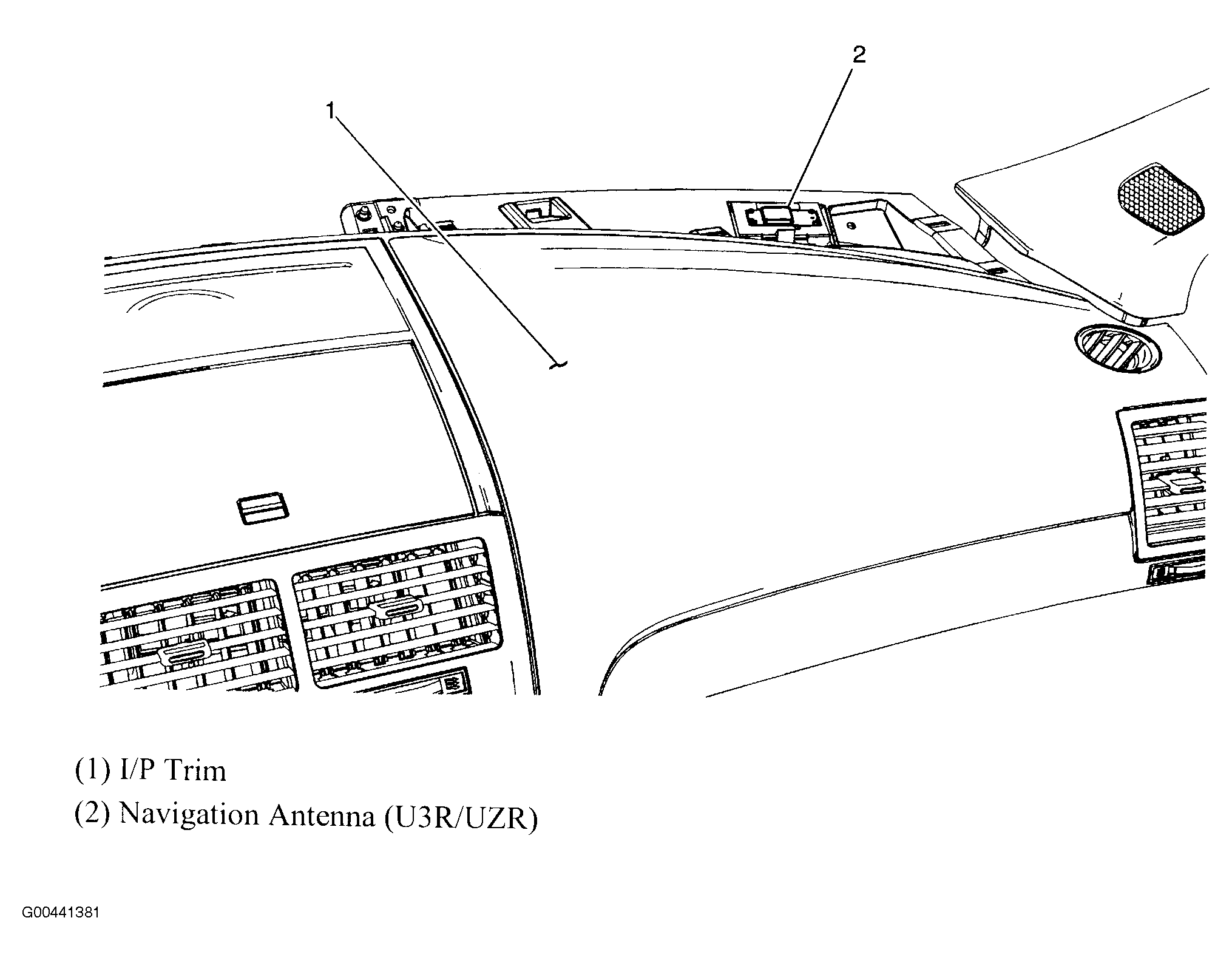

Fig 38: Dash
Courtesy of GENERAL MOTORS CORP.
Fig 39: Roof
Courtesy of GENERAL MOTORS CORP.

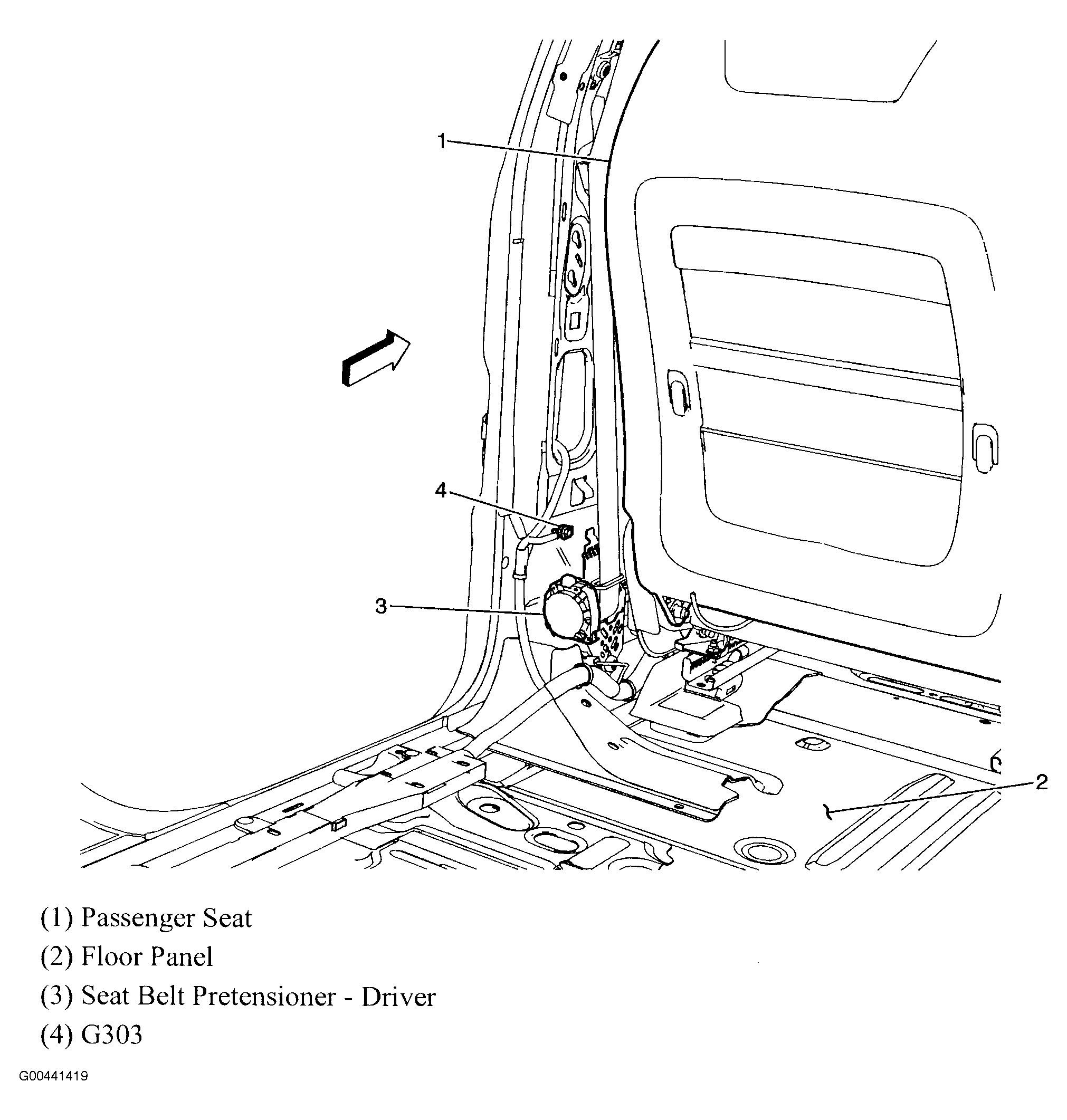

Fig 40: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 41: Right "B" Pillar
Courtesy of GENERAL MOTORS CORP.

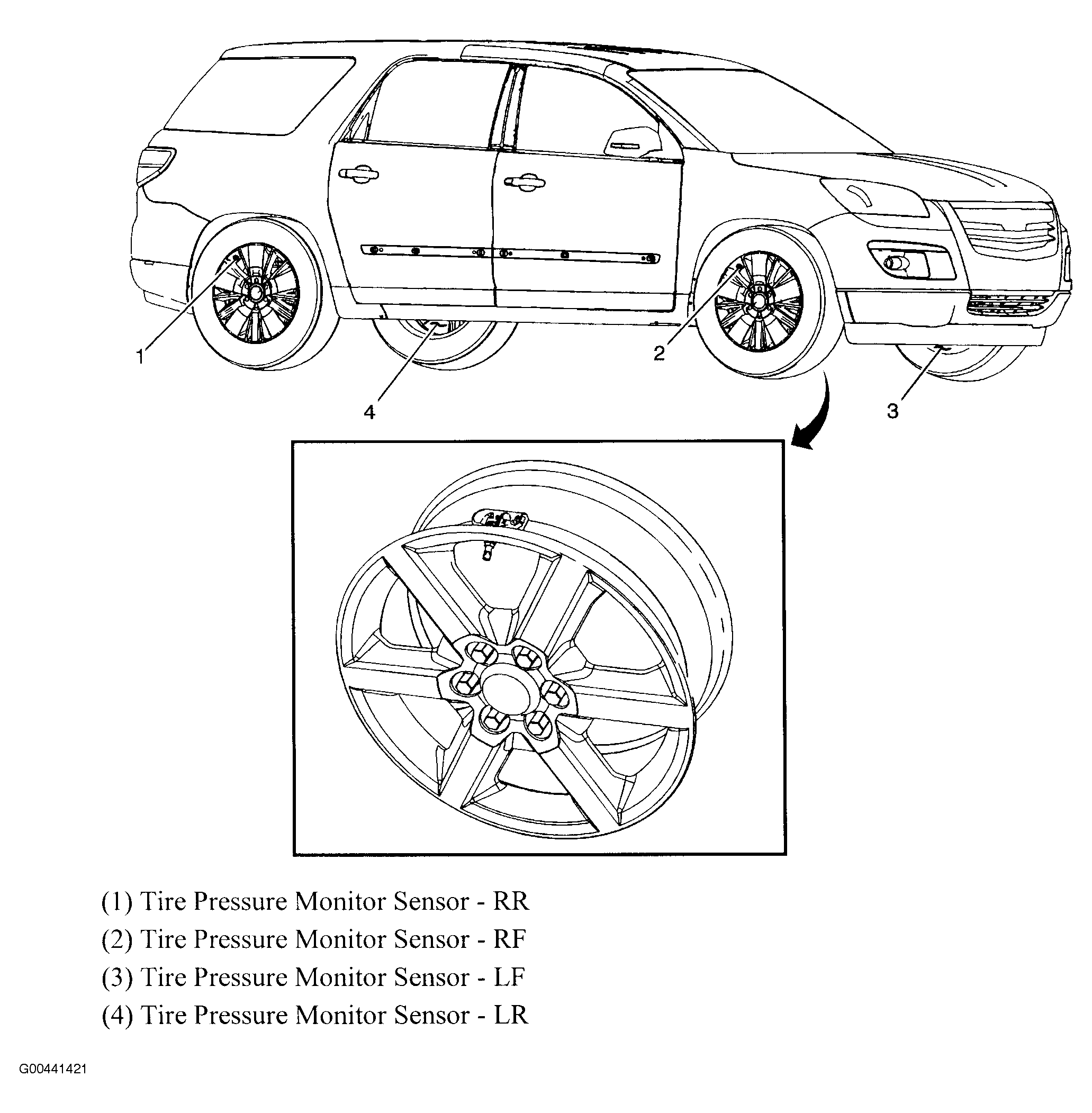

Fig 42: Vehicle Tire Overview
Courtesy of GENERAL MOTORS CORP.
Fig 43: Under Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 44: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 45: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

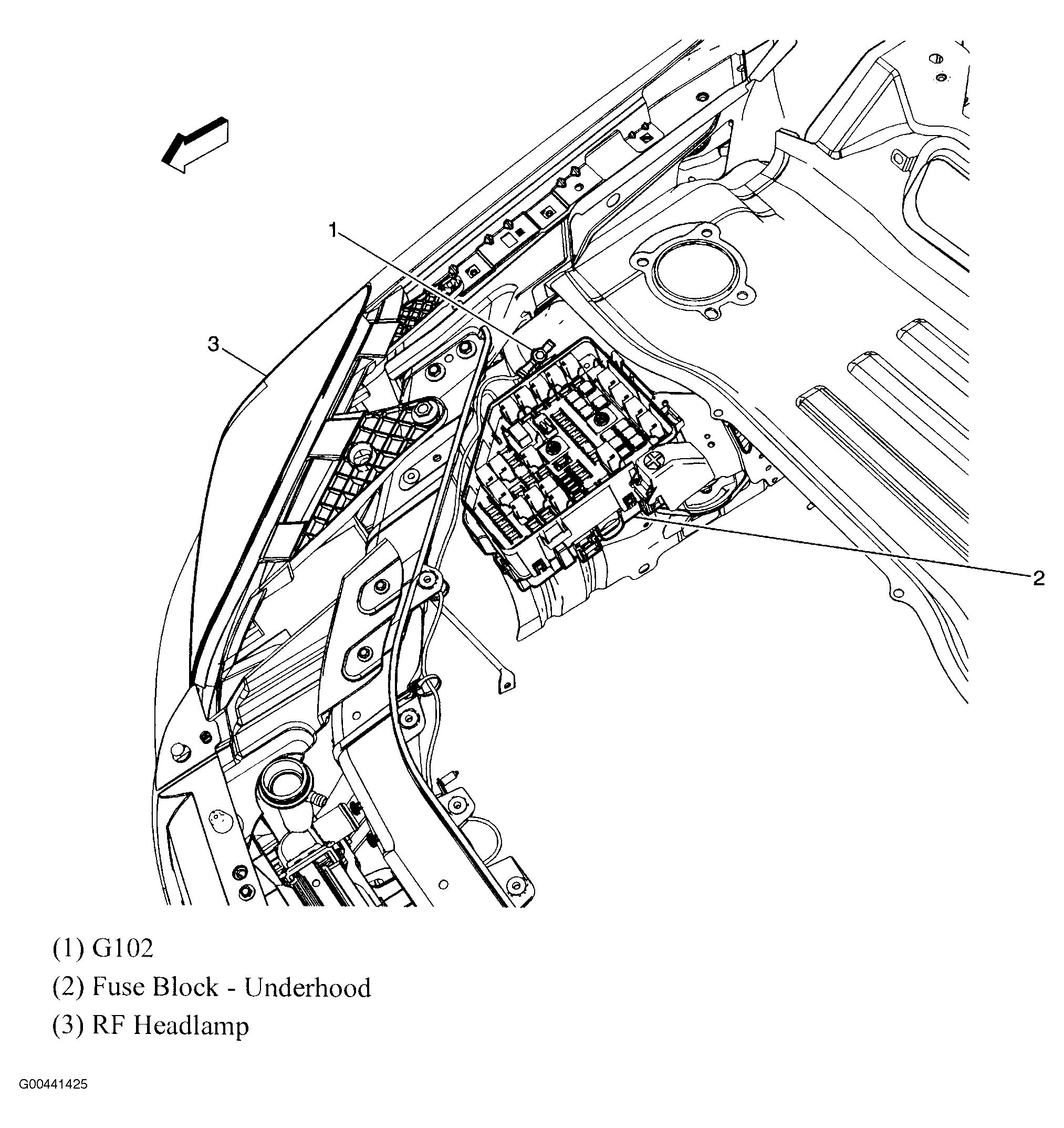

Fig 46: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 47: Right Side Of Dash & Right Kick Panel
Courtesy of GENERAL MOTORS CORP.

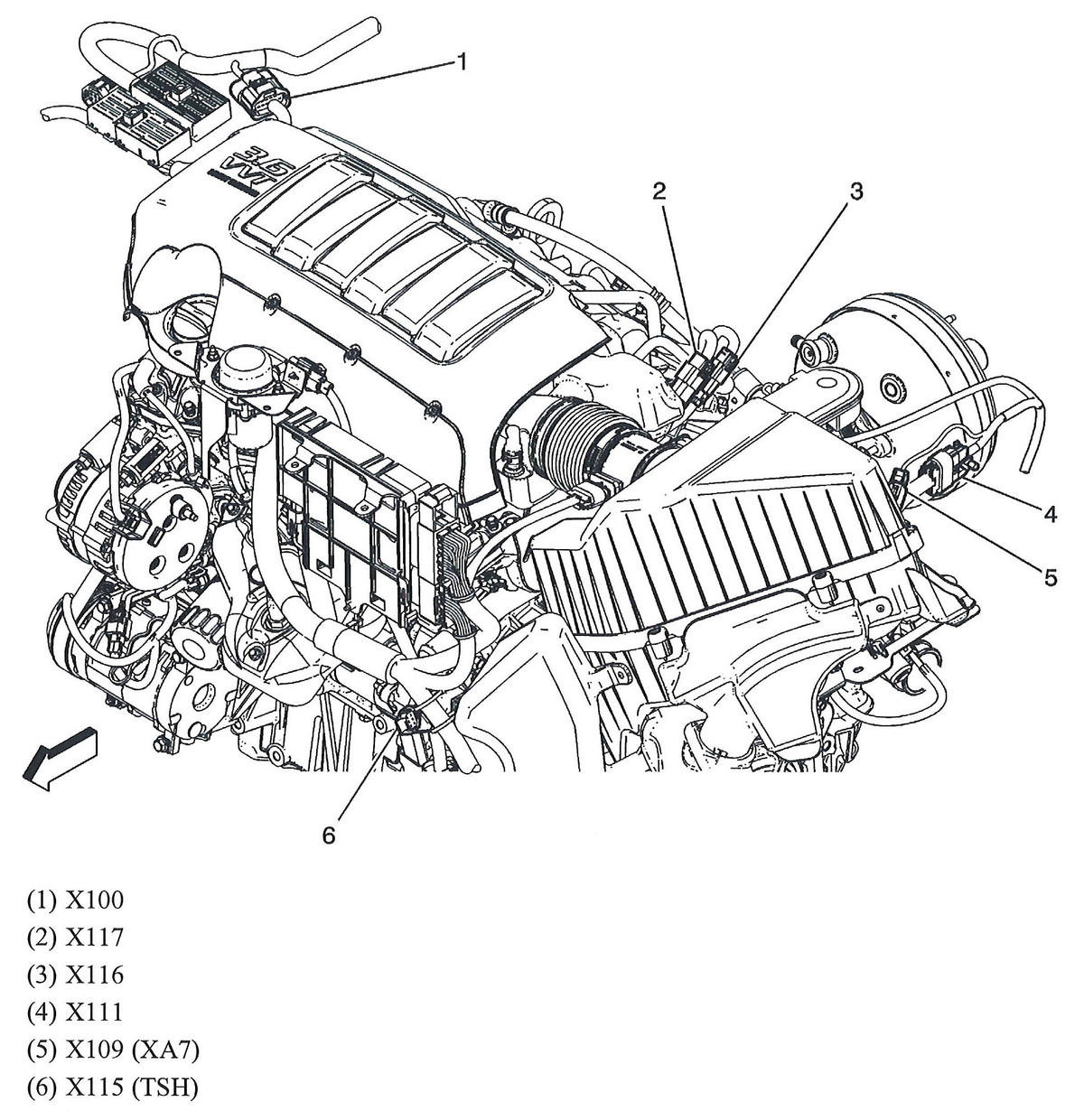

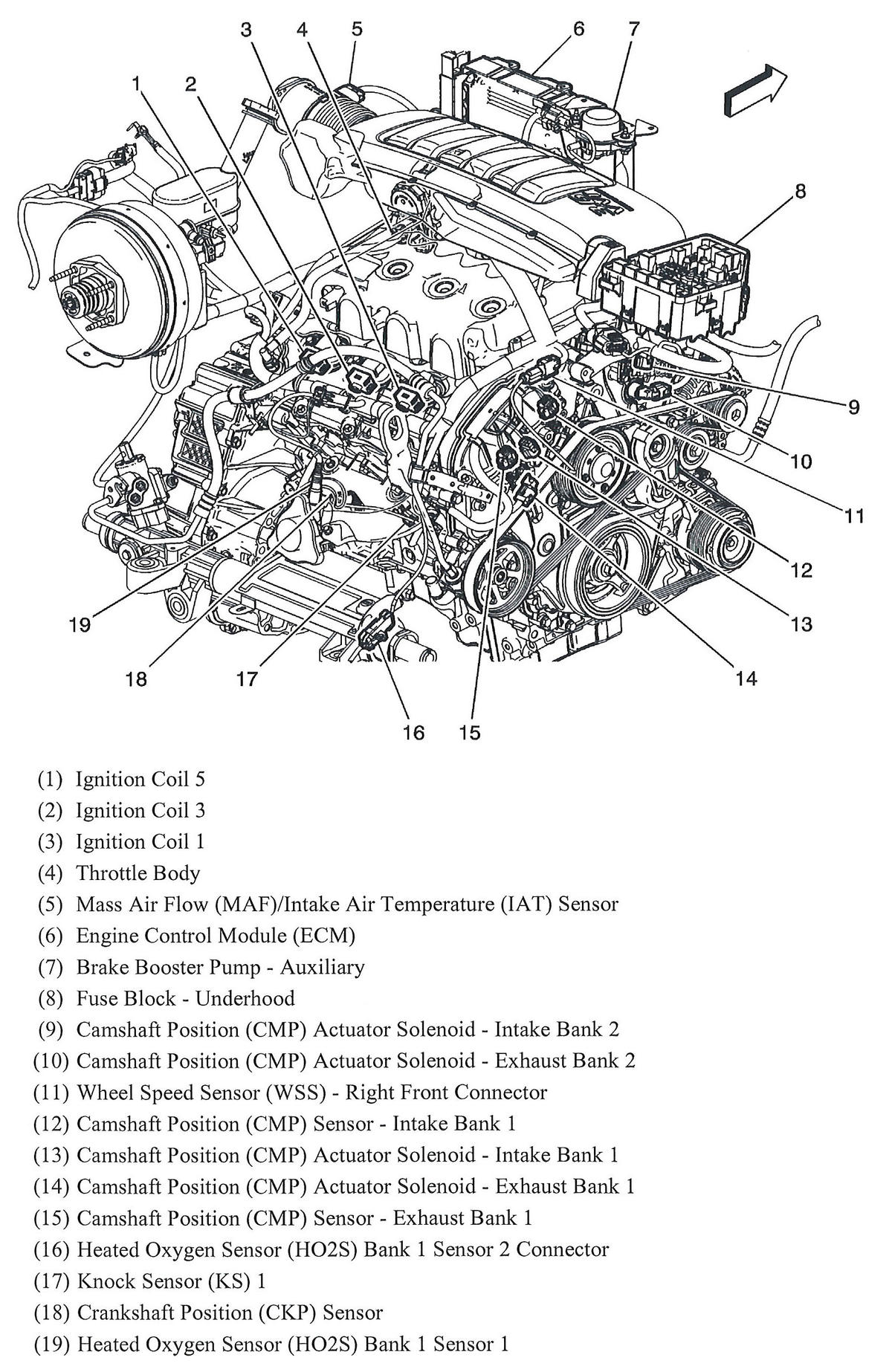

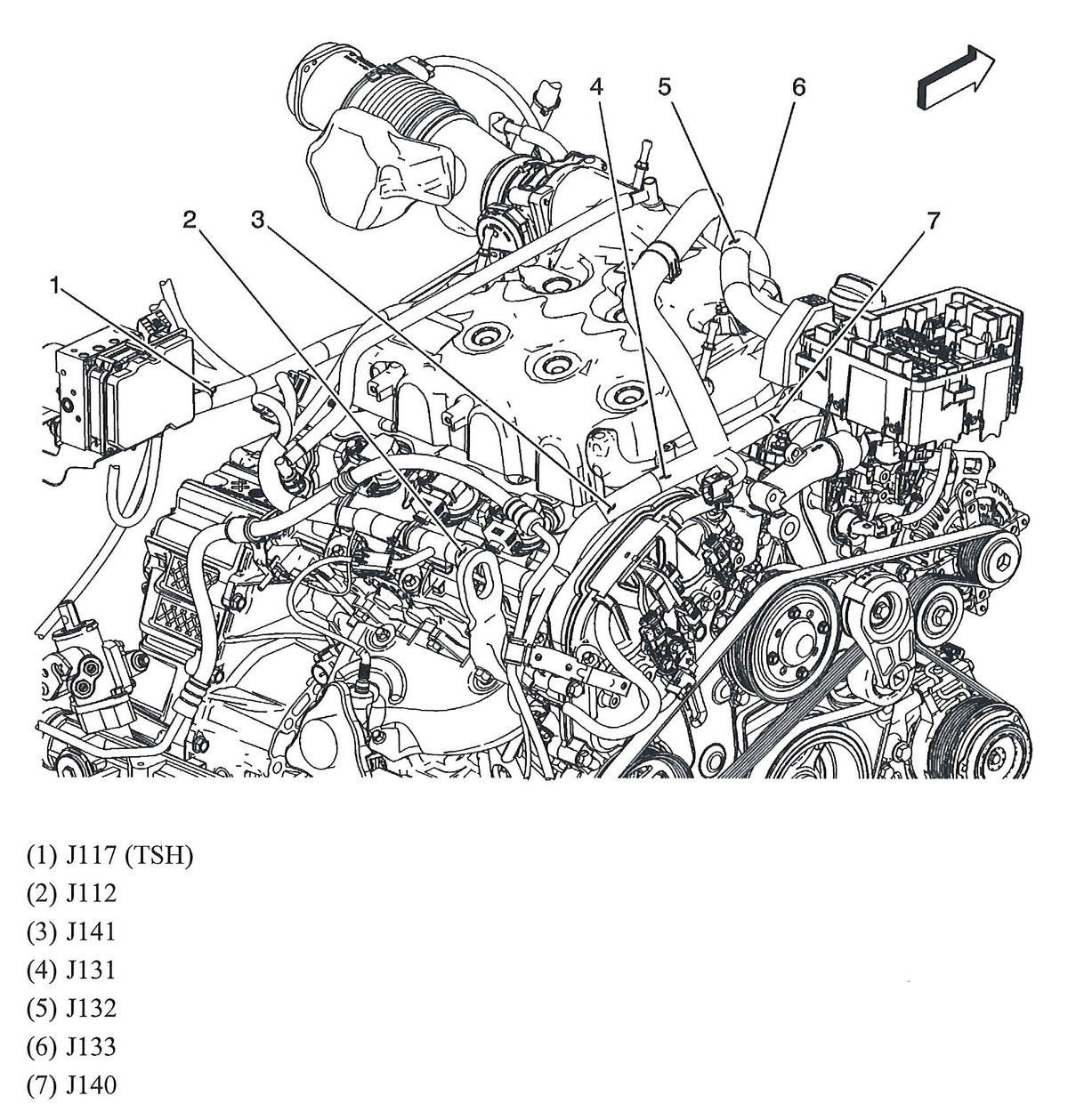

Fig 48: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 49: Behind Front Fascia
Courtesy of GENERAL MOTORS CORP.

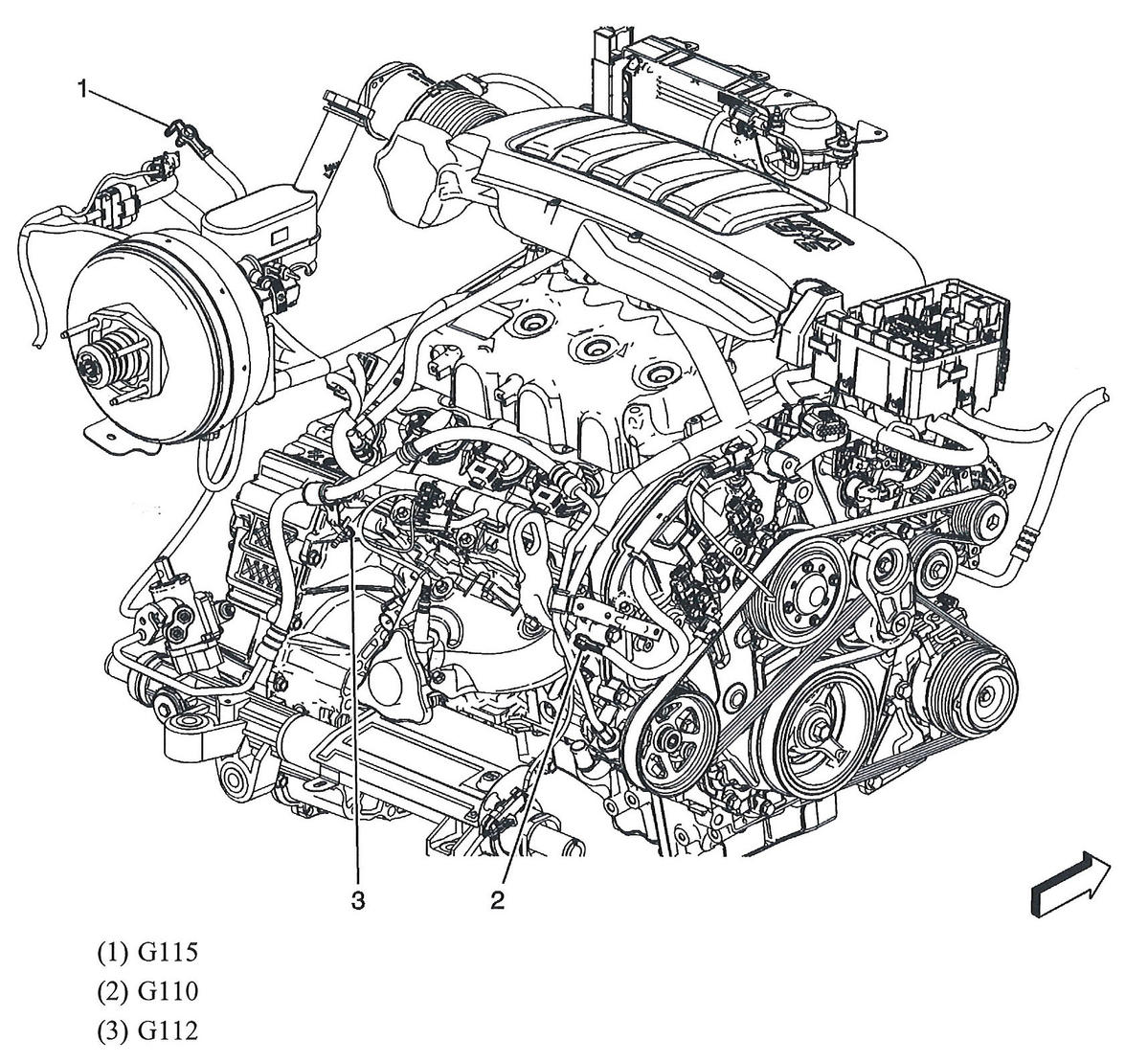

Fig 50: Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 51: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 52: Behind Dash
Courtesy of GENERAL MOTORS CORP.
Fig 53: Steering Wheel
Courtesy of GENERAL MOTORS CORP.
Fig 54: Steering Column
Courtesy of GENERAL MOTORS CORP.

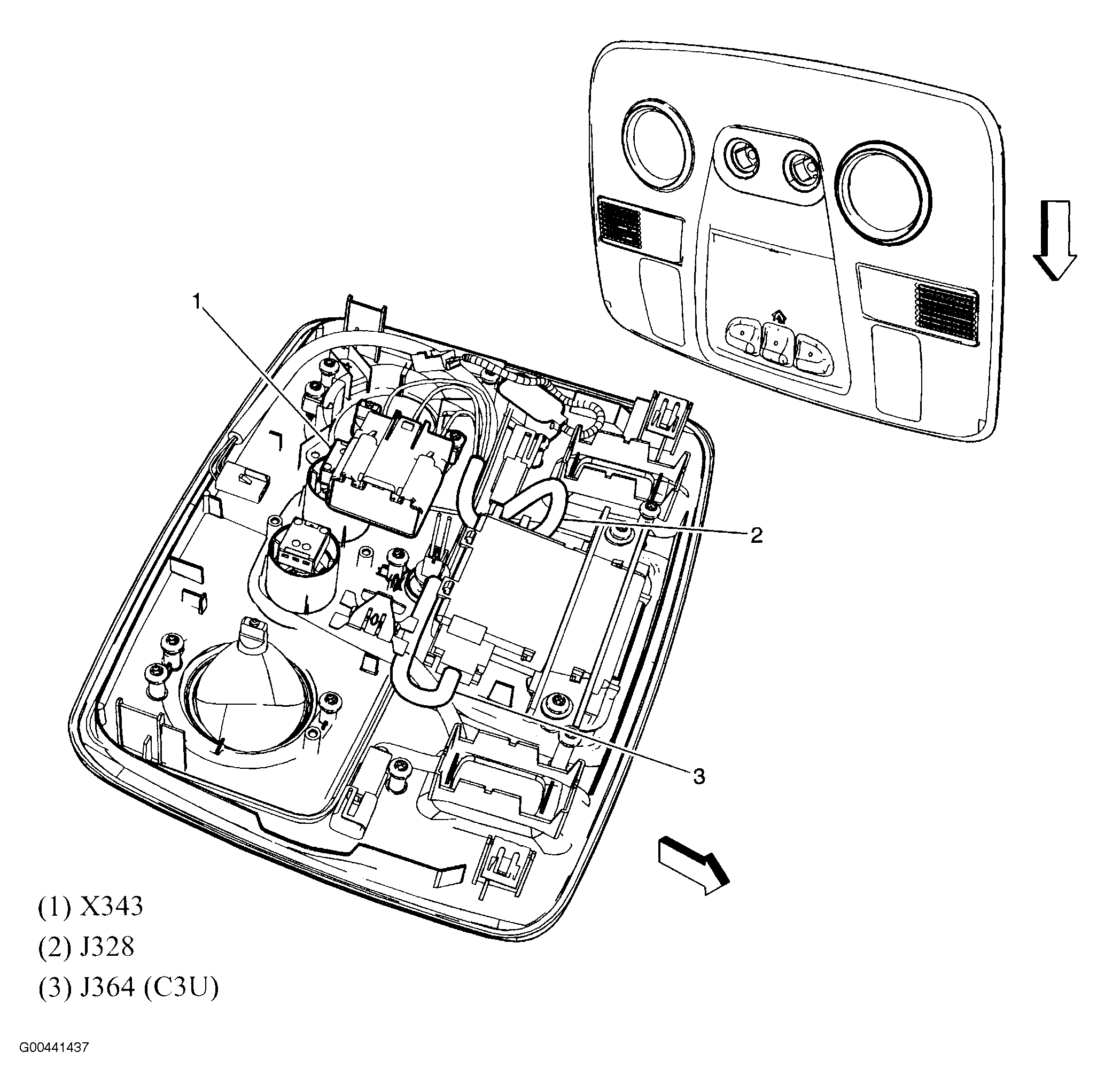

Fig 55: Overhead Console
Courtesy of GENERAL MOTORS CORP.
Fig 56: Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 57: Driver's Seat
Courtesy of GENERAL MOTORS CORP.

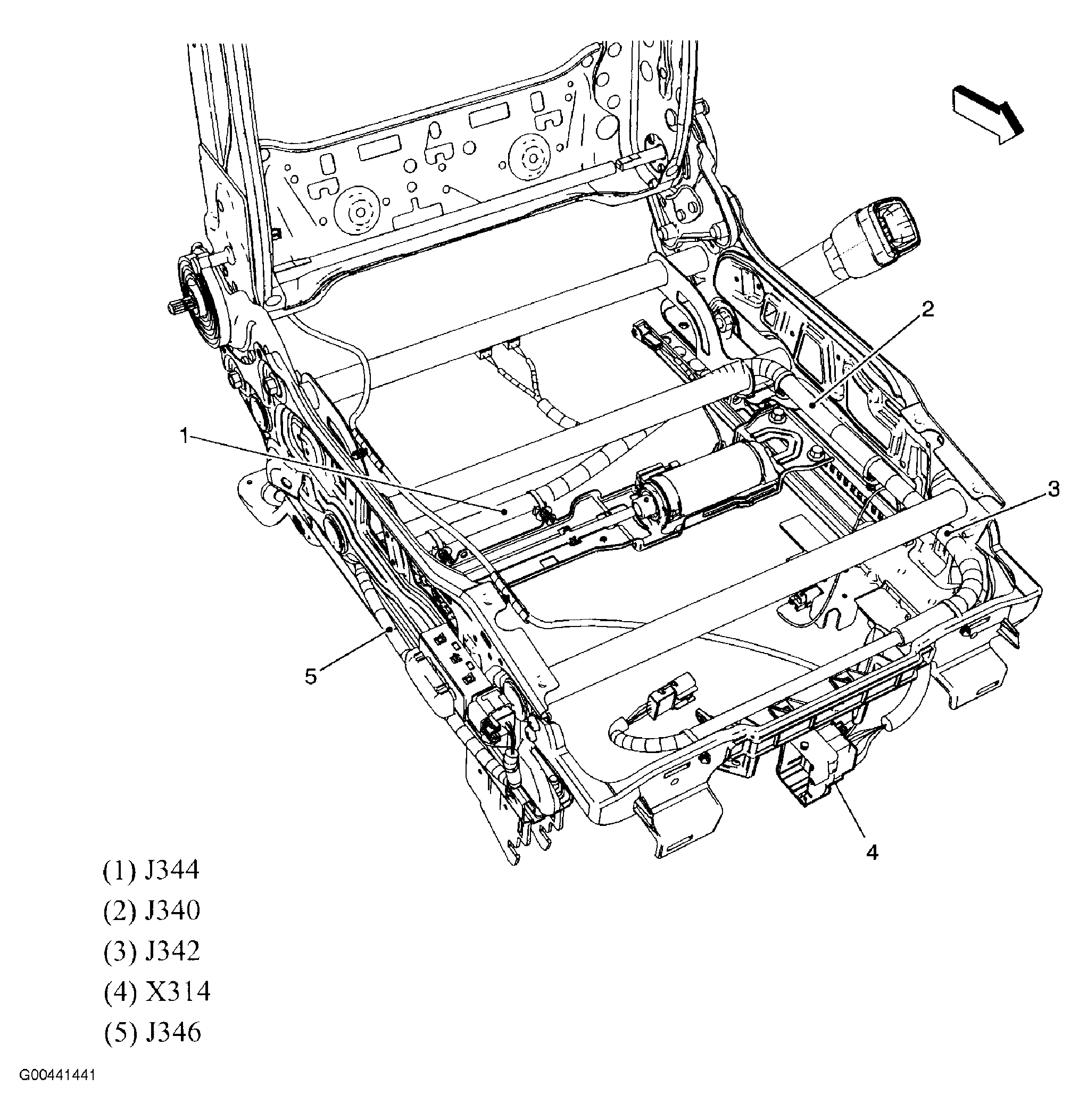

Fig 58: Under Driver's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 59: Under Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

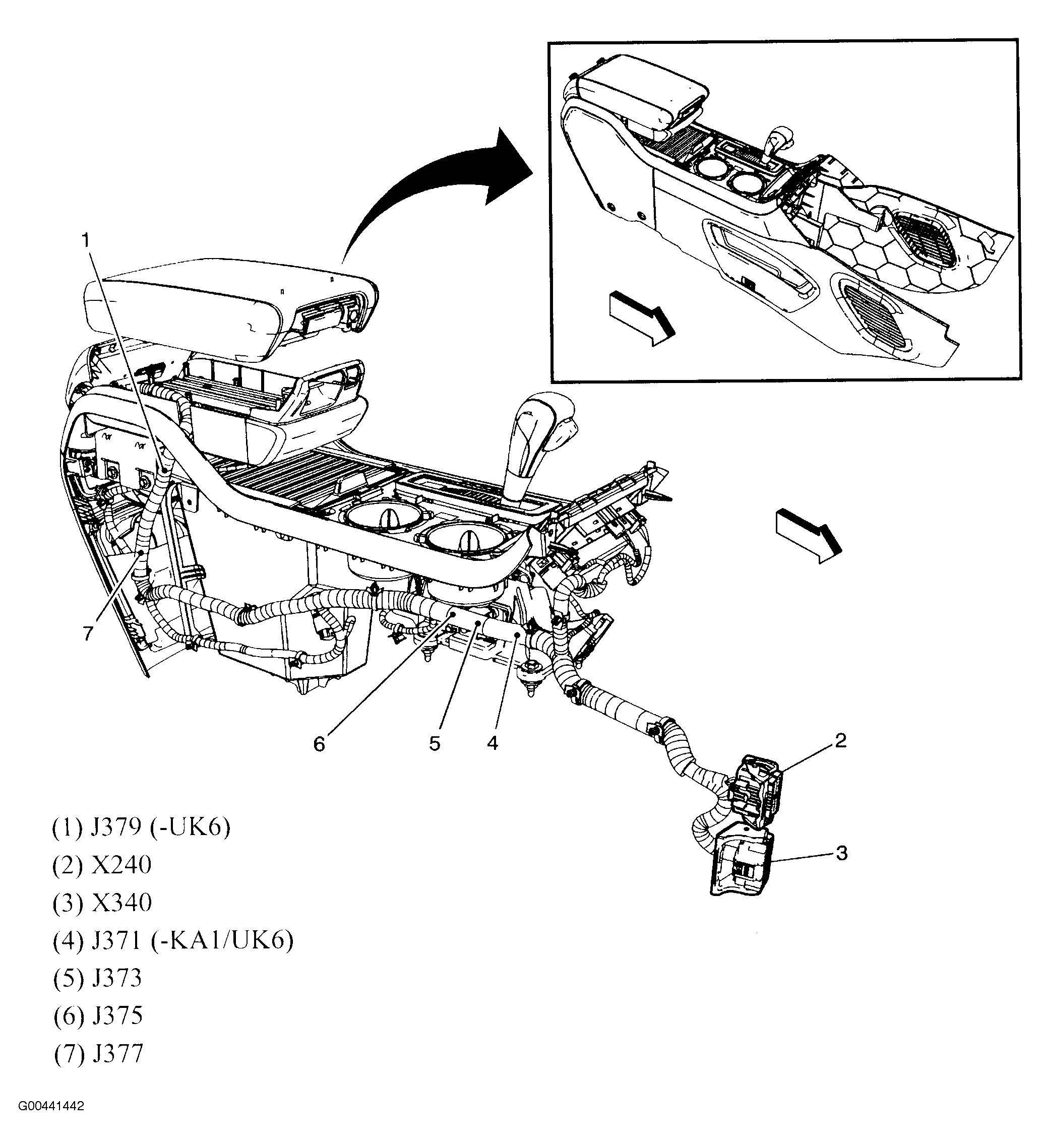

Fig 60: Floor Console
Courtesy of GENERAL MOTORS CORP.

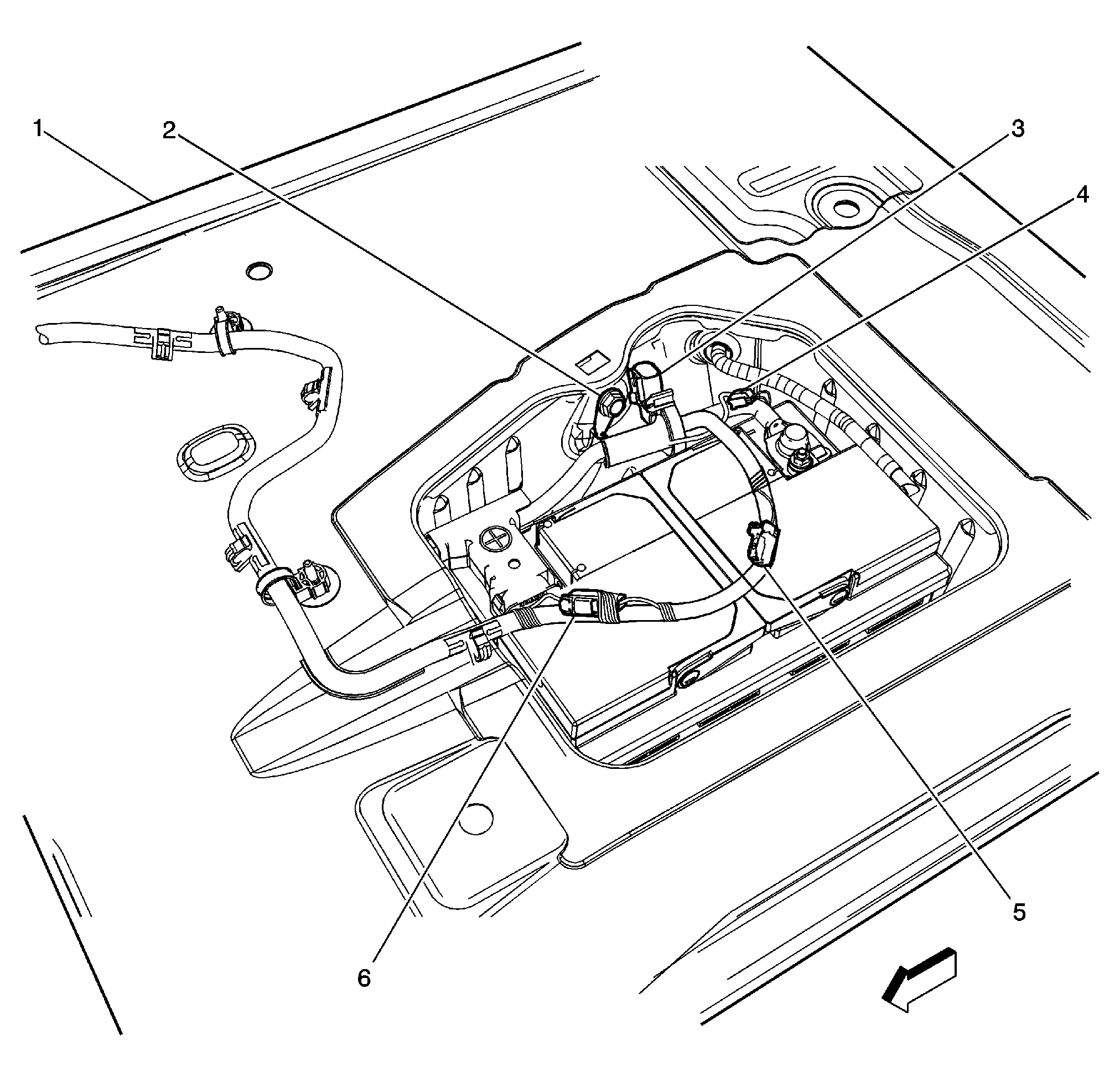

Fig 61: Battery Compartment
Courtesy of GENERAL MOTORS CORP.

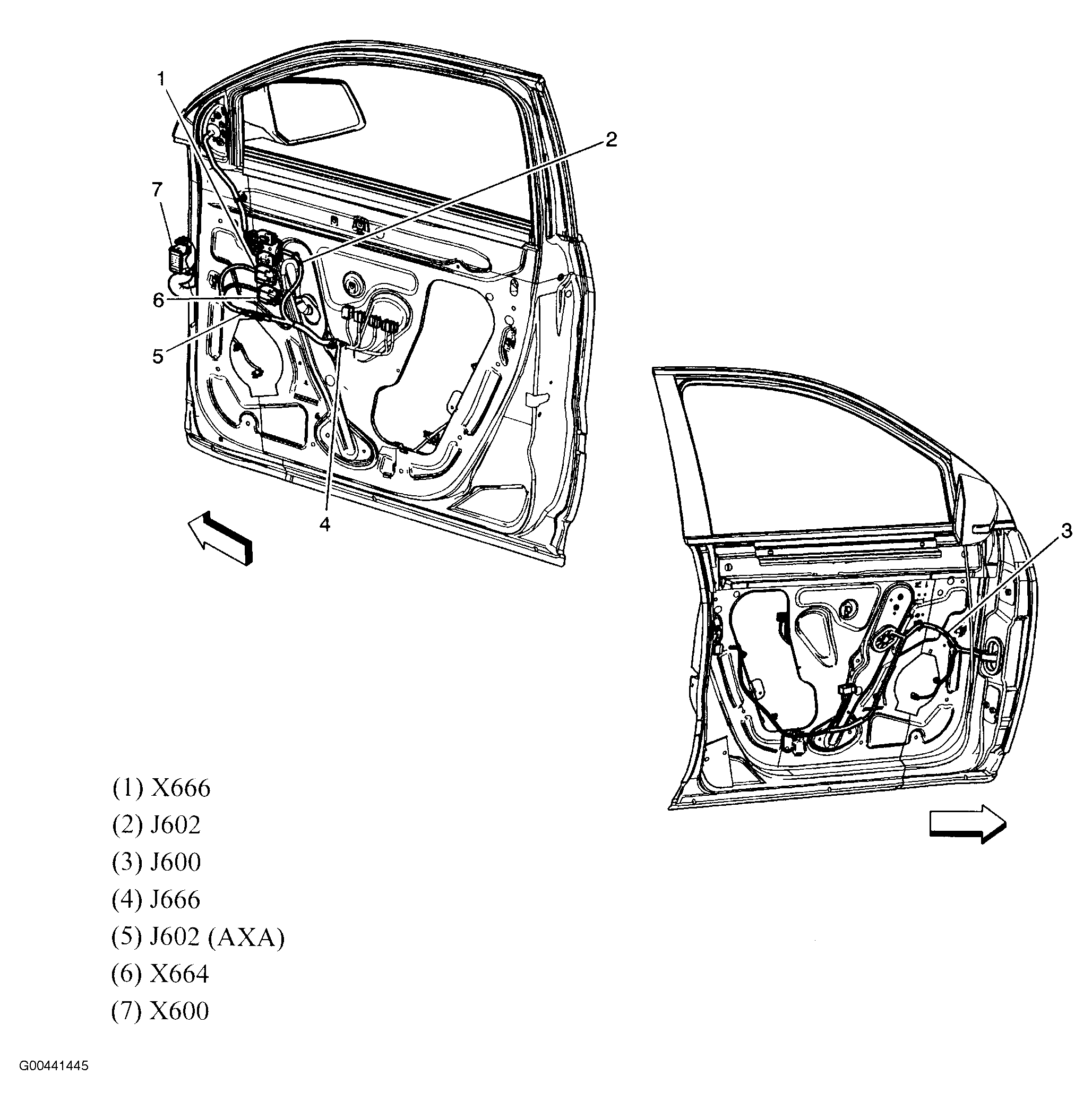

Fig 62: Driver's Door
Courtesy of GENERAL MOTORS CORP.
Fig 63: Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 64: Headliner
Courtesy of GENERAL MOTORS CORP.
Fig 65: Right Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 66: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

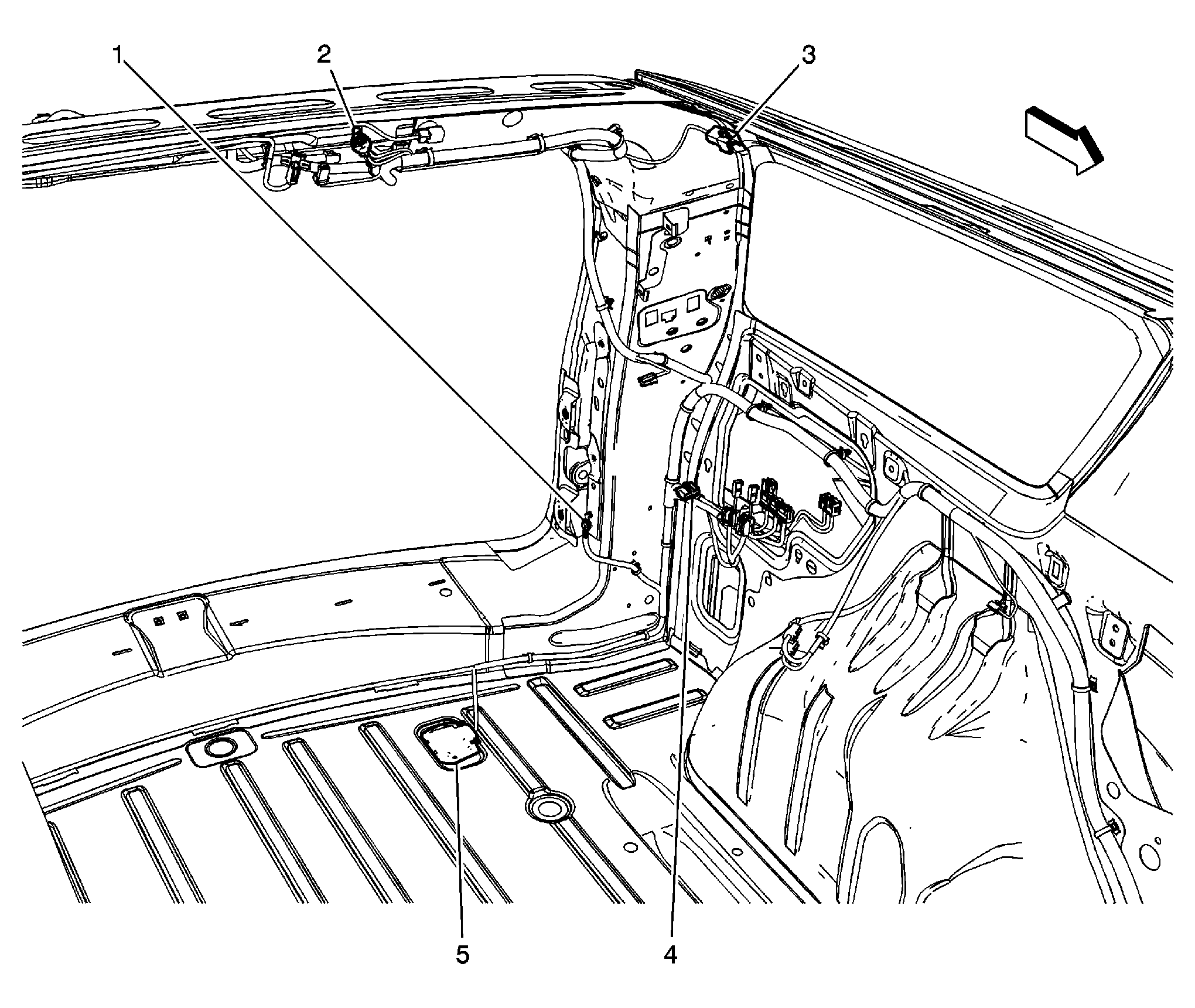

Fig 67: Left Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 68: Right Rear Of Passenger Compartment
Courtesy of GENERAL MOTORS CORP.

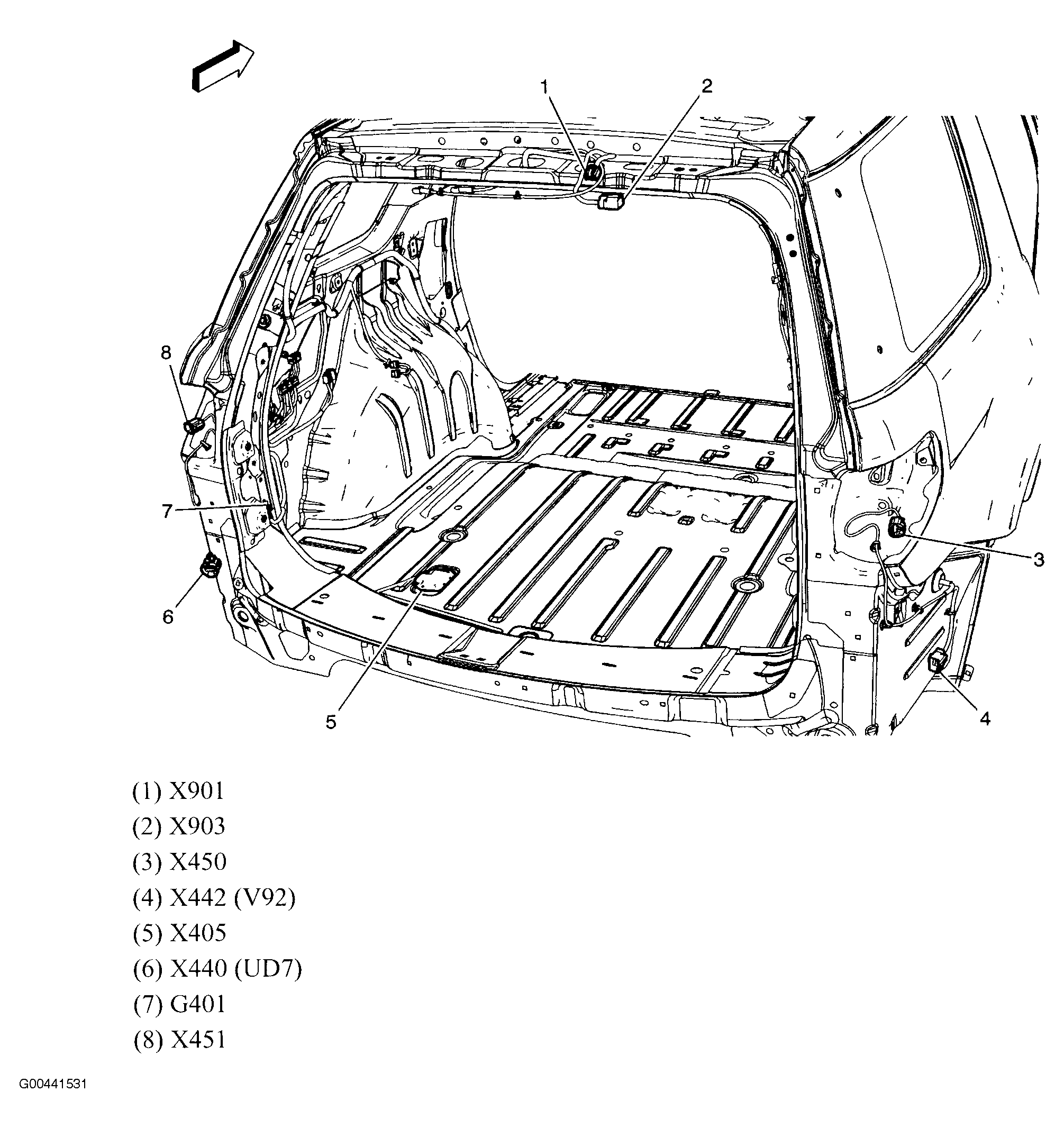

Fig 69: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 70: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 71: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 72: Left Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 73: Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 74: Left Side & Rear Of Engine
Courtesy of GENERAL MOTORS CORP.

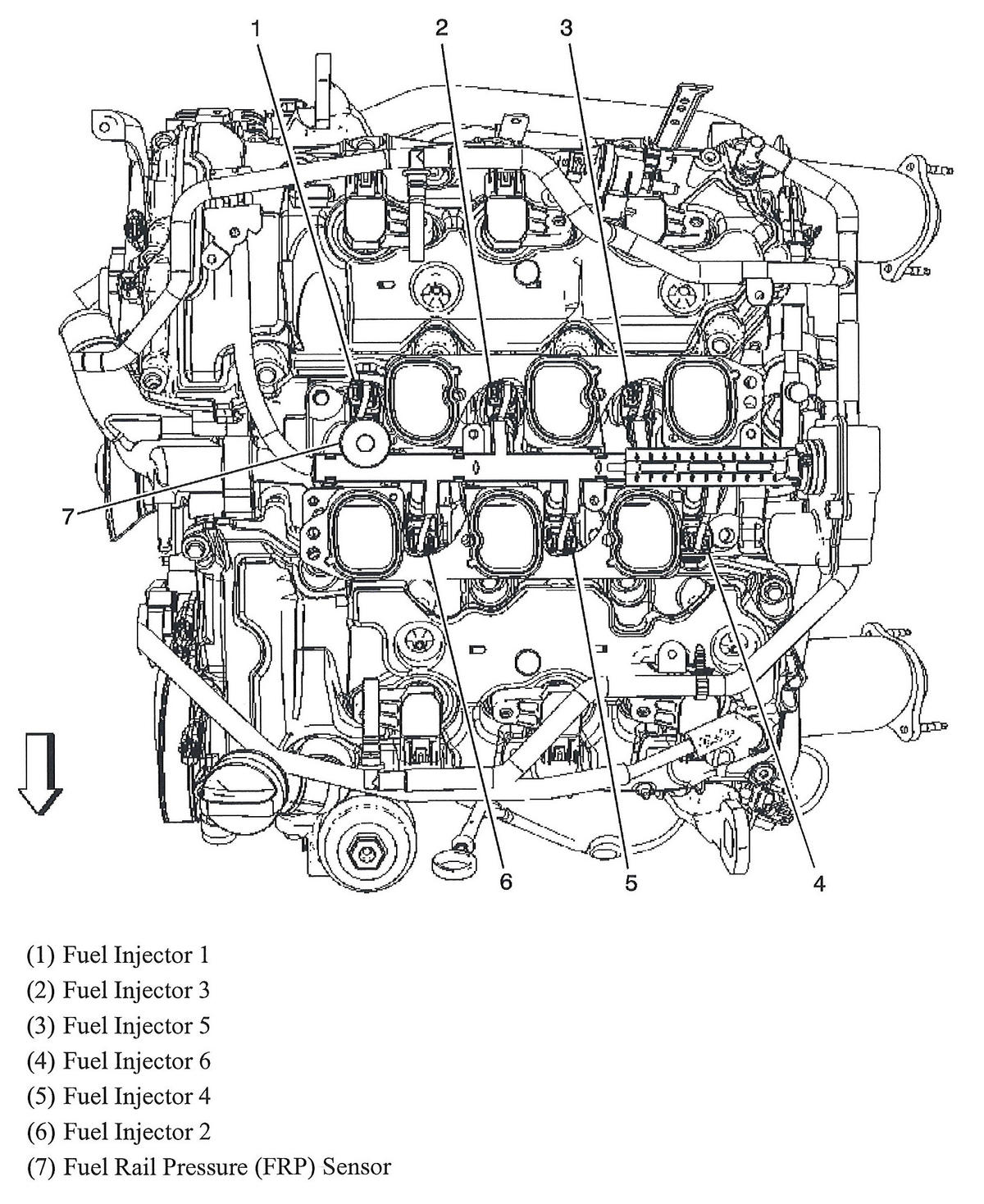

Fig 75: Top Of Engine
Courtesy of GENERAL MOTORS CORP.

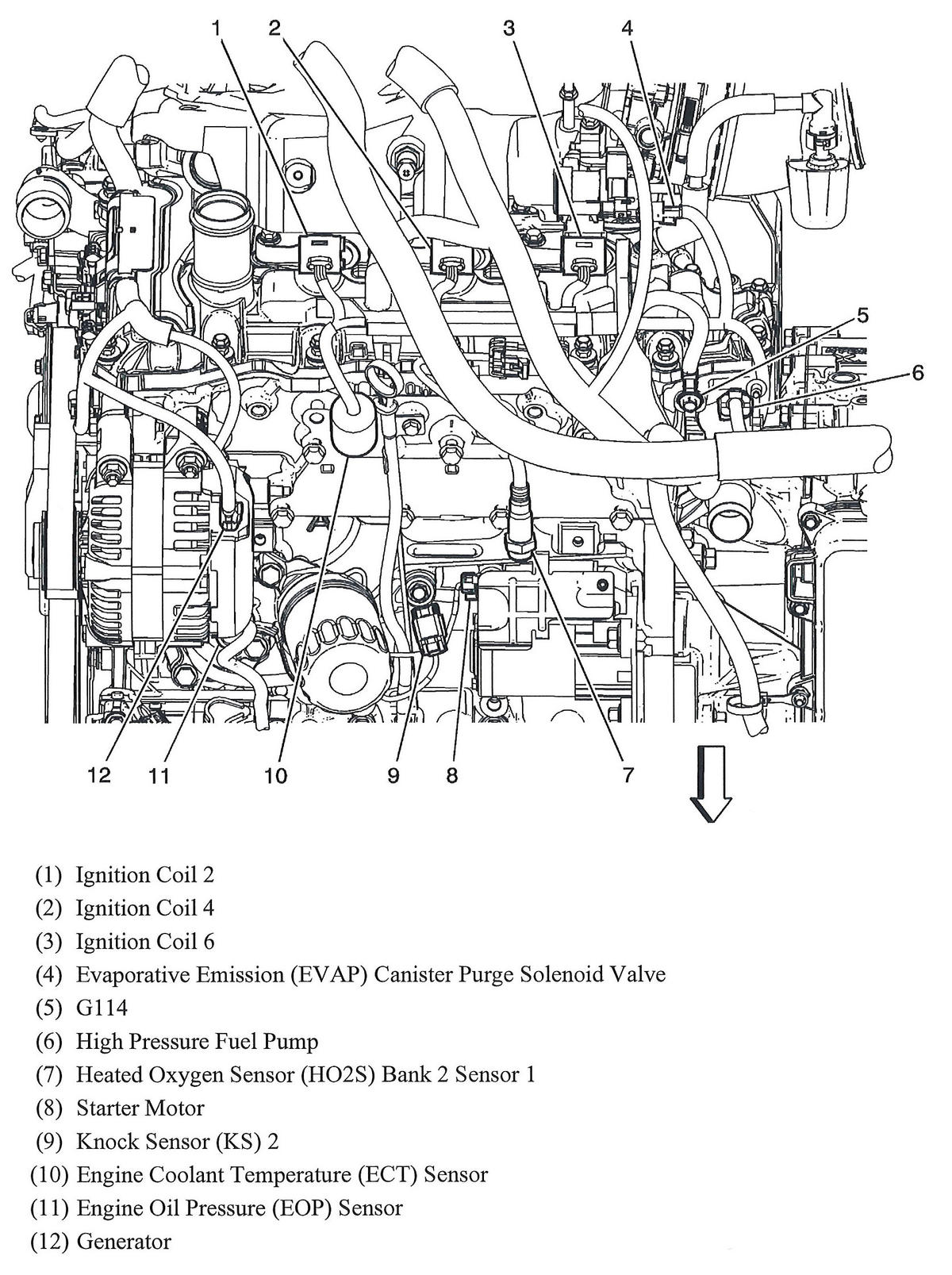

Fig 76: Right Side & Front Of Engine
Courtesy of GENERAL MOTORS CORP.

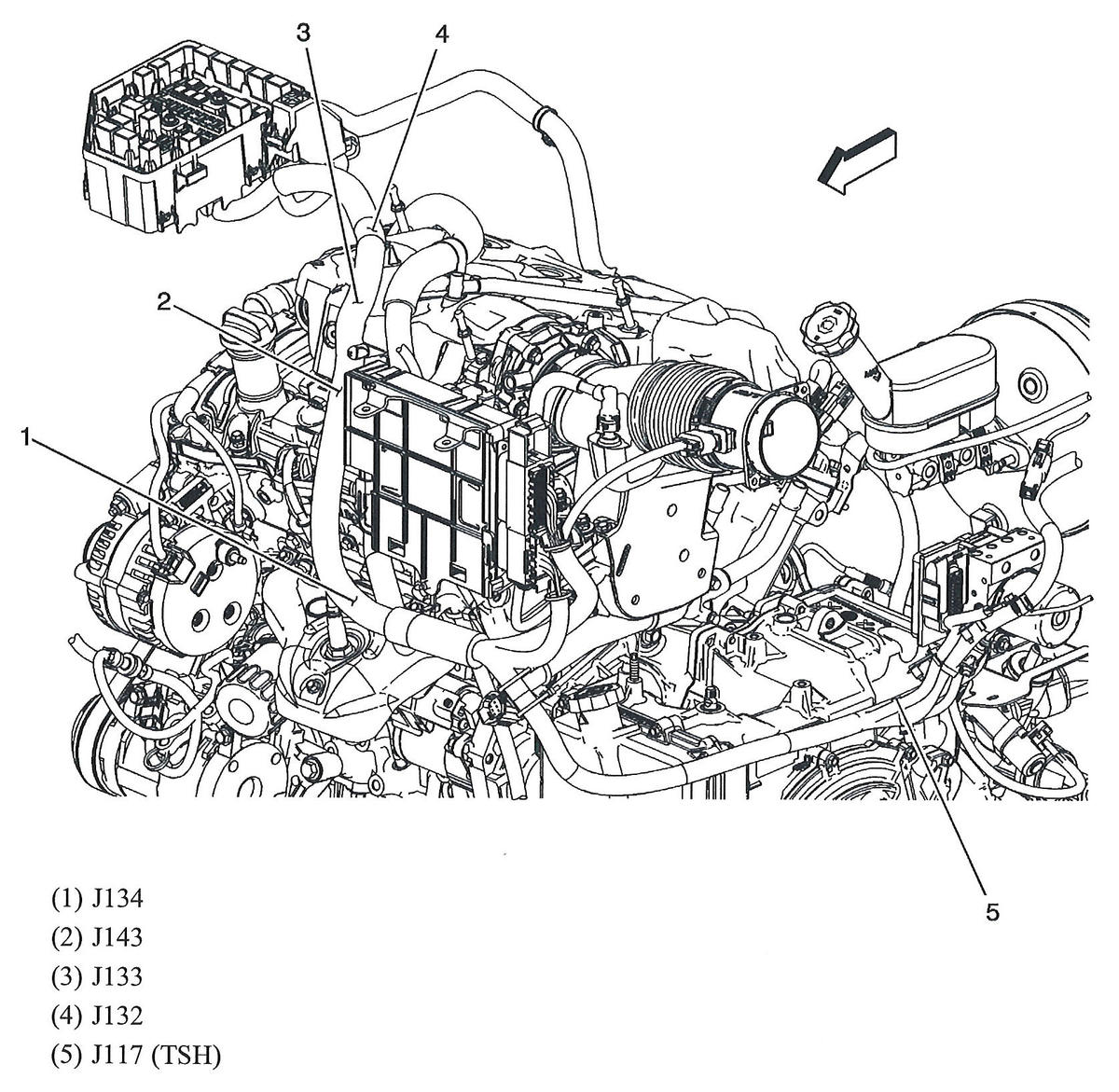

Fig 77: Top & Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 78: Top & Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 79: Top & Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 80: Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
