Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Accessory AC/DC Power Control Module | Behind left rear interior trim panel. See Figure. |

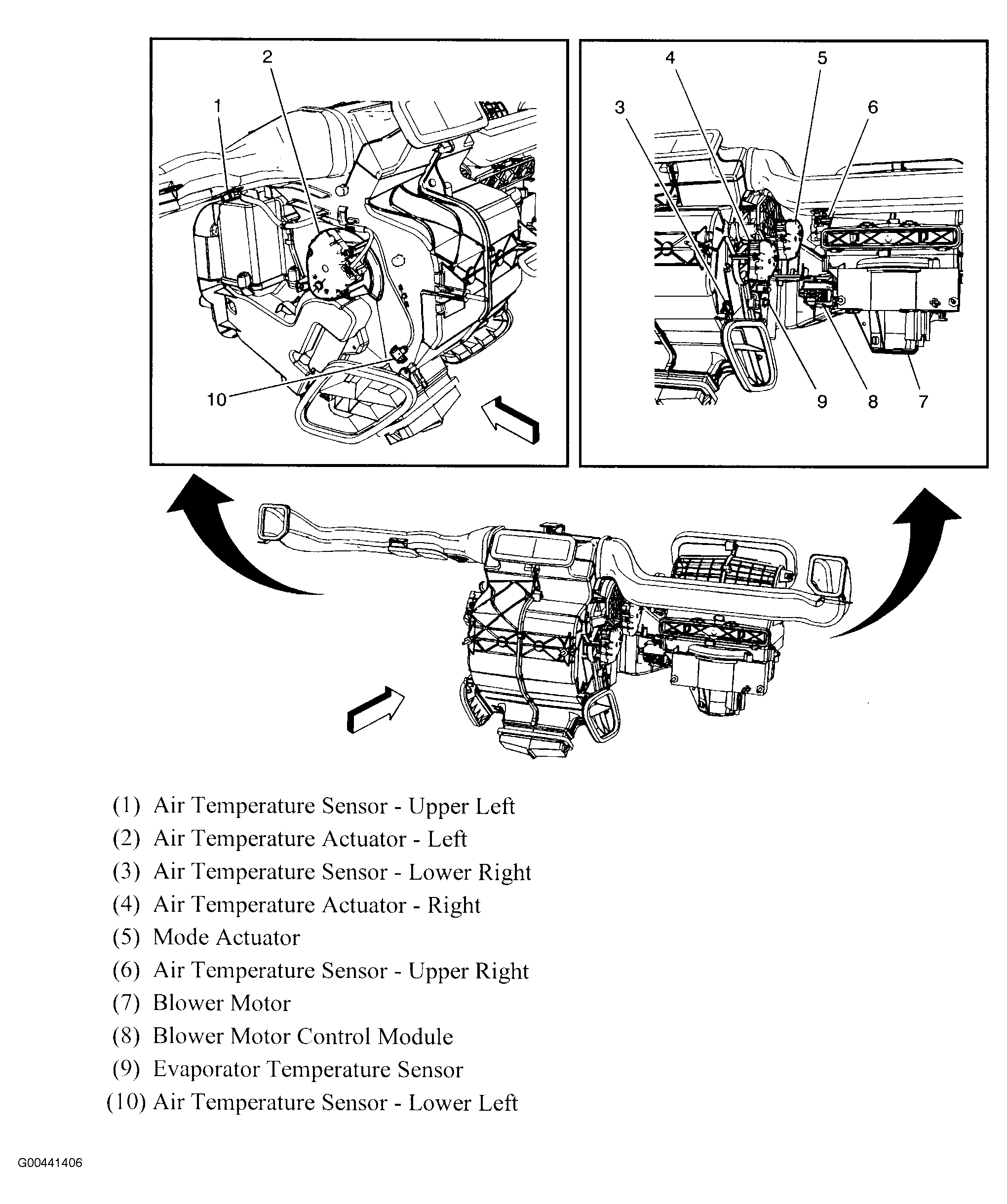

| Blower Motor Control Module | Behind glove box, in front of blower motor. See Figure. |
| Blower Motor Control Module - Auxiliary | On rear HVAC module. See Figure. |

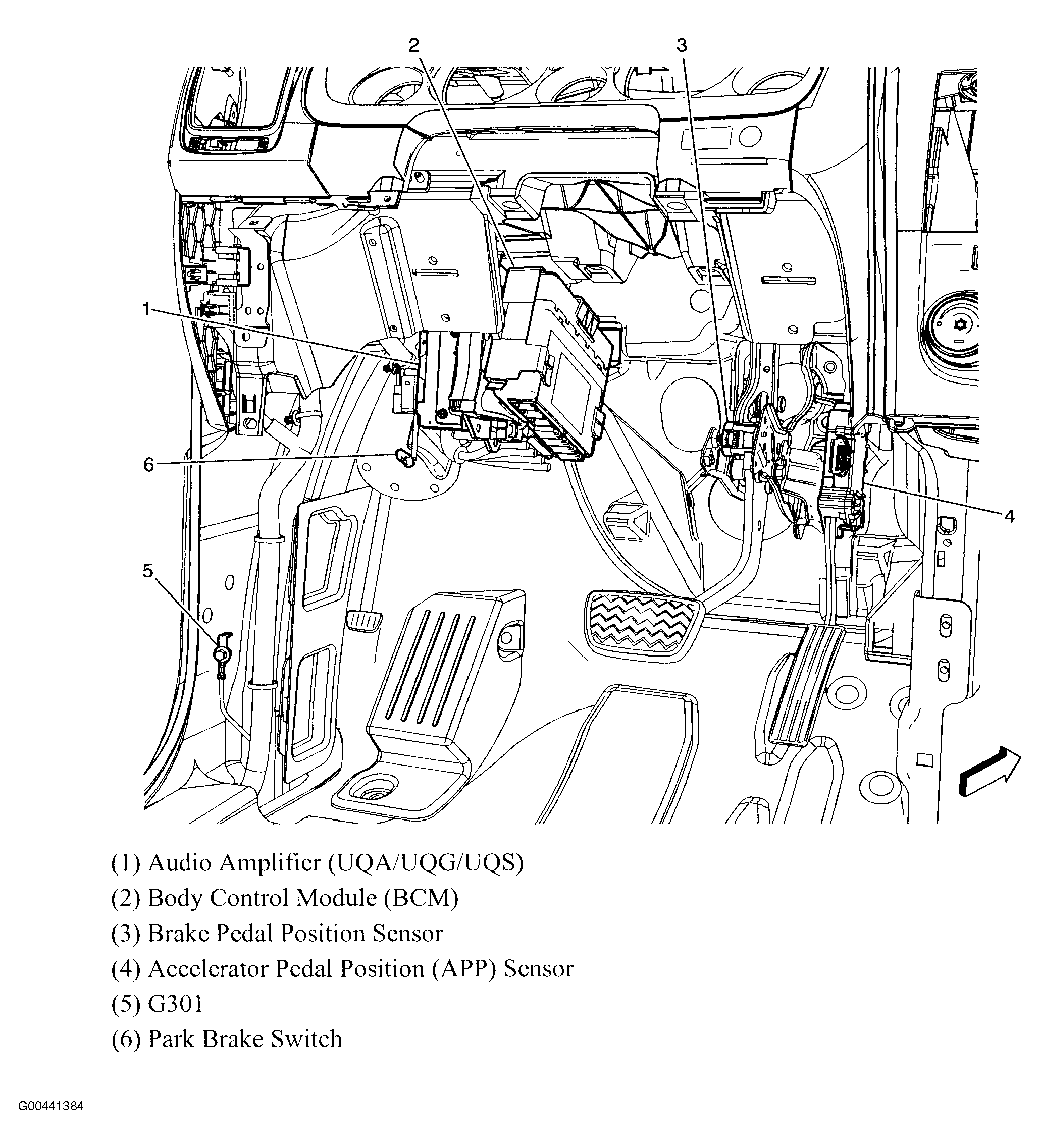

| Body Control Module (BCM) | Under left side of dash. See Figure. |

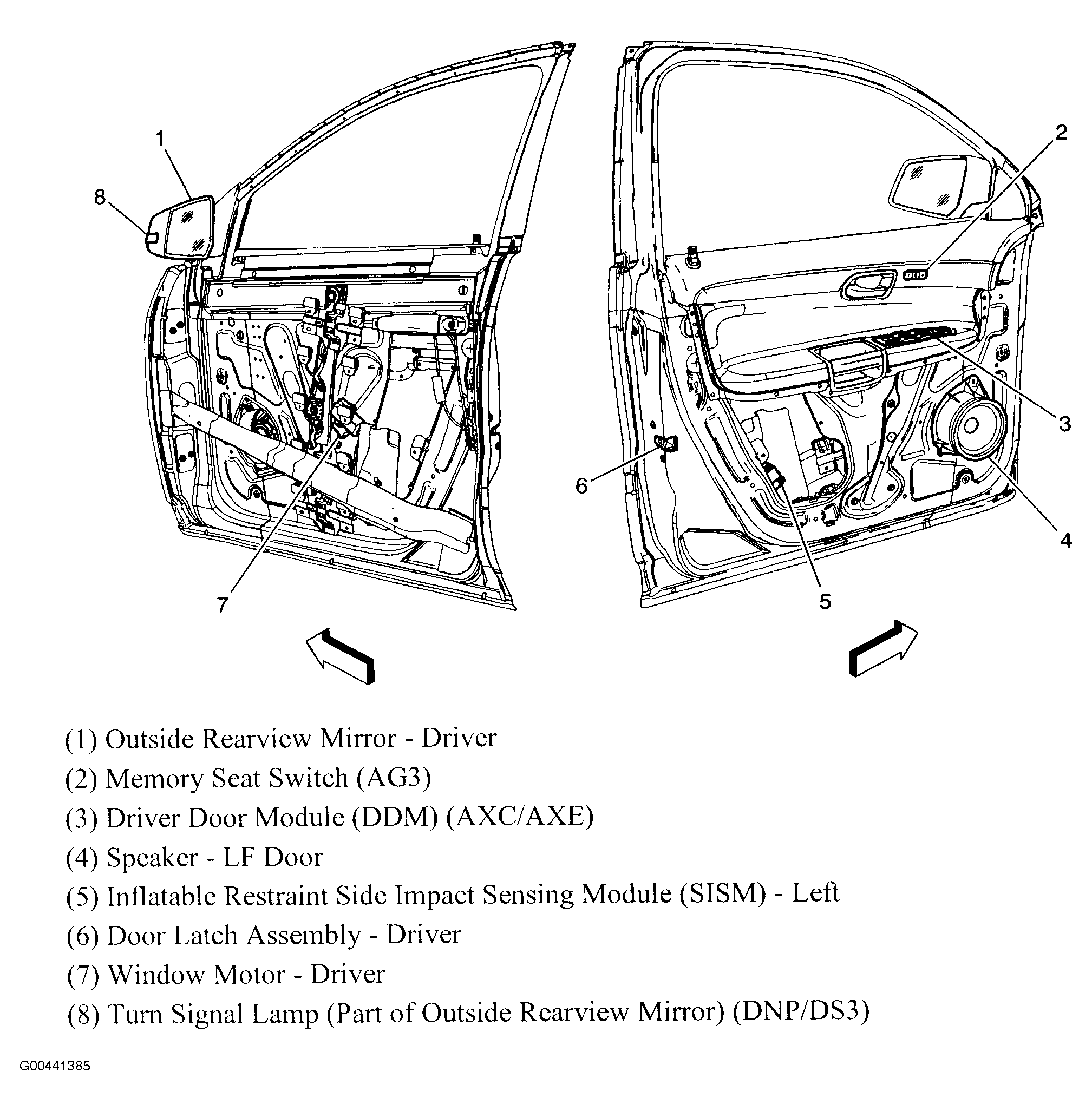

| Driver Door Module (DDM) | In driver's door arm rest. See Figure. |

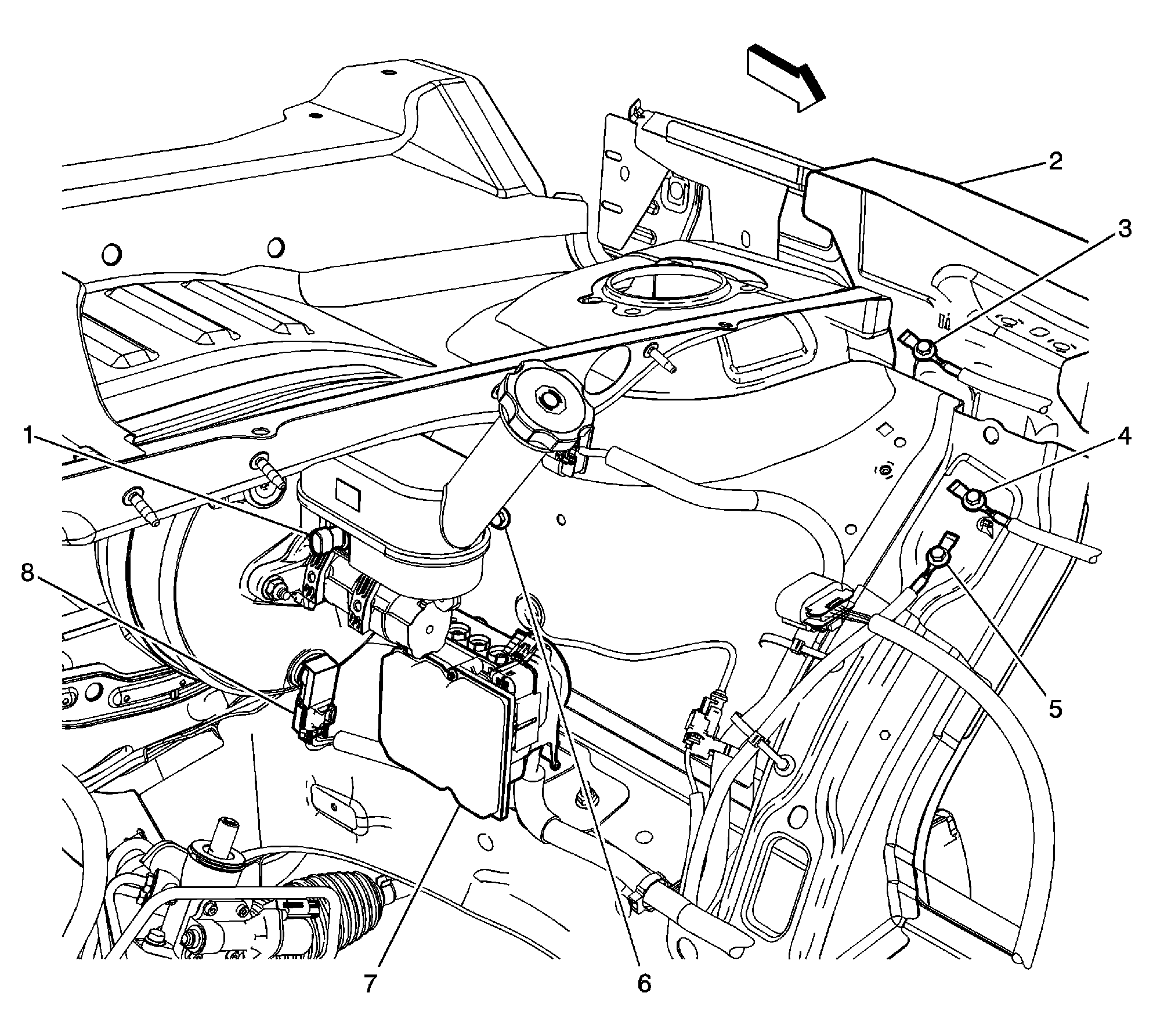

| Electronic Brake Control Module (EBCM) (7) | Left side of engine compartment. See Figure. |

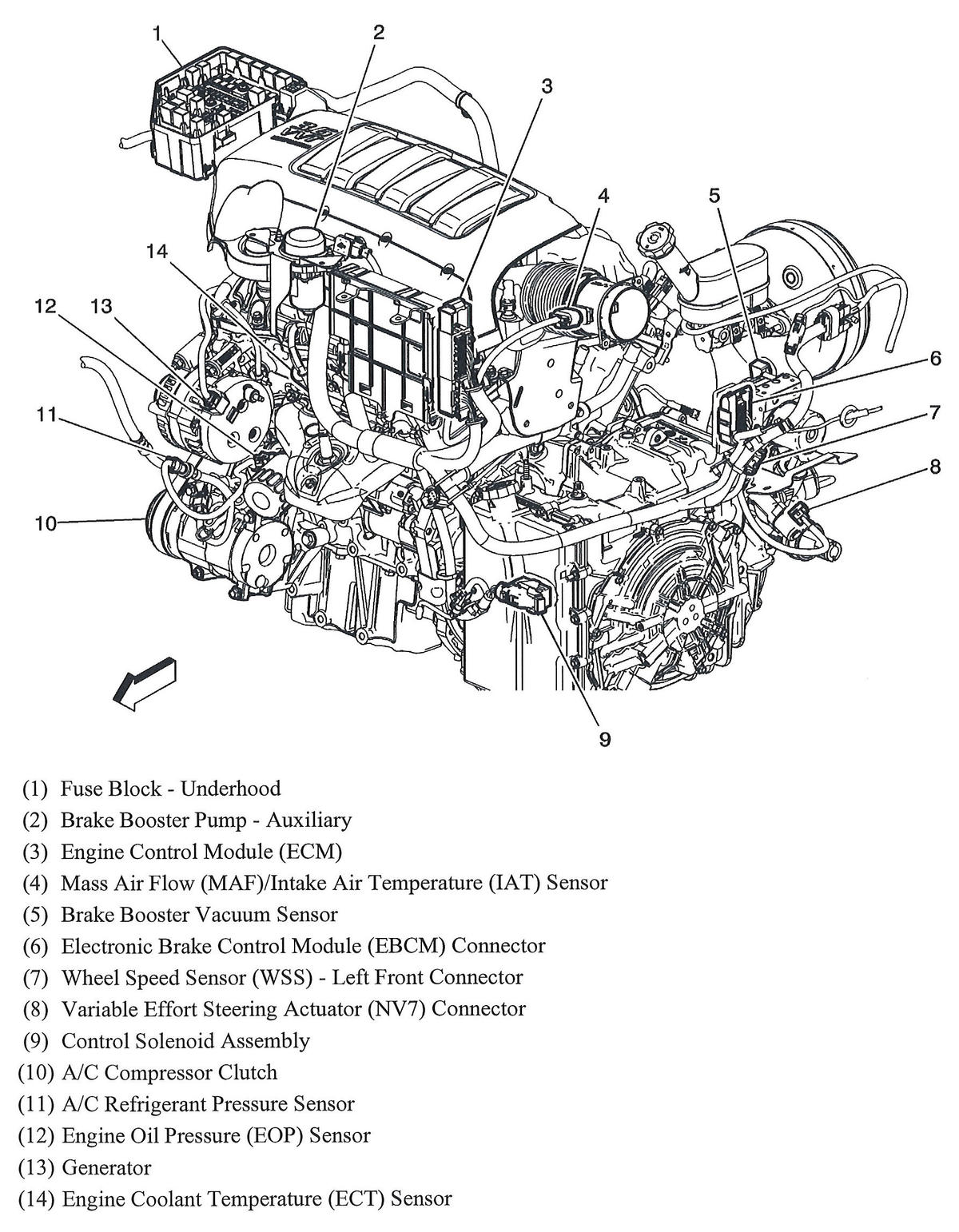

| Engine Control Module (ECM) | Left side of engine. See Figure. |

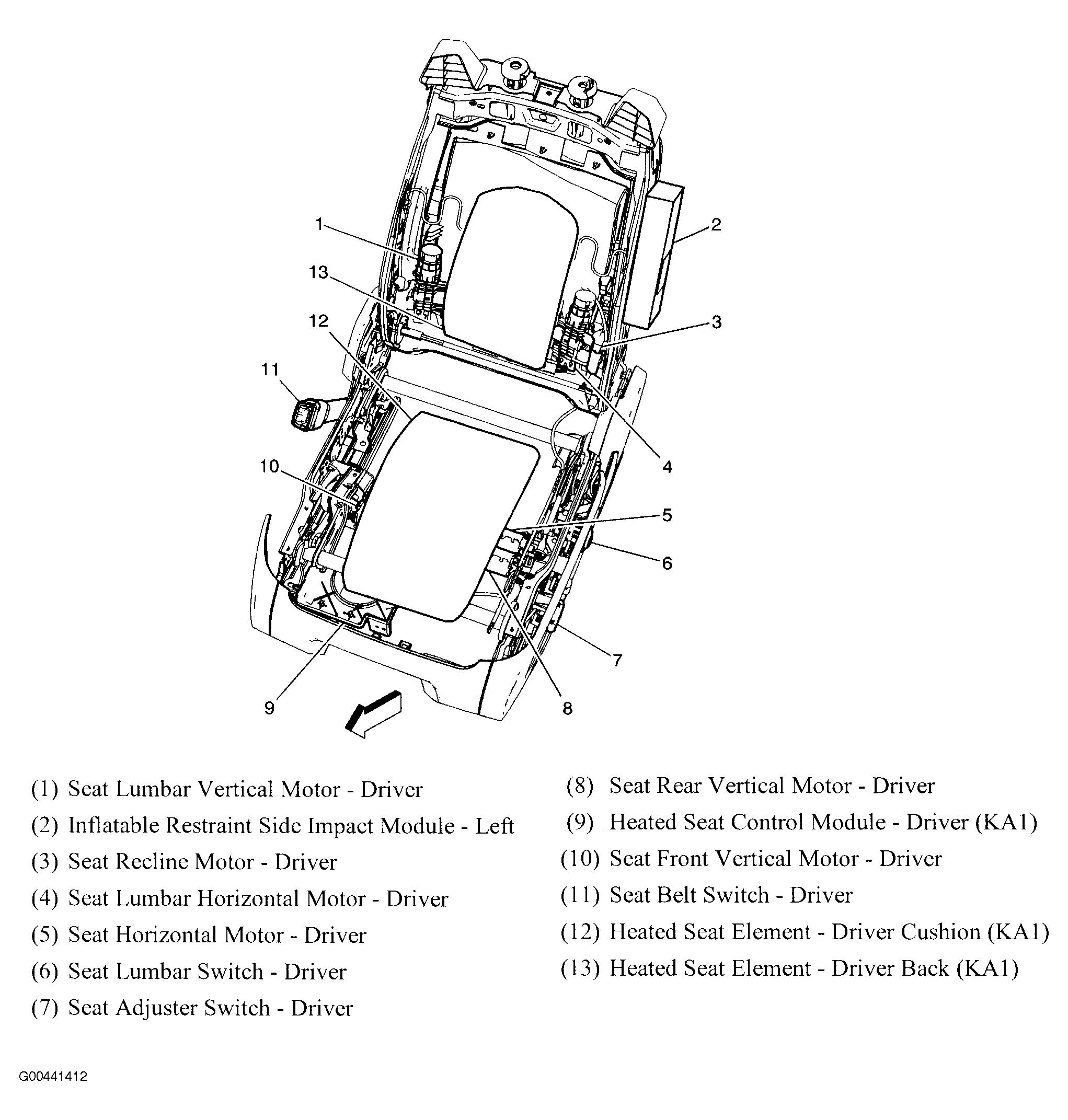

| Heated Seat Control Module - Driver (Power Seat) | Under driver's seat. See Figure. |

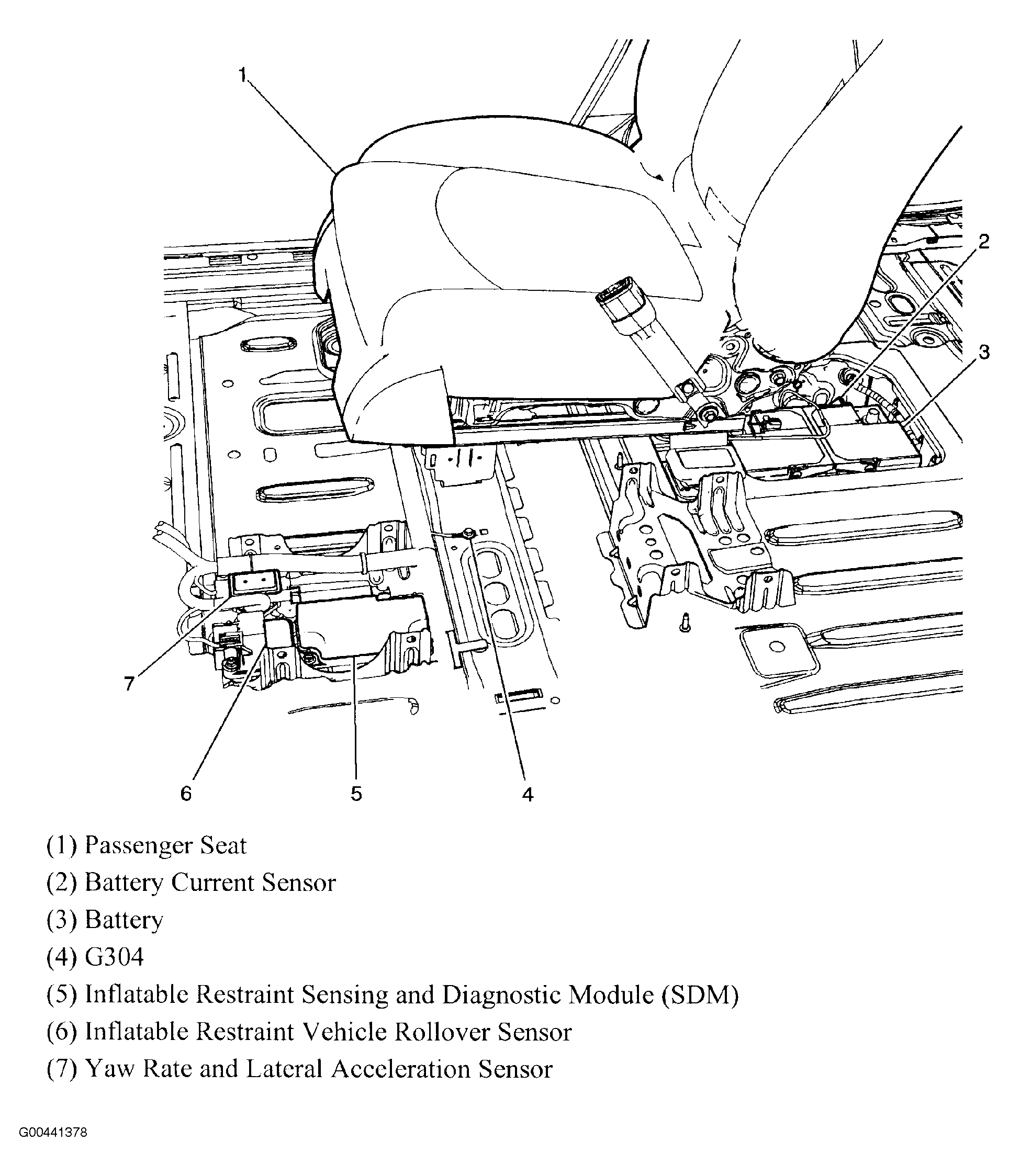

| Inflatable Restraint Sensing & Diagnostic Module | Under floor console. See Figure. |

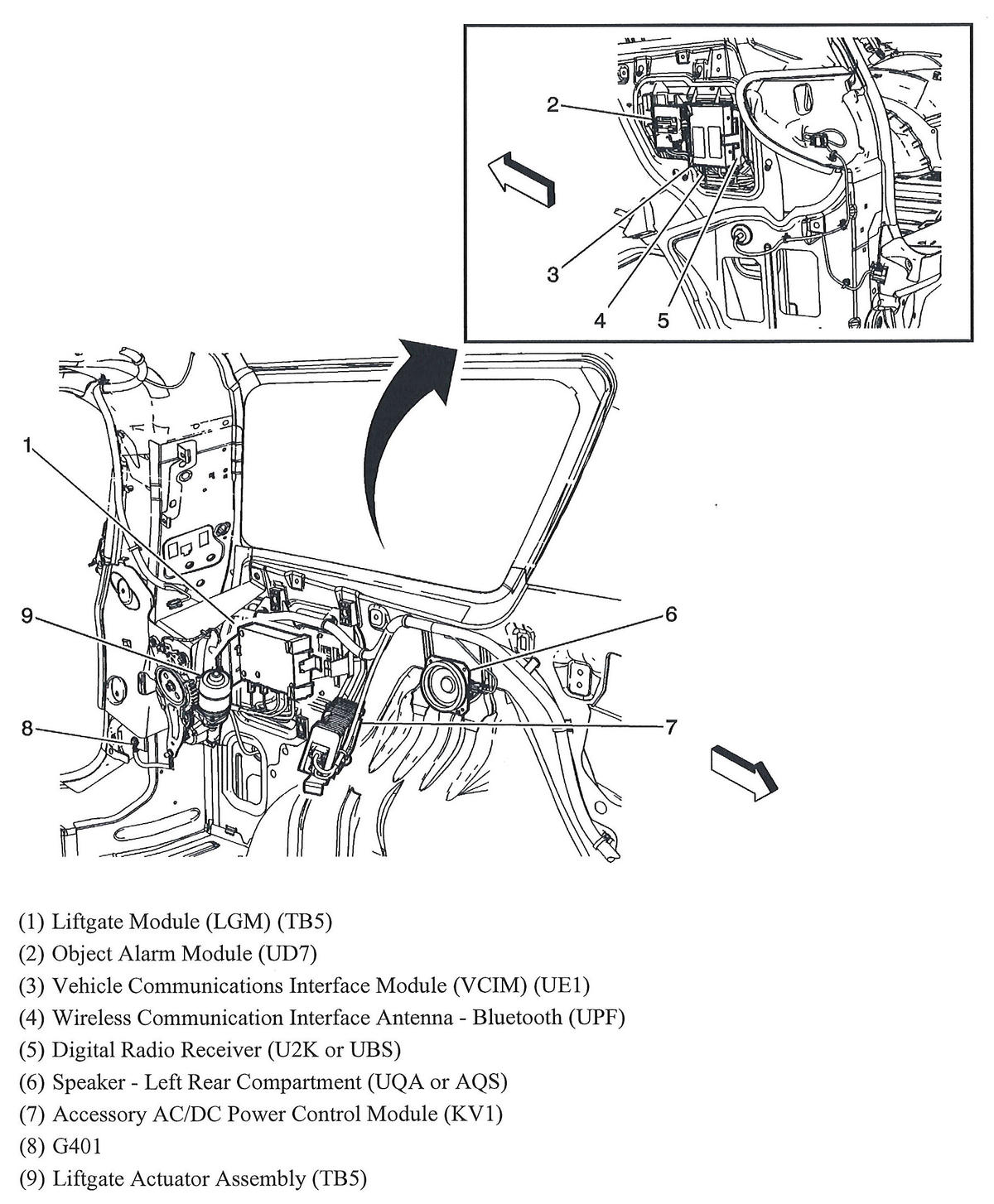

| Liftgate Module (LGM) | Near base of left "D" pillar. See Figure. |

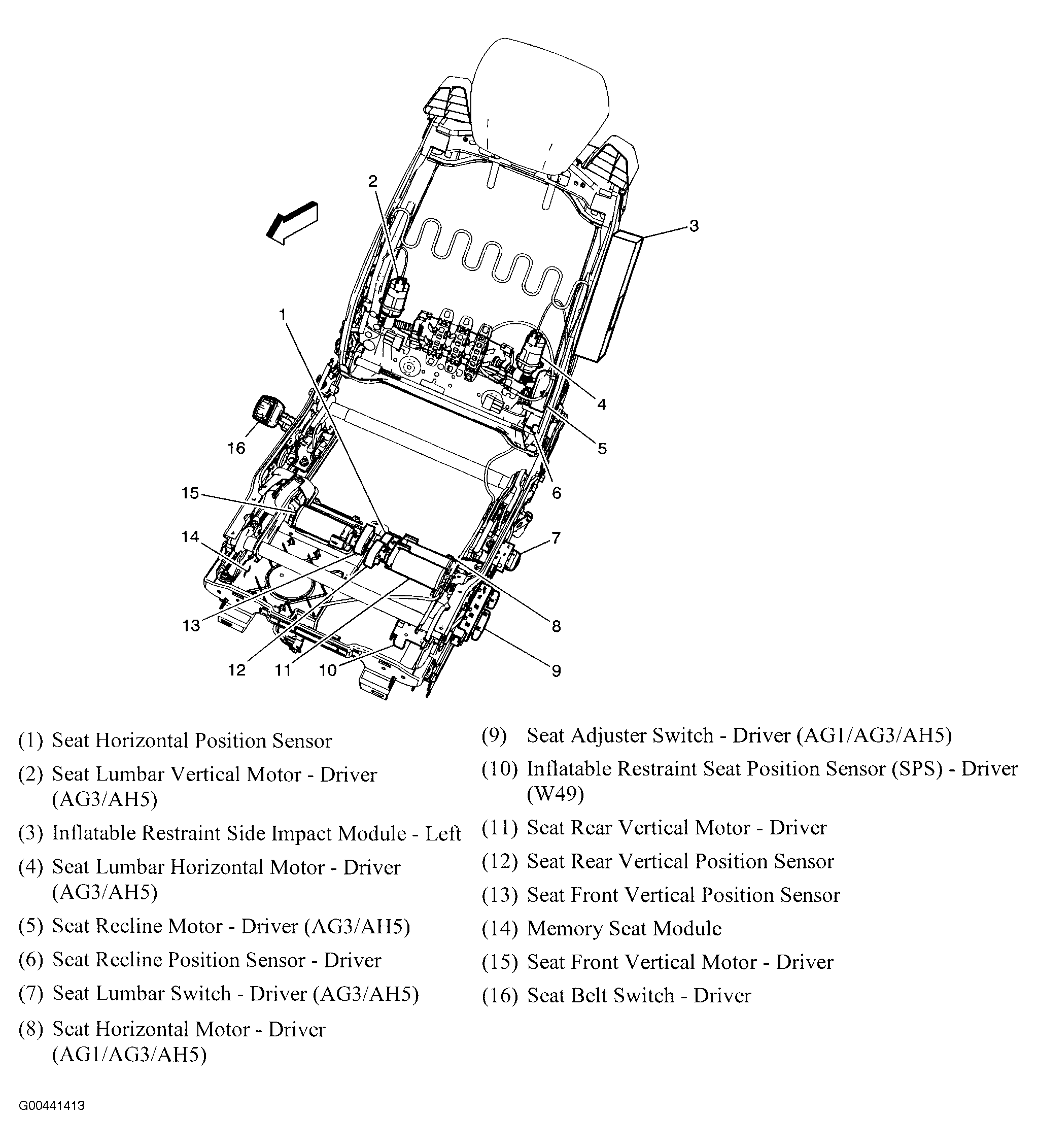

| Memory Seat Module | Under driver's seat. See Figure. |
| Object Alarm Module | Left quarterpanel. See Figure. |

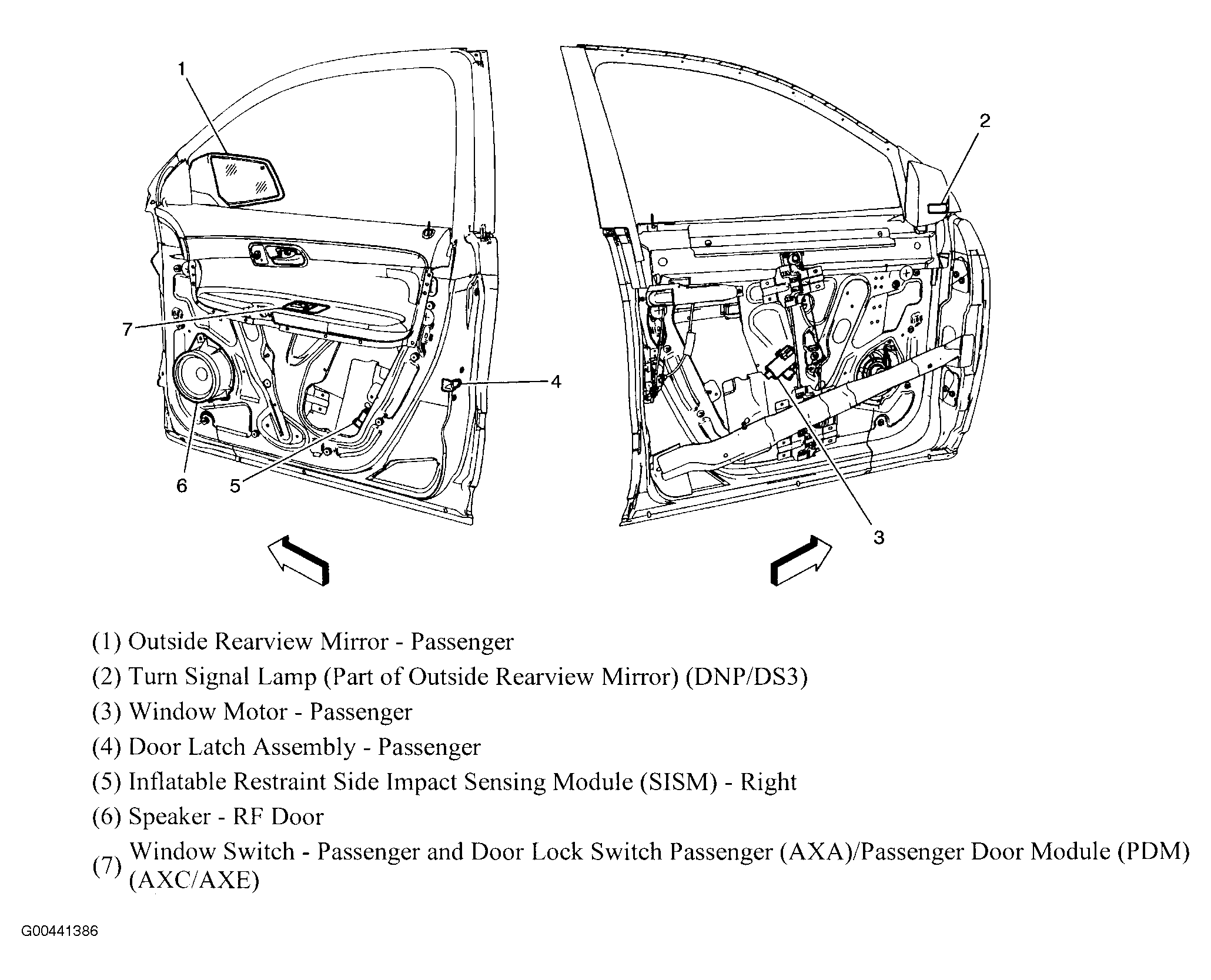

| Passenger Door Module (DDM) | In front passenger's door arm rest. See Figure. |

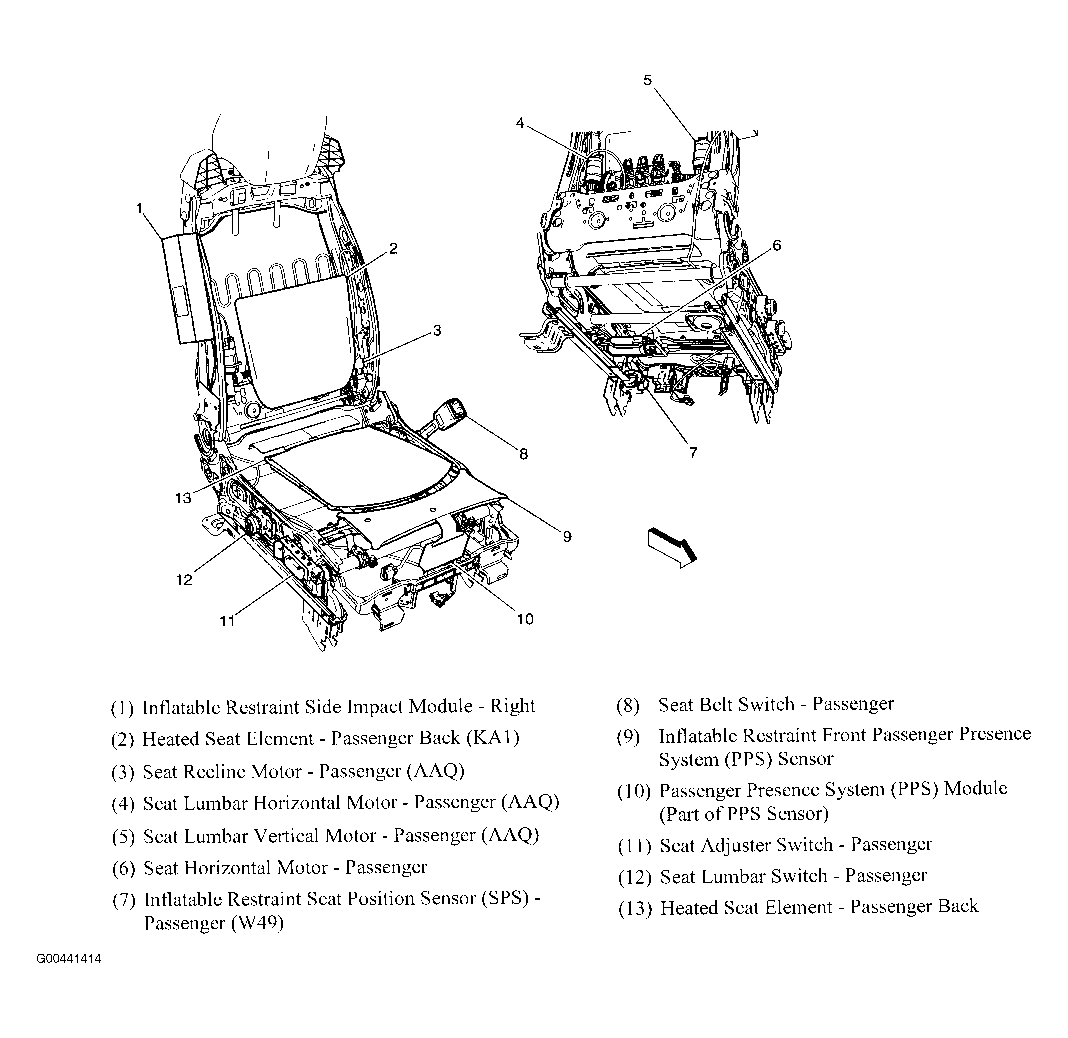

| Passenger Presence System (PPS) Module | Integral to inflatable restraint front passenger presence System (PPS) sensor. See Figure. |

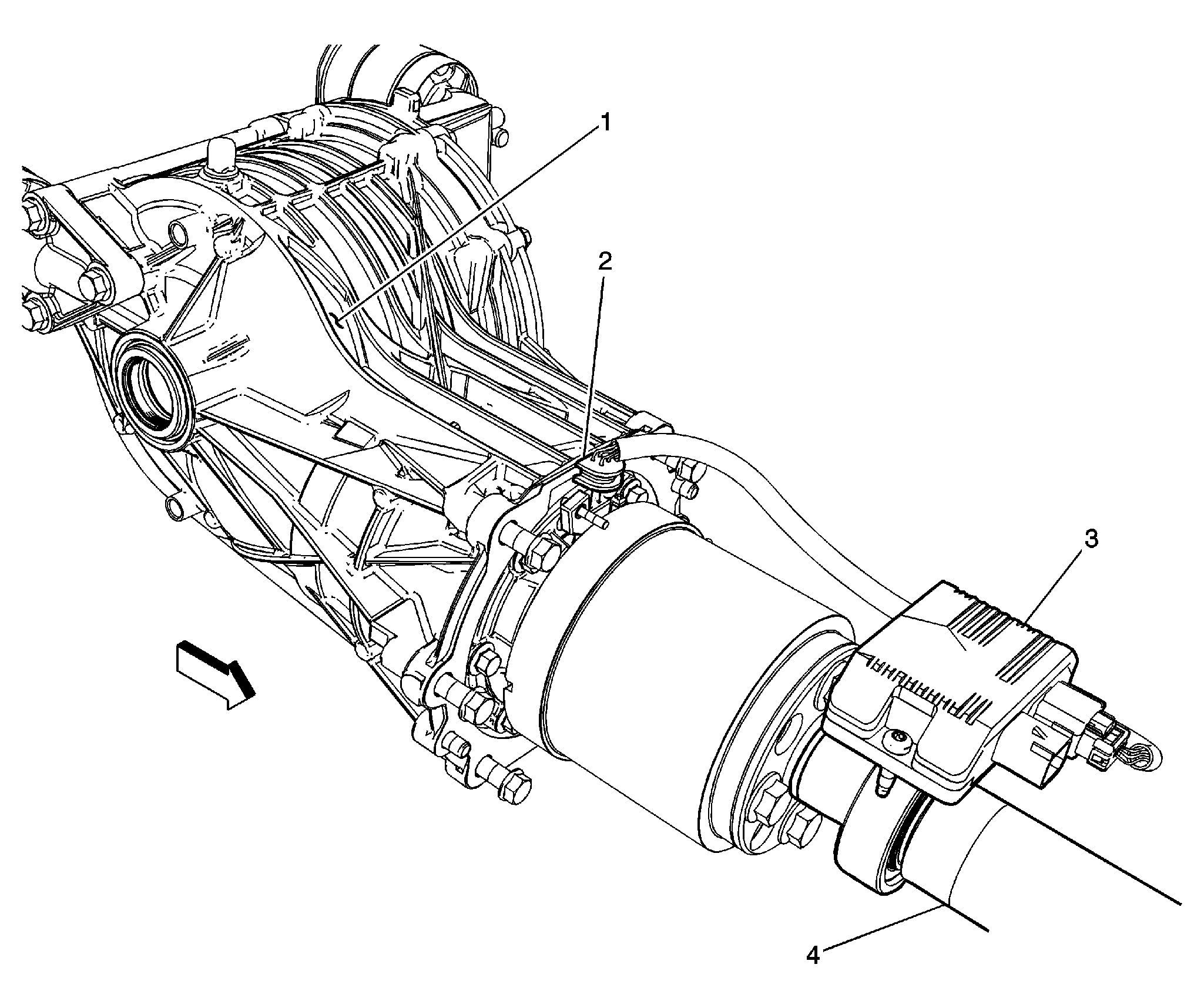

| Rear Differential Clutch Control Module (3) | At rear differential. See Figure. |
| Rear Parking Assist (RPA) Module | Behind left rear interior trim panel. See Figure. |

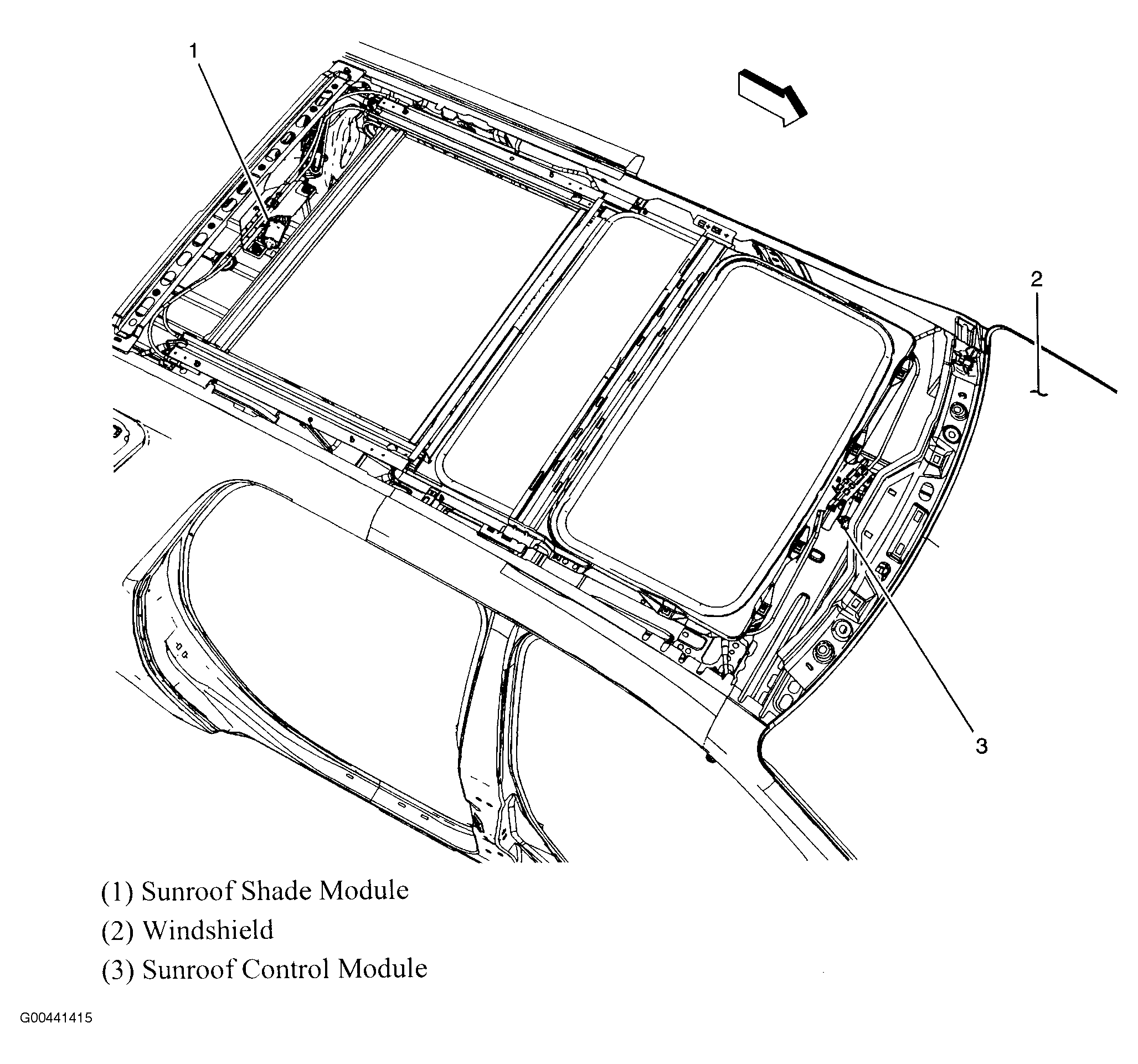

| Sunroof Control Module | Front of sunroof assembly. See Figure. |
| Sunroof Shade Module | Center rear of roof. See Figure. |

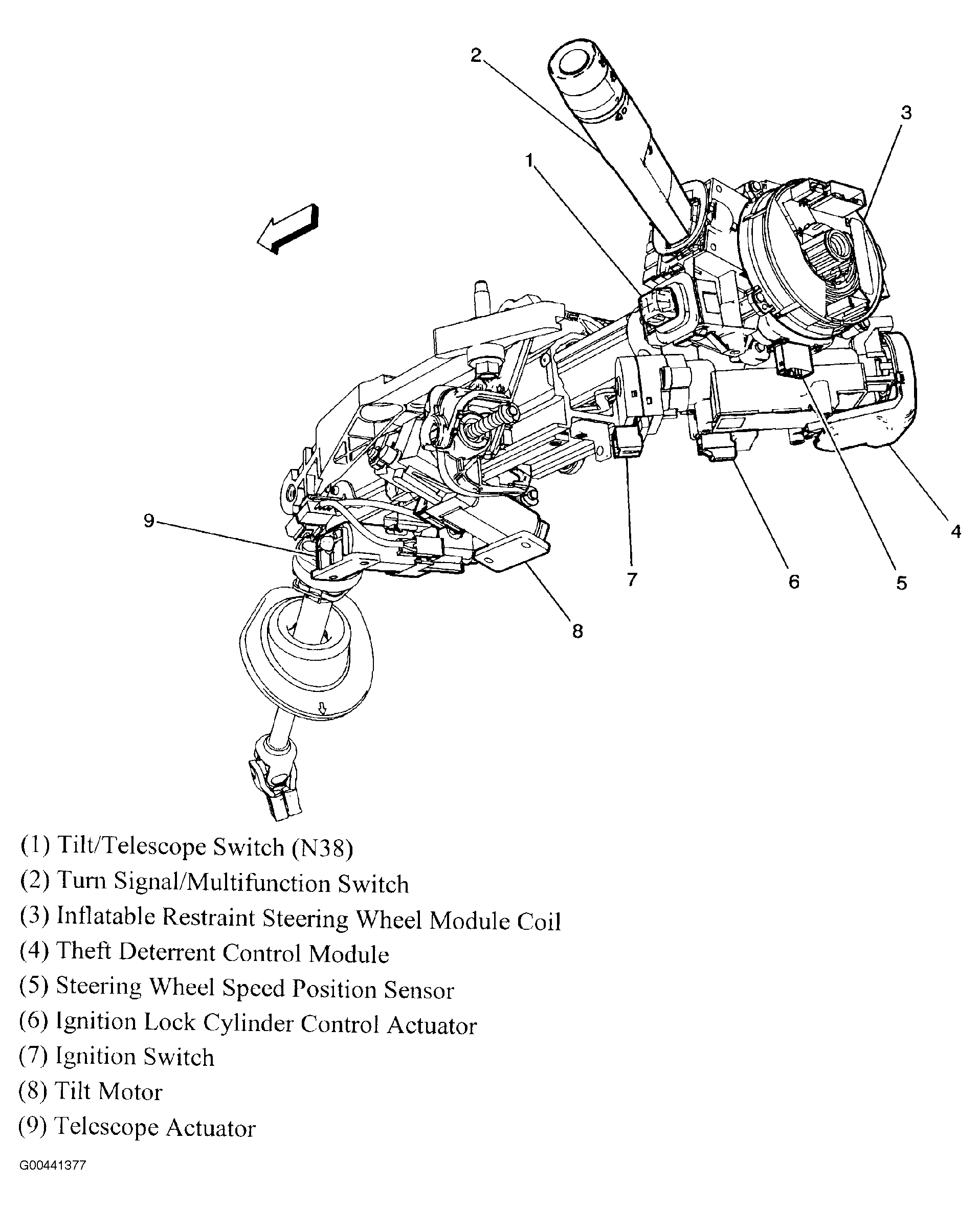

| Theft Deterrent Control Module | In steering column, at ignition switch. See Figure. |
| Vehicle Communications Interface Module (VCIM) | Left quarterpanel. See Figure. |
