Fuel Tank

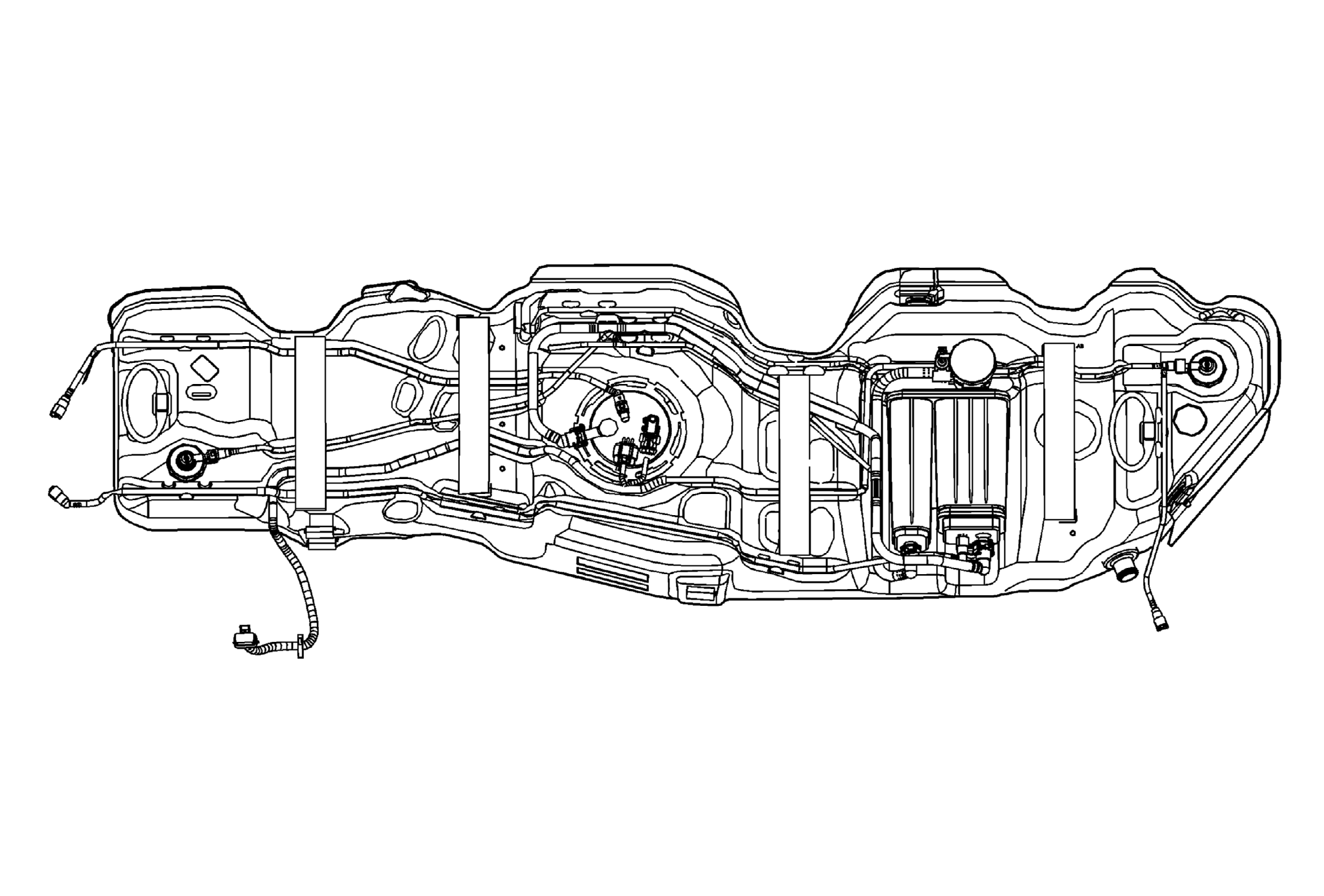

Fig 1: Identifying Fuel Tank
GM1850992Courtesy of GENERAL MOTORS CORP.

The fuel storage tank is made of high density polyethylene. The fuel storage tank is held in place by metal straps that are attached to the under body of the vehicle. The tank shape includes a sump in order to maintain a constant supply of fuel around the fuel pump strainer during low fuel conditions or during aggressive maneuvers.
