Installation Procedure
WARNING:
Refer to Gasoline/Gasoline Vapors Warning
.
WARNING:
Remove the fuel tank cap and relieve the fuel system pressure before servicing the fuel system in order to reduce the risk of personal injury. After you relieve the fuel system pressure, a small amount of fuel may be released when servicing the fuel lines, the fuel injection pump, or the connections. In order to reduce the risk of personal injury, cover the fuel system components with a shop towel before disconnection. This will catch any fuel that may leak out. Place the towel in an approved container when the disconnection is complete.
- Relieve the fuel system pressure. Refer to Fuel Pressure Relief (With CH-48027) or Fuel Pressure Relief (Without CH-48027) .

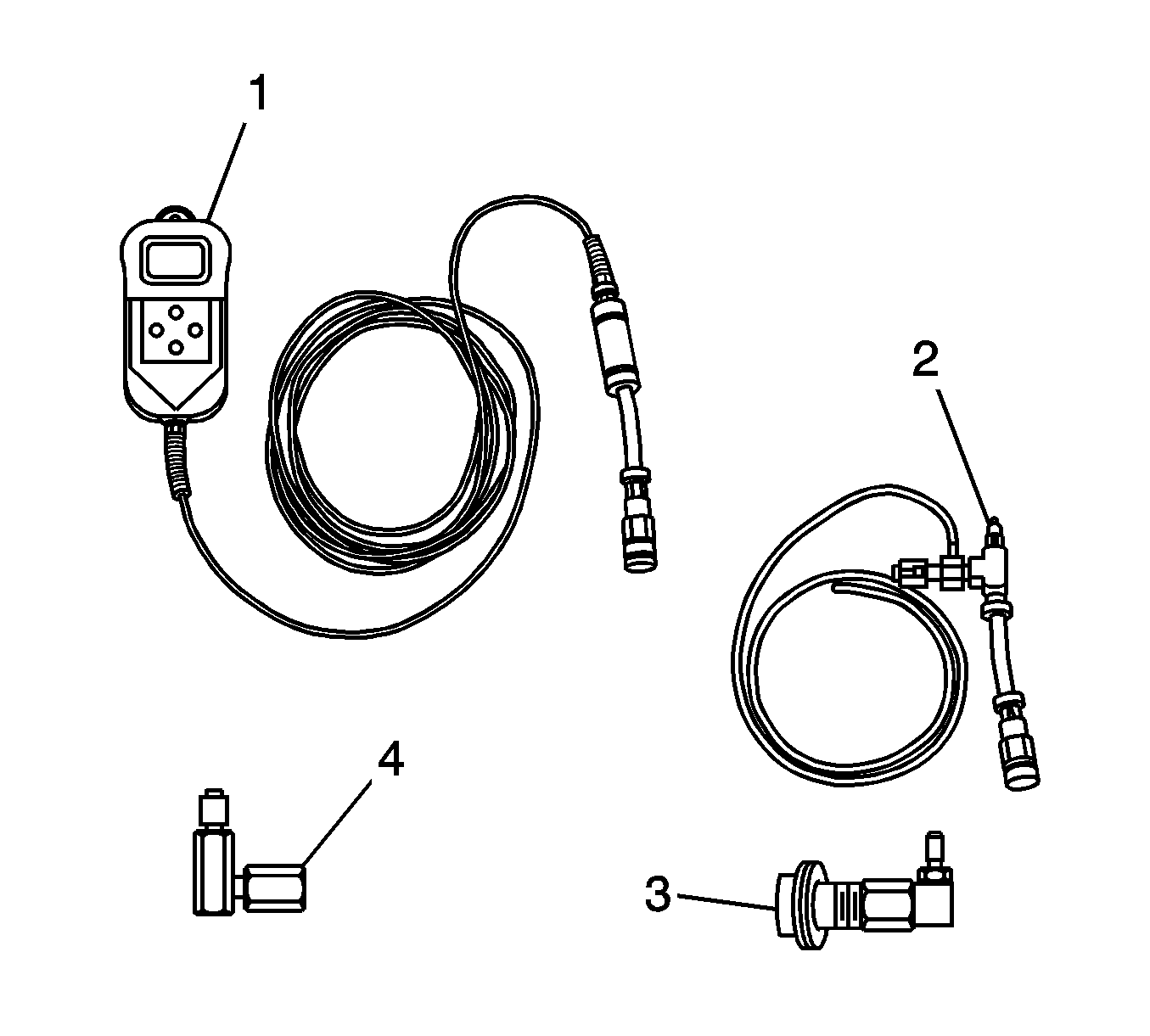

- Connect the CH-48027-1 (1) to the CH-48027-2 (2).
- Remove the shop towel from around the fuel rail service port, and place in an approved gasoline container.
- Perform any tests and/or diagnostics as needed. For the proper usage of the CH-48027 , refer to the manufacture's directions. See Special Tools .
