Rearview Camera Image Display Module Replacement

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

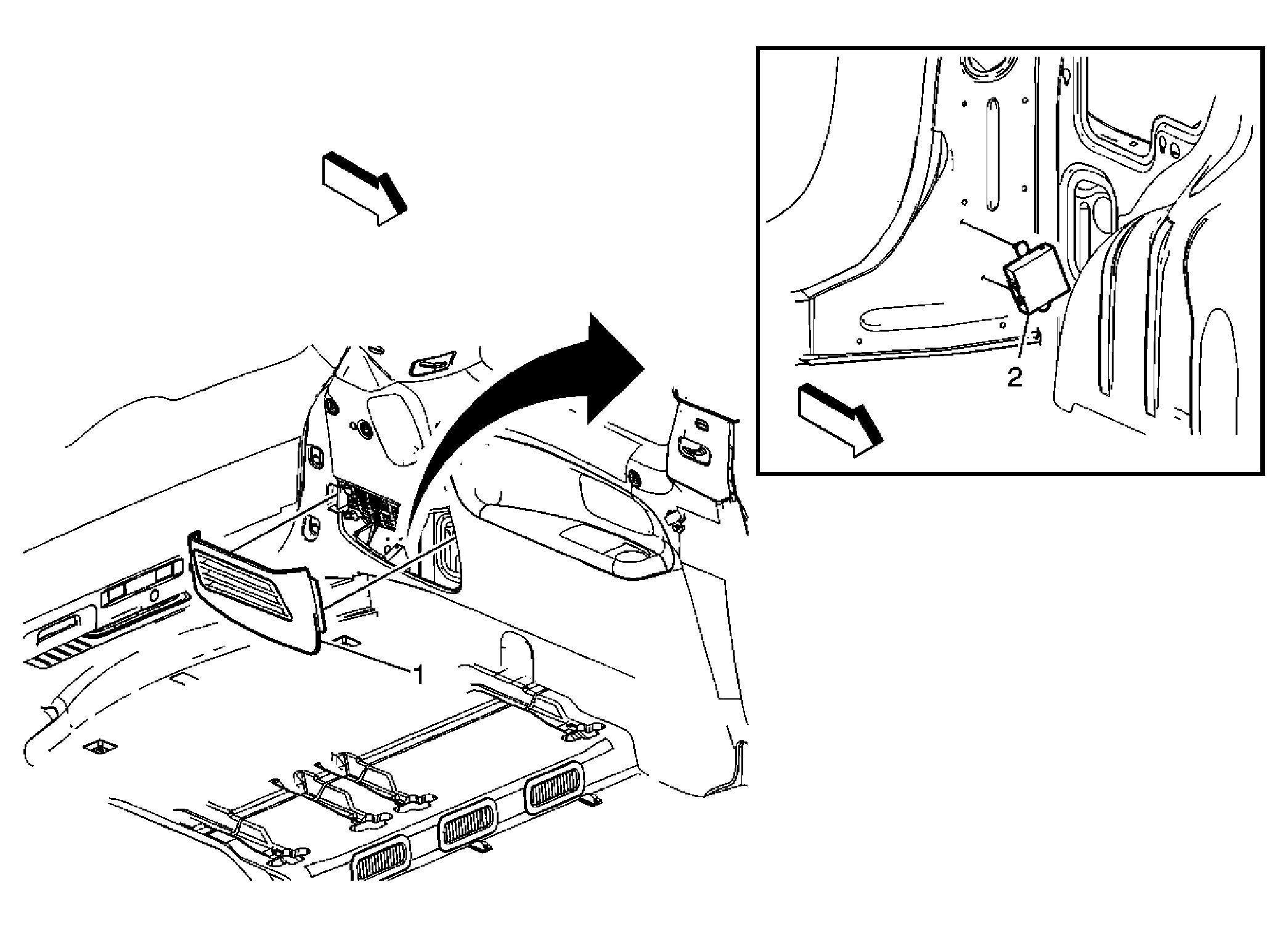

Fig 1: Identifying Rearview Camera Image Display Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Side Trim Panel Stow Compartment Door Assembly
2	Rearview Camera Image Display Module Assembly Procedure: Disconnect the electrical Connector.
