Installation Procedure

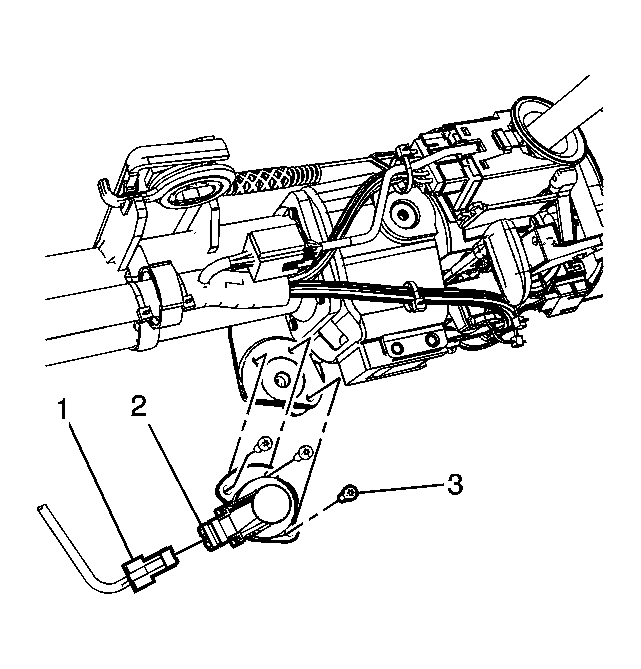

    Fig 1: Identifying Shift Lock Actuator, Electrical Connector And Bolts
    GM1538451Courtesy of GENERAL MOTORS CORP.
  1. Install the shift lock actuator (2) to the linear shift assembly.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the shift lock actuator screws (3) and tighten to 2 N.m (18 lb in).
  3. Connect the shift lock actuator electrical connector (1).

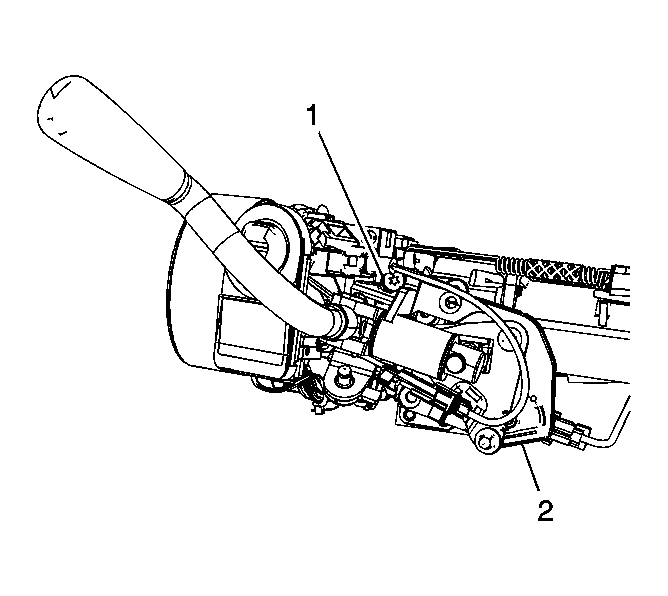

    4. Fig 2: Identifying Linear Shift Assembly And Bolts
    GM1538450Courtesy of GENERAL MOTORS CORP.
  4. Rotate the linear shift assembly (2) up to align the linear shift assembly bolt holes.

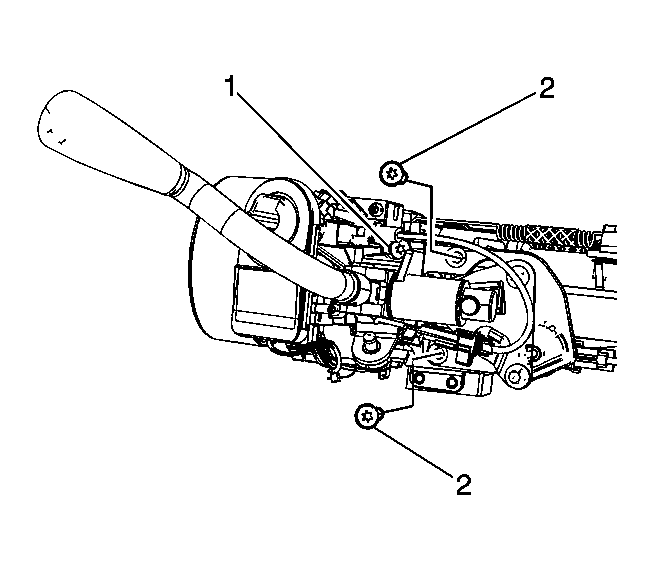

    5. Fig 3: View Of Shift Lock Actuator Linear Shift Front Bolts
    GM1538449Courtesy of GENERAL MOTORS CORP.
  5. Install the linear shift front bolts (2). Tighten the bolts (1, 2) to 10 N.m (89 lb in).
  6. Install the steering column. Refer to Steering Column Replacement .
  7. Install the trim covers to the steering column. Refer to Steering Column Trim Covers Replacement .
