Body Control System Schematics

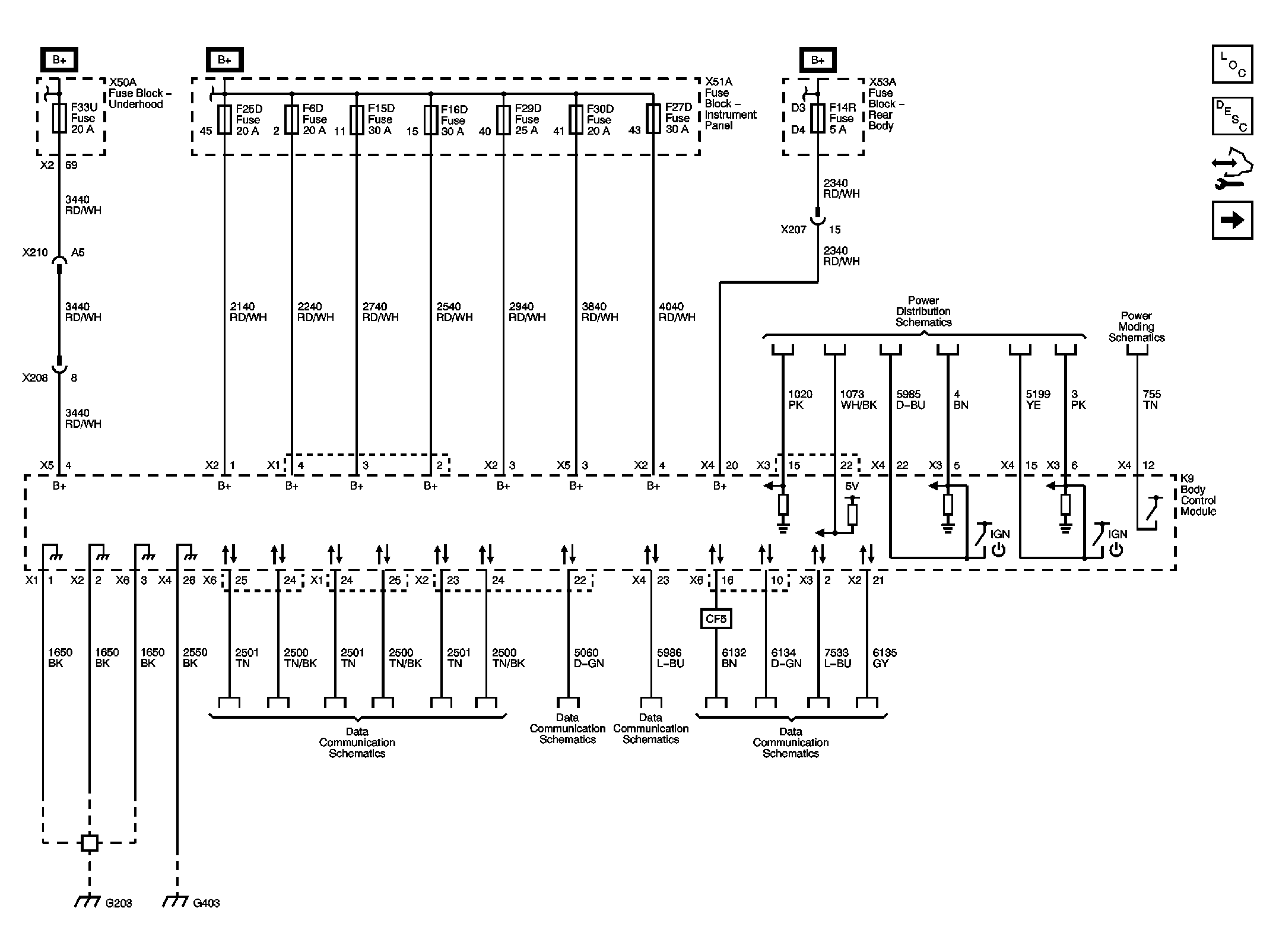

Fig 1: Module Power, Ground, Data Communications
GM2207097Courtesy of GENERAL MOTORS CORP.

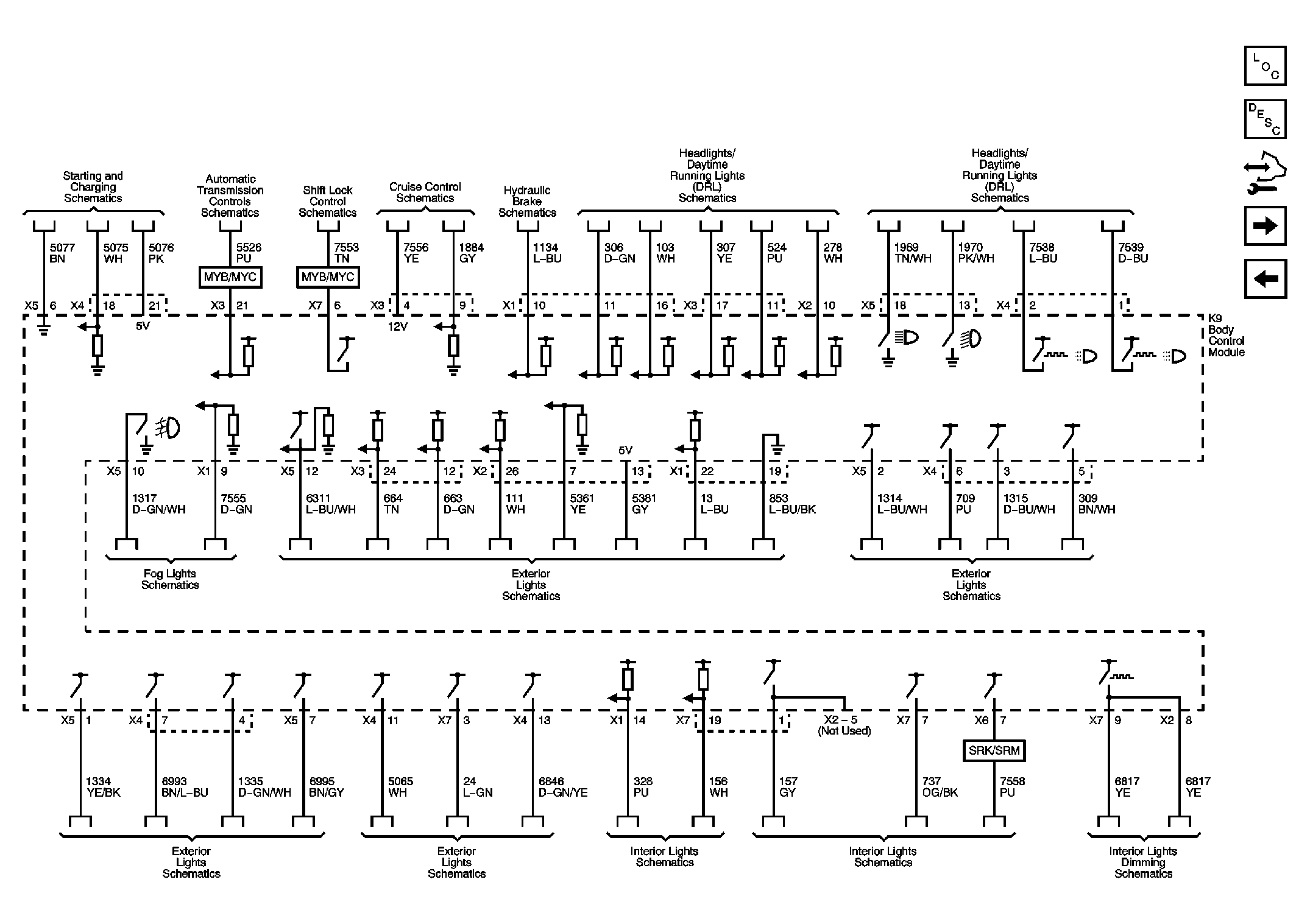

Fig 2: References 1 of 2
GM2207099Courtesy of GENERAL MOTORS CORP.

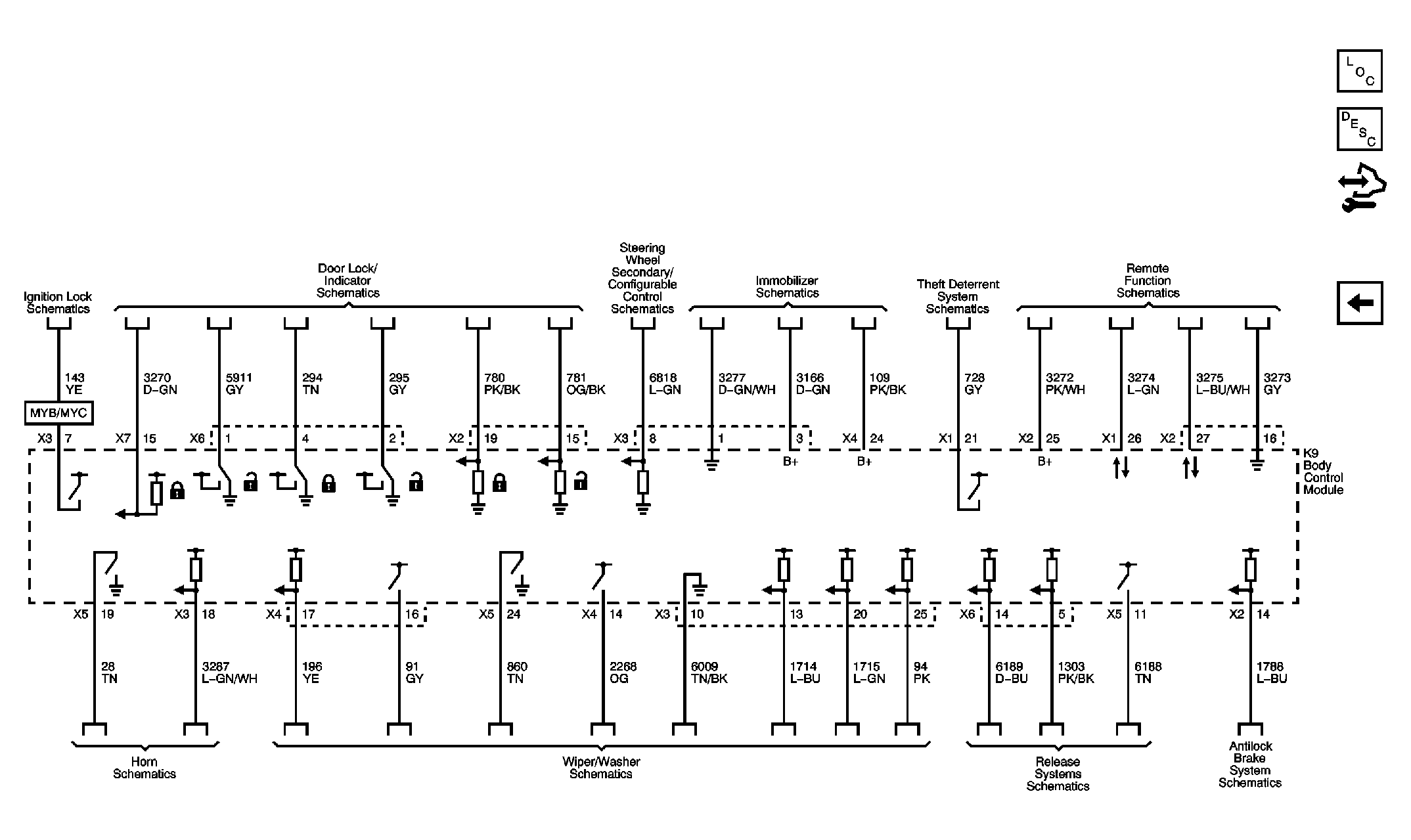

Fig 3: References 2 of 2
GM2207101Courtesy of GENERAL MOTORS CORP.
