Components




Master Electrical Component List

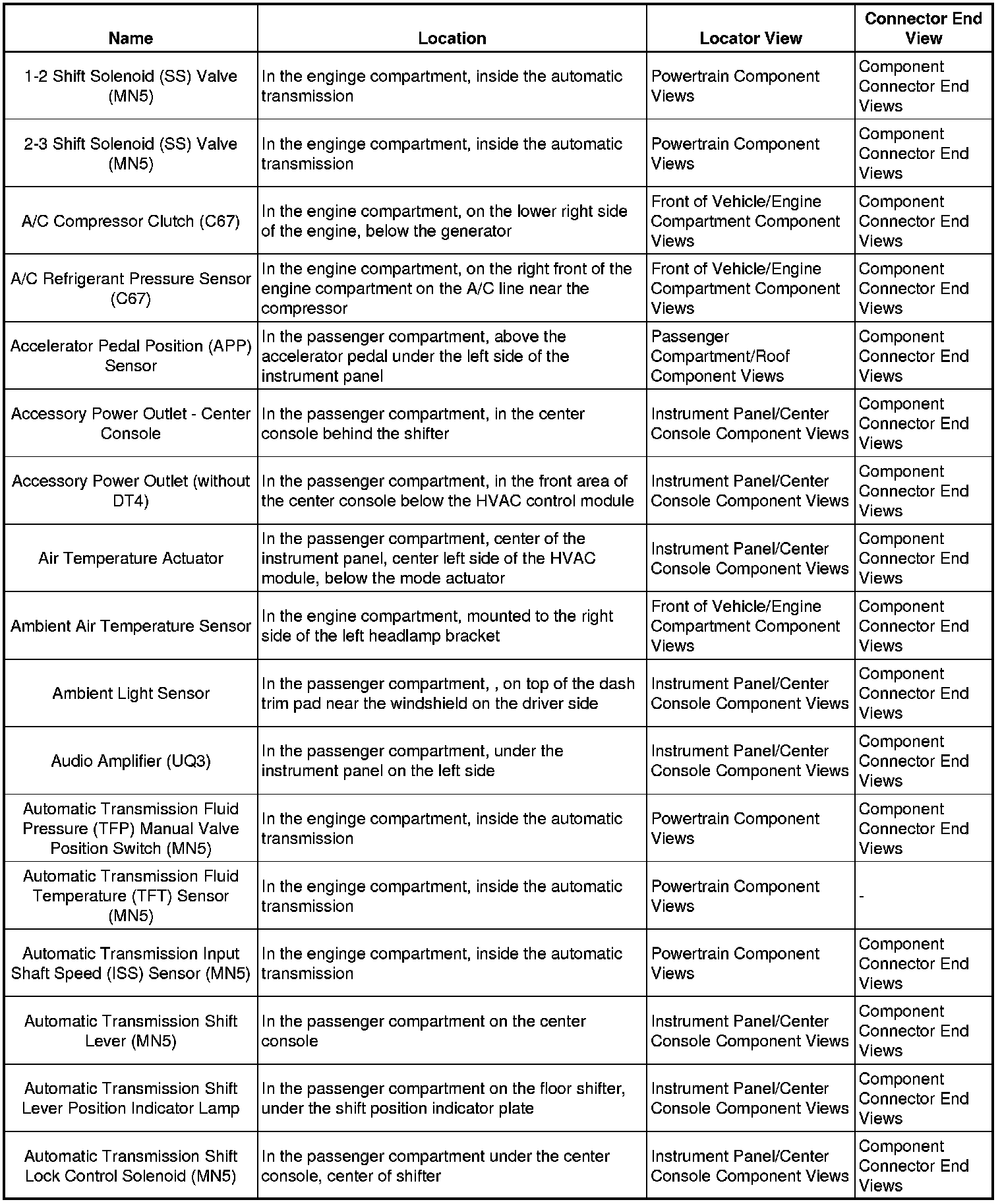

1-2 - Au:

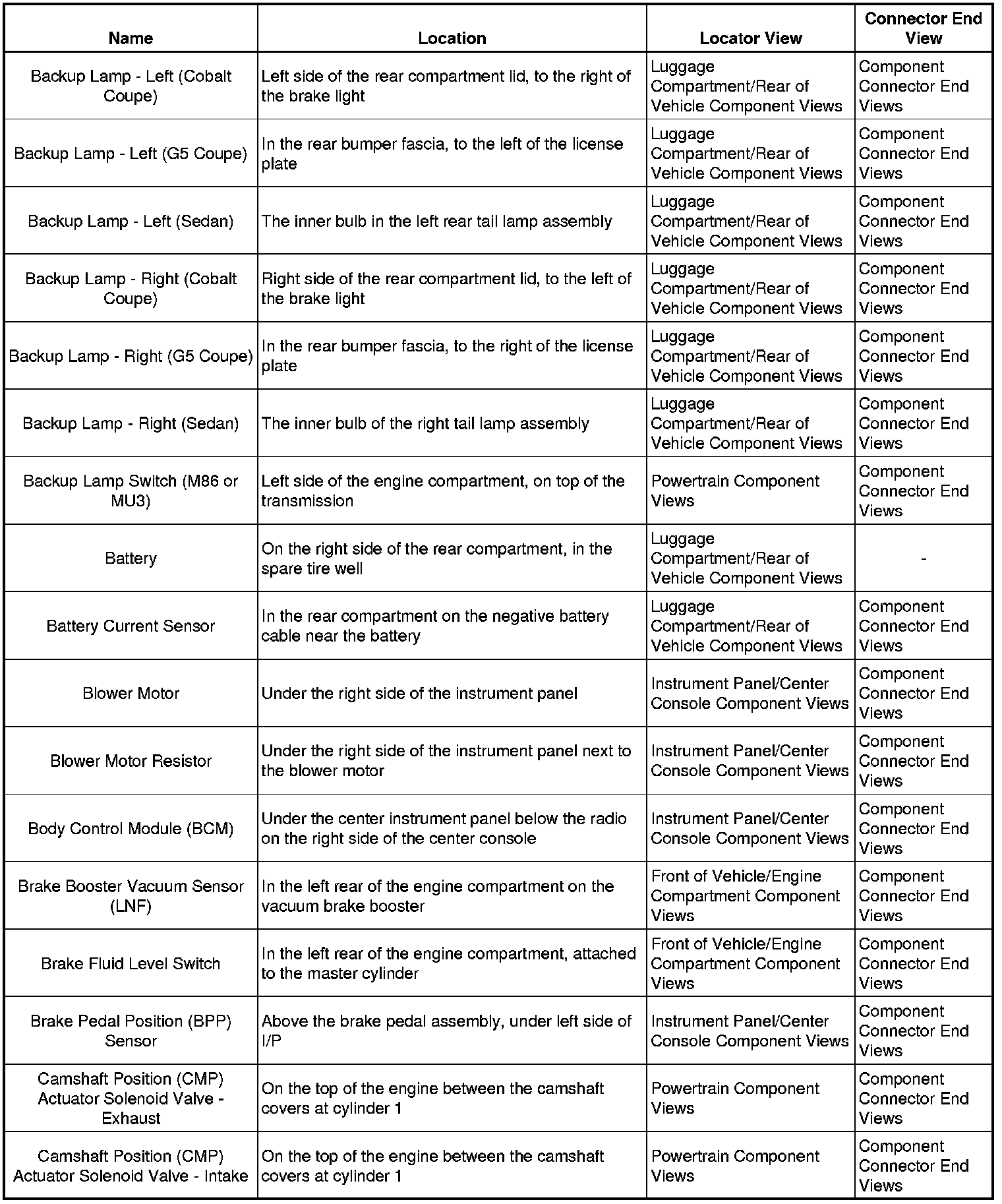

Ba - Ca:

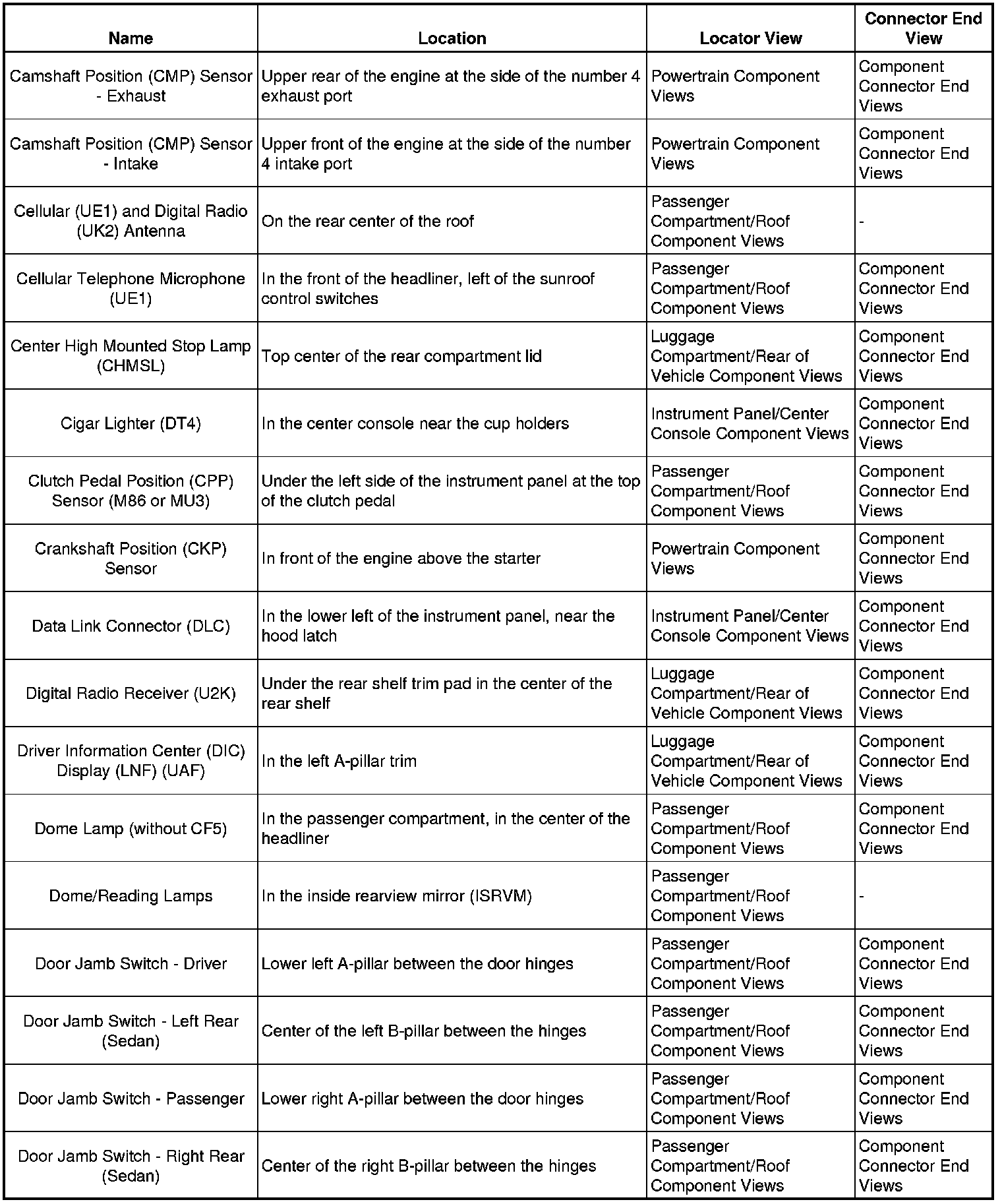

Ca - Do:

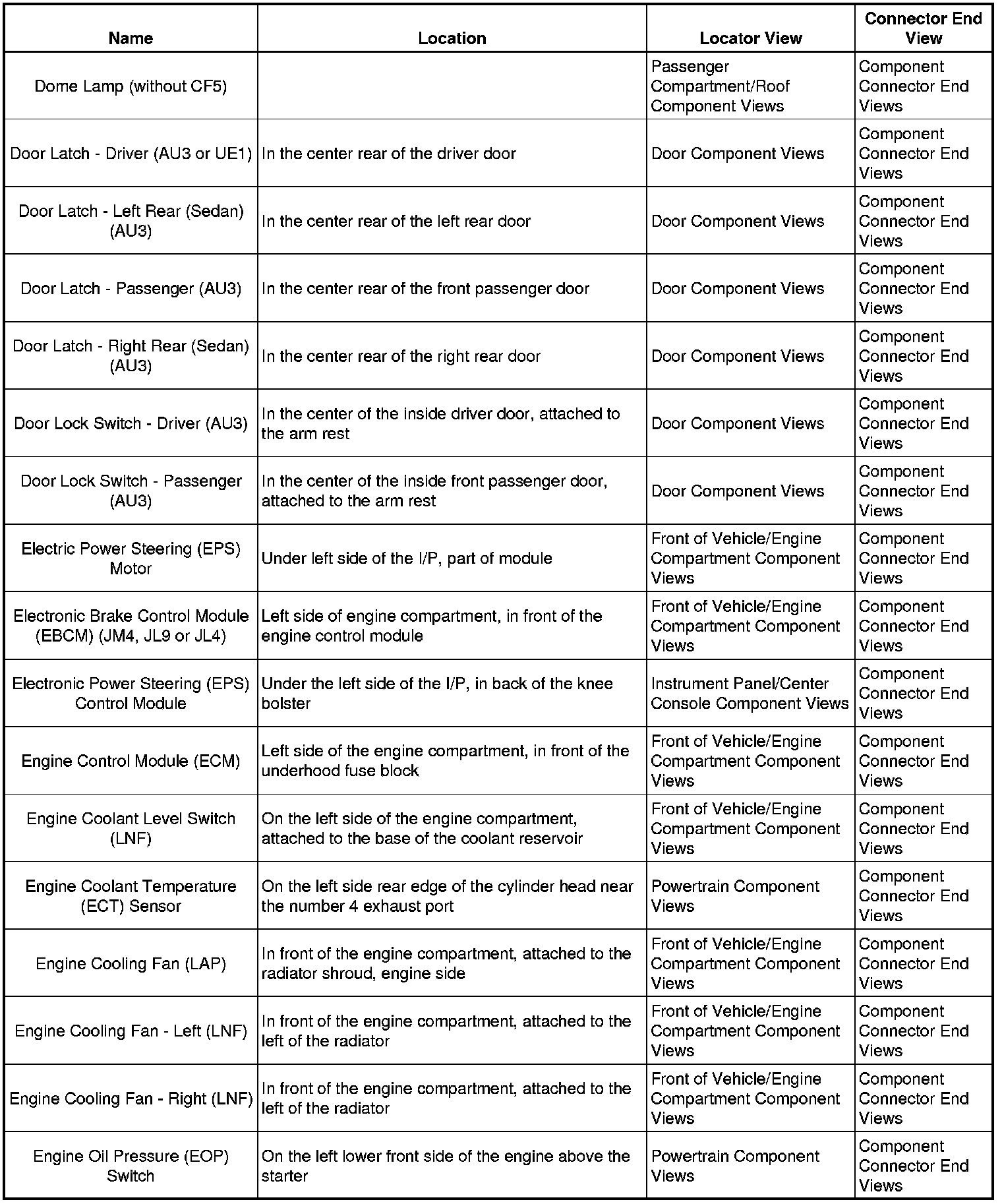

Do - En:

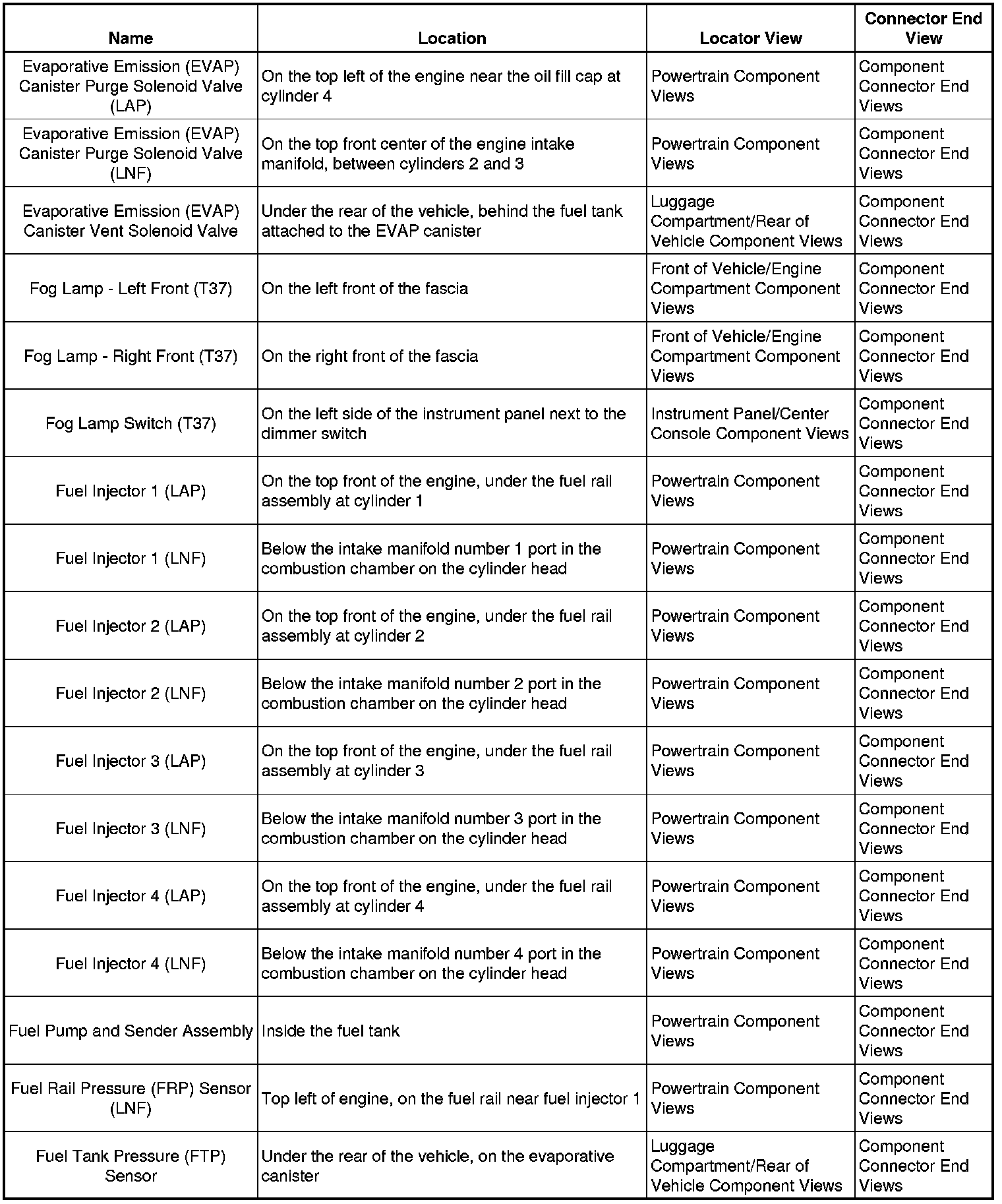

Ev - Fu:

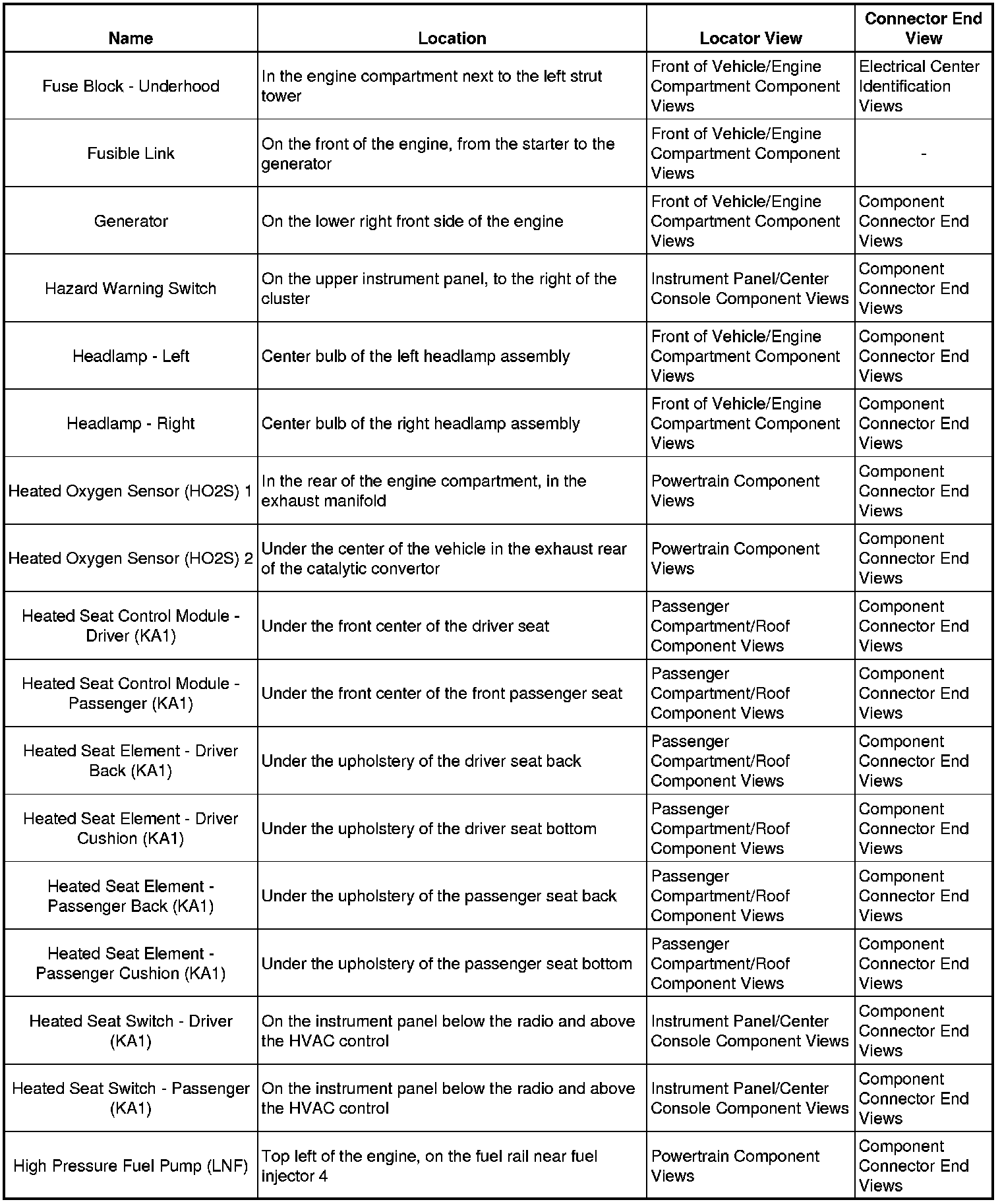

Fu - Hi:

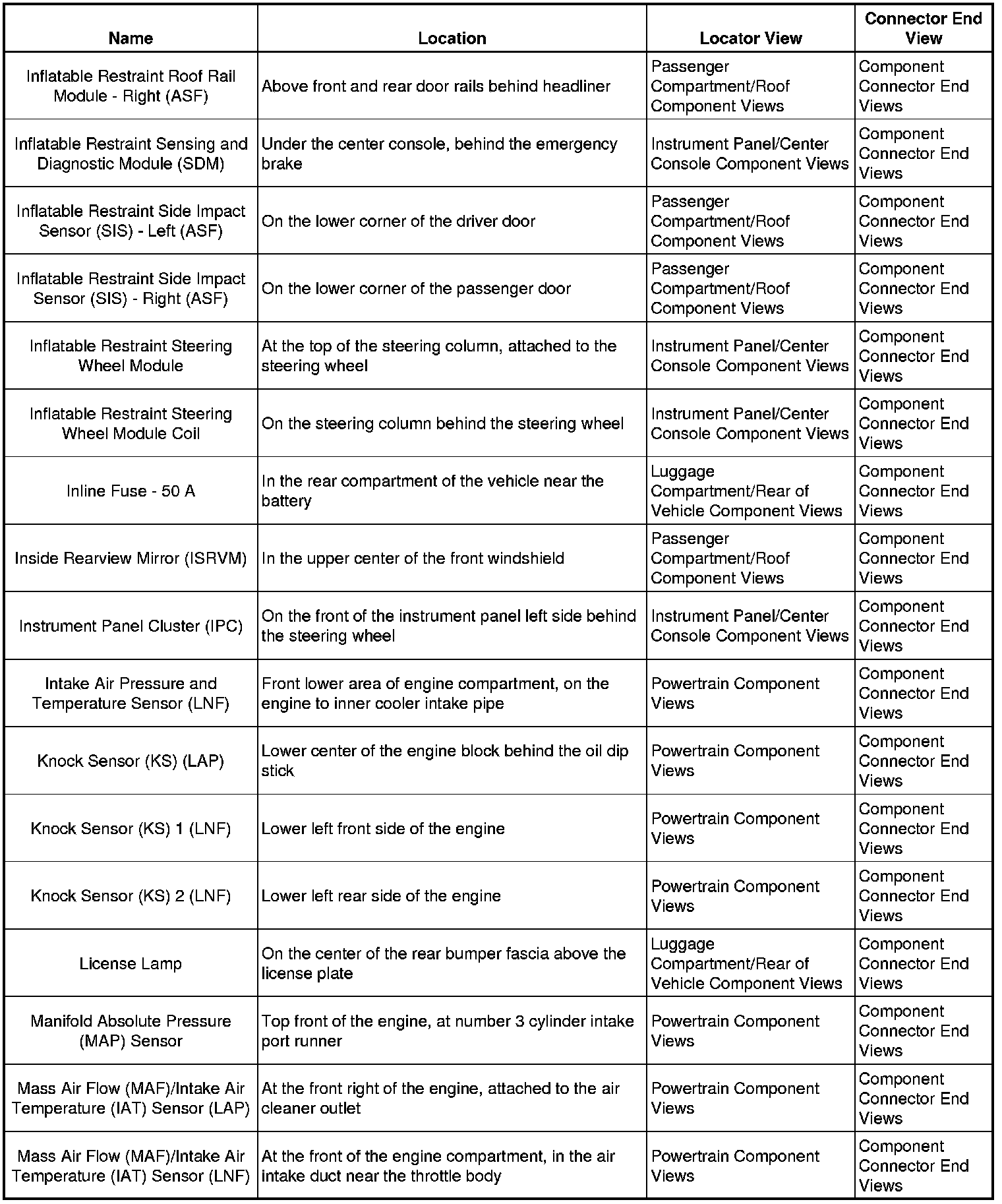

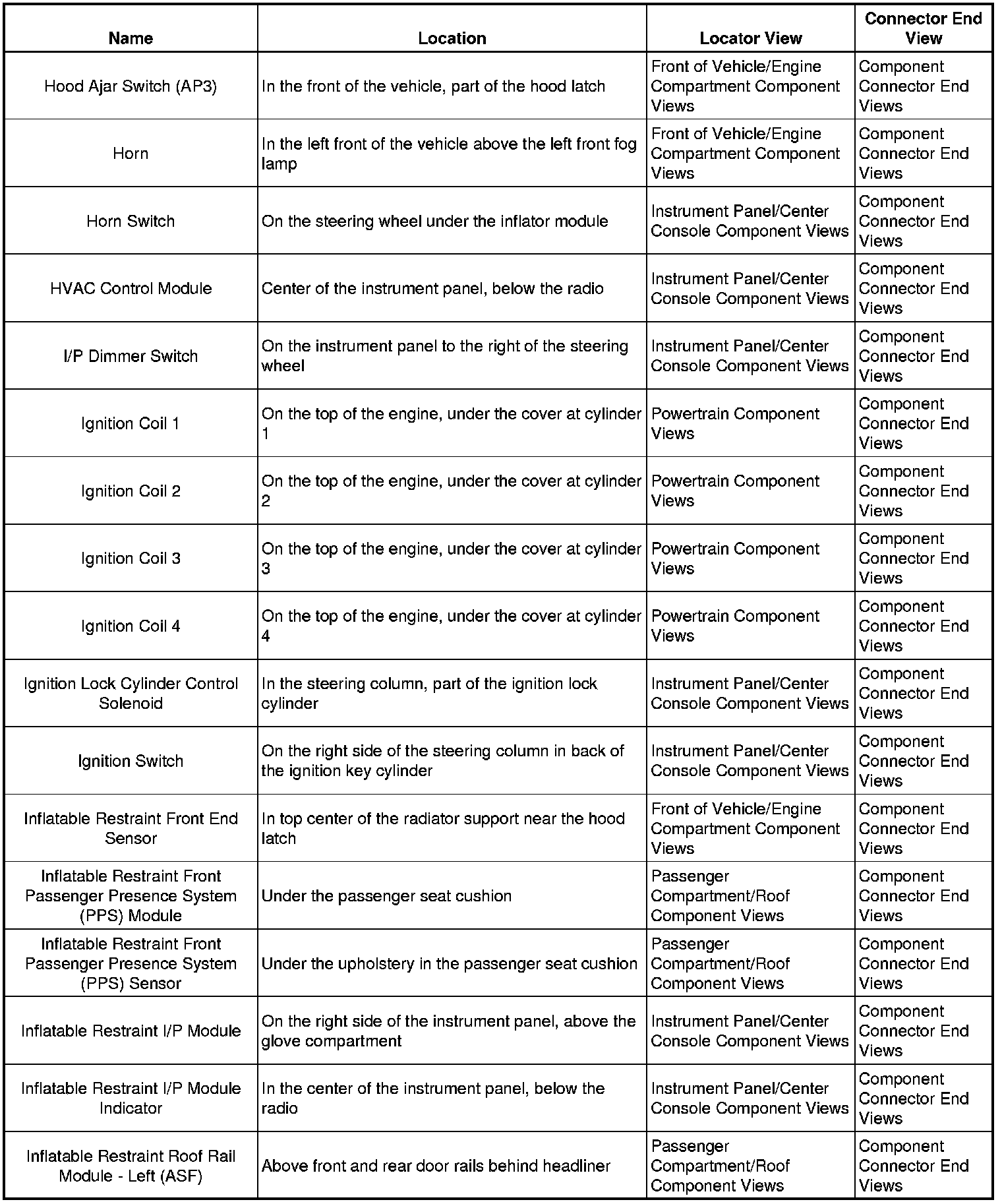

Ho - In:





In - Ma:

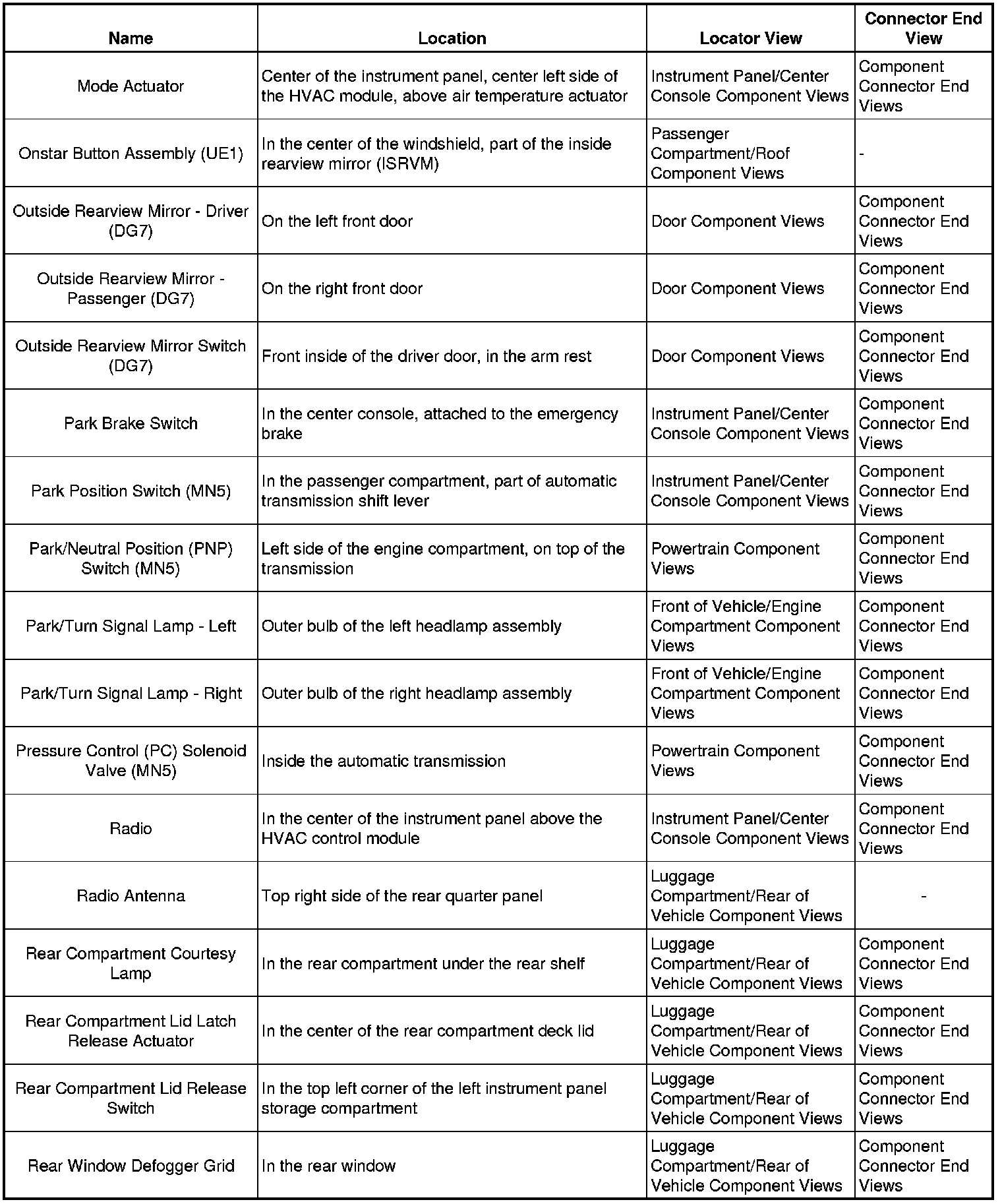

Mo - Re:

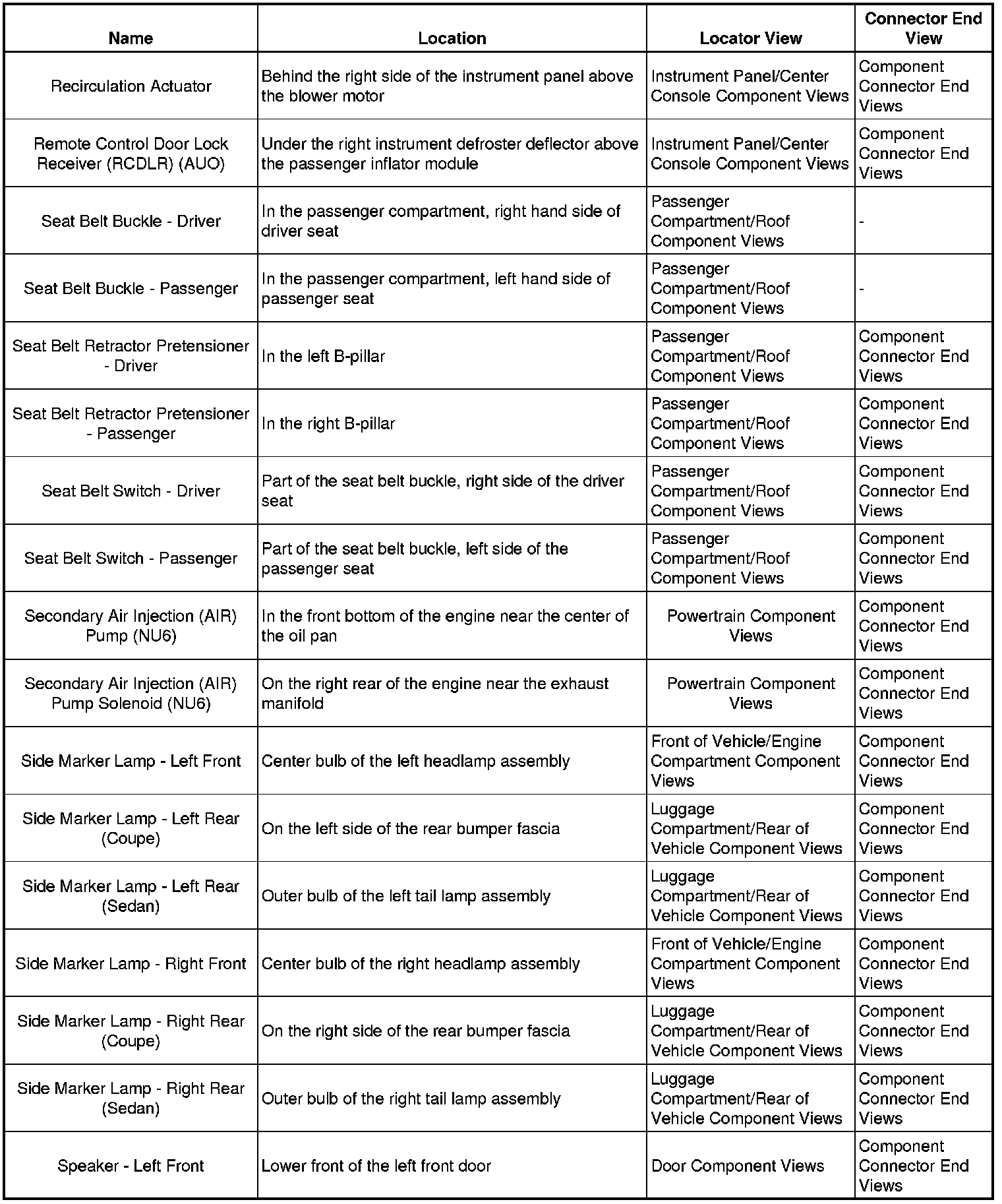

Re - Sp:

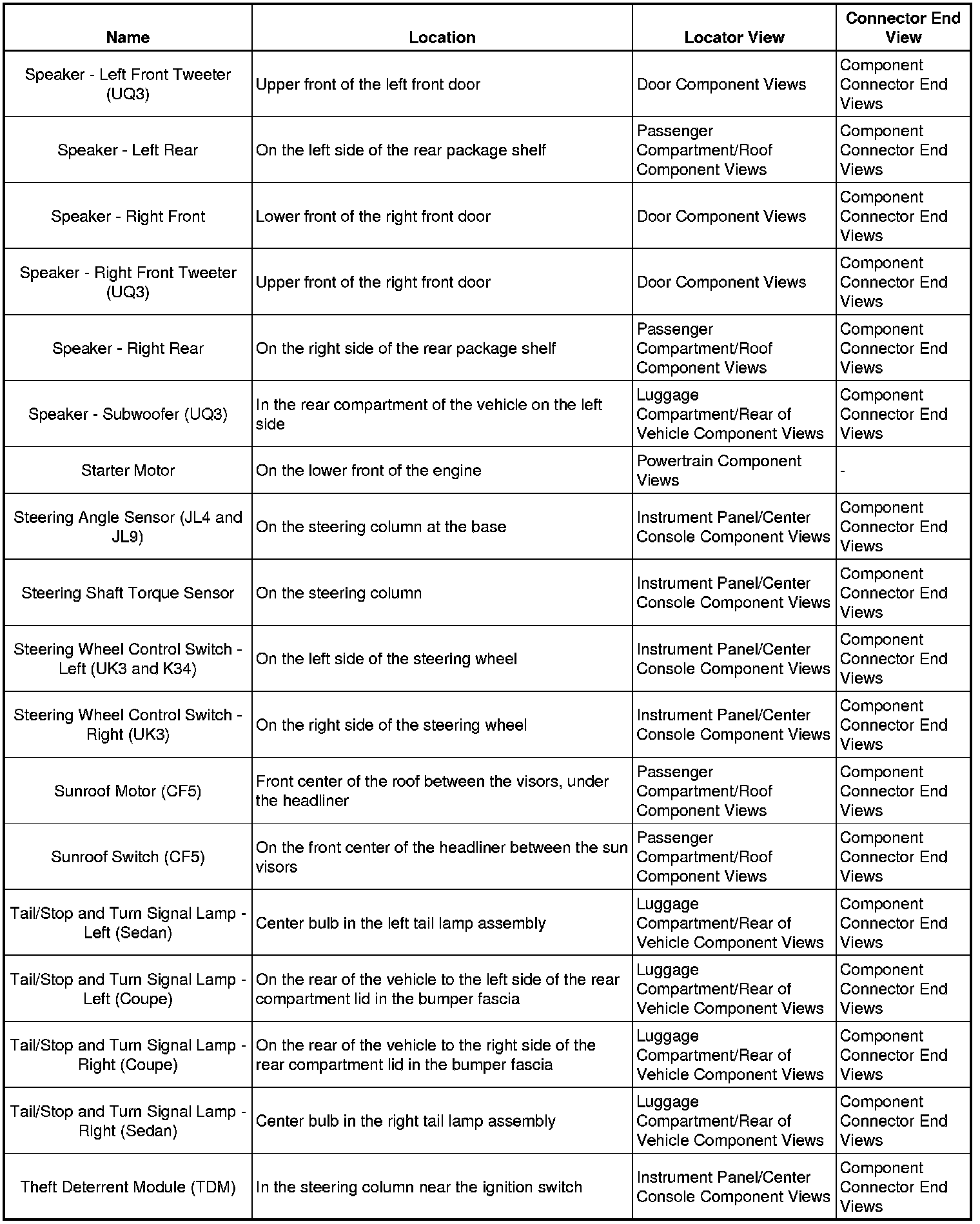

Sp - Th:

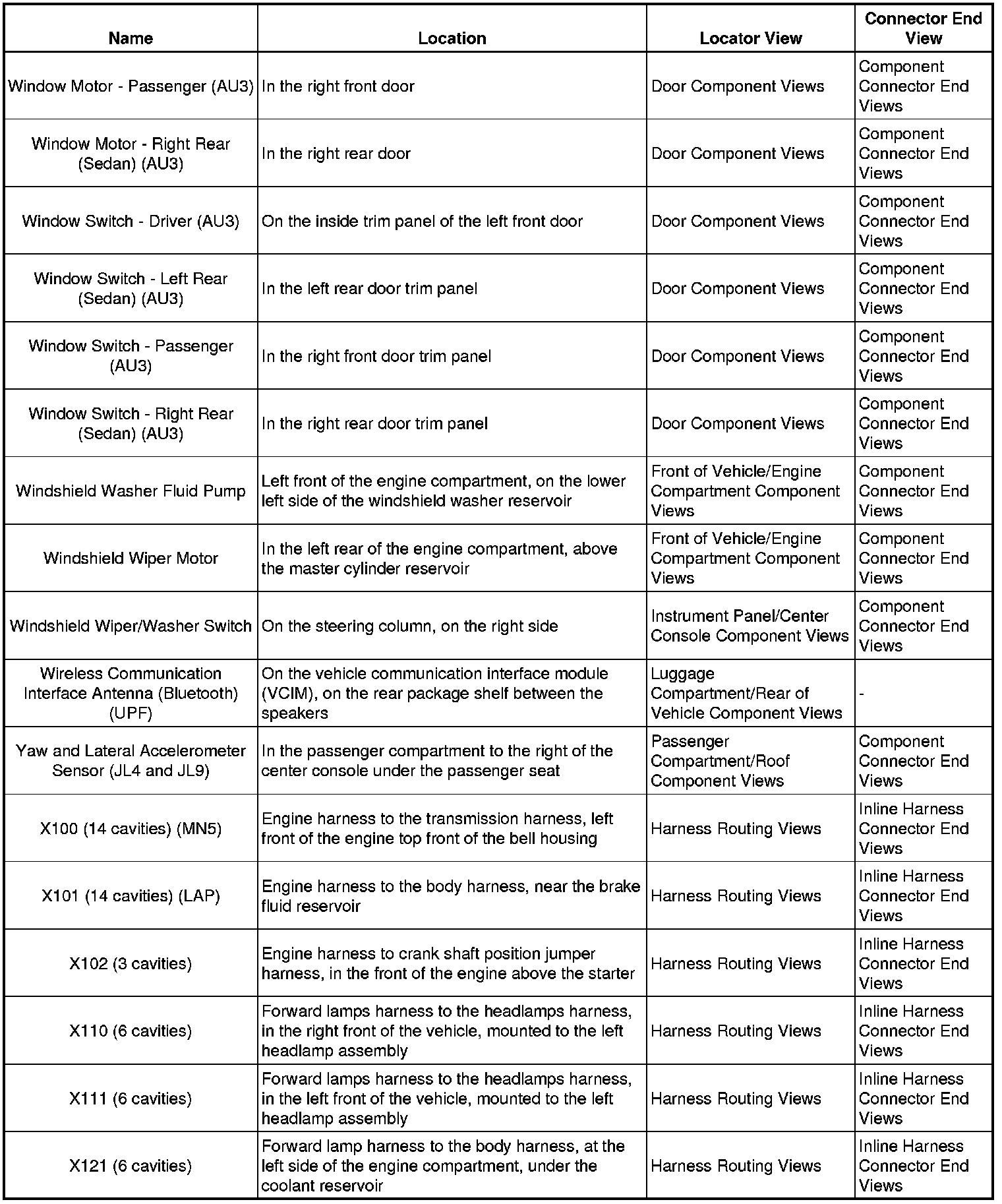

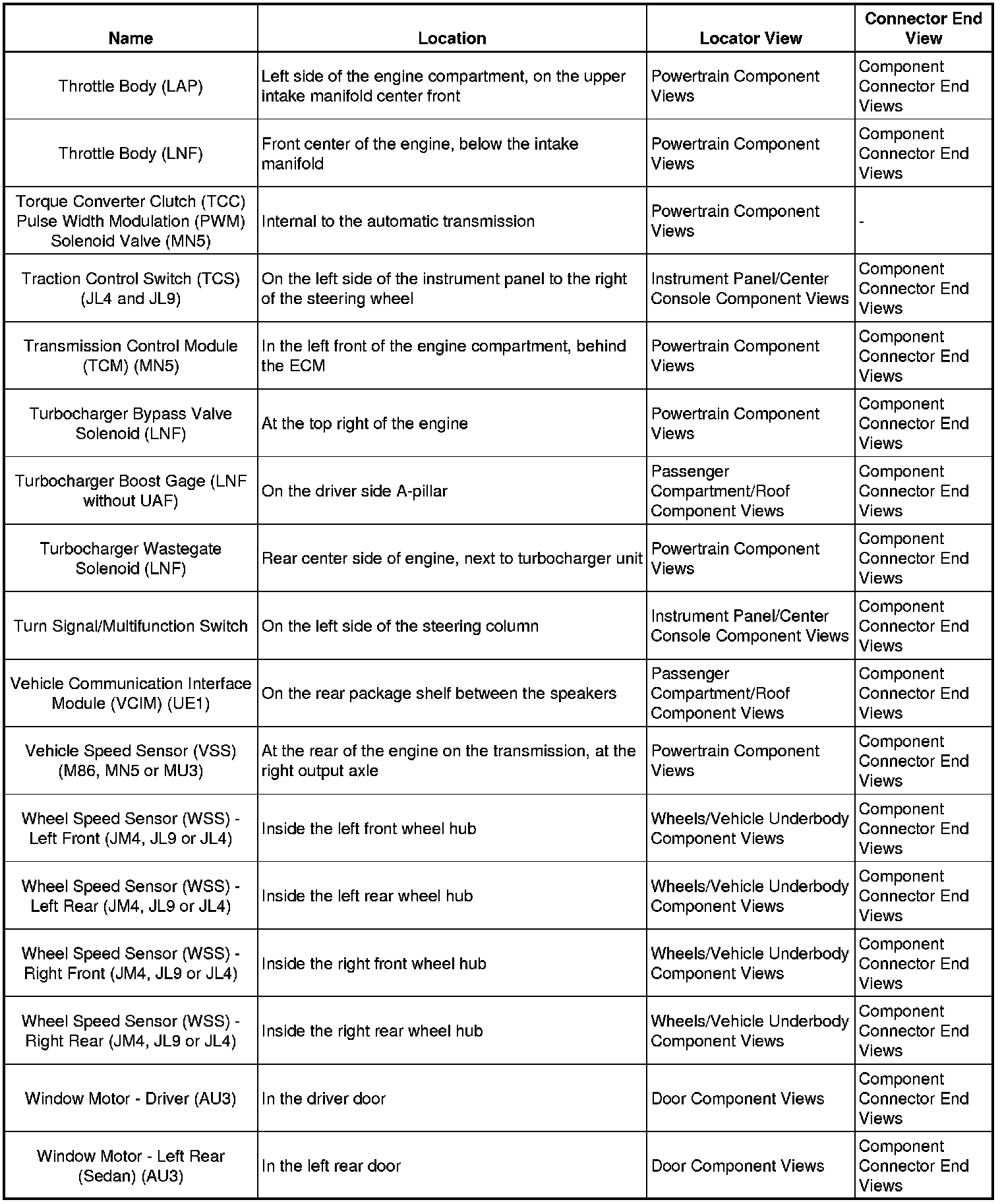

Th - Wi:





Wi - X121:
