Steering Control Module




Component Connector End Views

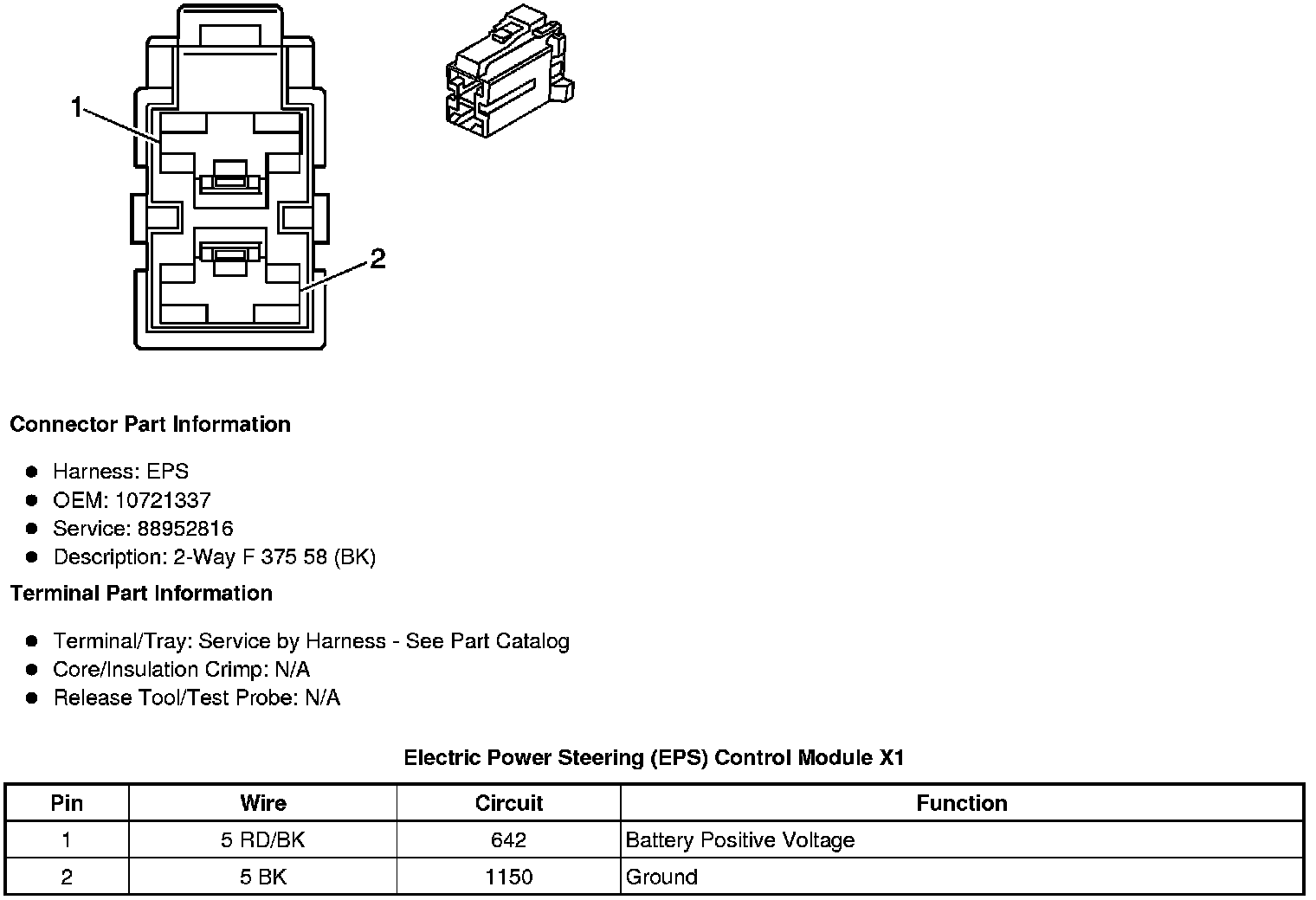

Electric Power Steering (EPS) Control Module X1

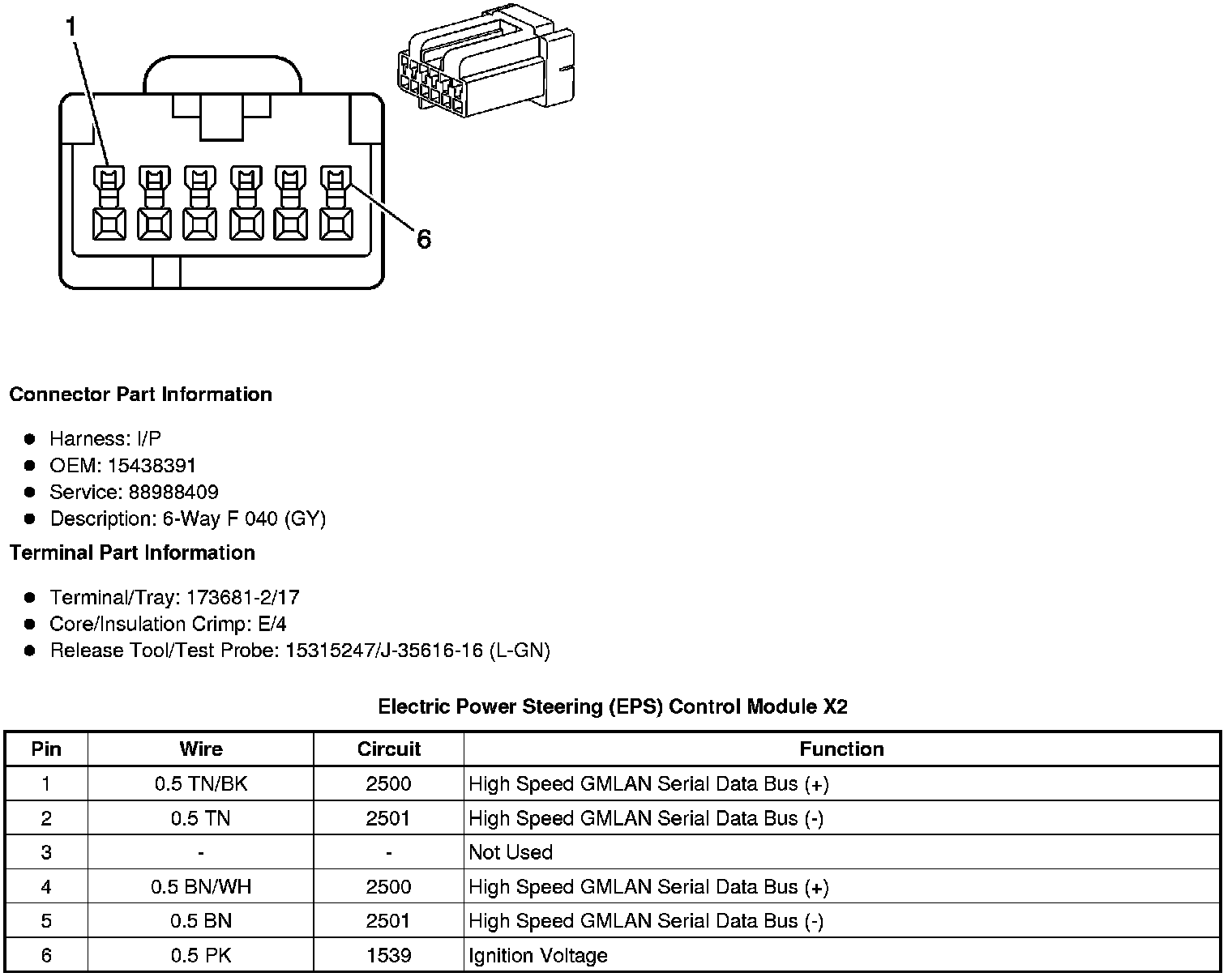

Electric Power Steering (EPS) Control Module X2

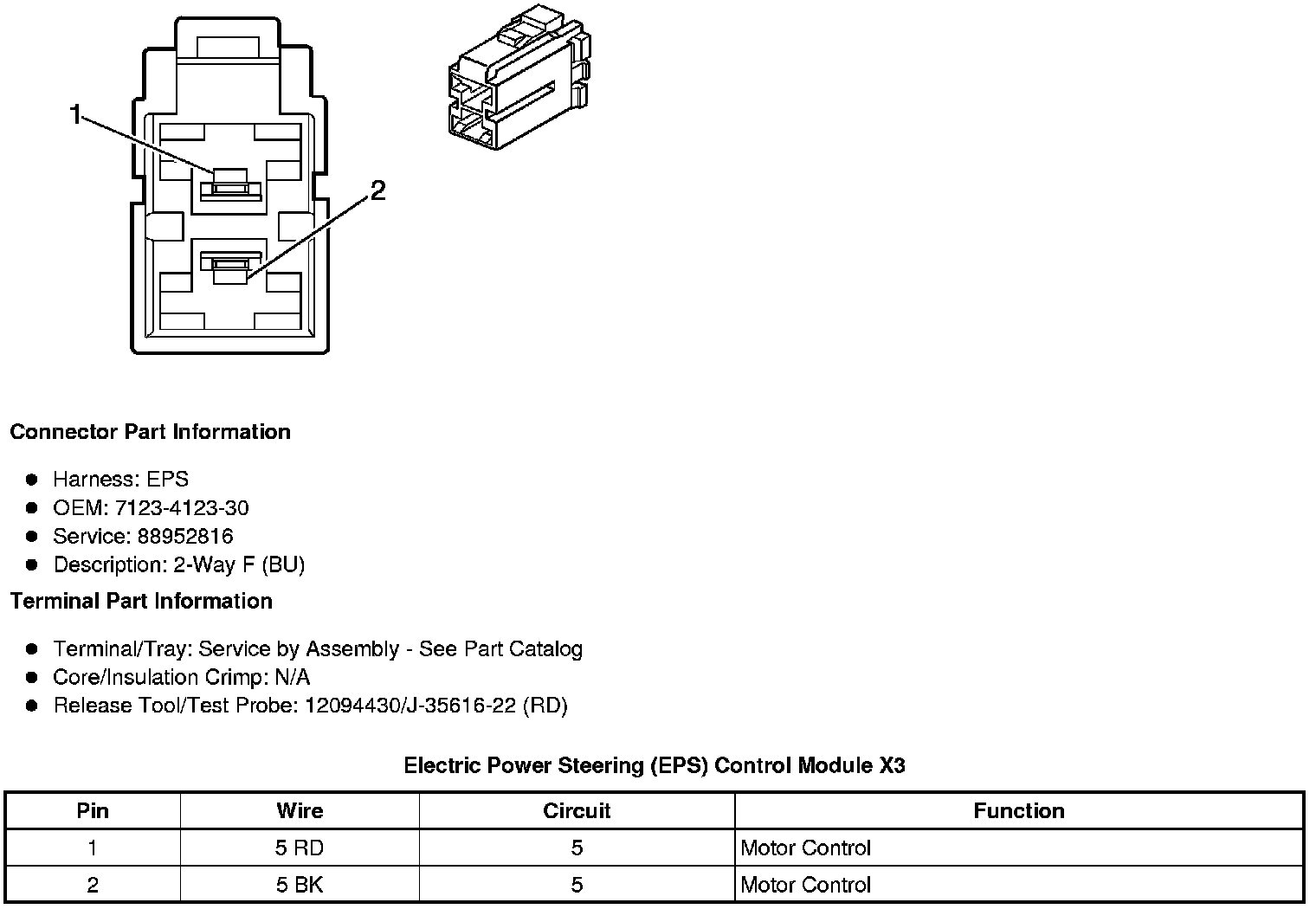

Electric Power Steering (EPS) Control Module X3
