Steering Mounted Controls Transmitter




Component Connector End Views

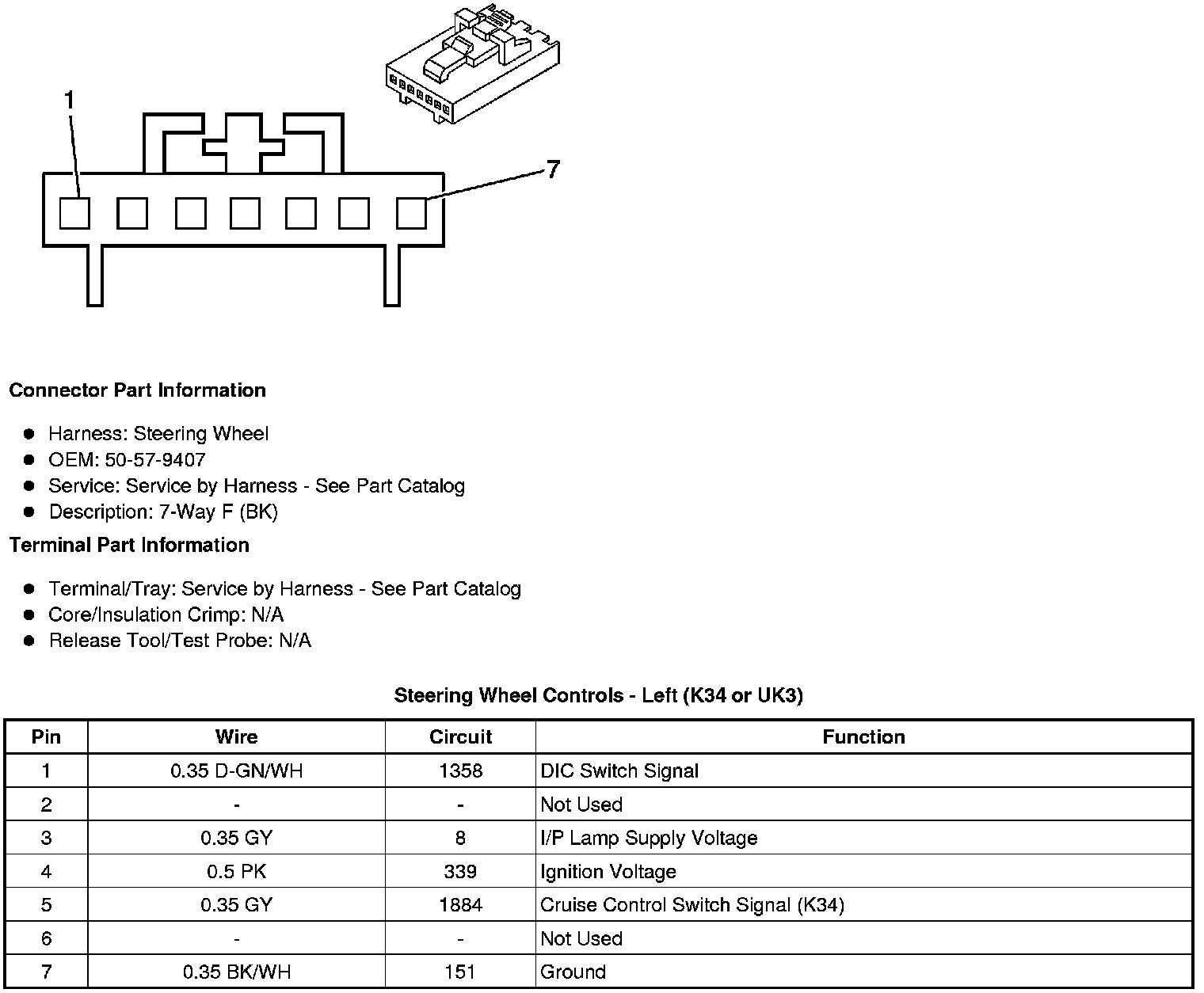

Steering Wheel Controls - Left (K34 or UK3)

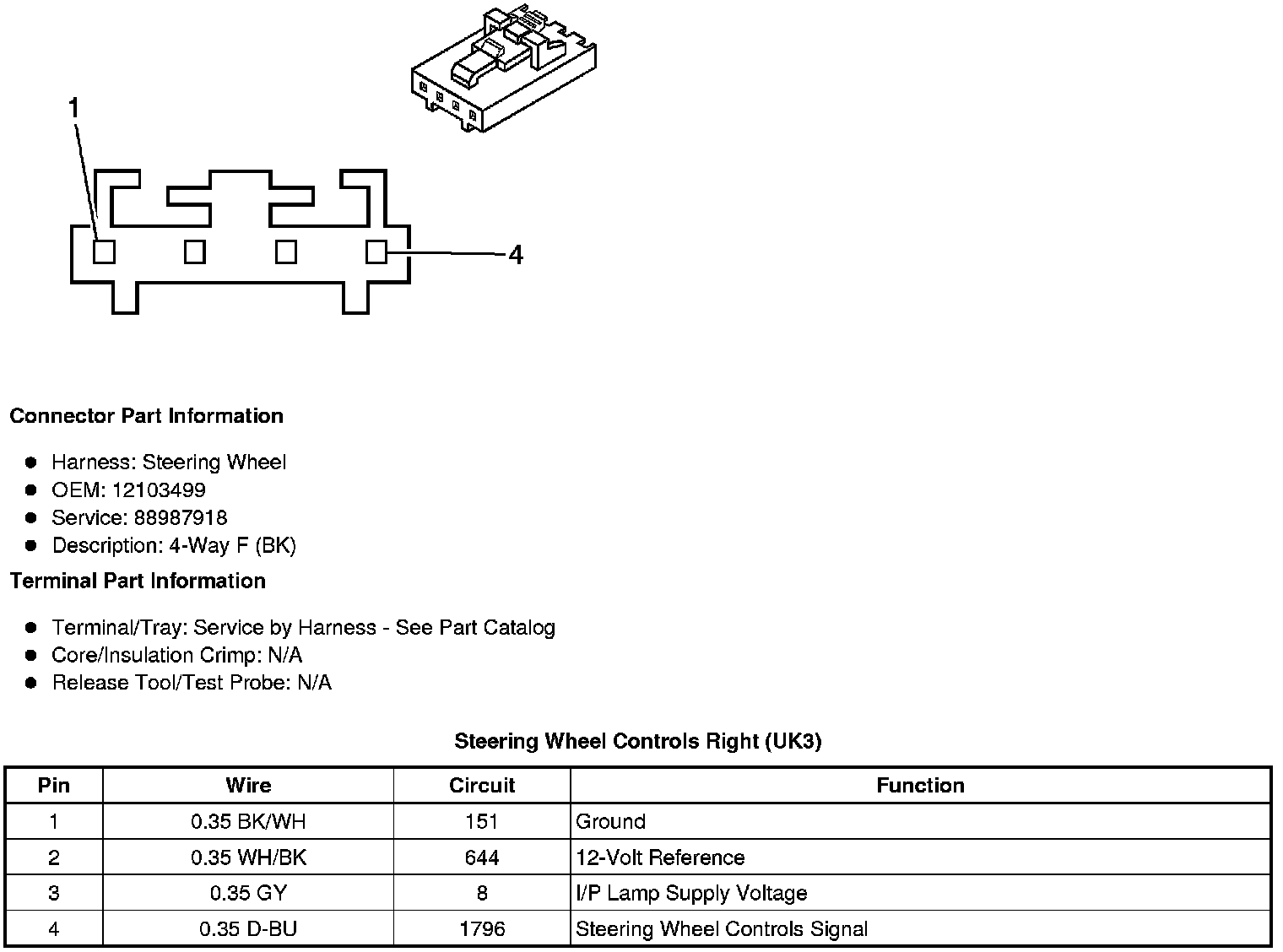

Steering Wheel Controls Right (UK3)
