Ignition Coil Replacement

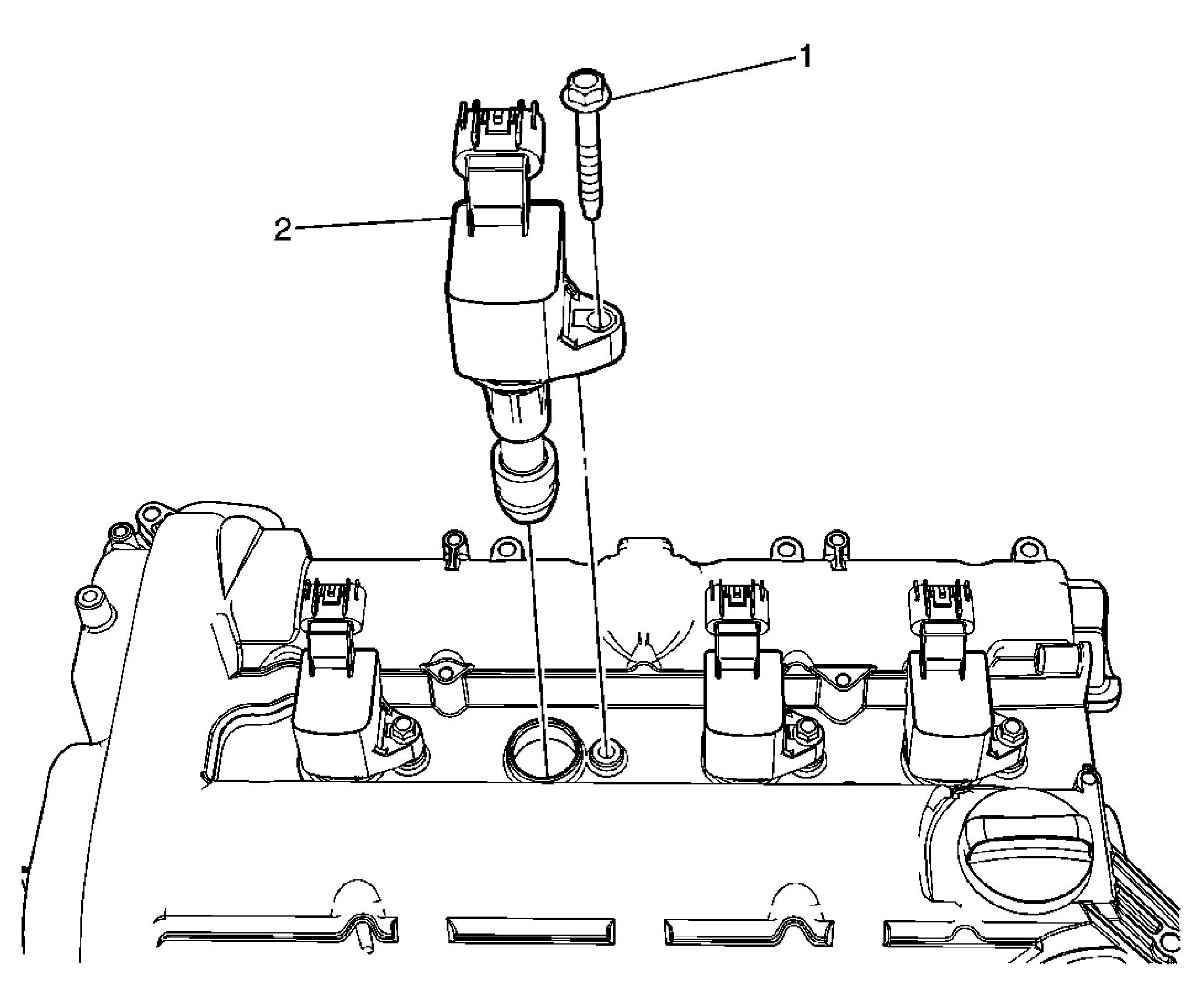

Fig 1: View Of Ignition Coil

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ignition Coil Bolt CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Ignition Coil Procedure: Disconnect the electrical connector.
