Body Control System Schematics

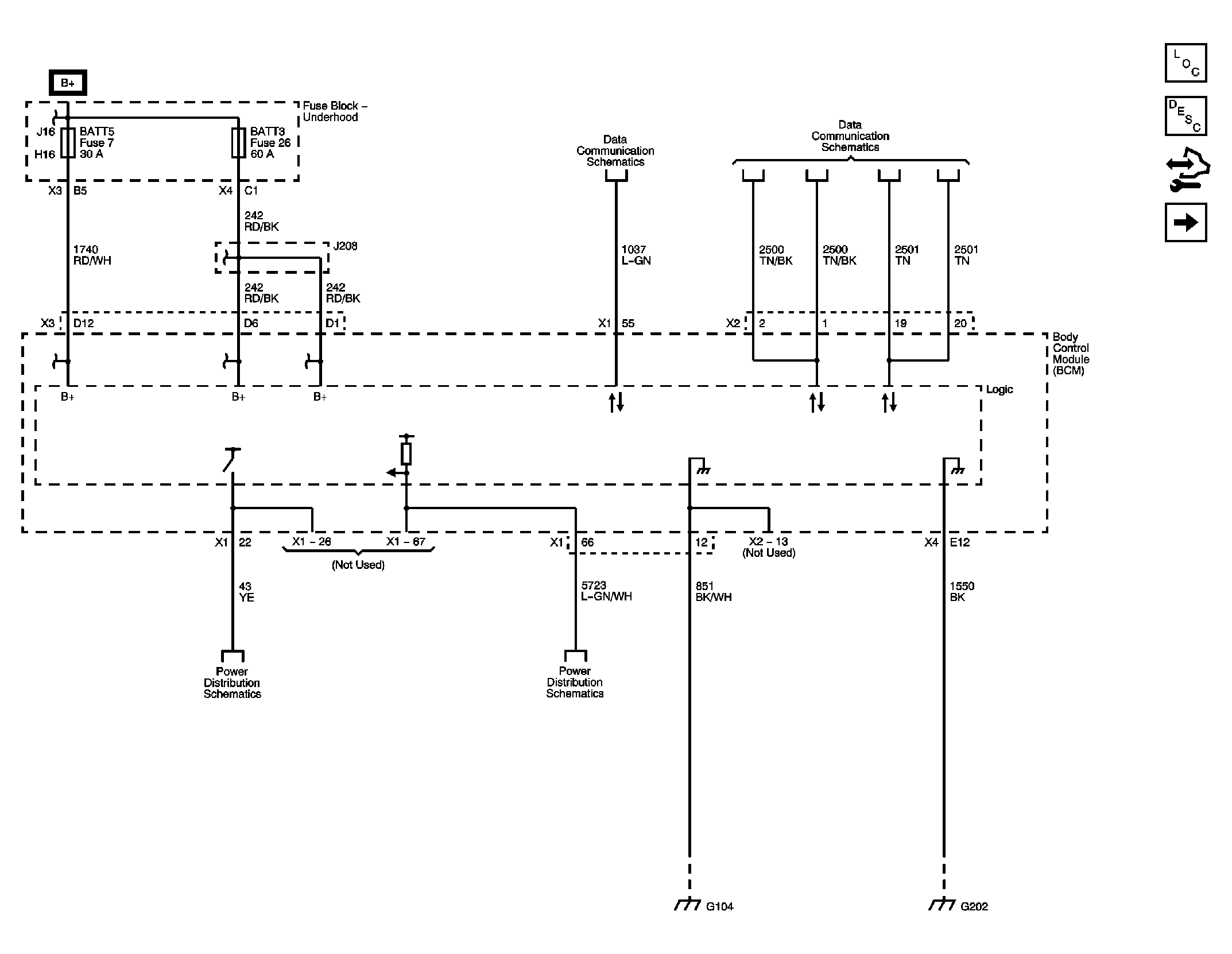

Fig 1: Power, Ground and Serial Data

Courtesy of GENERAL MOTORS CORP.

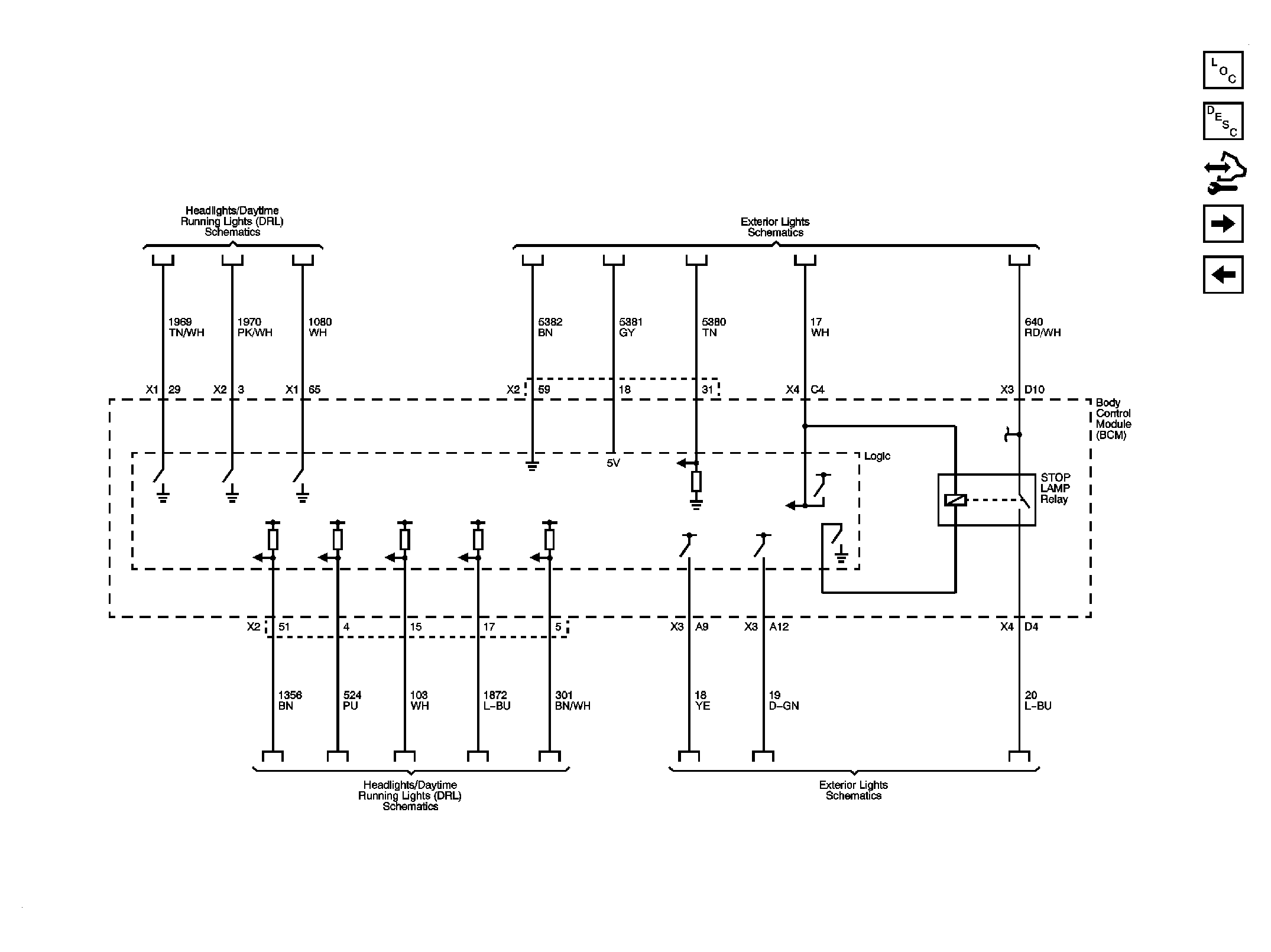

Fig 2: Lighting References (1 of 2)

Courtesy of GENERAL MOTORS CORP.

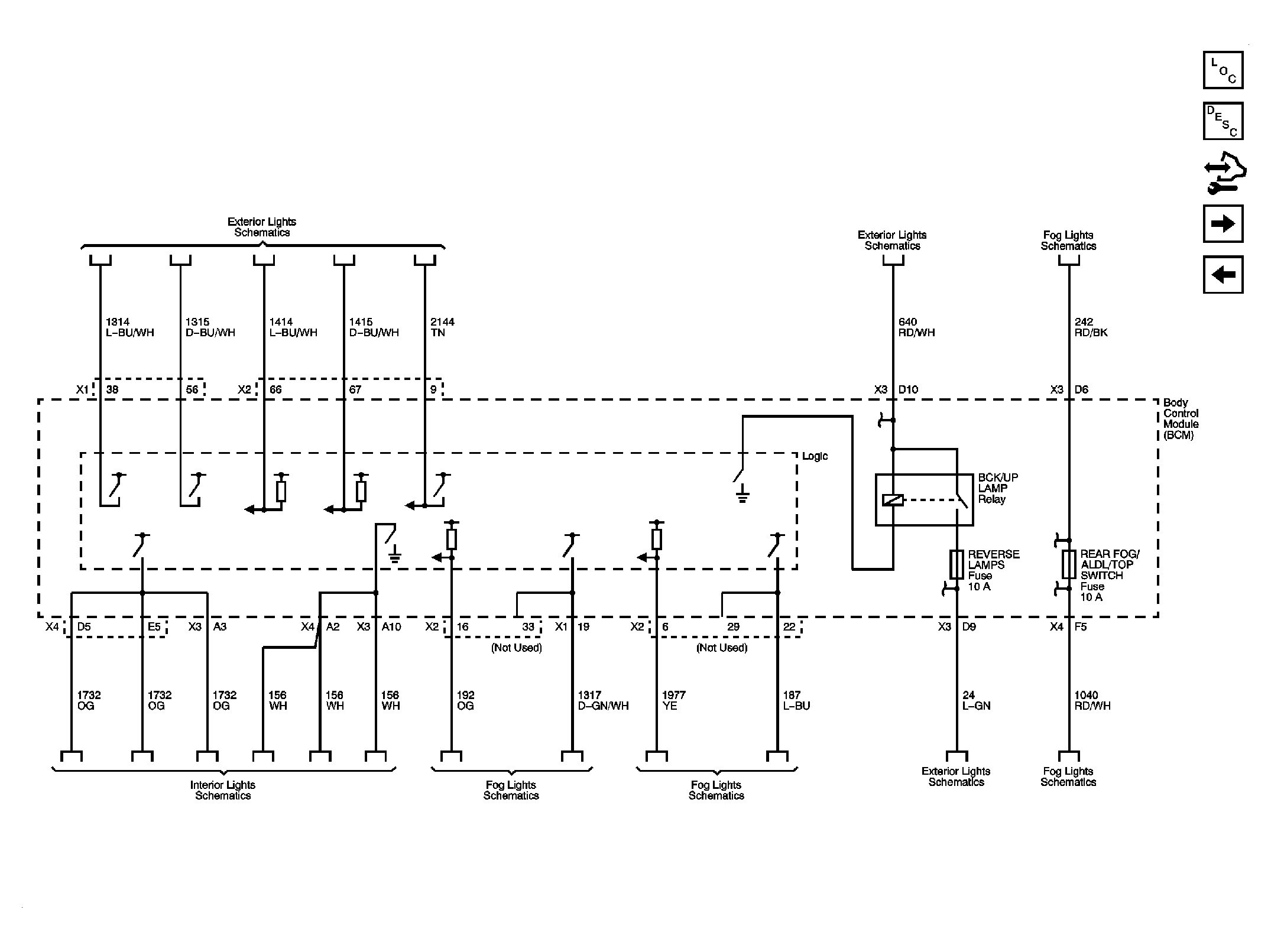

Fig 3: Lighting References (2 of 2)

Courtesy of GENERAL MOTORS CORP.

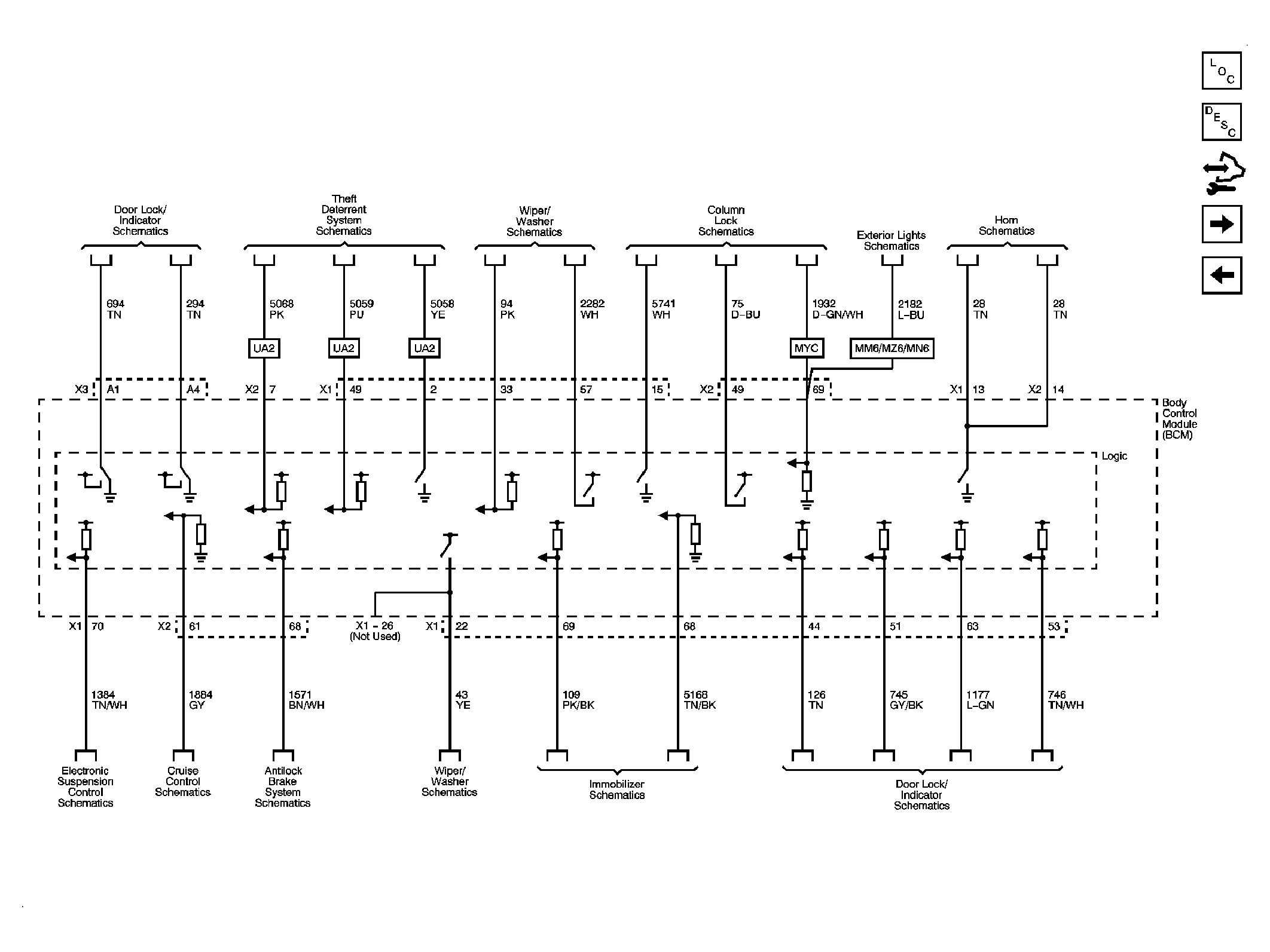

Fig 4: Subsystem References (1 of 2)

Courtesy of GENERAL MOTORS CORP.

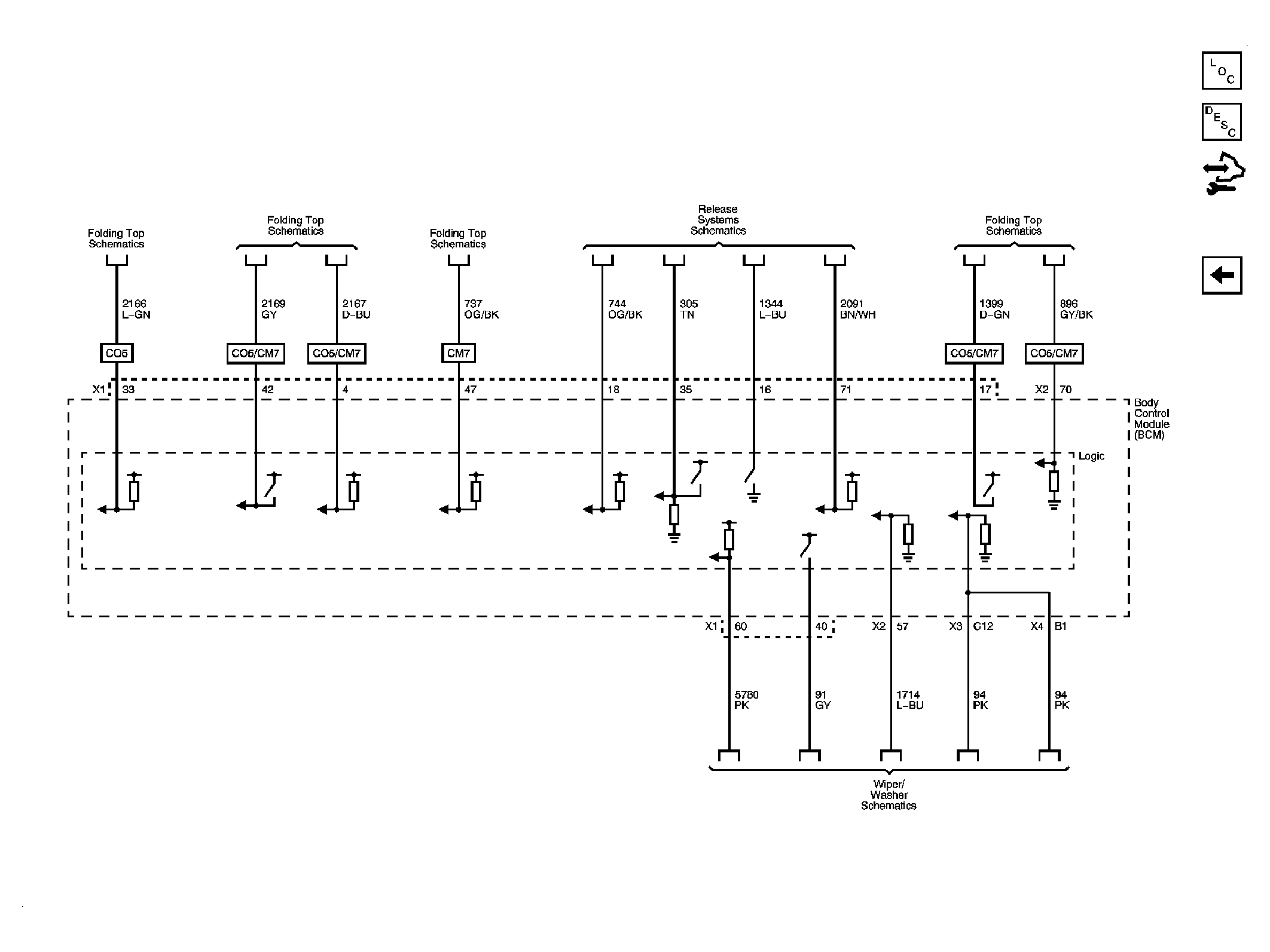

Fig 5: Subsystem References (2 of 2)

Courtesy of GENERAL MOTORS CORP.
