Data Communication Schematics

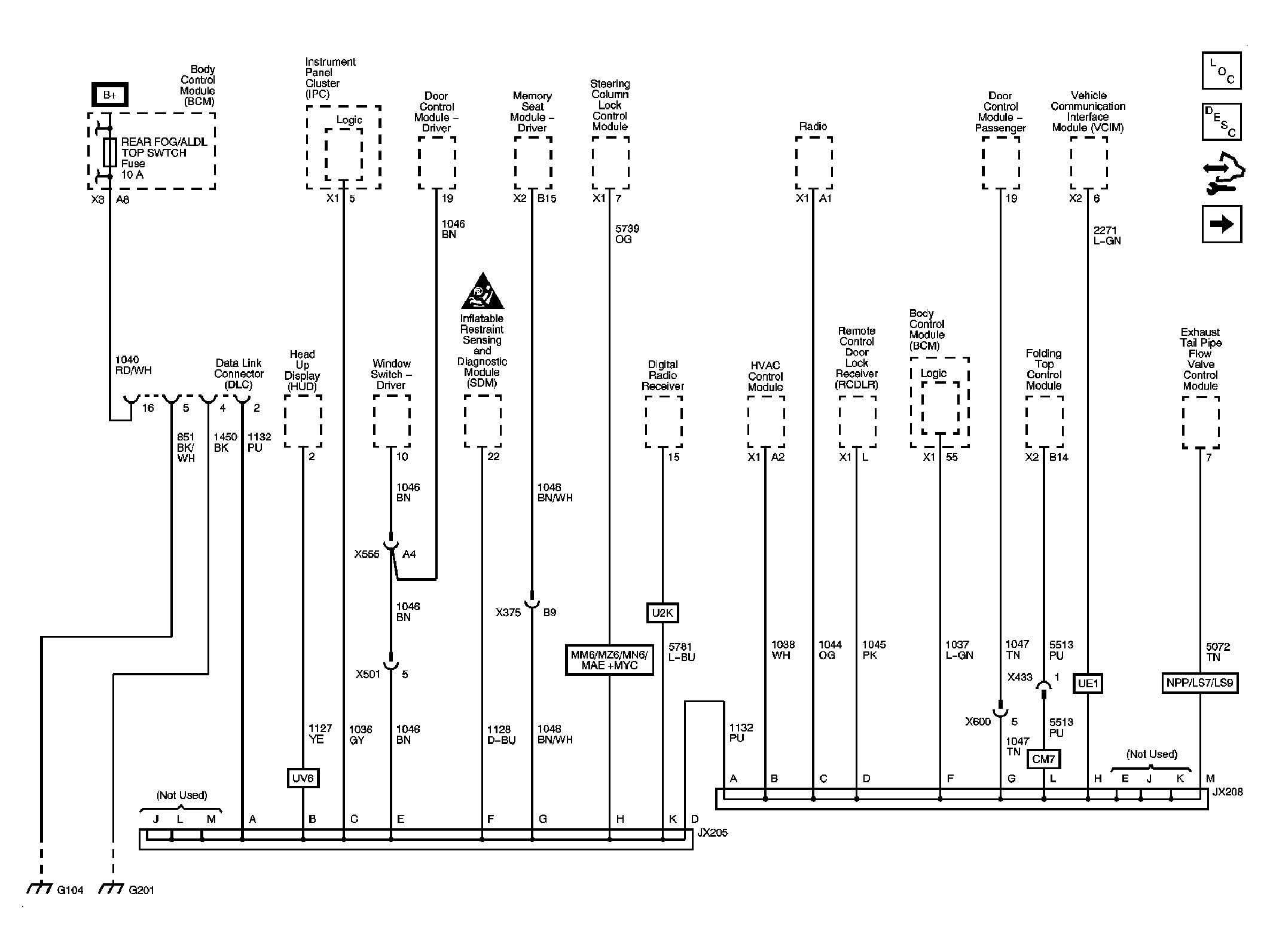

Fig 1: Power, Ground, and Class 2
GM2224951Courtesy of GENERAL MOTORS CORP.

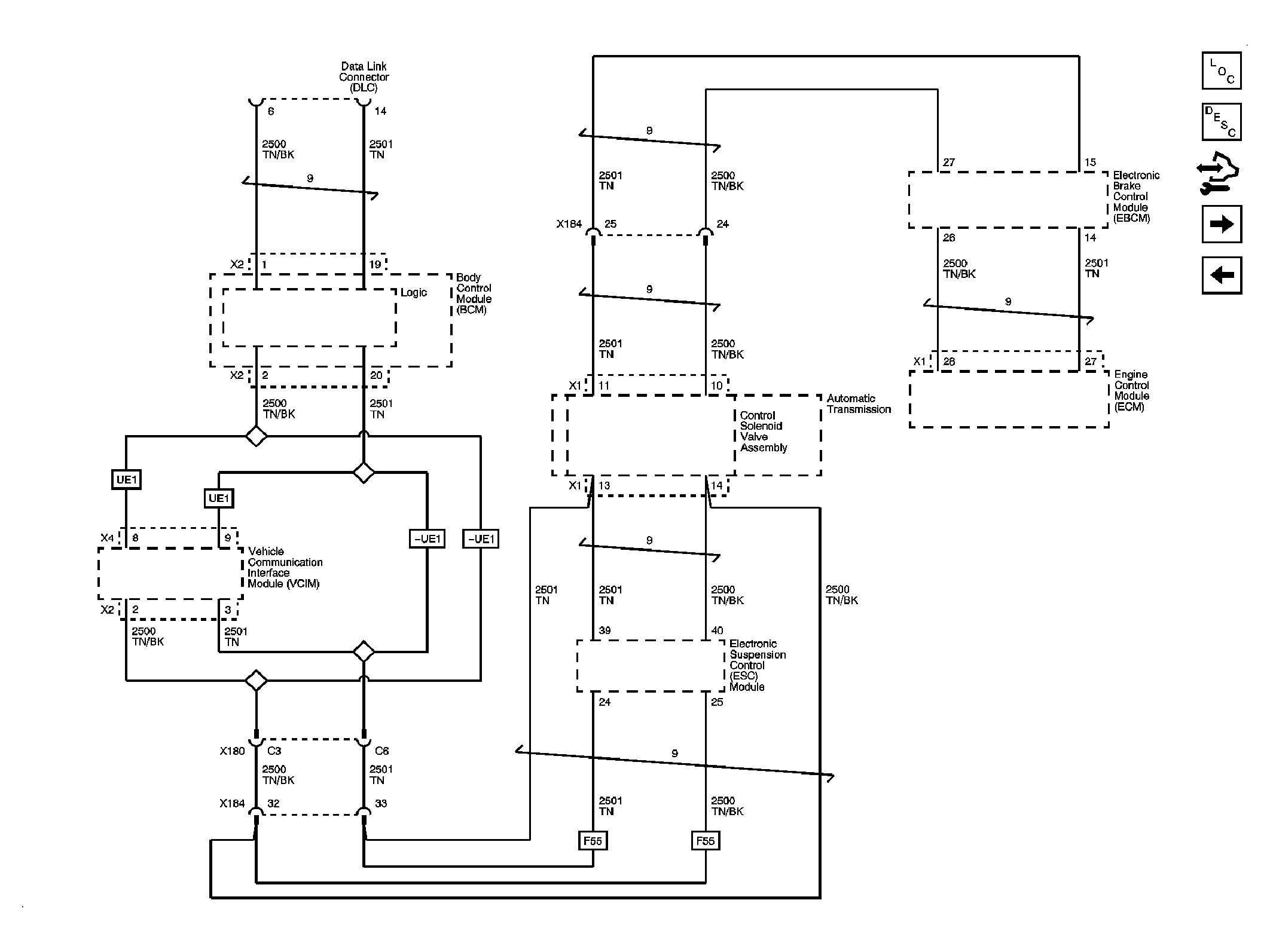

Fig 2: High Speed GMLAN - Automatic Transmission
GM2224955Courtesy of GENERAL MOTORS CORP.

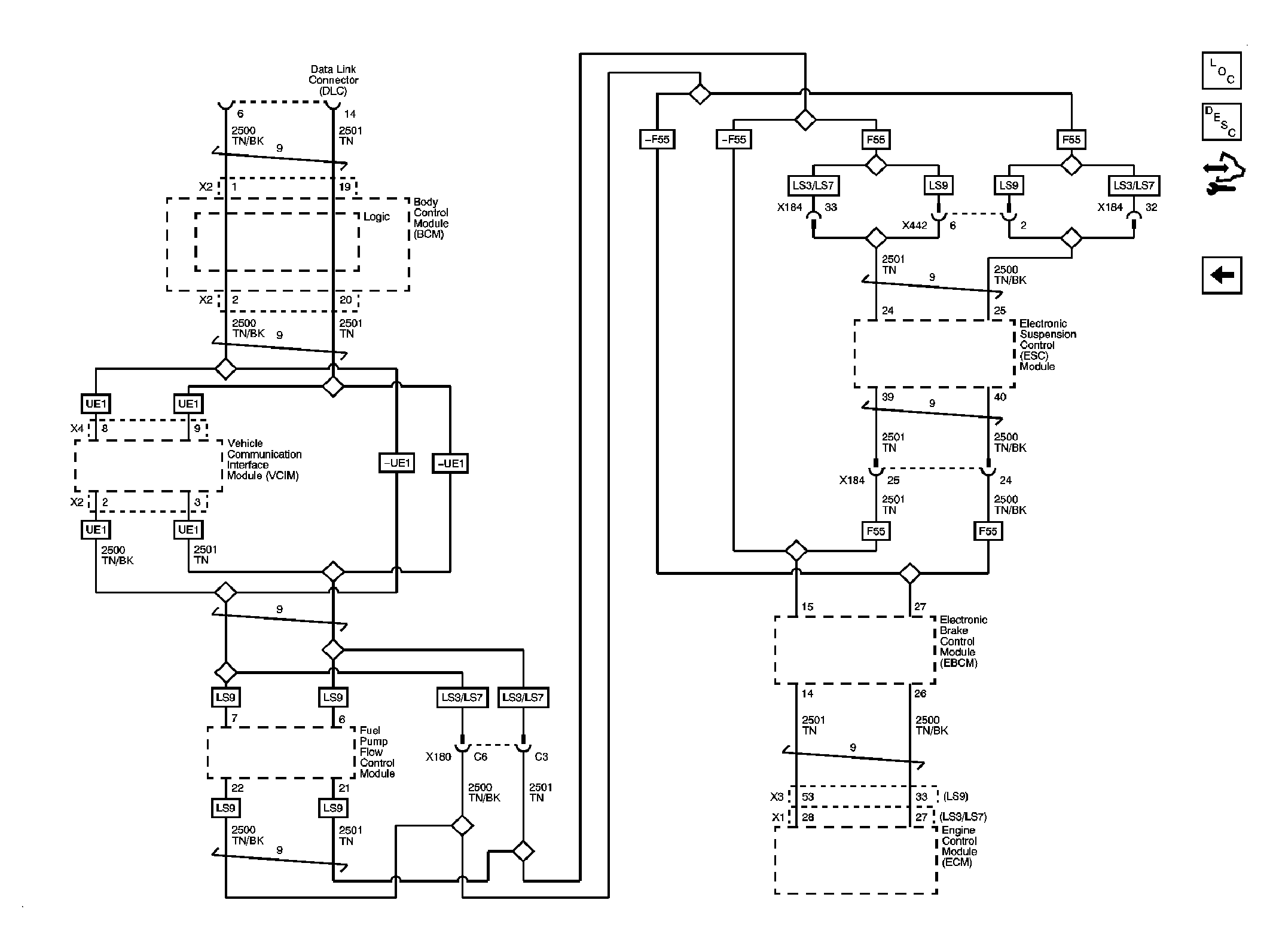

Fig 3: High Speed GMLAN - Manual Transmission
GM2225003Courtesy of GENERAL MOTORS CORP.
