Body Control Systems




Release Systems Schematics

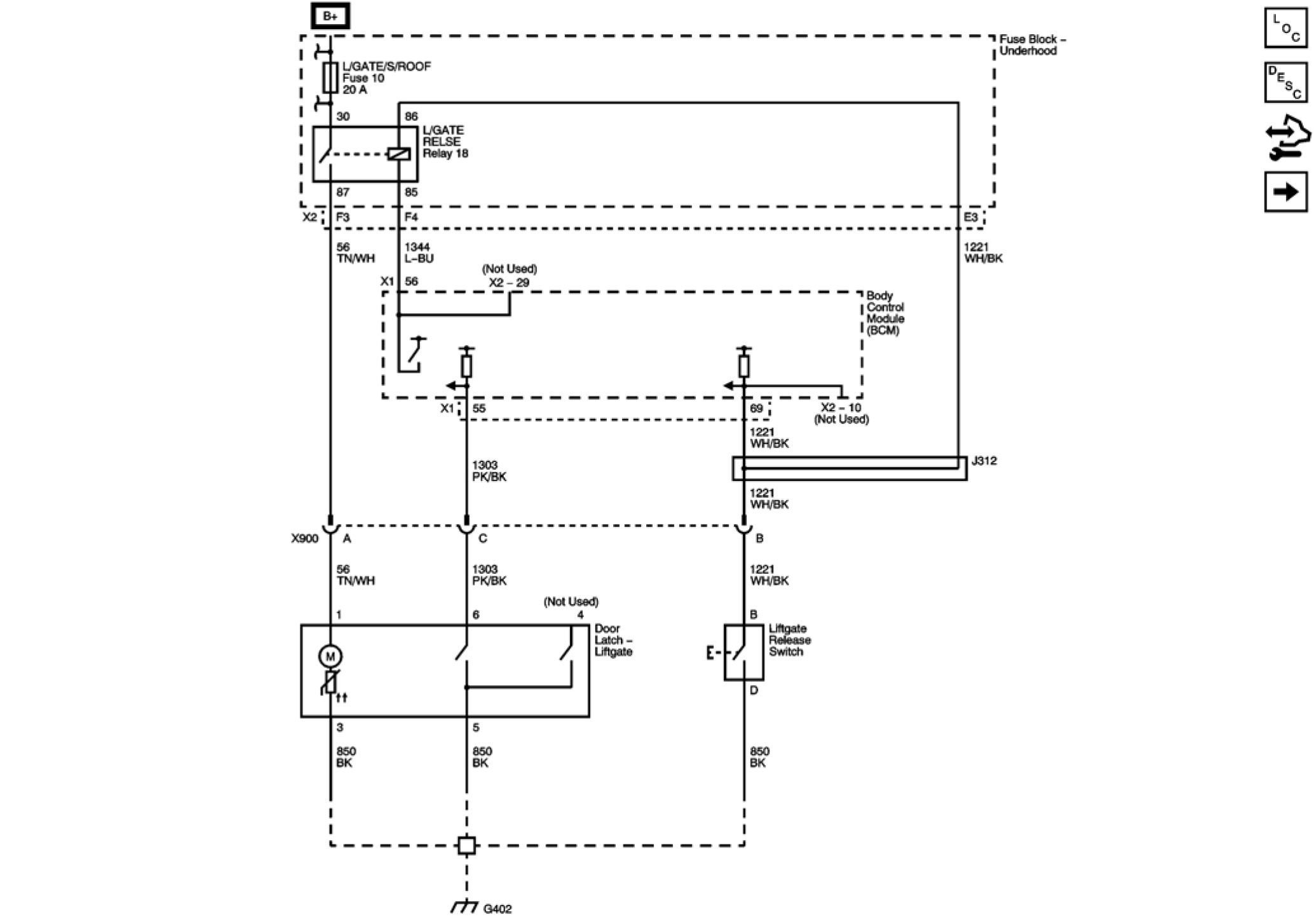

Liftgate

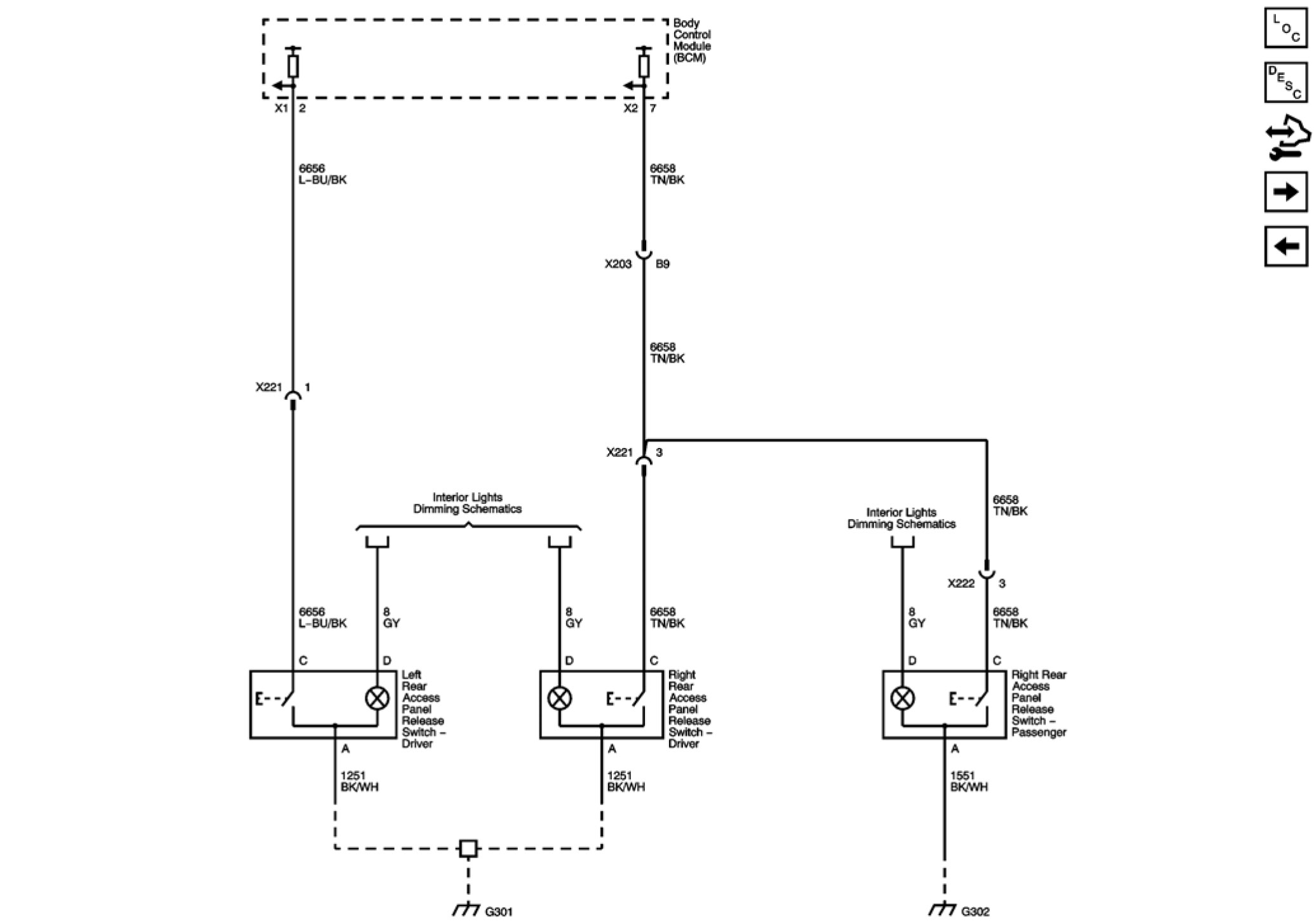

Rear Access Panel (Panel Van) 1 of 2

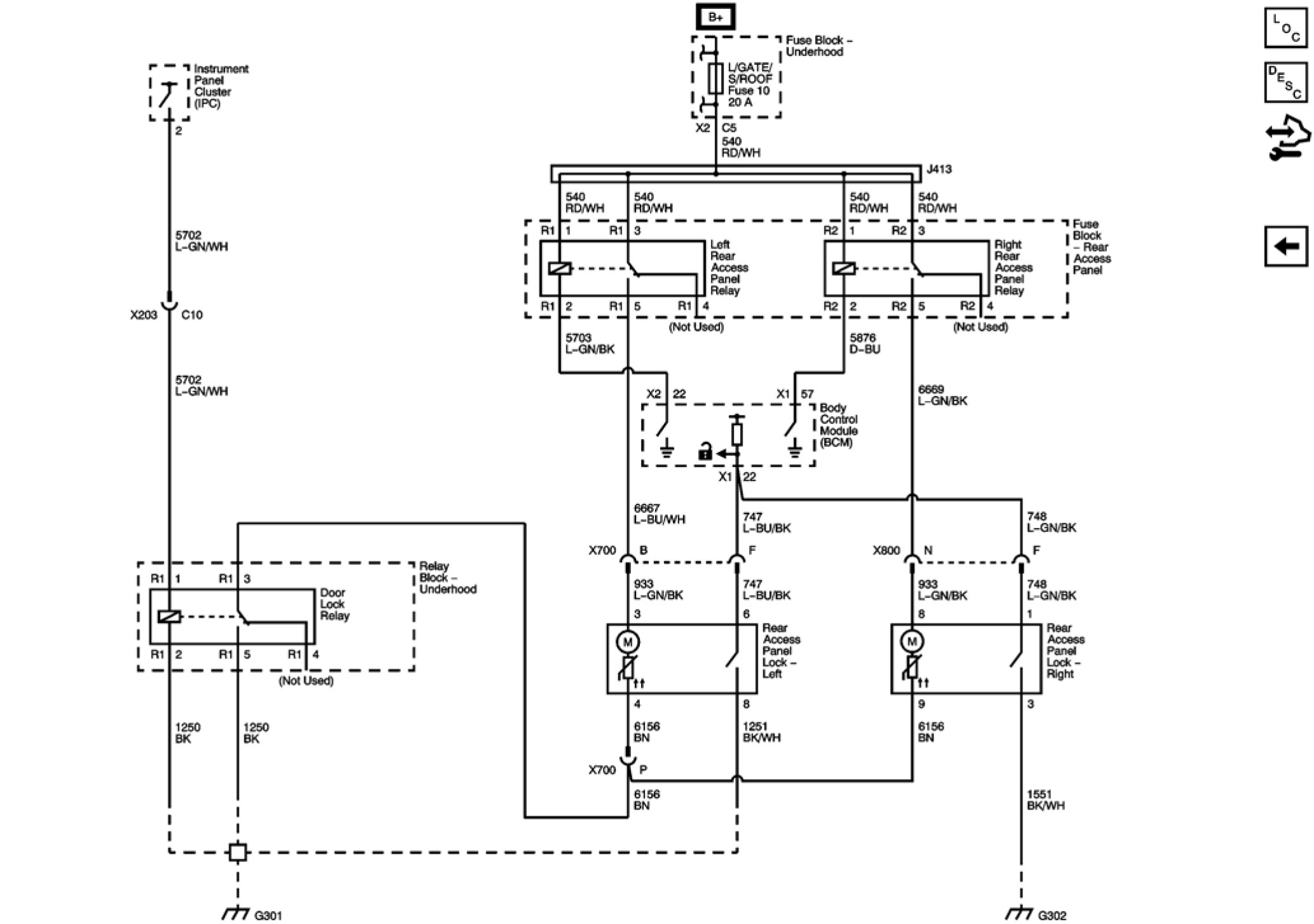

Rear Access Panel (Panel Van) 2 of 2
