Removal Procedure

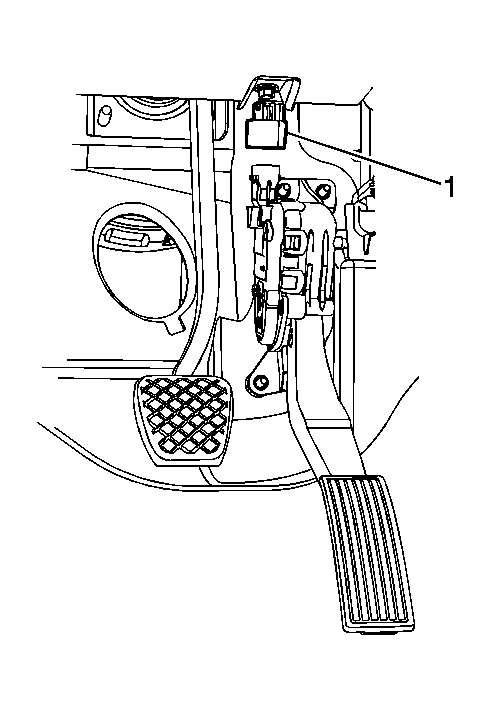

    Fig 1: APP Sensor Electrical Connector
    GM1633081Courtesy of GENERAL MOTORS CORP.
  1. Remove the insulator panel. Instrument Panel Insulator Replacement .
  2. Disconnect the accelerator pedal position (APP) sensor electrical connector (1).

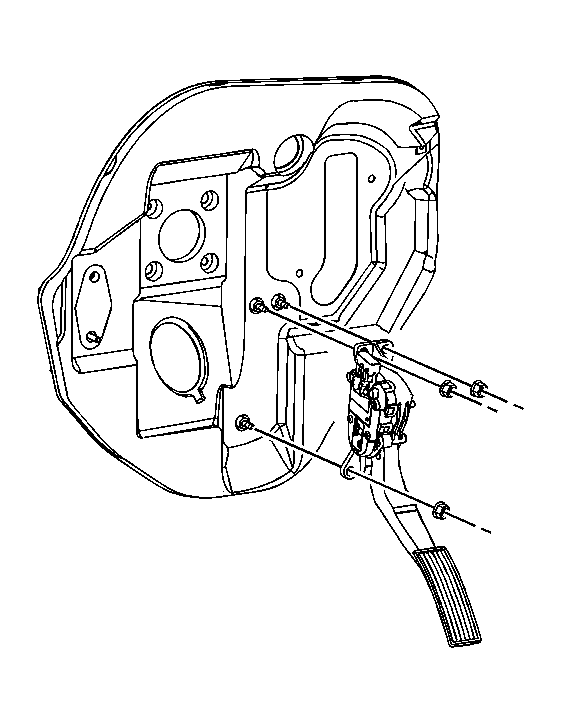

    3. Fig 2: APP Sensor
    GM1633085Courtesy of GENERAL MOTORS CORP.
  3. Remove the APP sensor nuts.
  4. Remove the APP sensor.
