Mass Airflow Sensor Replacement

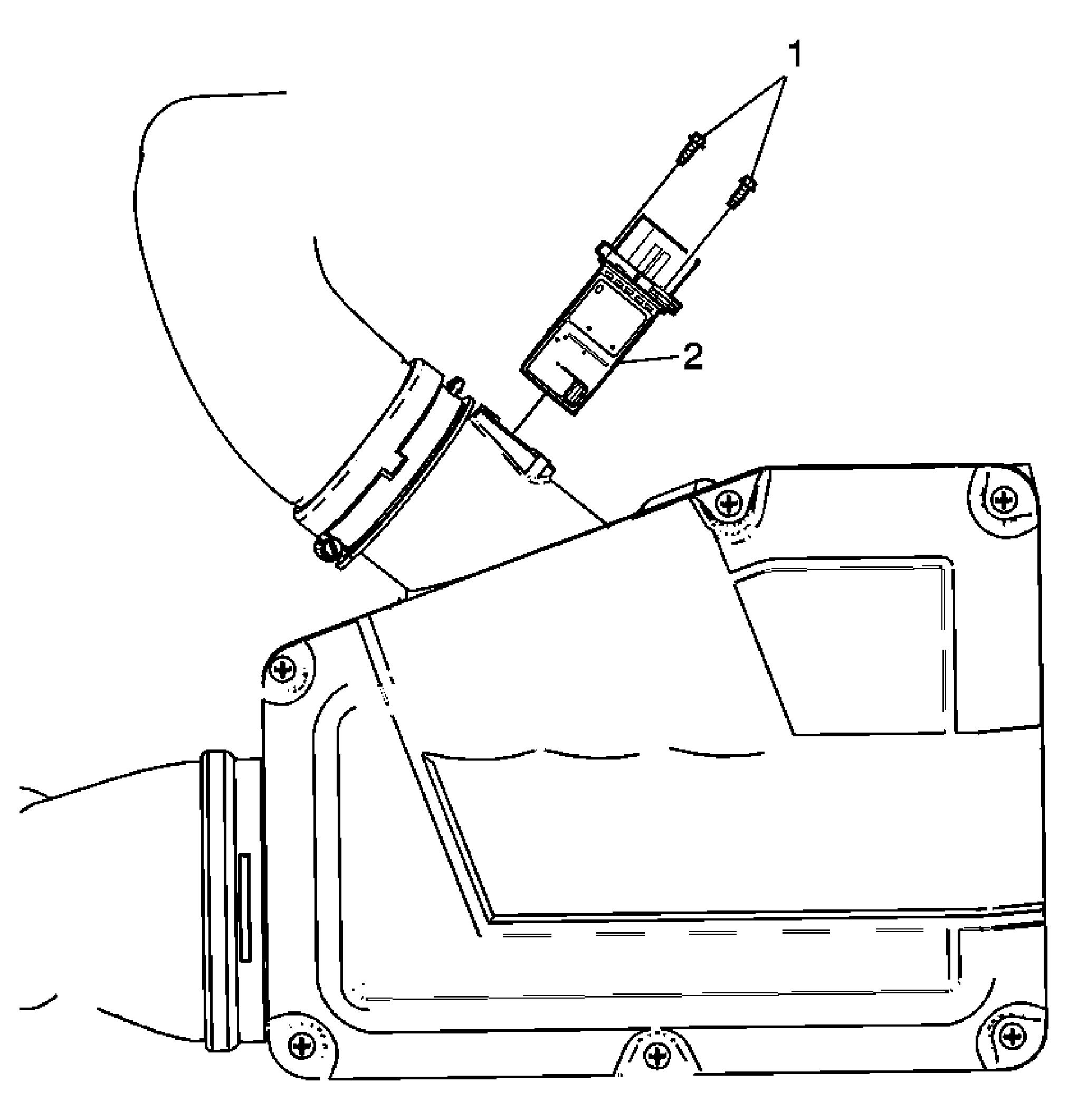

Fig 1: Mass Airflow Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Disconnect the negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Mass Airflow (MAF) Sensor Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 0.6 N.m (5 lb in)
2	MAF Sensor
