Installation Procedure

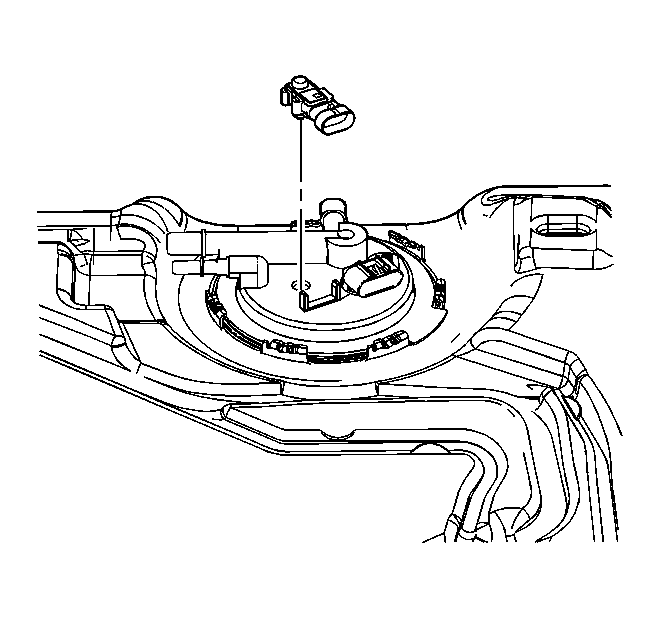

    Fig 1: Fuel Tank Pressure Sensor
    GM1636702Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel tank pressure sensor to the module. Ensure that the sensor grommet is fully seated in the module.
    2. Fig 2: Fuel Tank & Fuel Pressure Sensor Electrical Connector
    GM1636698Courtesy of GENERAL MOTORS CORP.
  2. Connect the fuel pressure sensor electrical connector (4).
  3. Install the fuel tank. Refer to Fuel Tank Replacement .
