Intake Air Pressure and Temperature Sensor Replacement

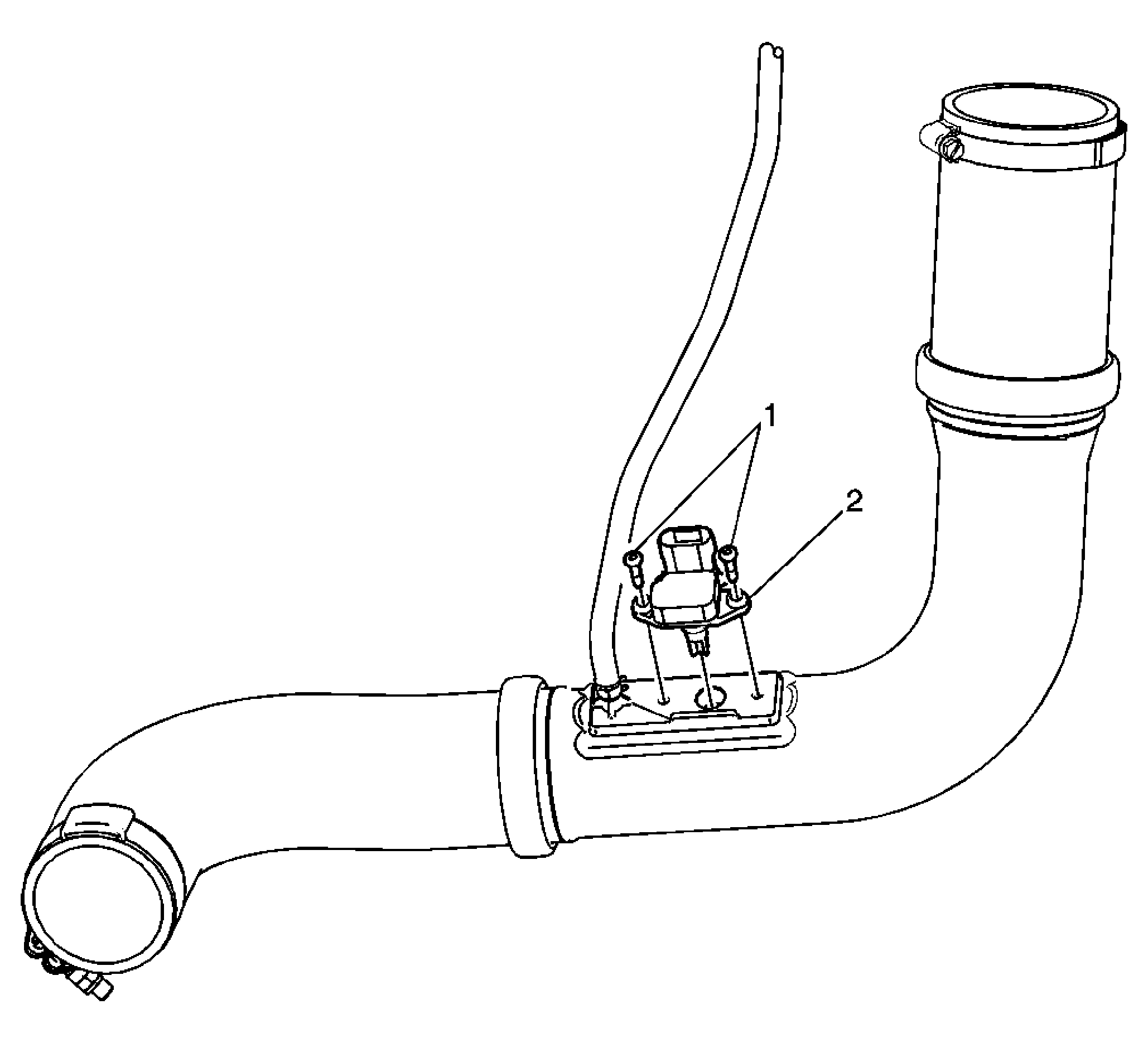

Fig 1: Intake Air Pressure & Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the charge air cooler outlet pipe. Refer to Charge Air Cooler Outlet Pipe Replacement .
1	Sensor Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  9 N.m (80 lb in)
2	Intake Air Pressure and Temperature Sensor Procedure:  Disconnect the electrical connector.
