Communications Control Module




Component Connector End Views

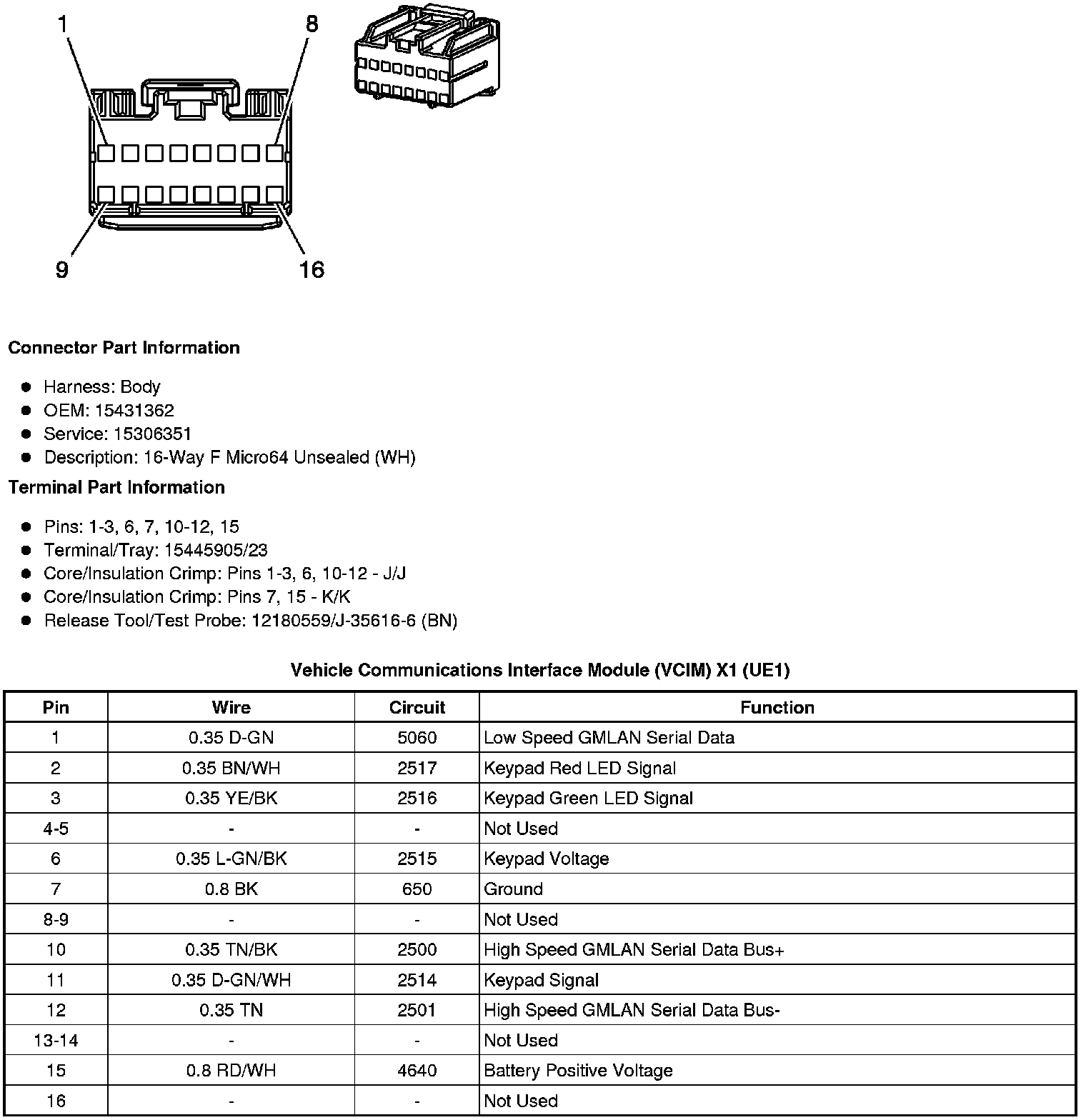

Vehicle Communications Interface Module (VCIM) X1 (UE1)

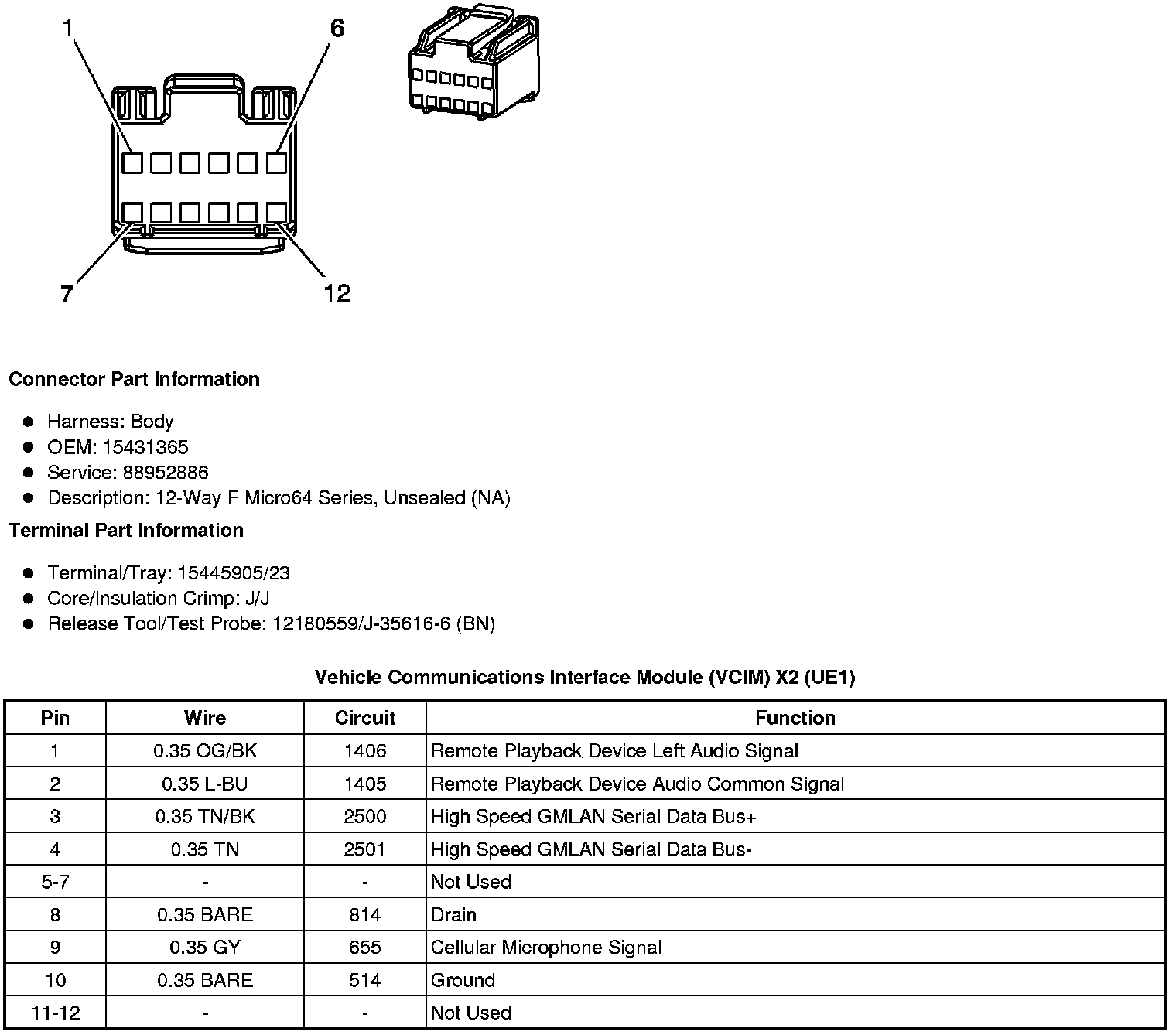

Vehicle Communications Interface Module (VCIM) X2 (UE1)






Vehicle Communications Interface Module (VCIM) X3 (UE1)
