Auxiliary Power Outlet




Component Connector End Views

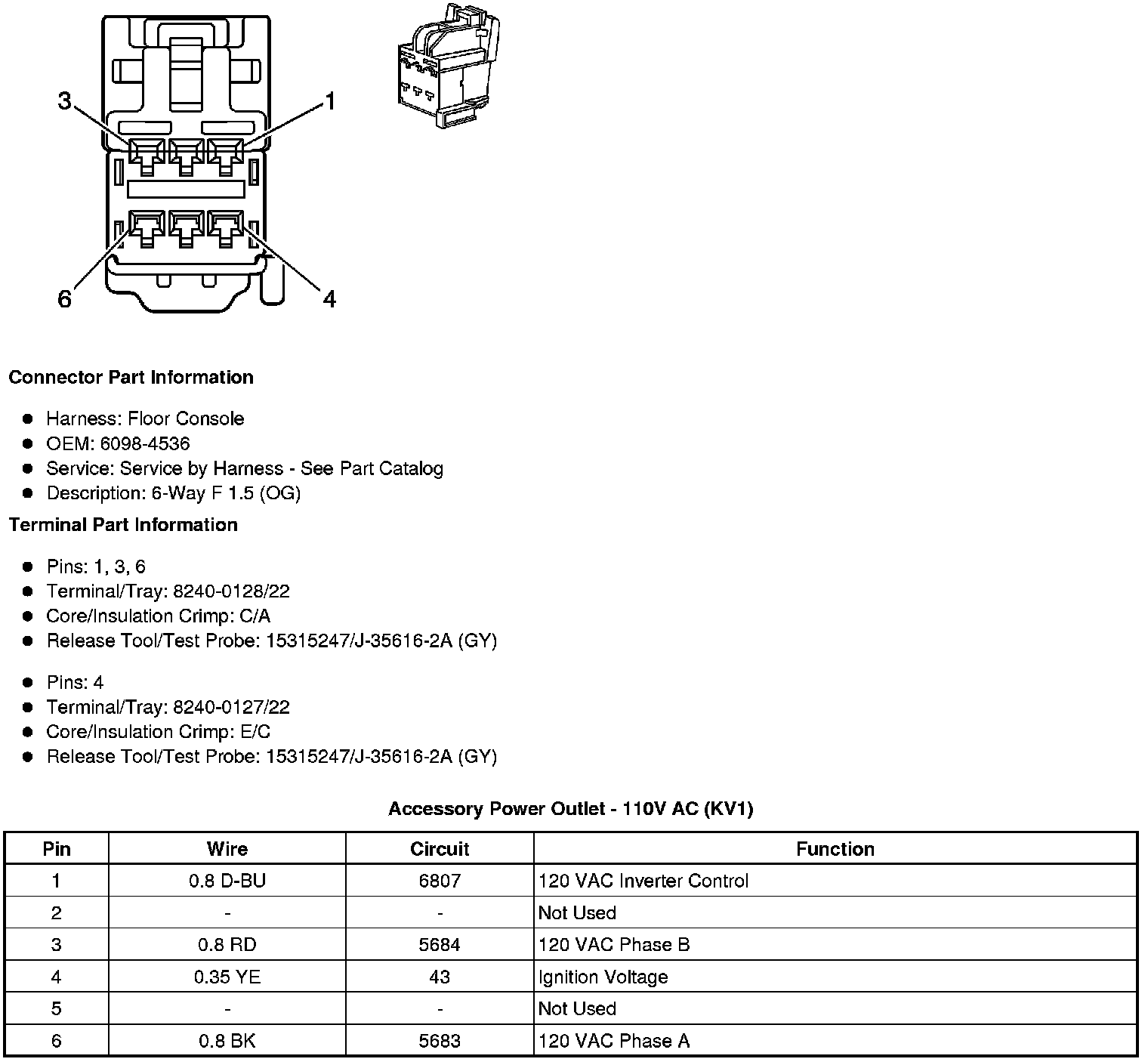

Accessory Power Outlet - 110V AC (KV1)






Accessory Power Outlet - Center Console






Accessory Power Outlet - I/P






Accessory Power Outlet - Rear (without DK1)






Accessory Power Outlet - Rear Console (DK1)
