Backup Lamp

Component Connector End Views

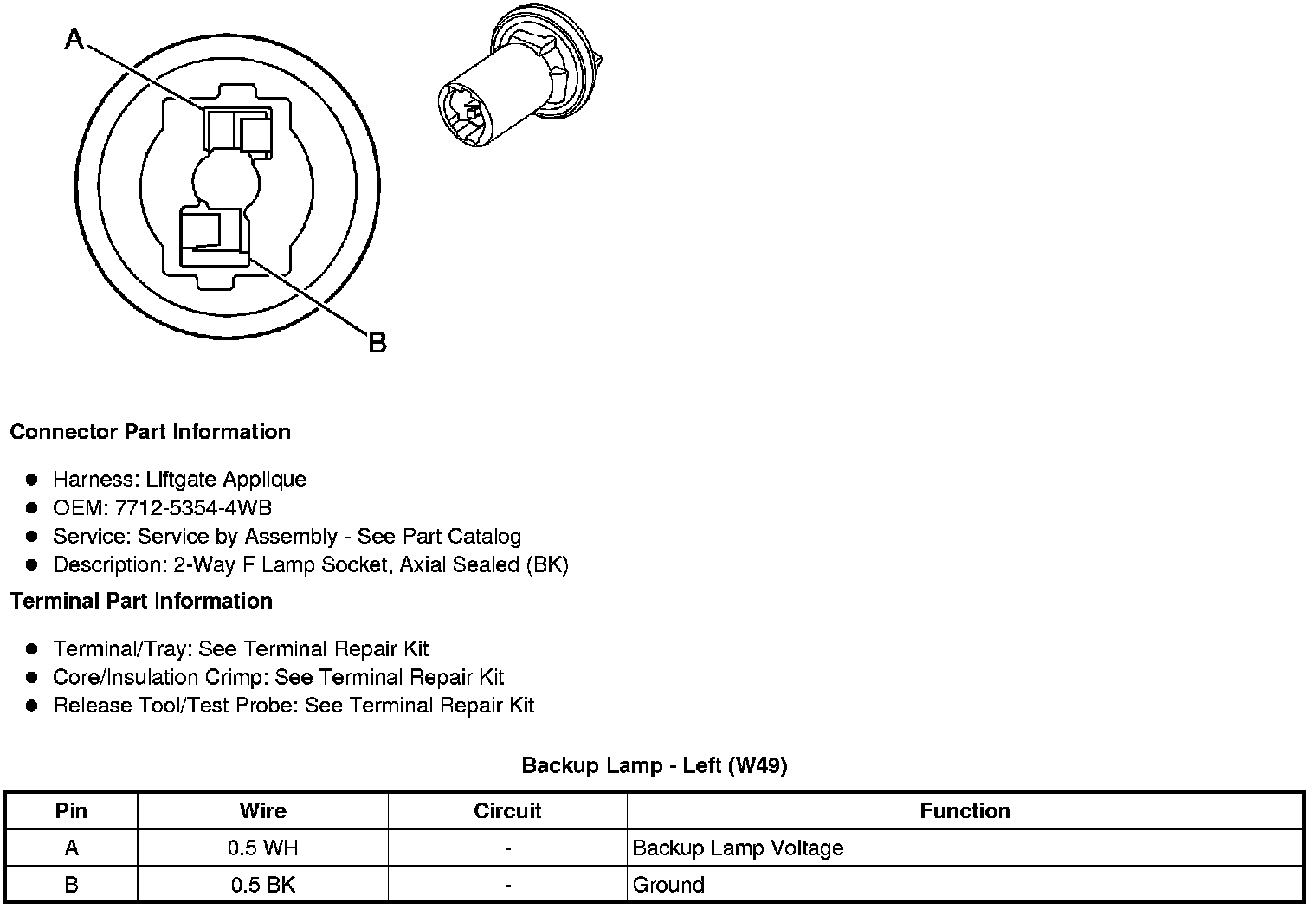

Backup Lamp - Left (W49)

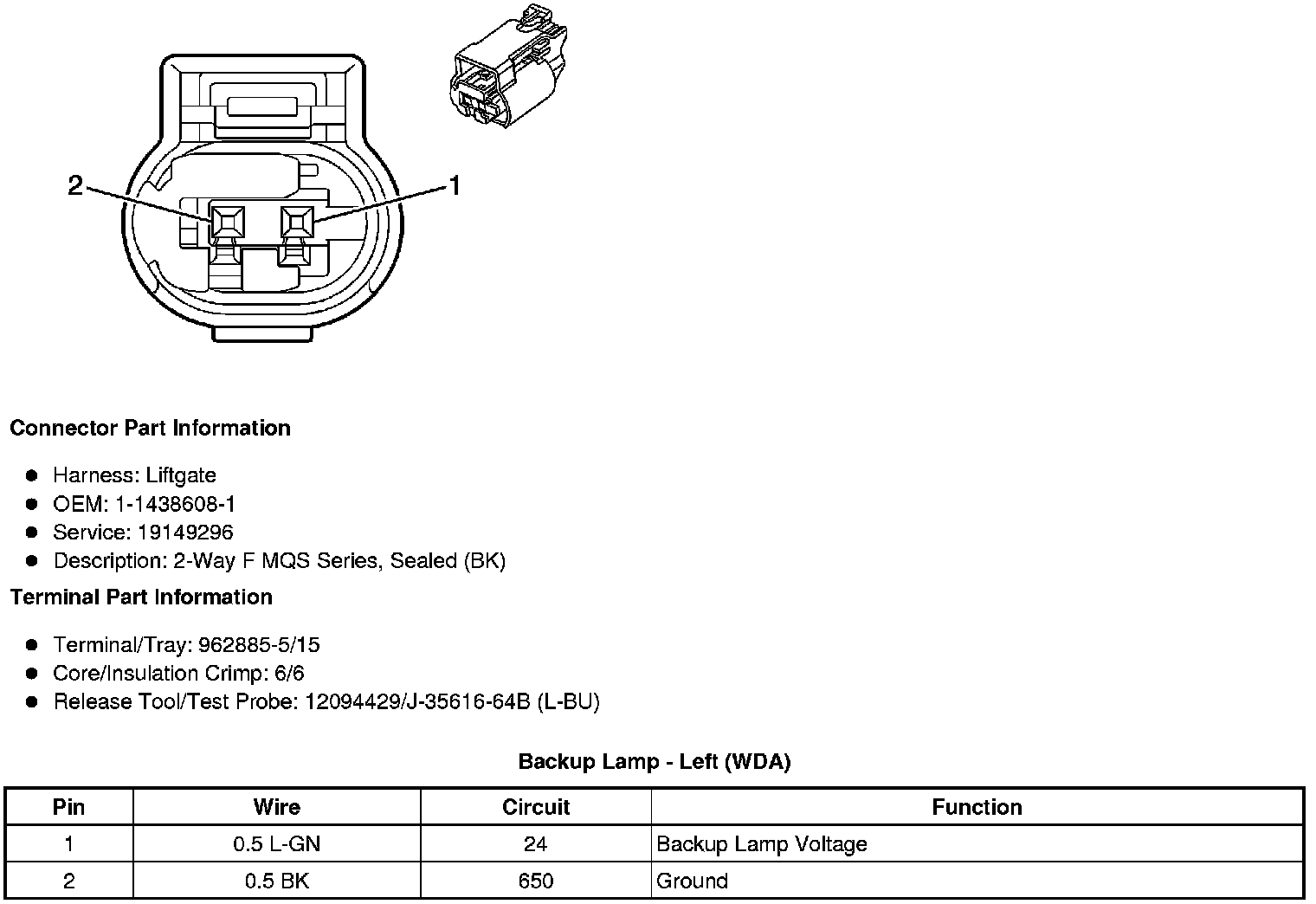

Backup Lamp - Left (WDA)

Backup Lamp - Left (X88)

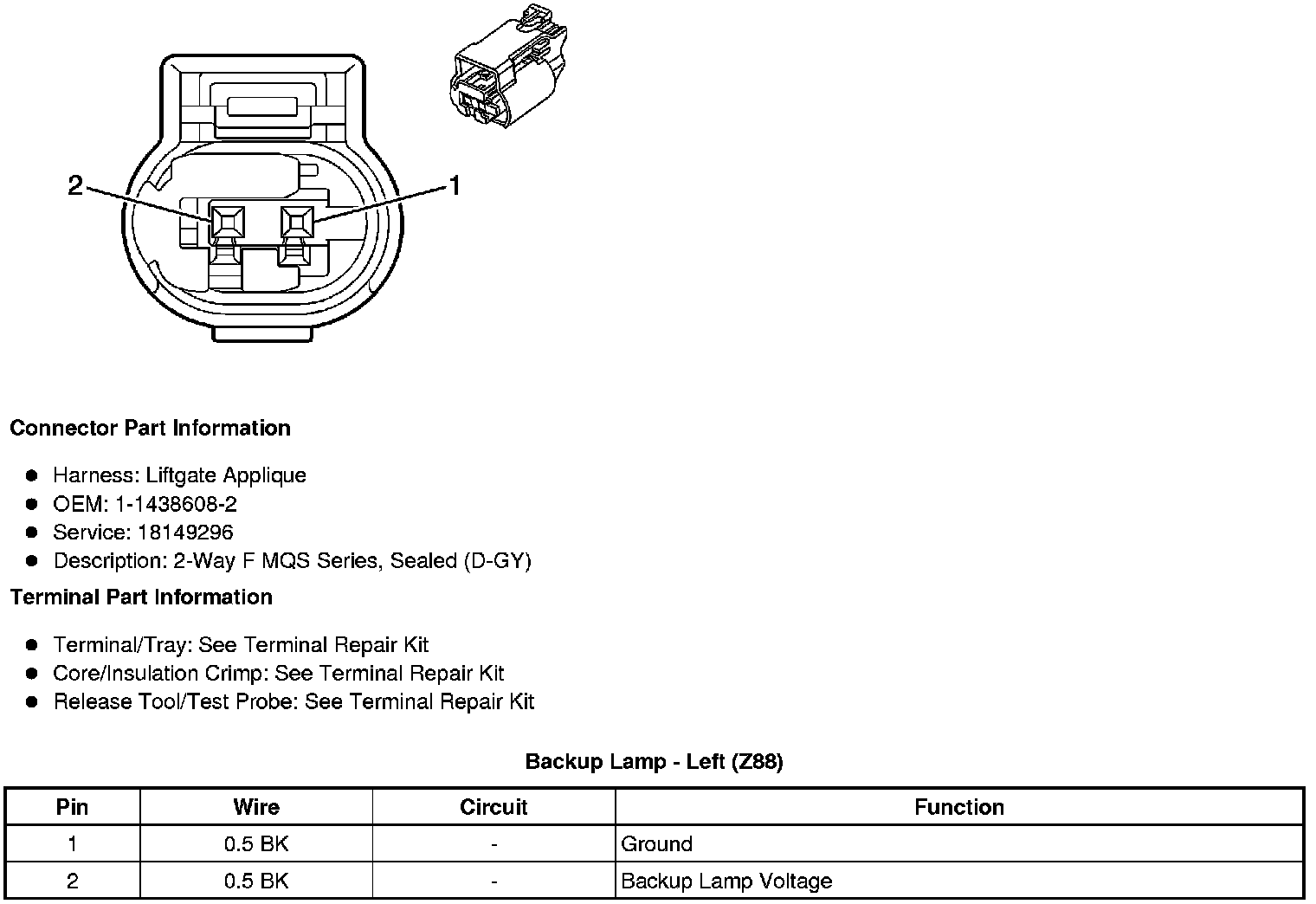

Backup Lamp - Left (Z88)

Backup Lamp - Right (W49)

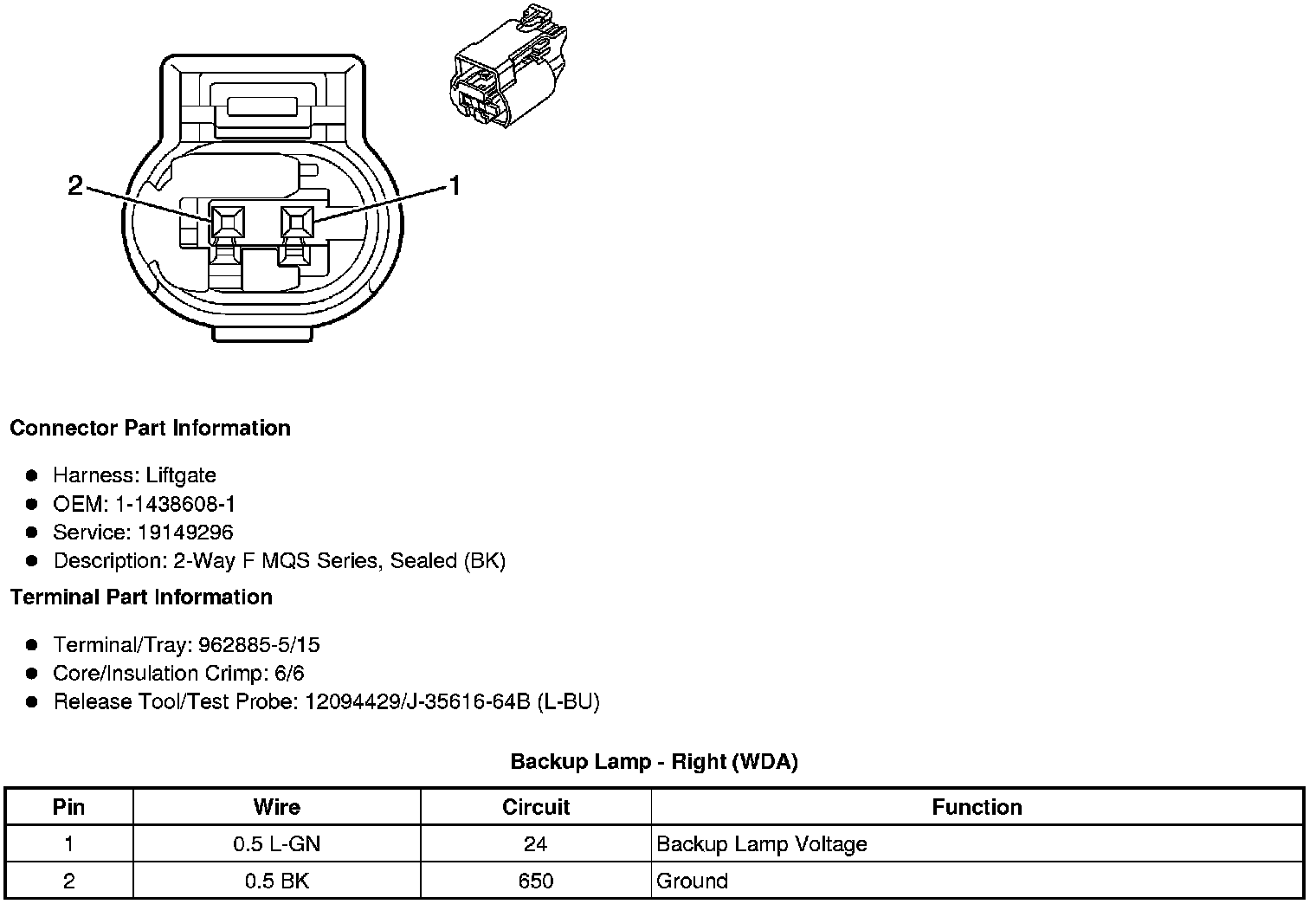

Backup Lamp - Right (WDA)

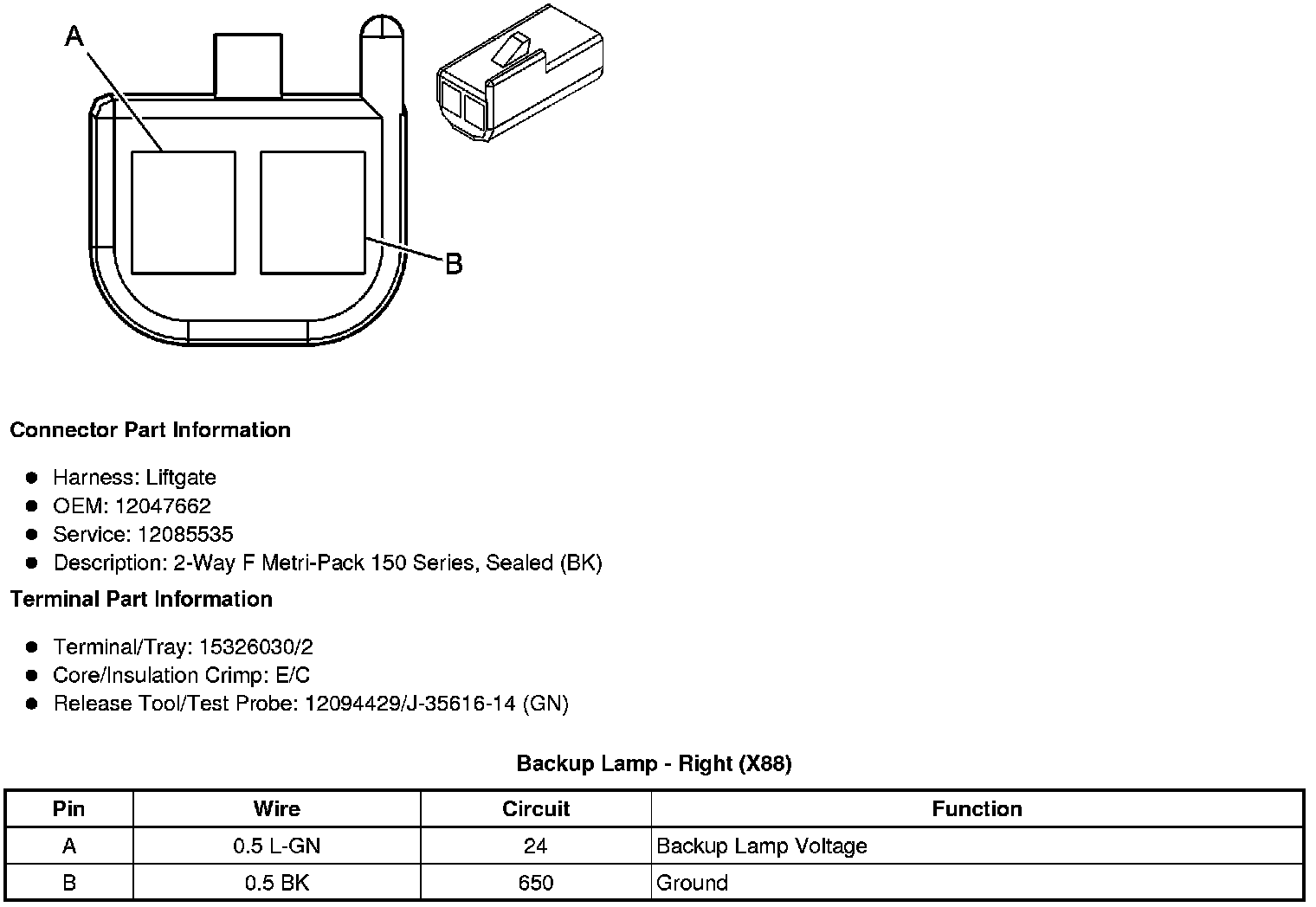

Backup Lamp - Right (X88)

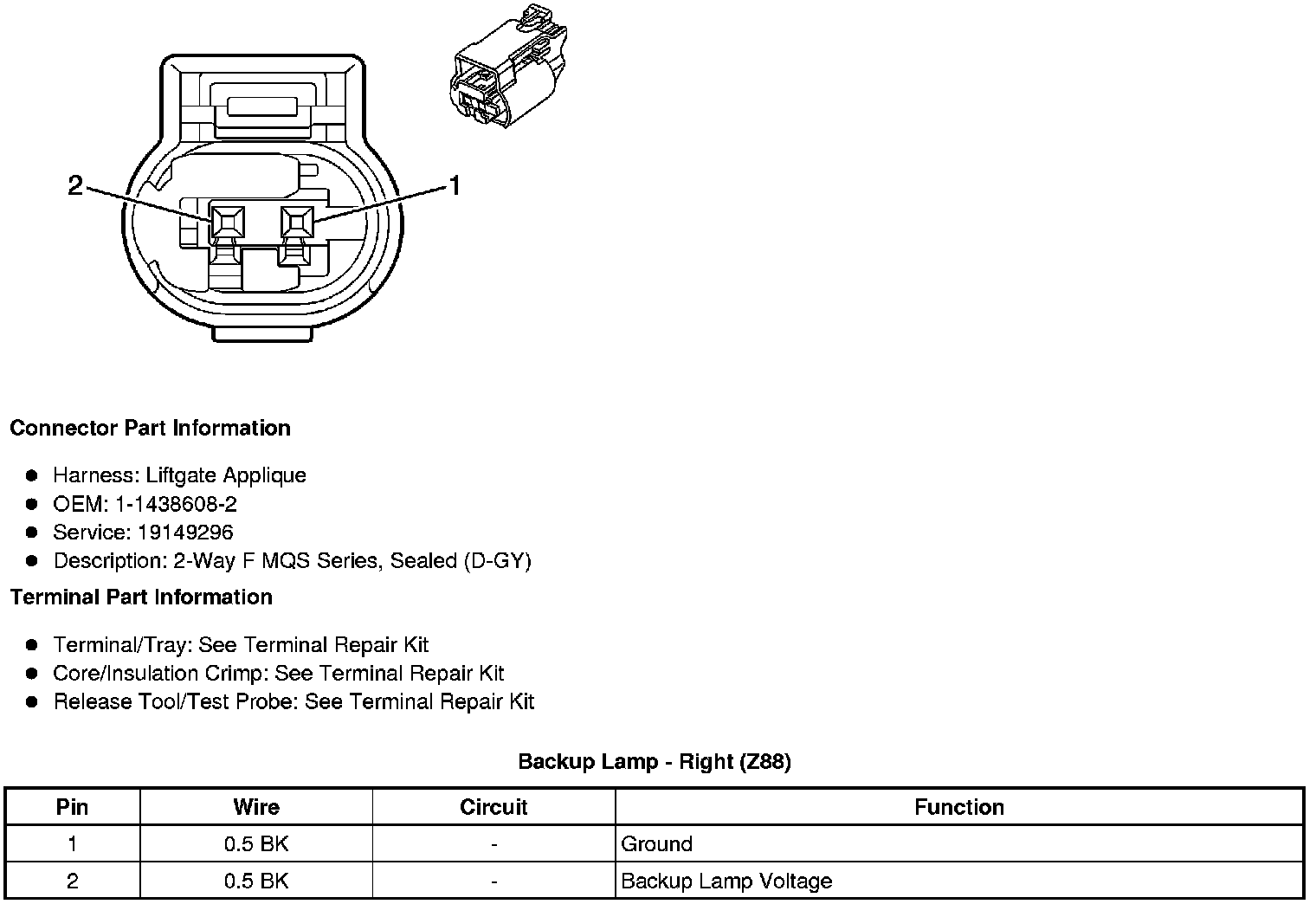

Backup Lamp - Right (Z88)
