Courtesy Lamp




Component Connector End Views

Liftgate Courtesy Lamp - Left

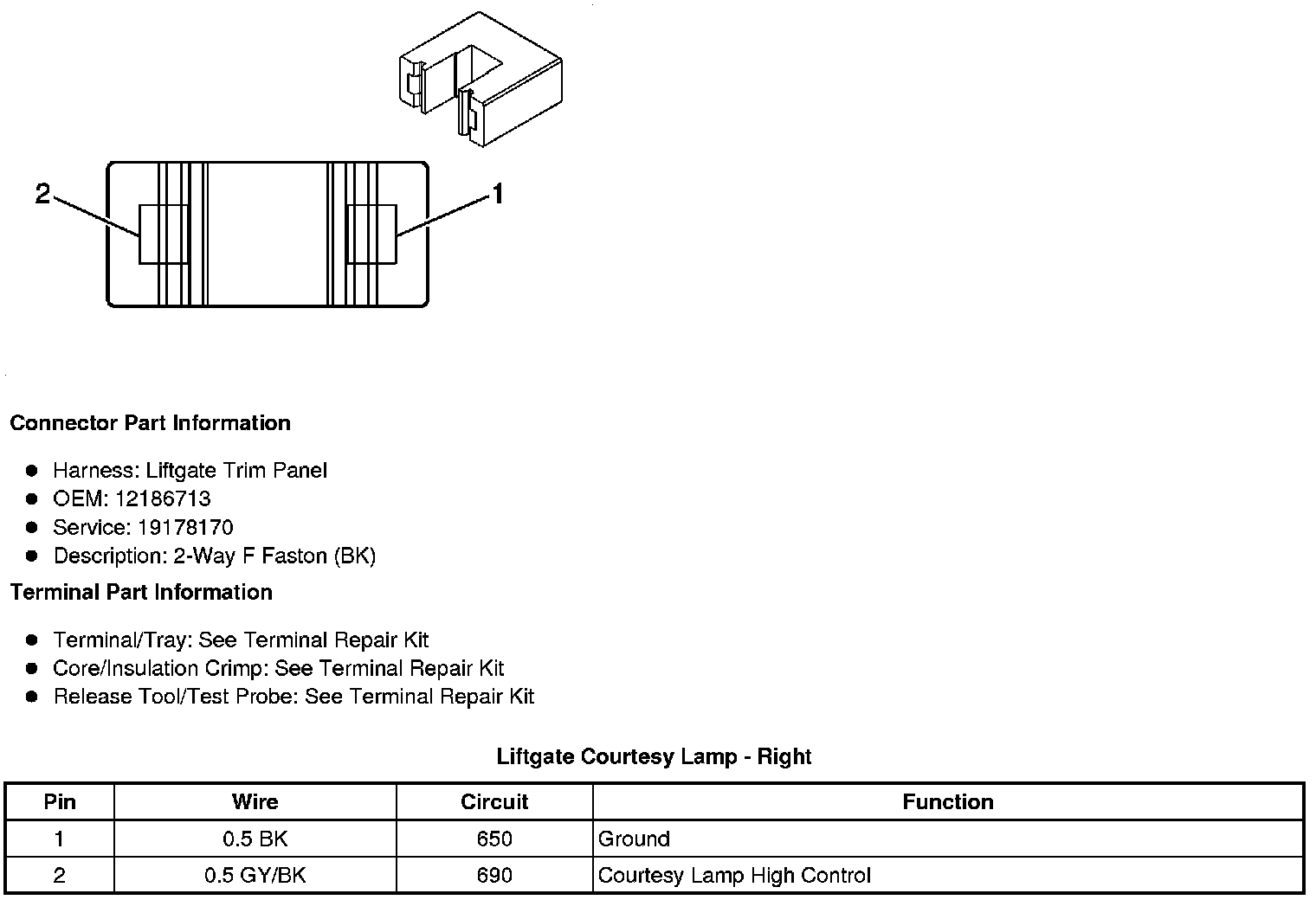

Liftgate Courtesy Lamp - Right
