Driver/Vehicle Information Display




Component Connector End Views

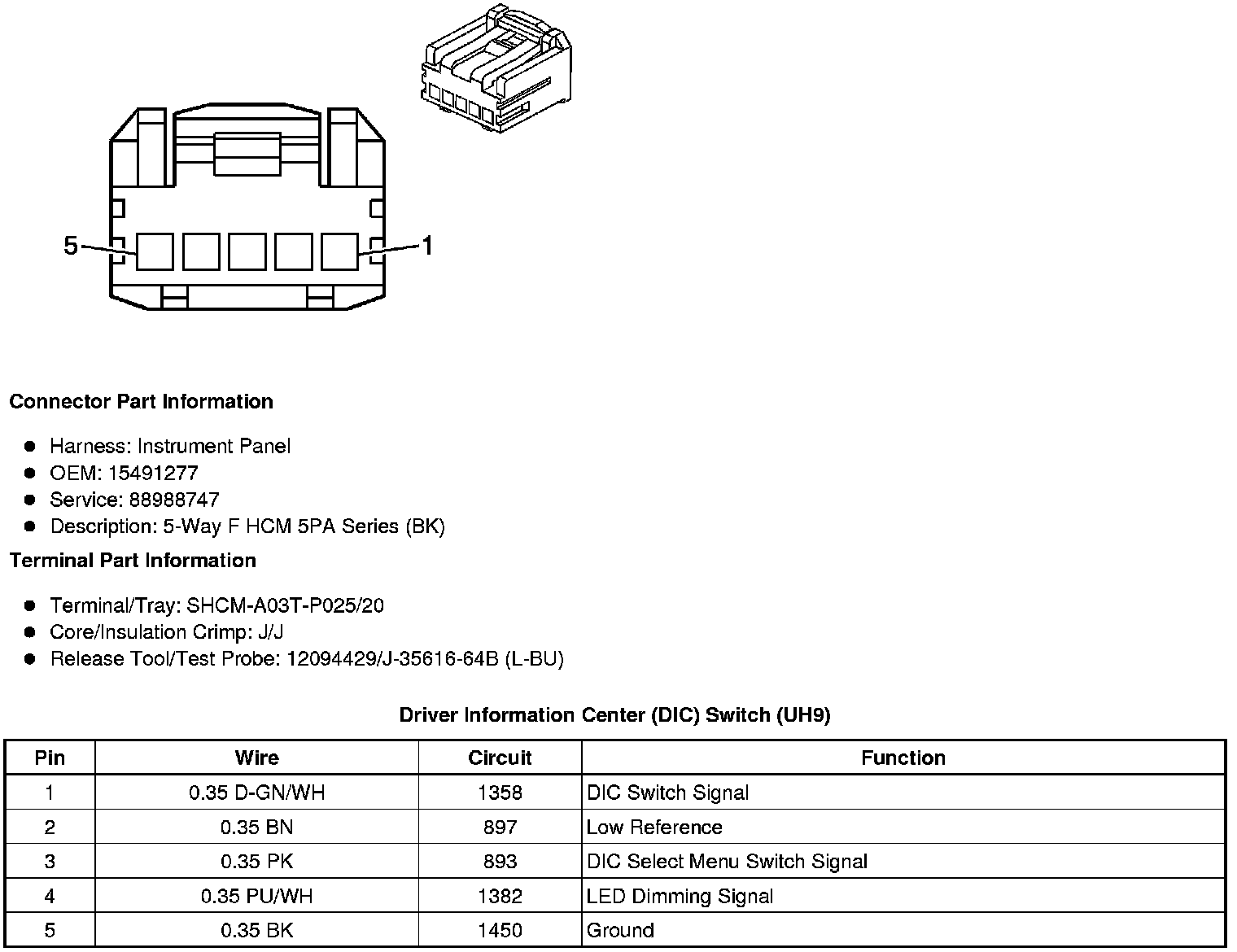

Driver Information Center (DIC) Switch (UH9)
