Ignition Coil




Component Connector End Views

Ignition Coil 1






Ignition Coil 2

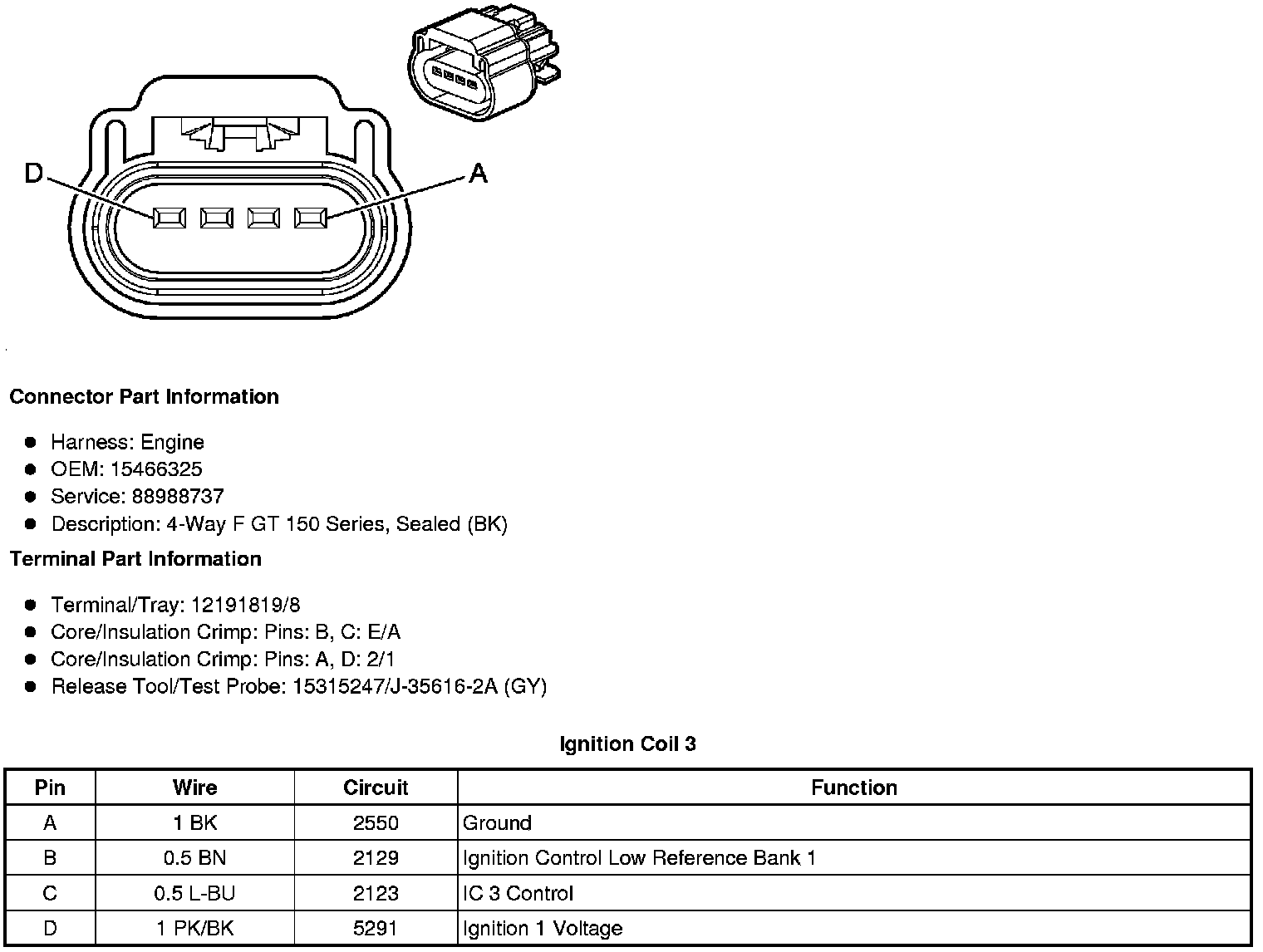

Ignition Coil 3






Ignition Coil 4






Ignition Coil 5






Ignition Coil 6
