Master Connector List
Master Electrical Component List

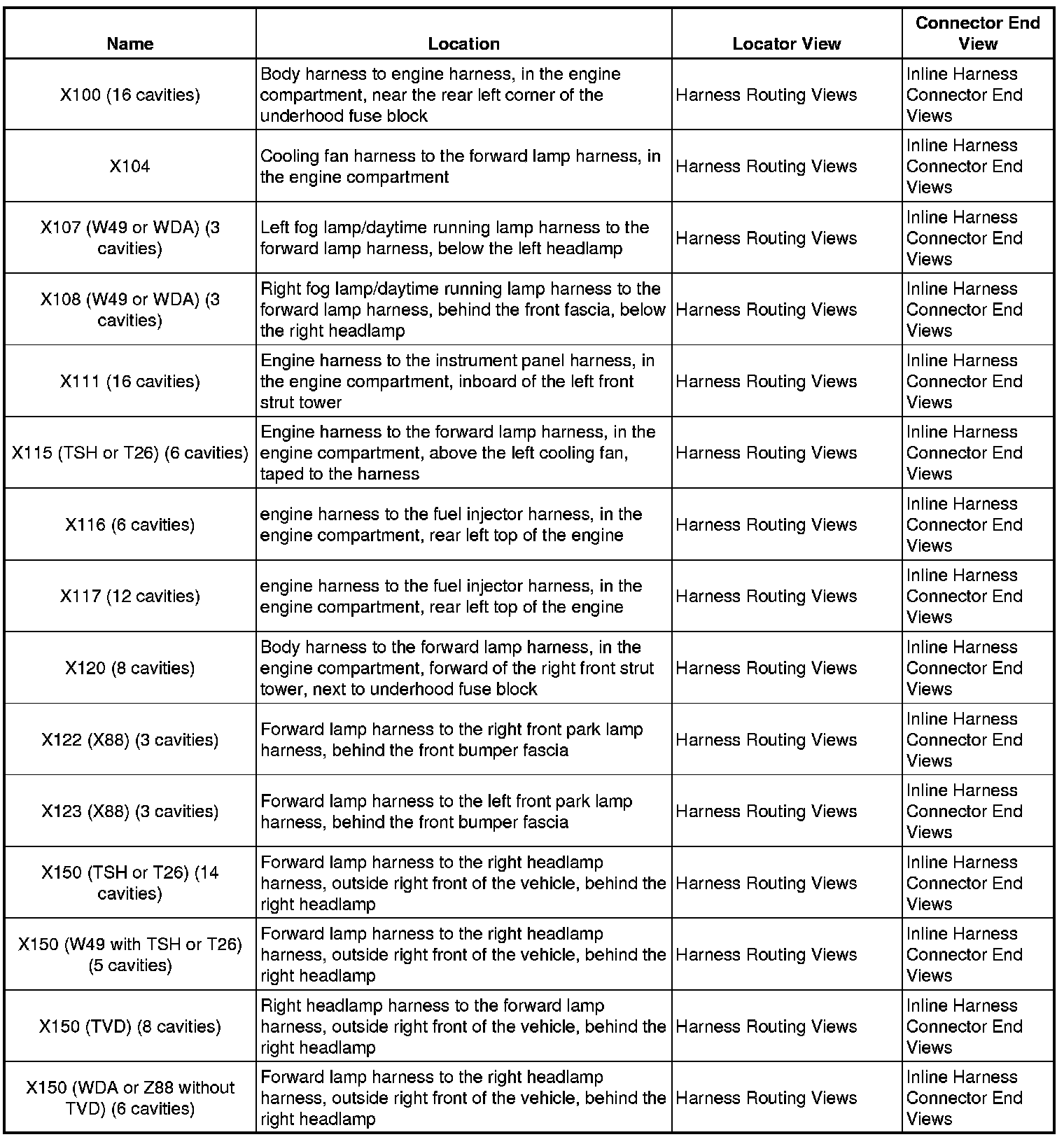

X100 - X150:

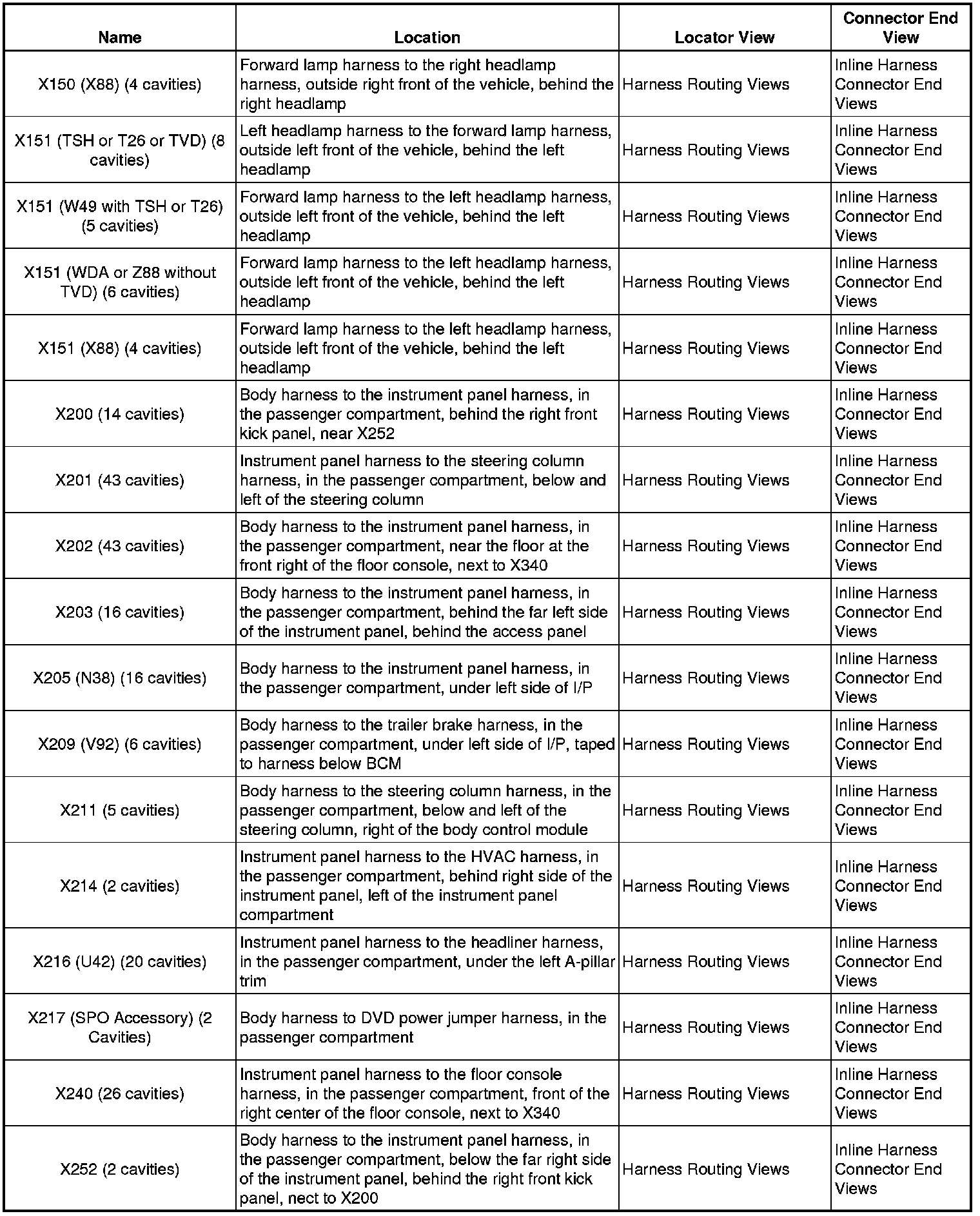

X150 - X252:

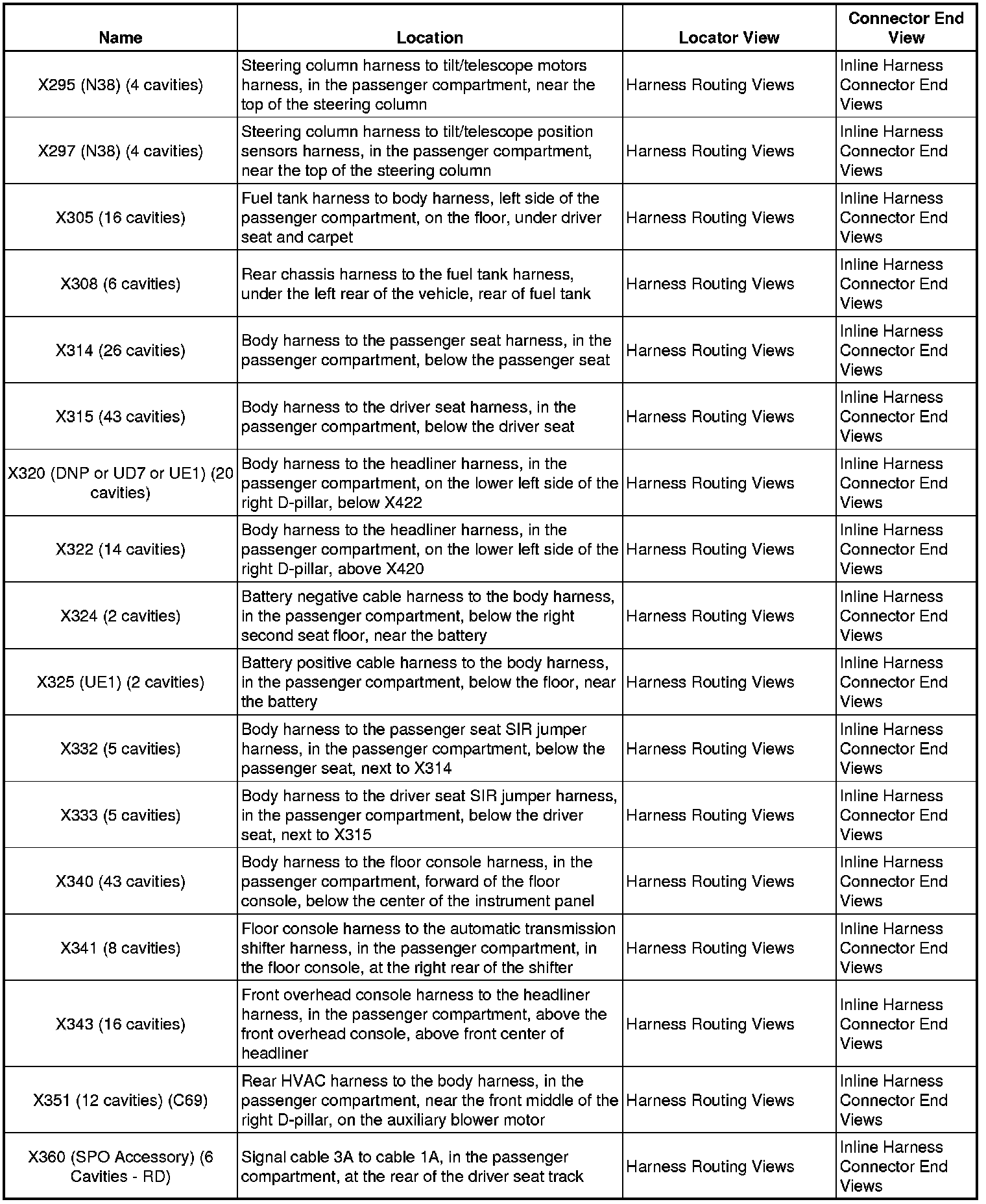

X295 - X360:

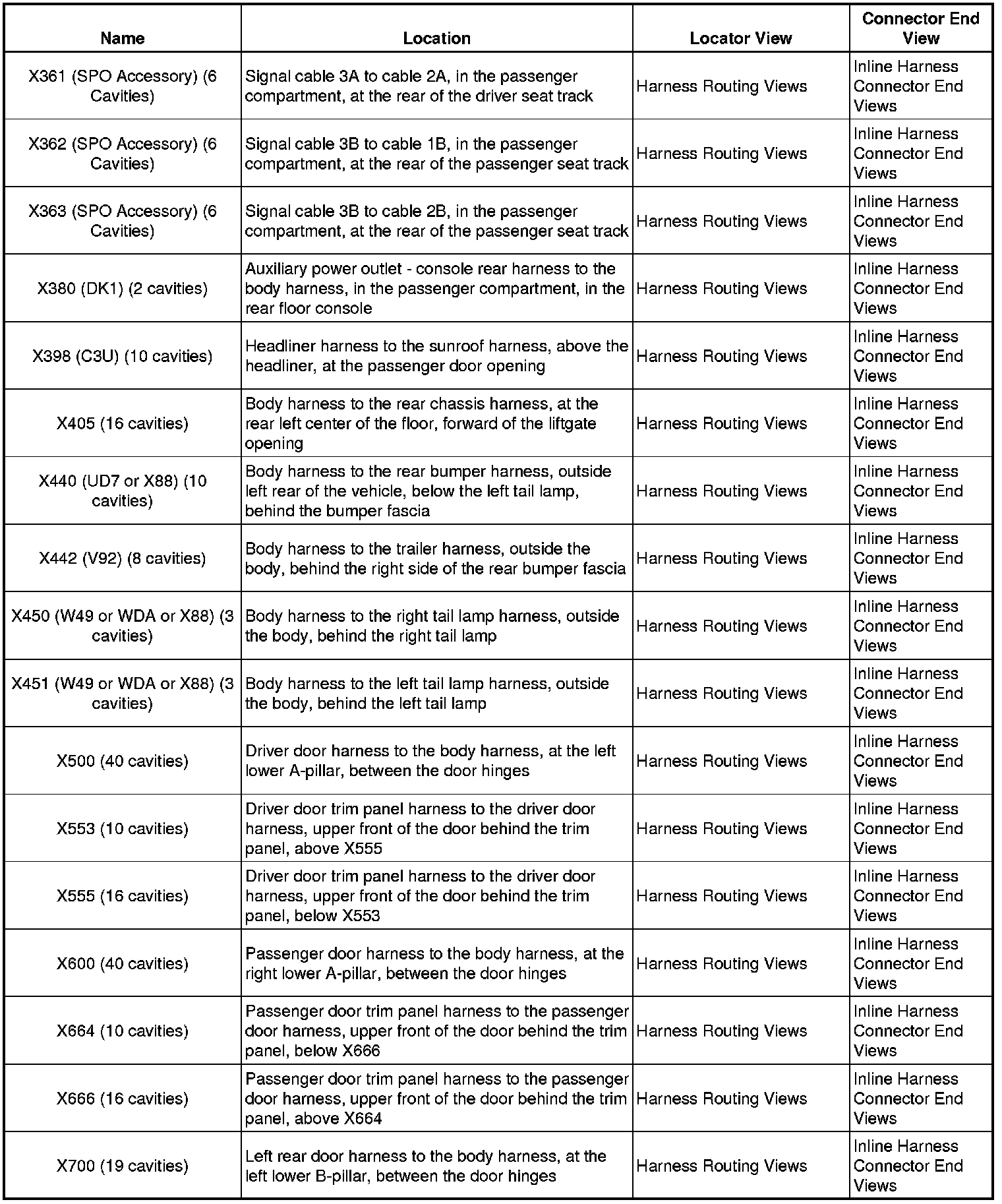

X361 - X700:

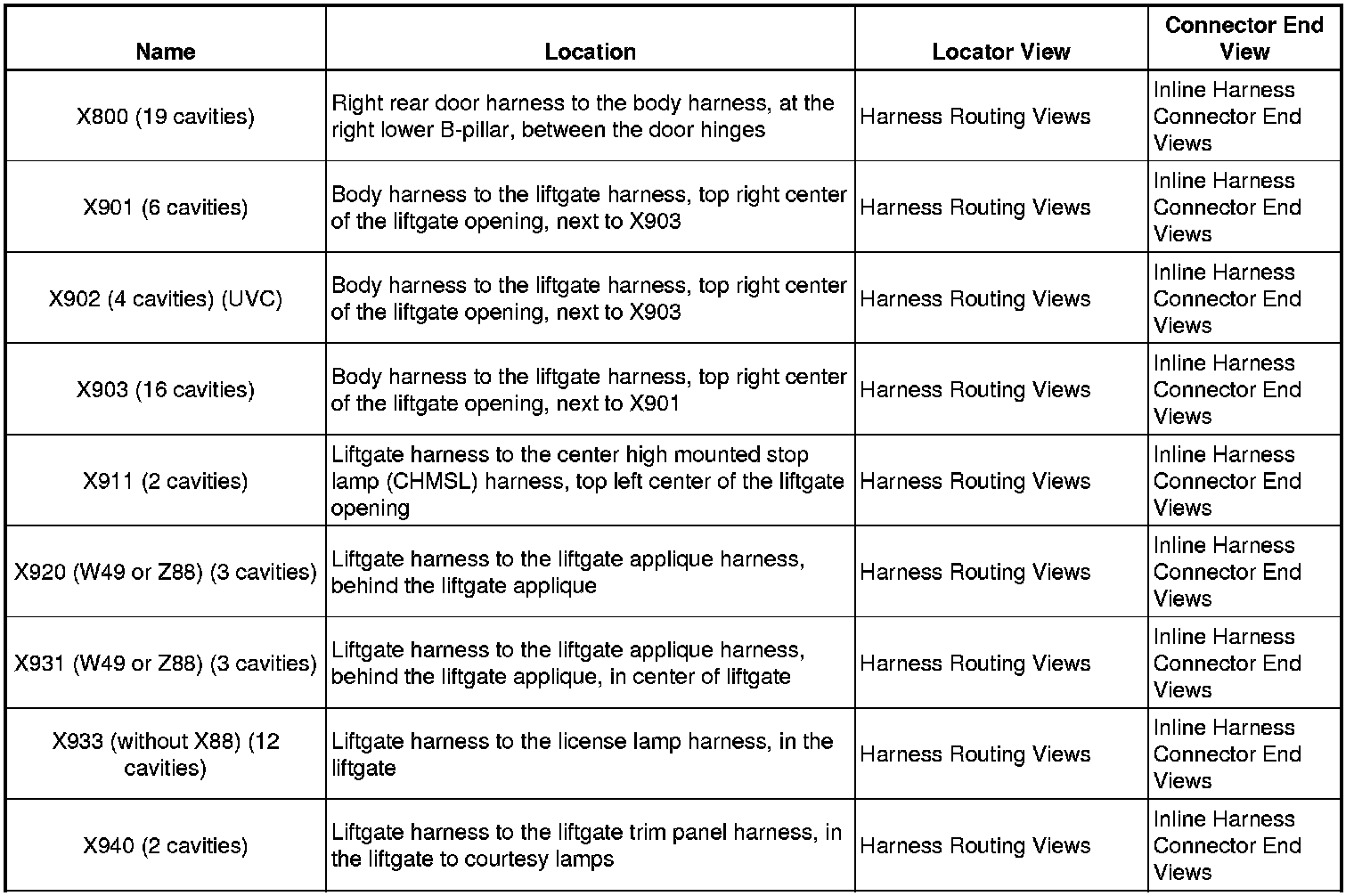

X800 - X940:
