Underhood Fuse Block
Electrical Center Identification Views

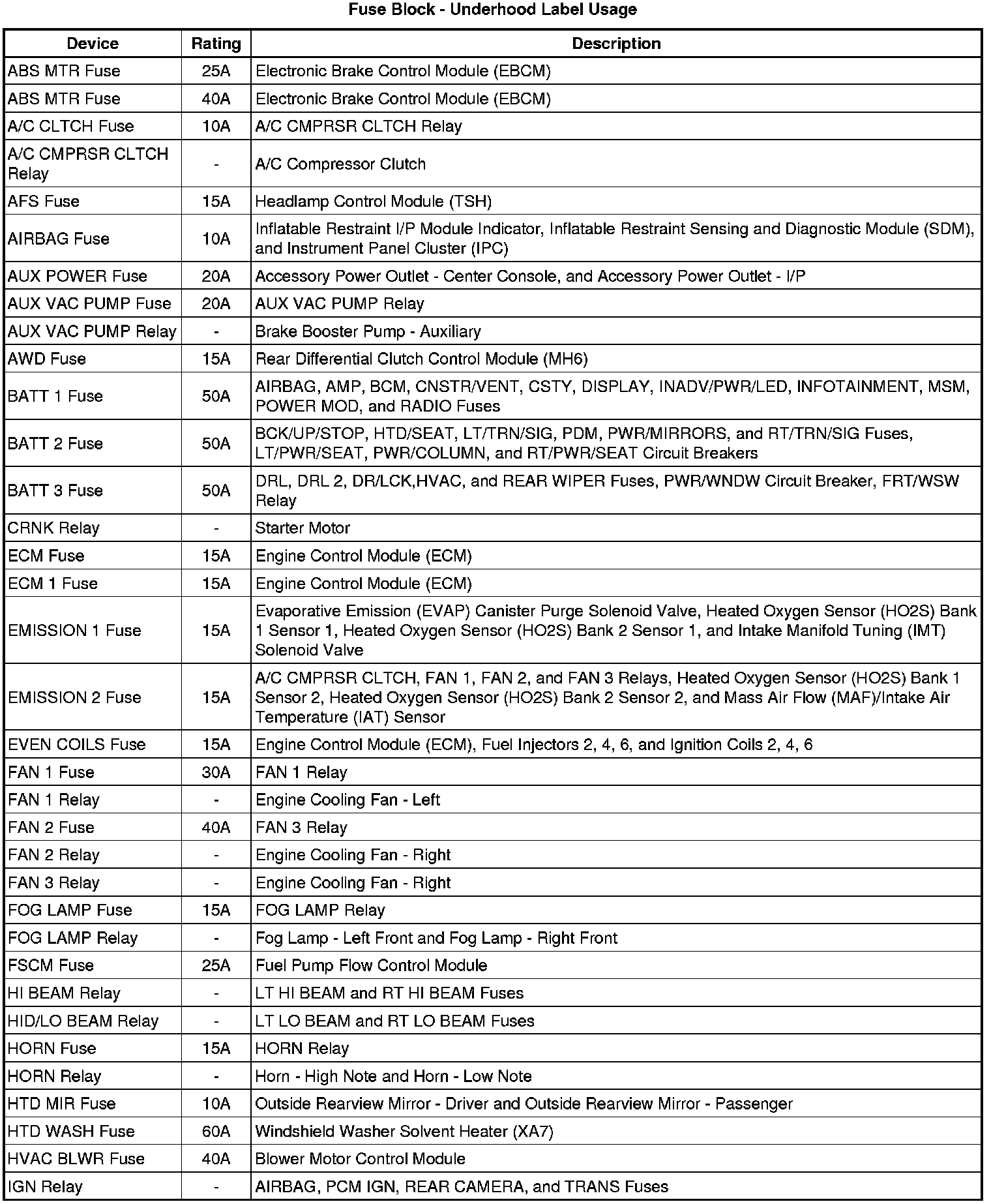

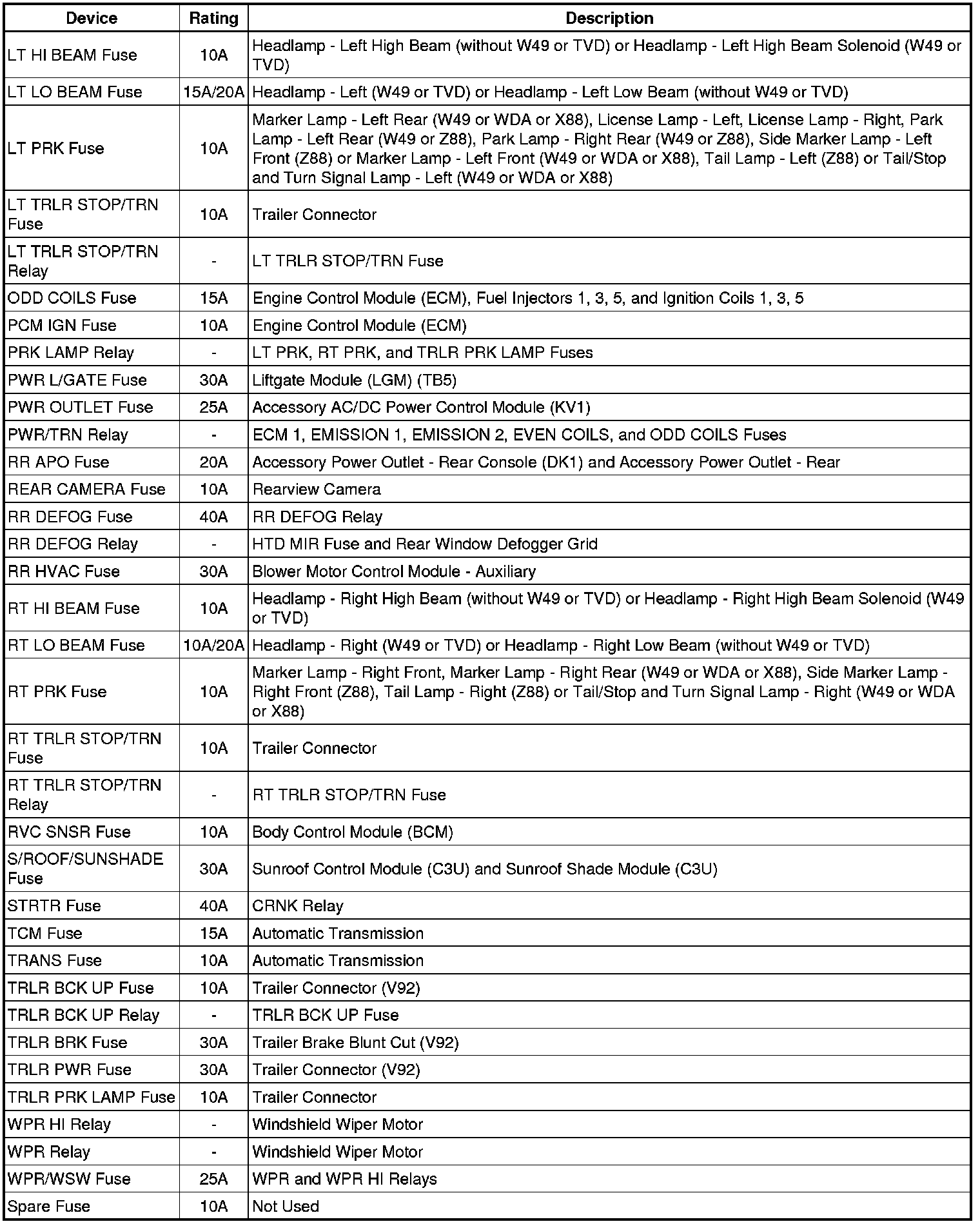

Fuse Block - Underhood Label

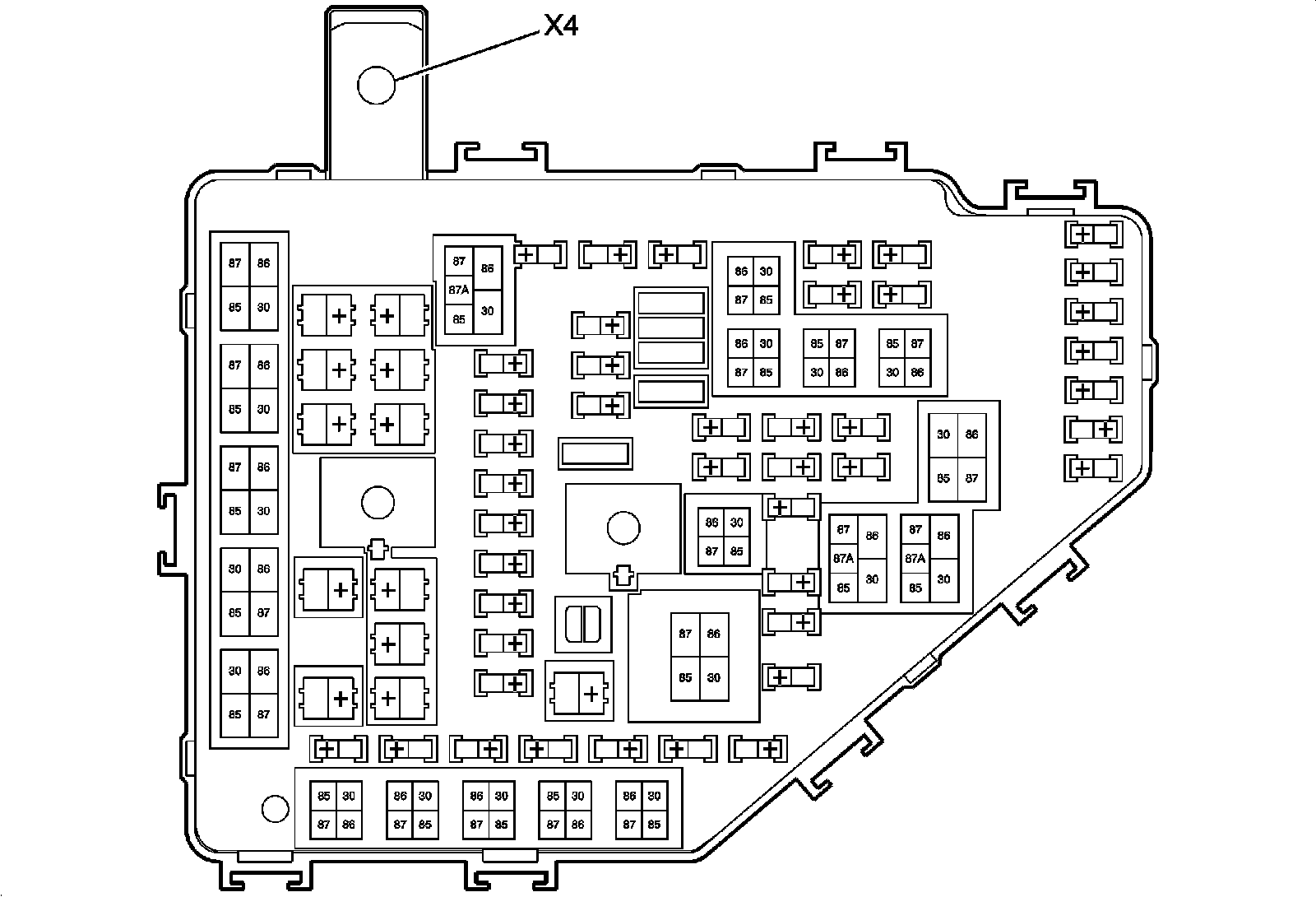

Fuse Block - Underhood Top View
Fuse Block - Underhood Bottom View

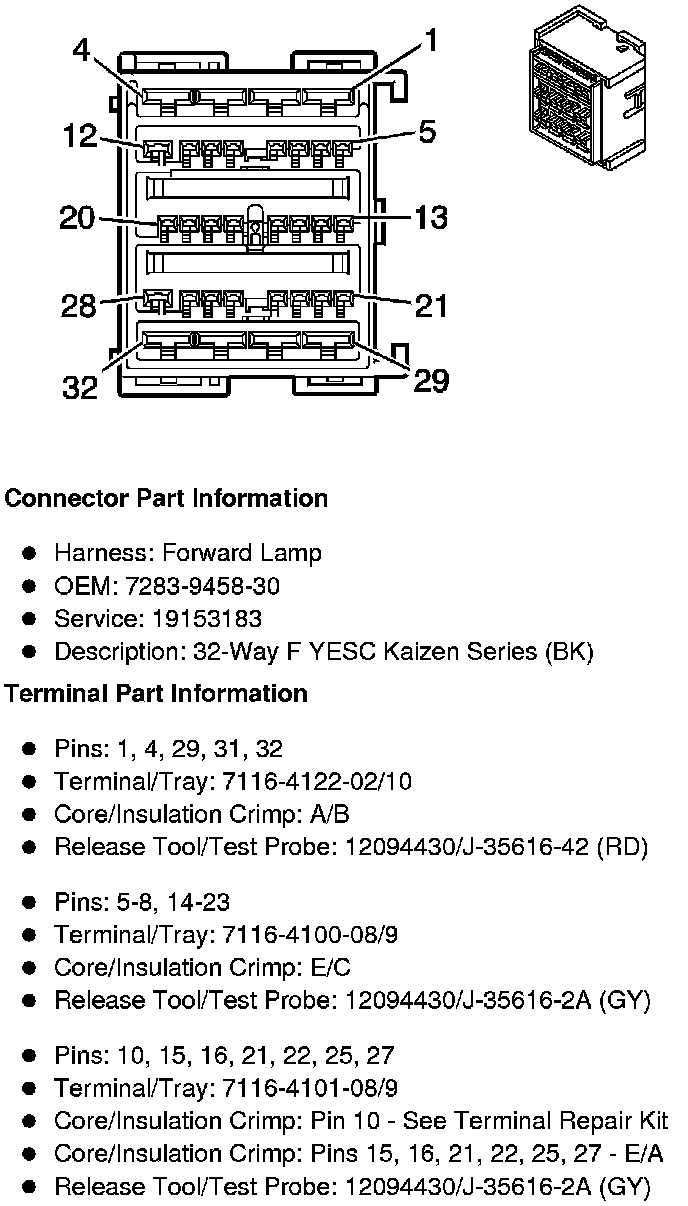

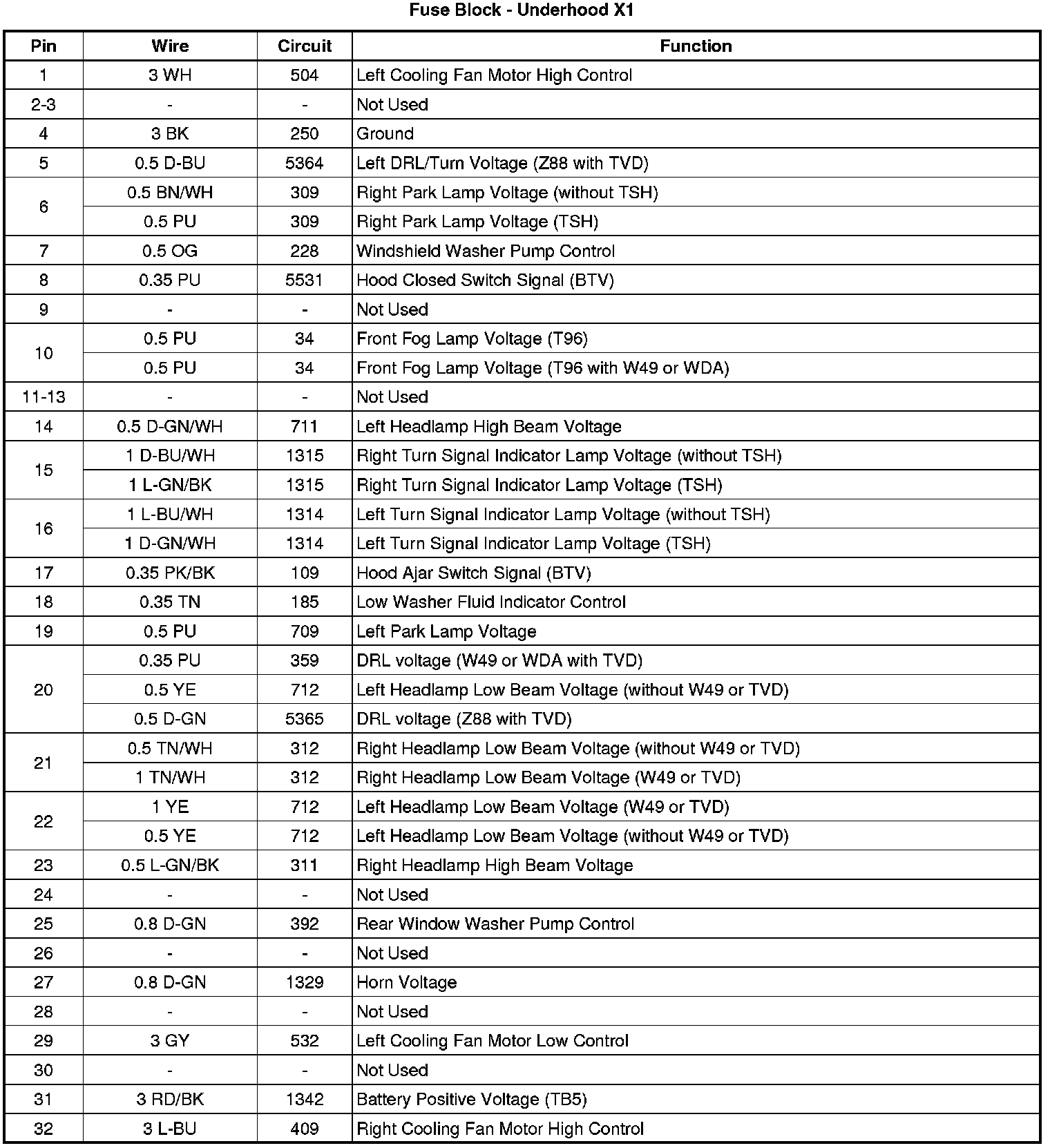

Fuse Block - Underhood X1

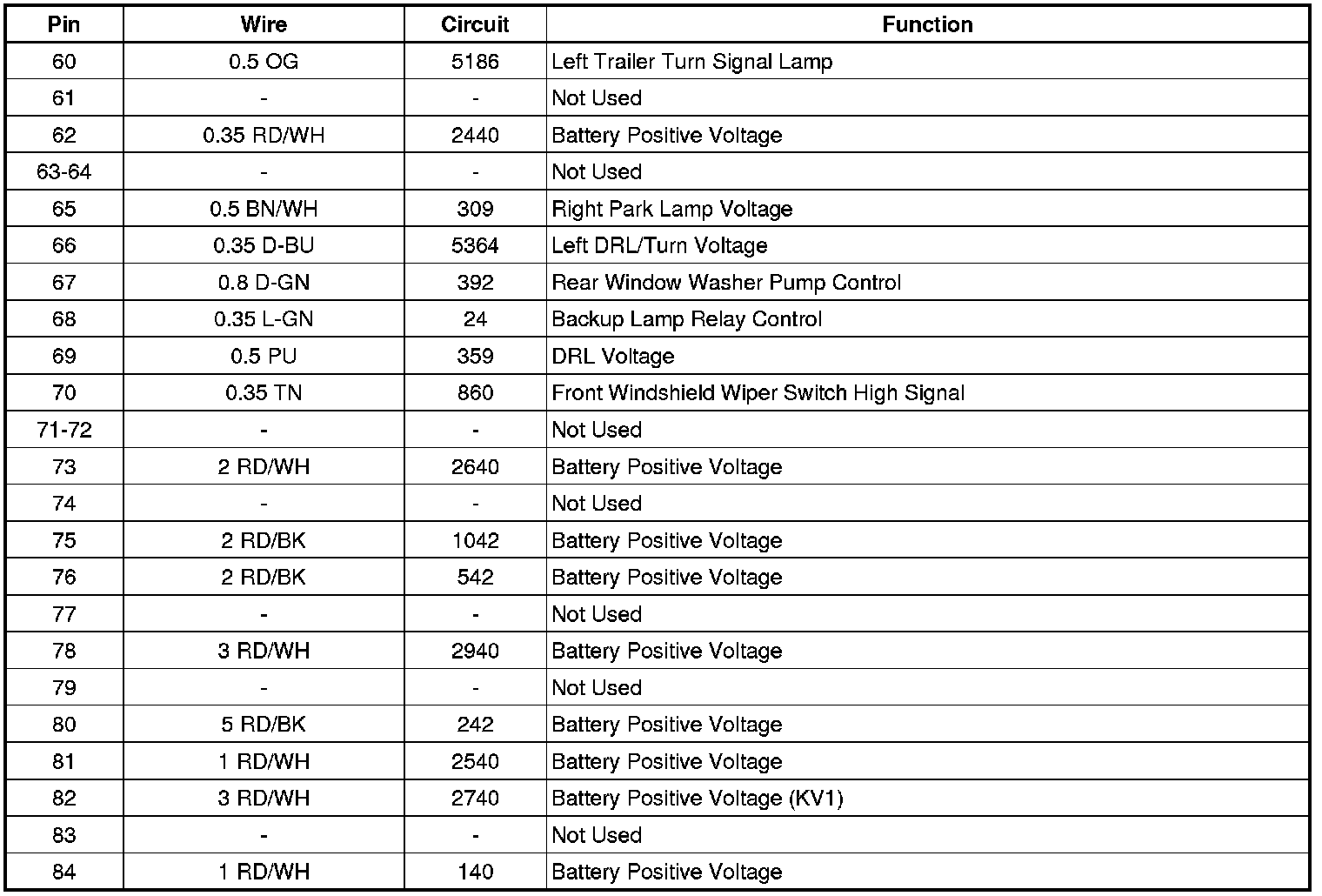

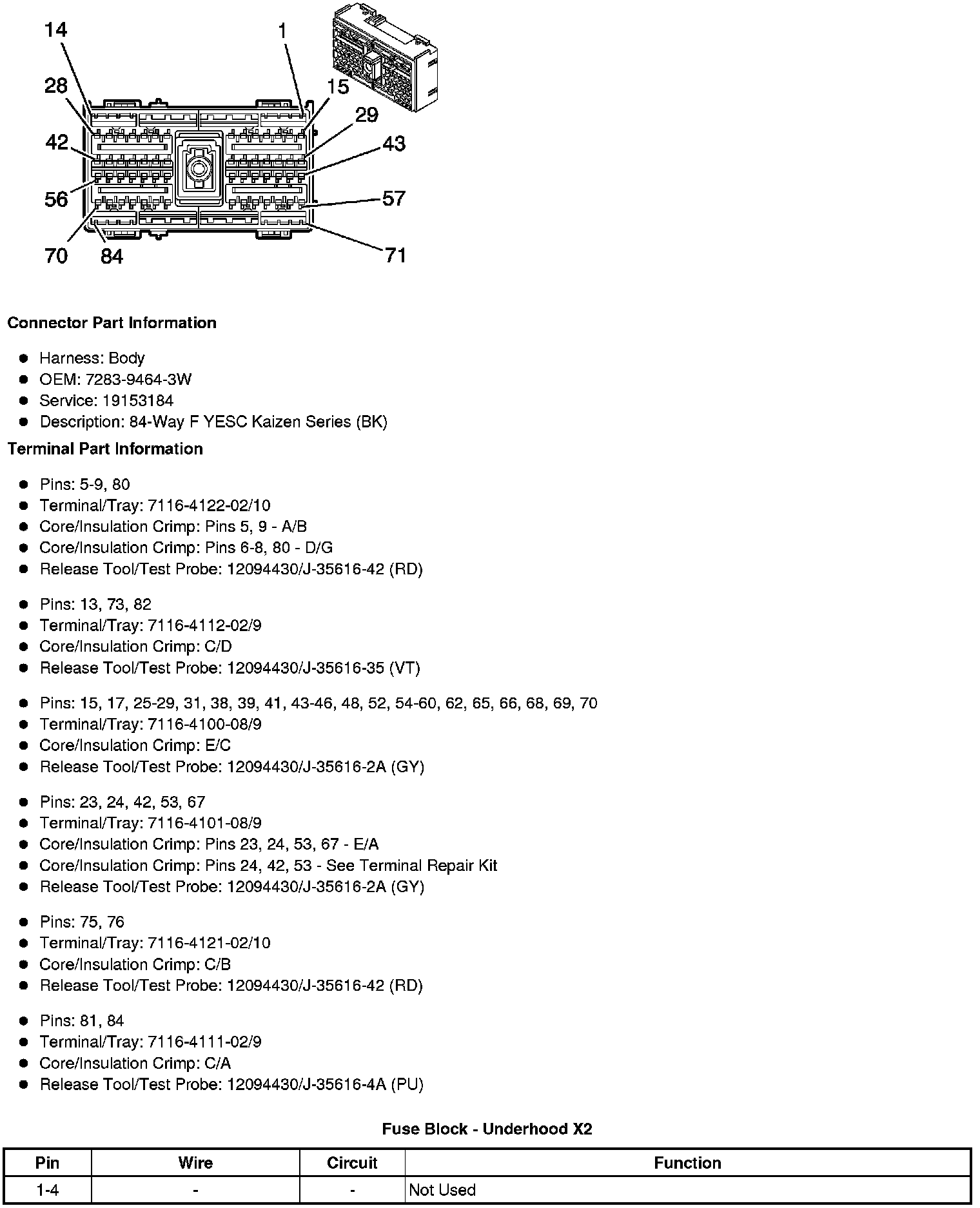

Fuse Block - Underhood X2

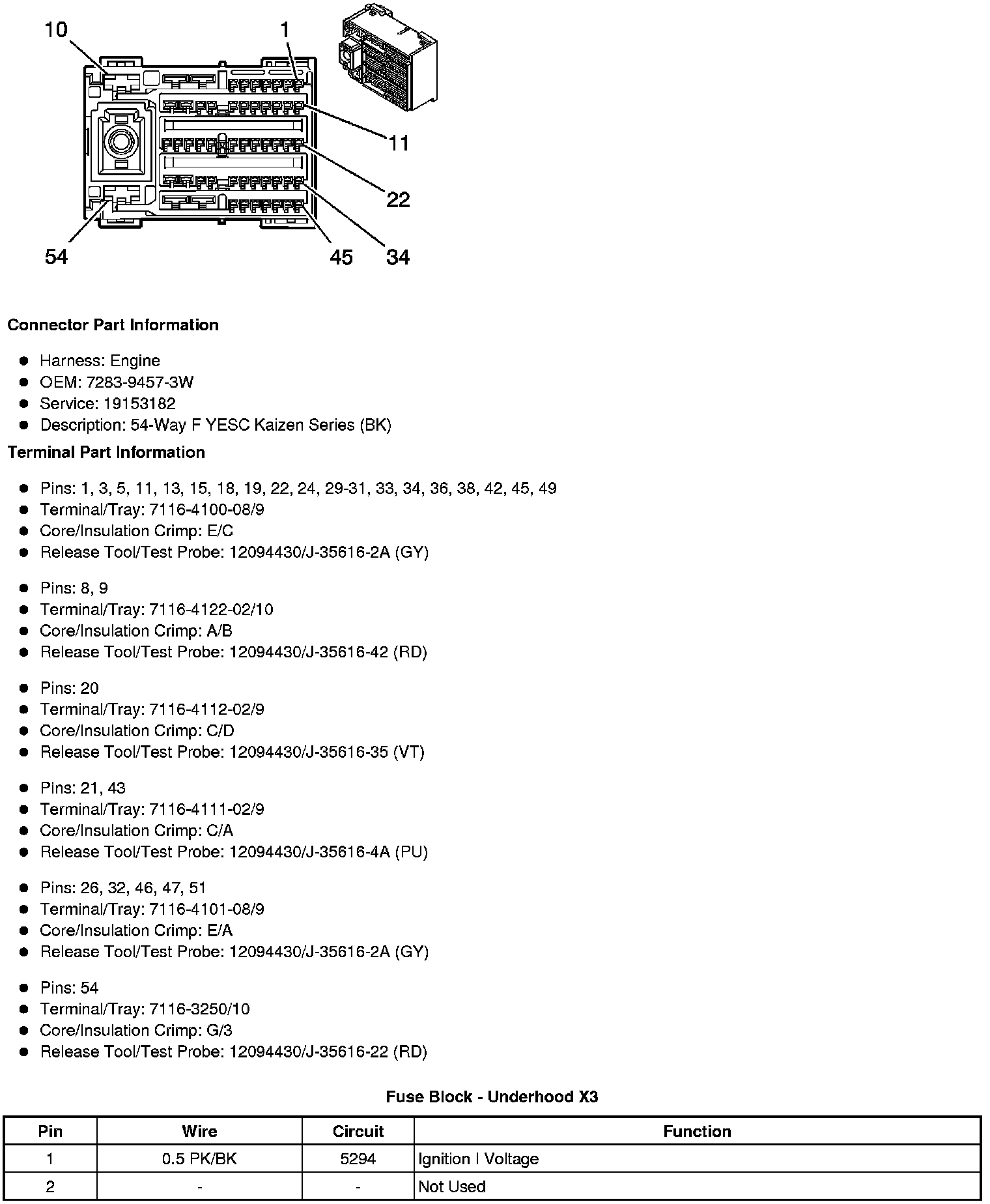

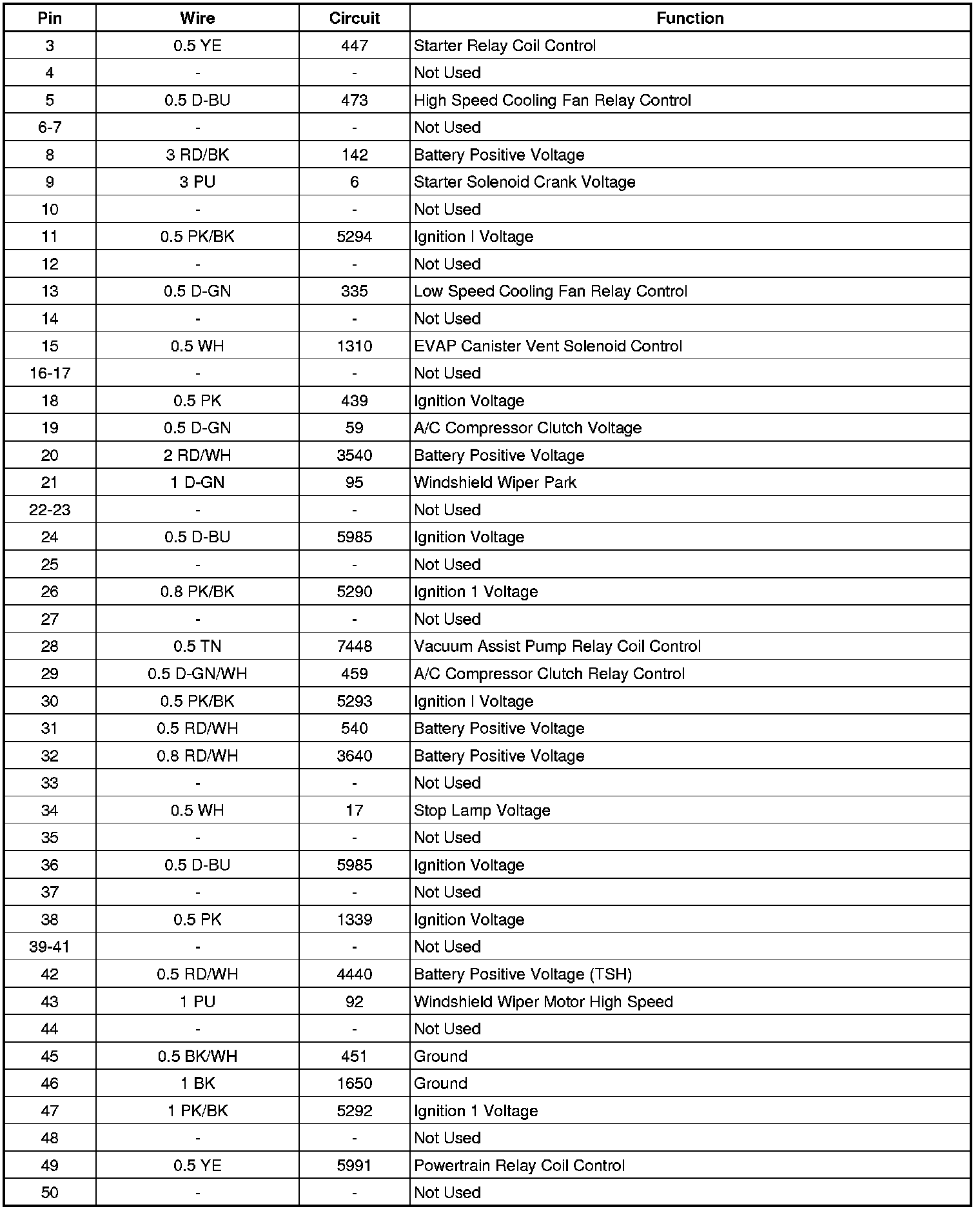

Fuse Block - Underhood X3
Fuse Block - Underhood X4 (Battery Positive Cable)
Fuse Block - Underhood X4 (Battery Positive Junction Block)
