System Specifications

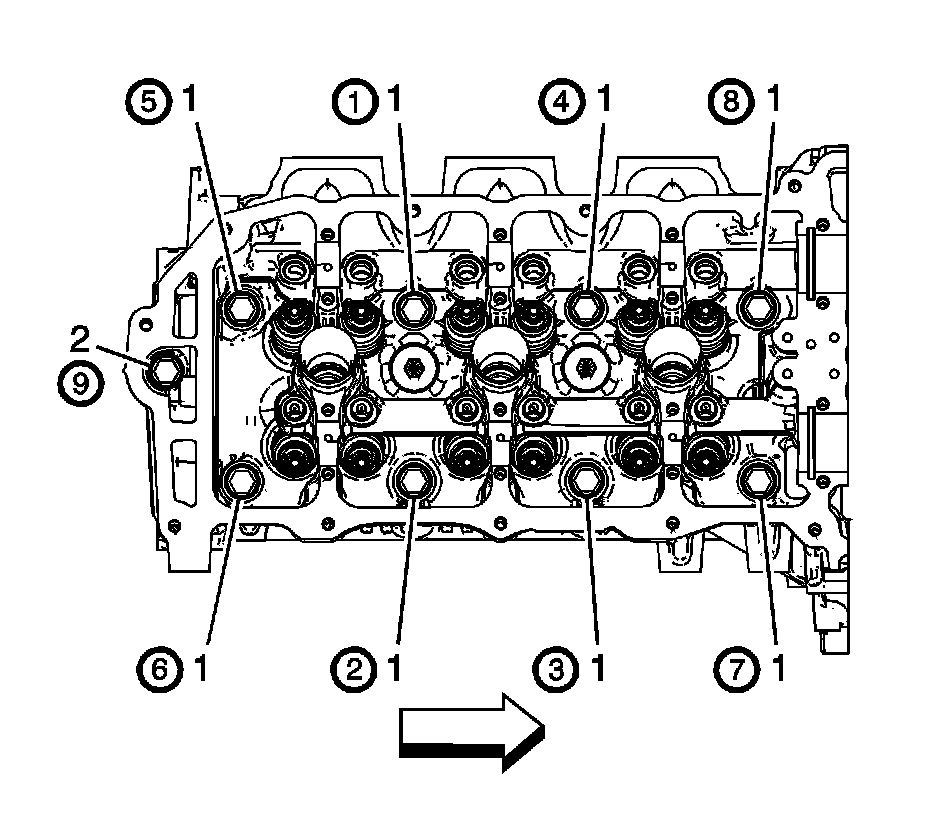

Right Sequence:

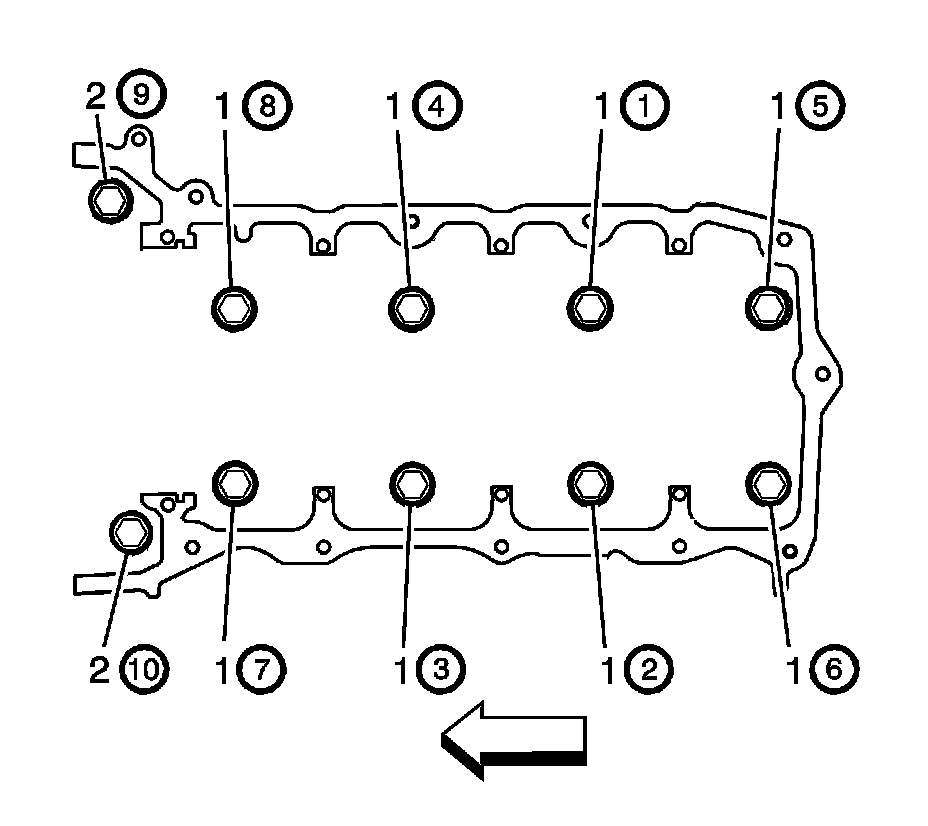

Left Sequence:

Cylinder Head Bolt - M8
First Pass 15 Nm (11 lb ft)
Final Pass 75 Degrees

Cylinder Head Bolt - M11
First Pass 30 Nm (22 lb ft)
Final Pass 150 Degrees

HEAD BOLD REUSE/REPLACE

Note: DO NOT reuse the old cylinder head bolts.

INTAKE MANIFOLD TORQUE AND SEQUENCE

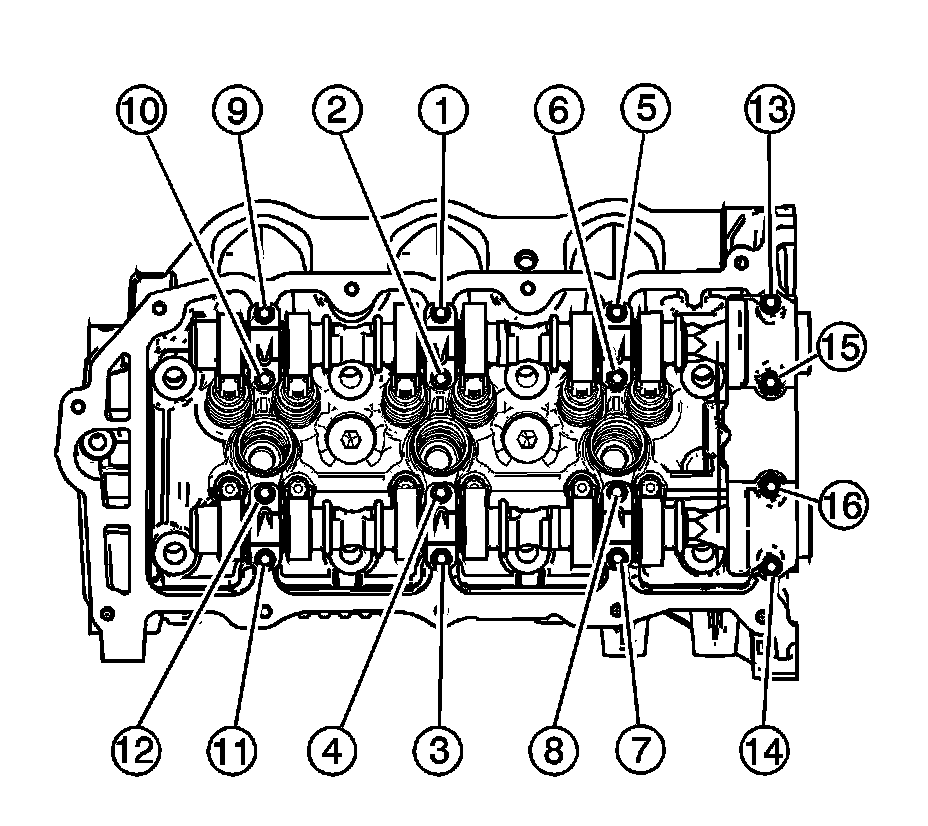

Intake Tightening Sequence (LLT):

Upper-to-Cylinder Head Bolt - Long 25 Nm (18 lb ft)
Upper-to-Cylinder Head Bolt - Short 25 Nm (18 lb ft)
Upper-to-Lower Intake Manifold Bolt 25 Nm (18 lb ft)

Right (SFI):

Left (DI):

Camshaft Cap Bolt 10 Nm (89 lb in)

Exhaust Manifold Bolt 20 Nm (15 lb ft)
