Components




Master Electrical Component List

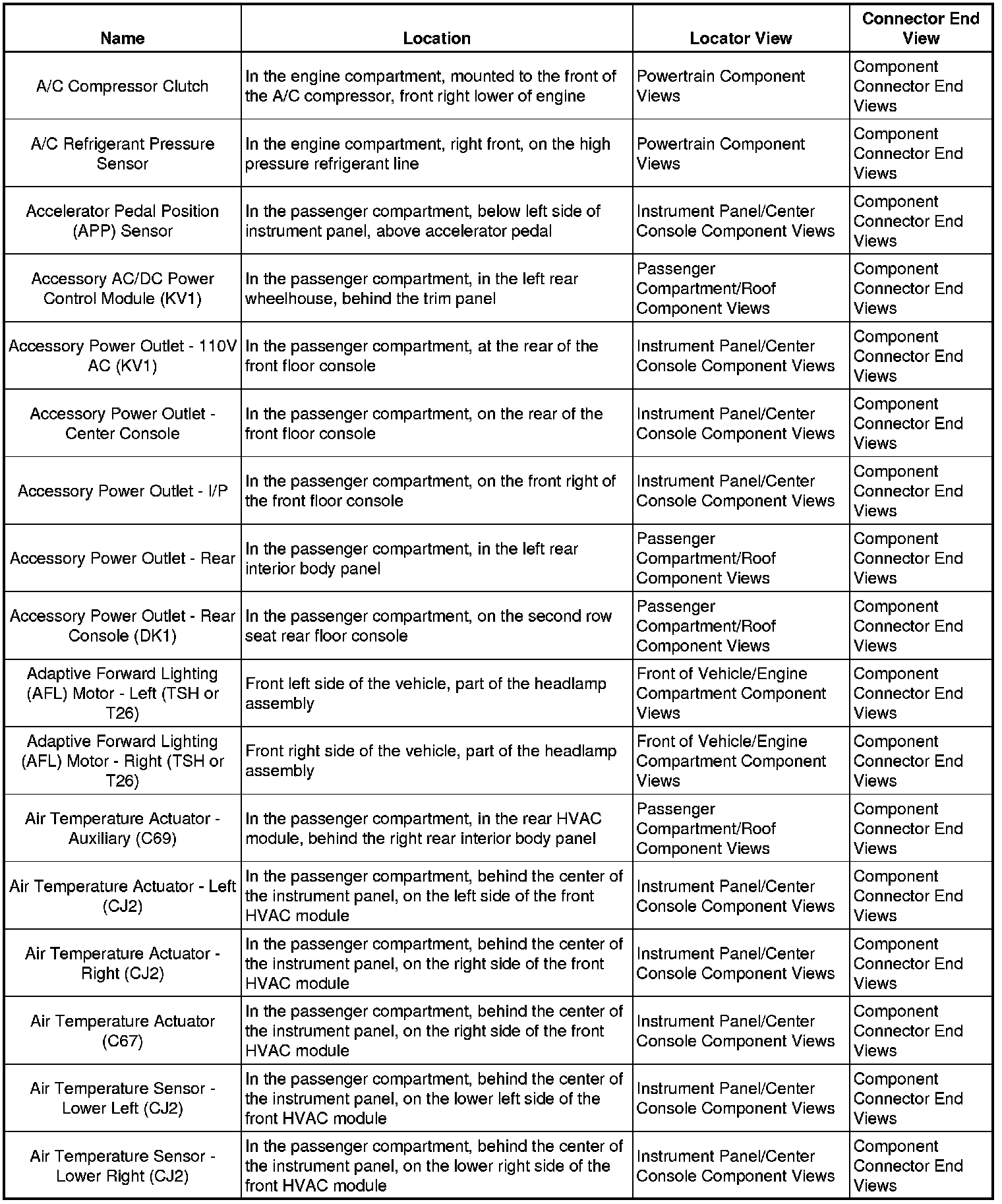

A/C - Ai:

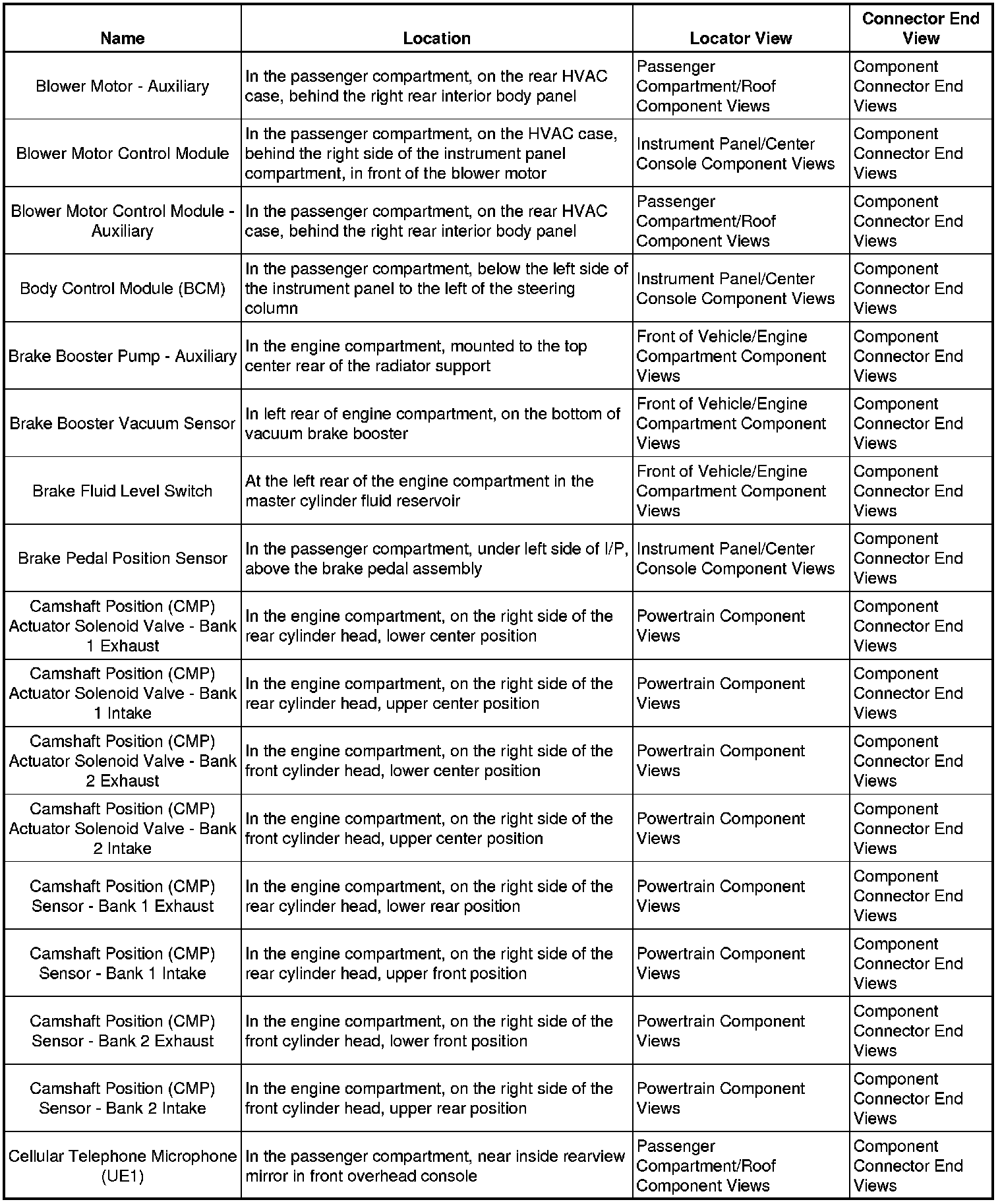

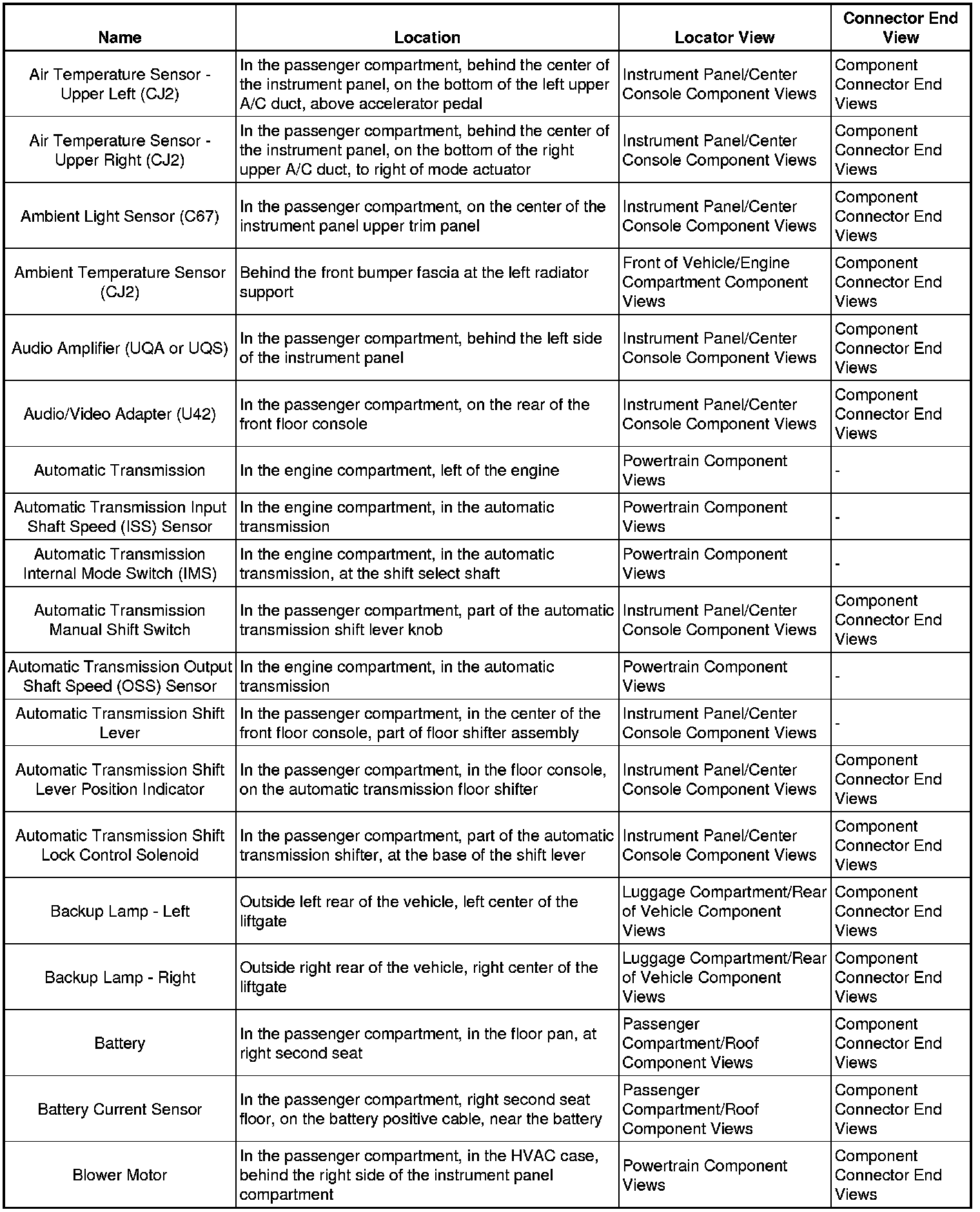

Ai - Bl:

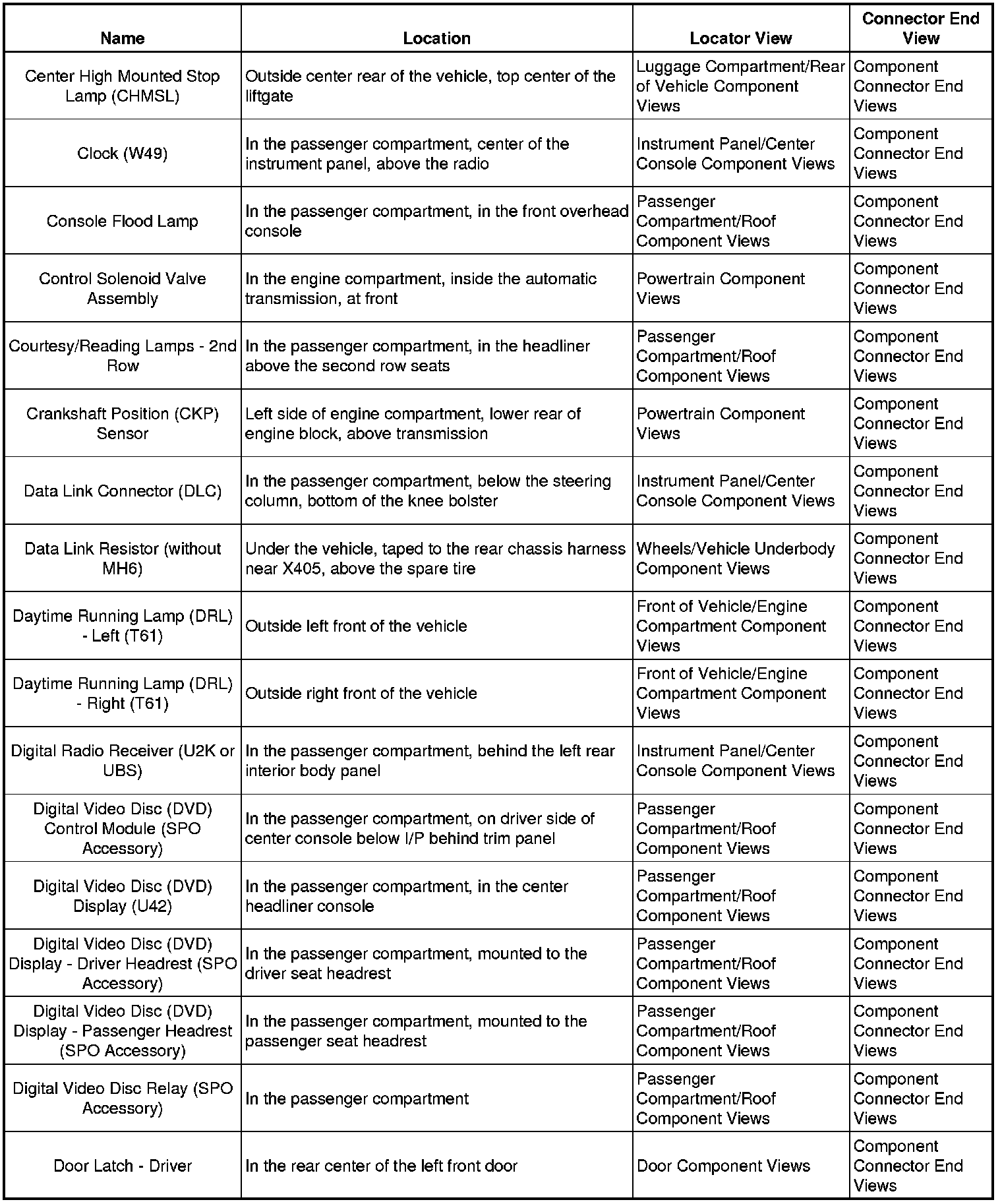

Bl - Ce:

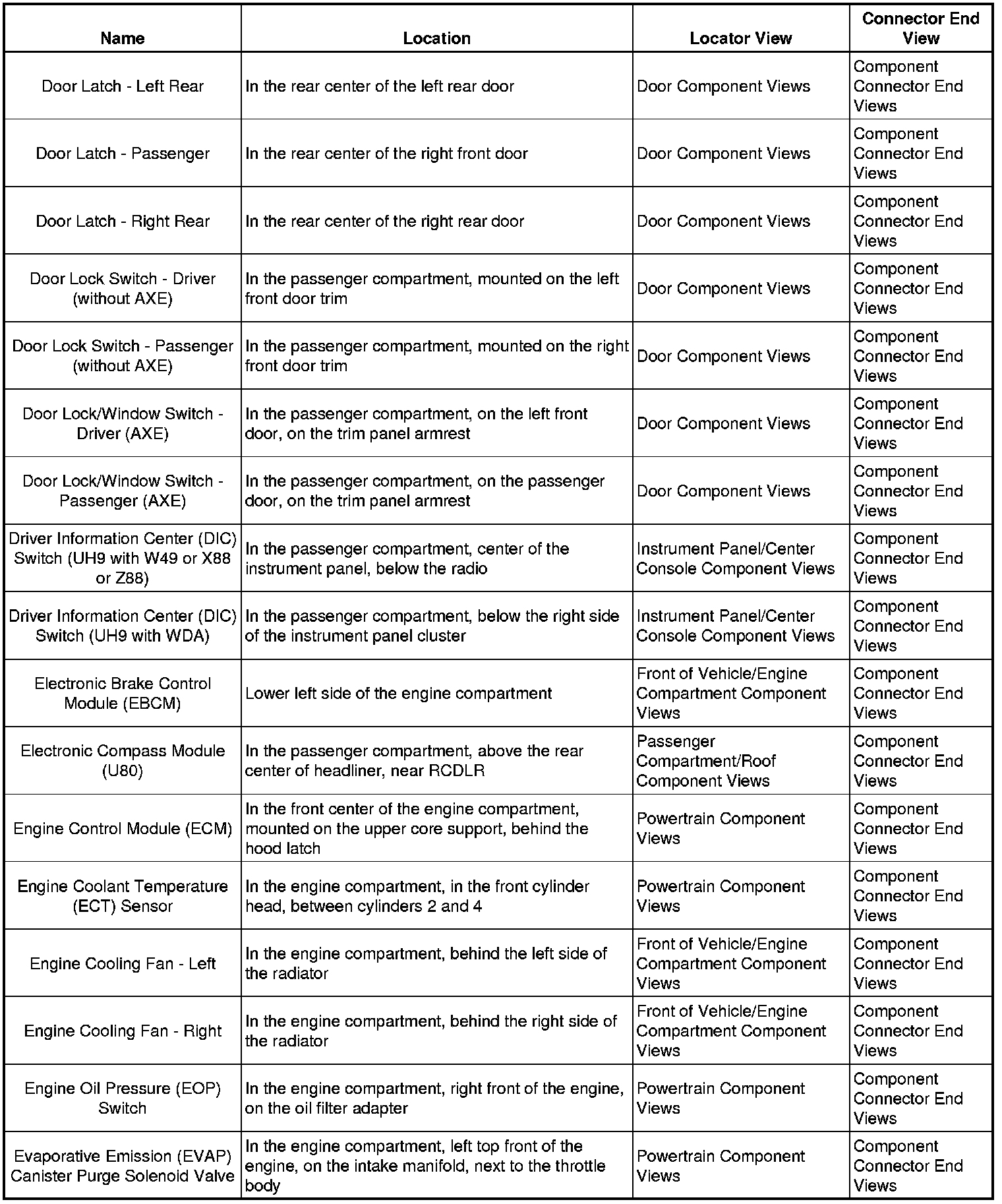

Ce - Do:





Do - Ev:

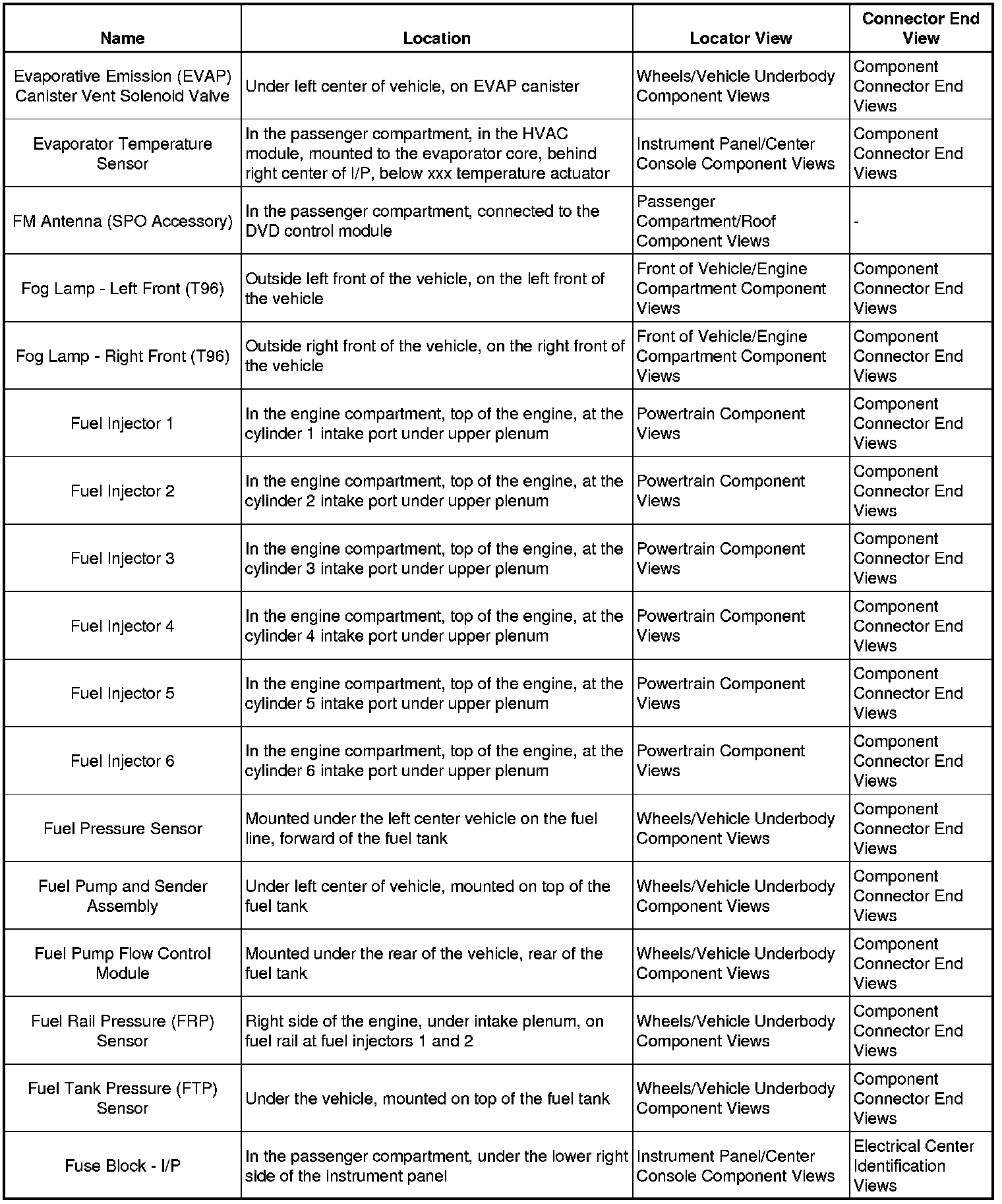

Ev - Fu:

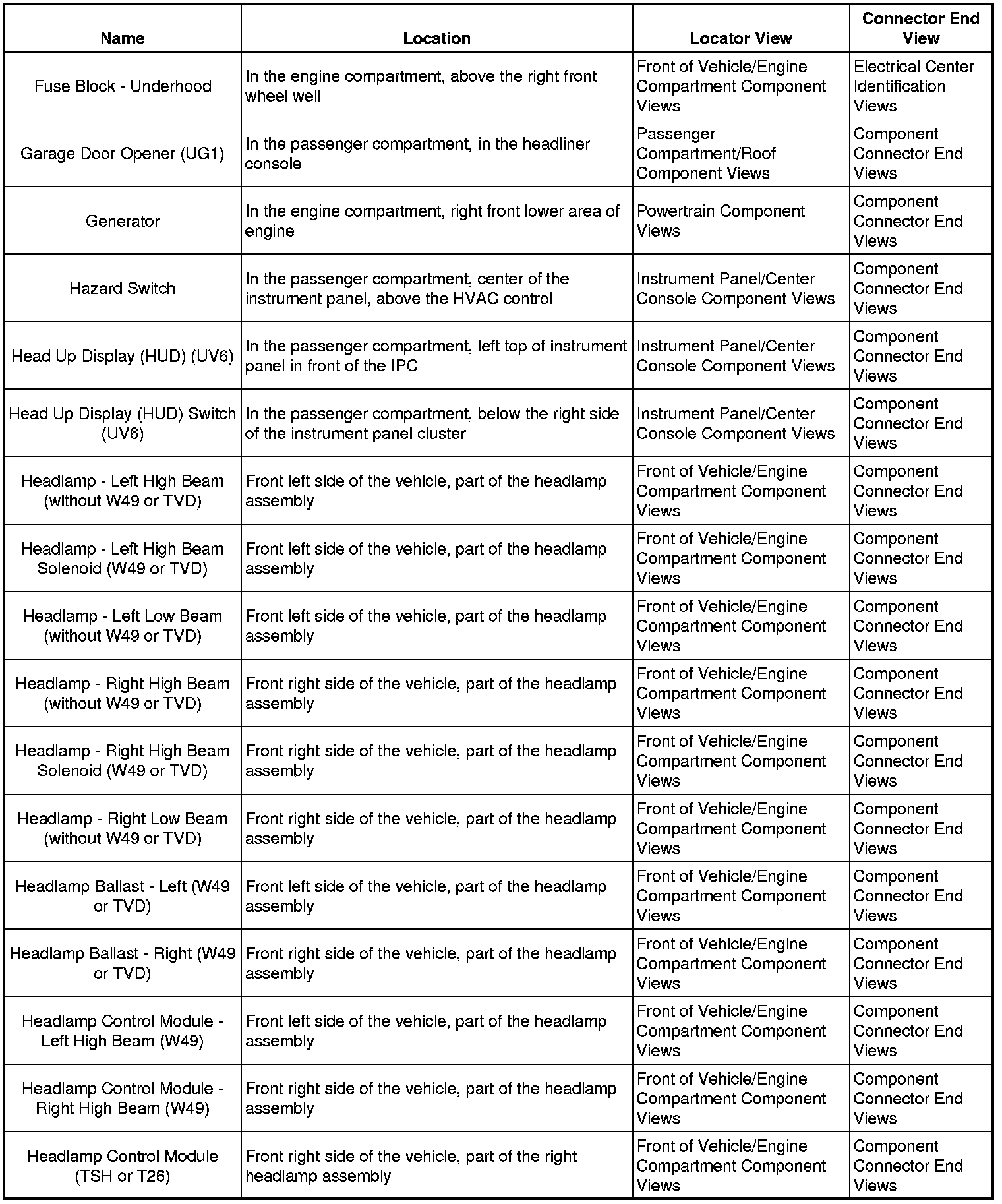

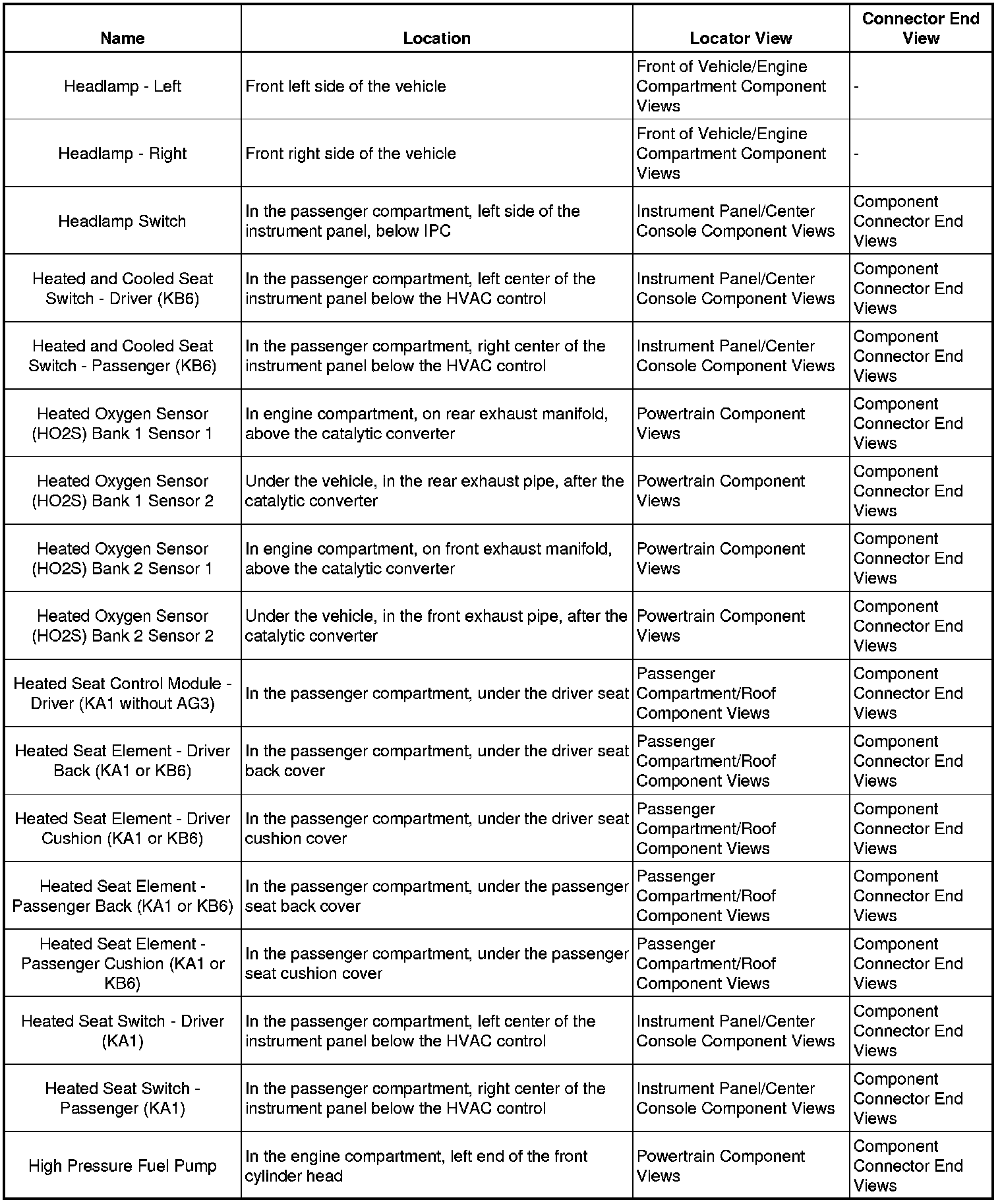

Fu - He:





He - Hi:

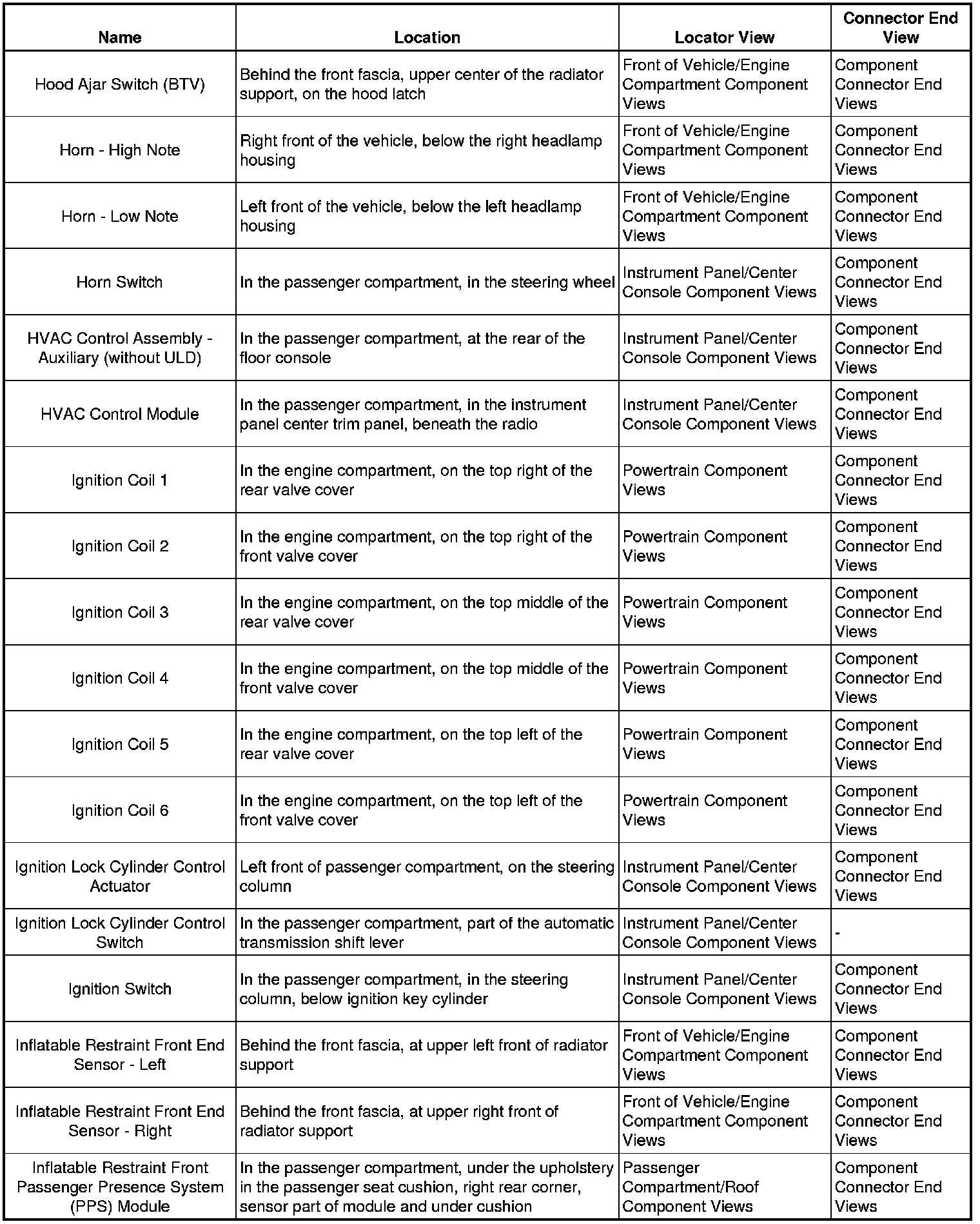

Ho - In:

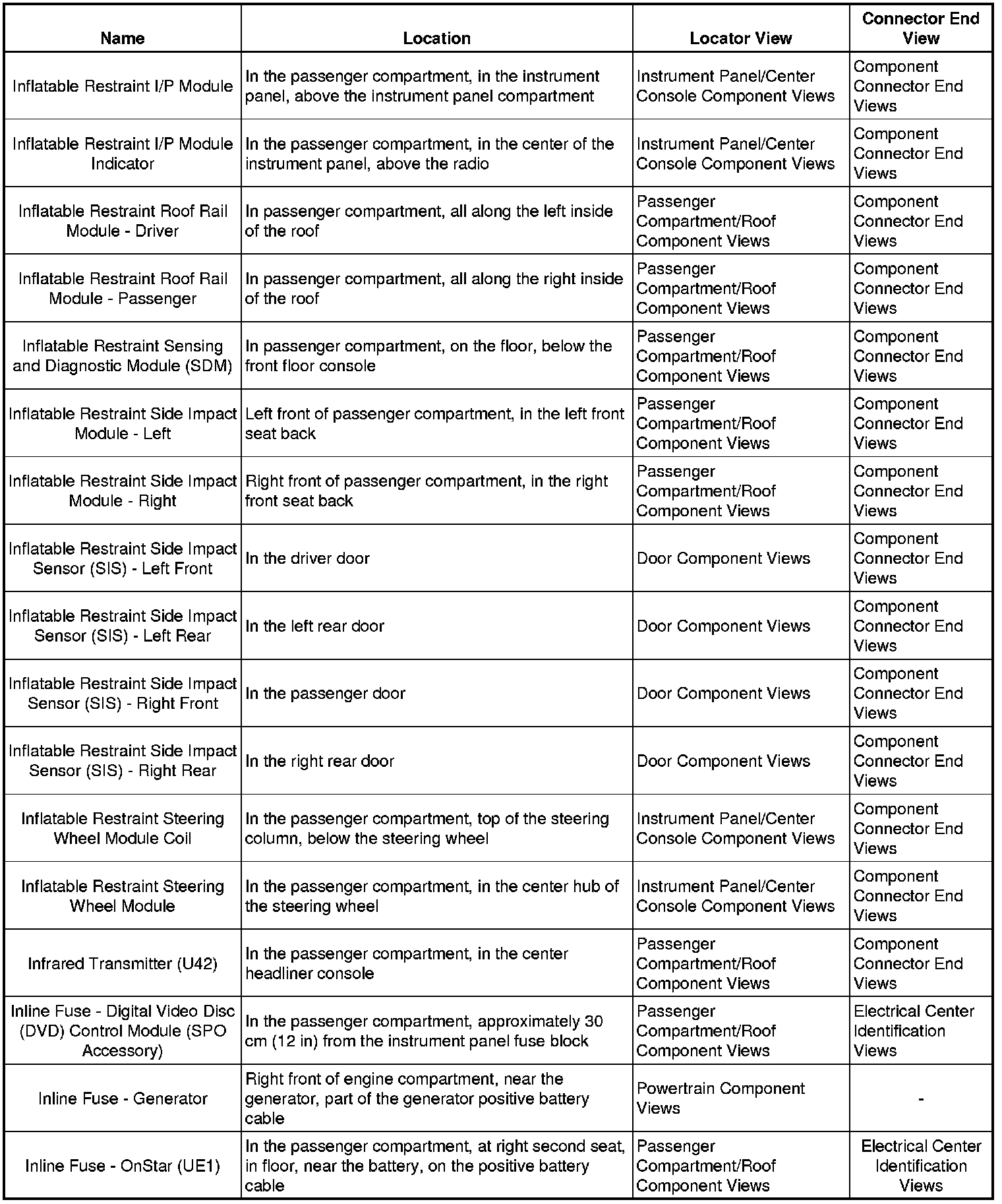

In - In:

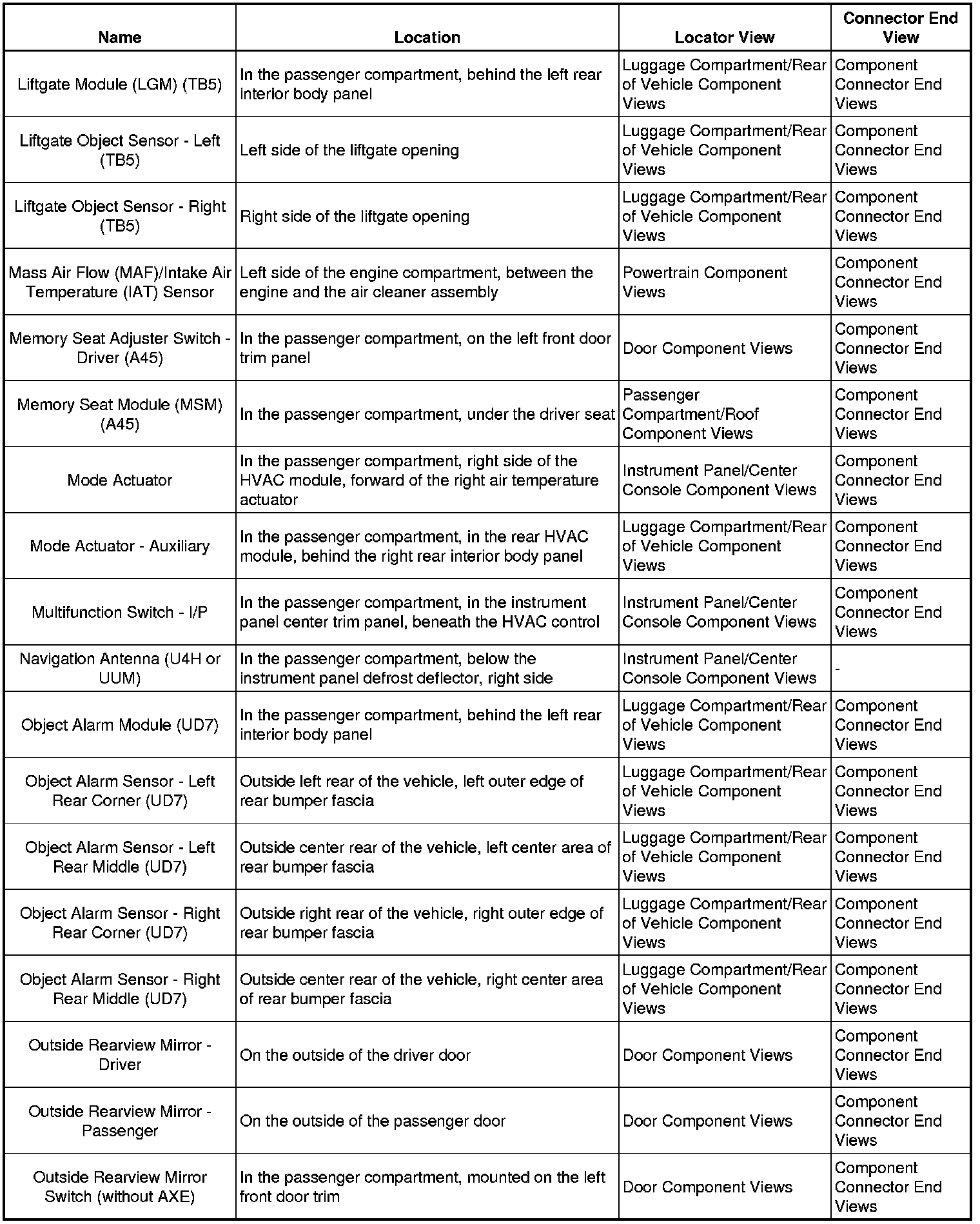

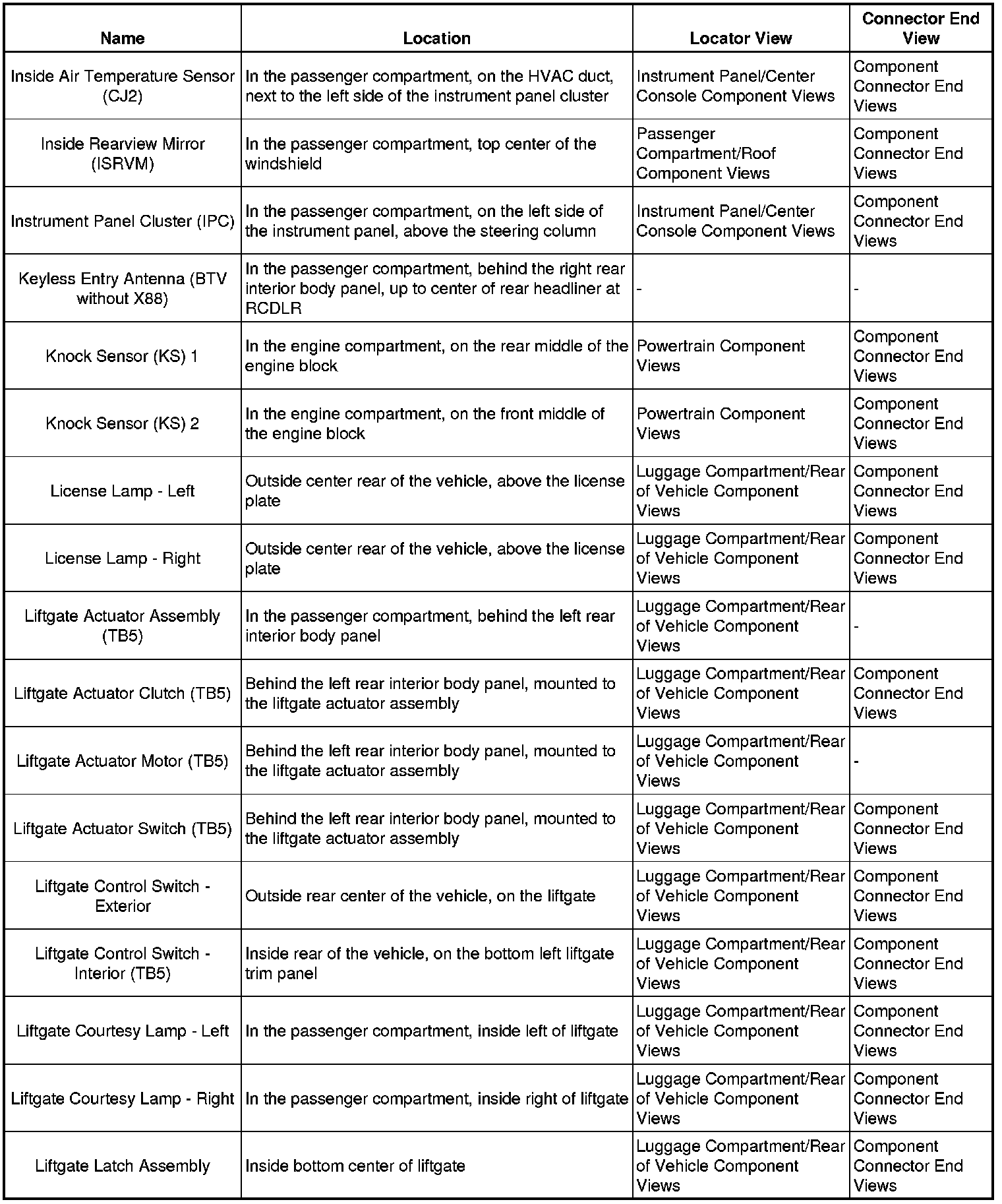

In - Li:

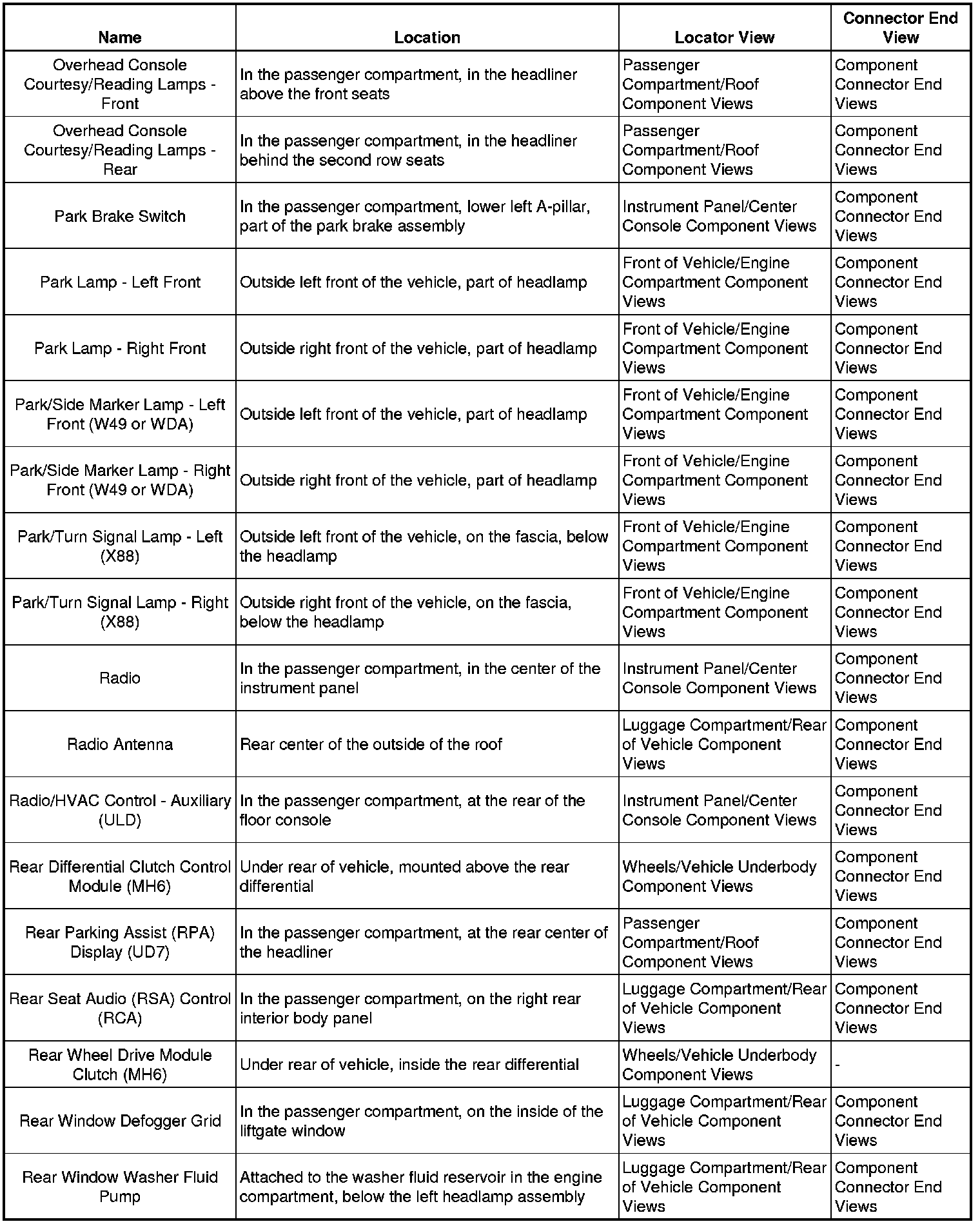

Li - Ou:





Ov - Re:

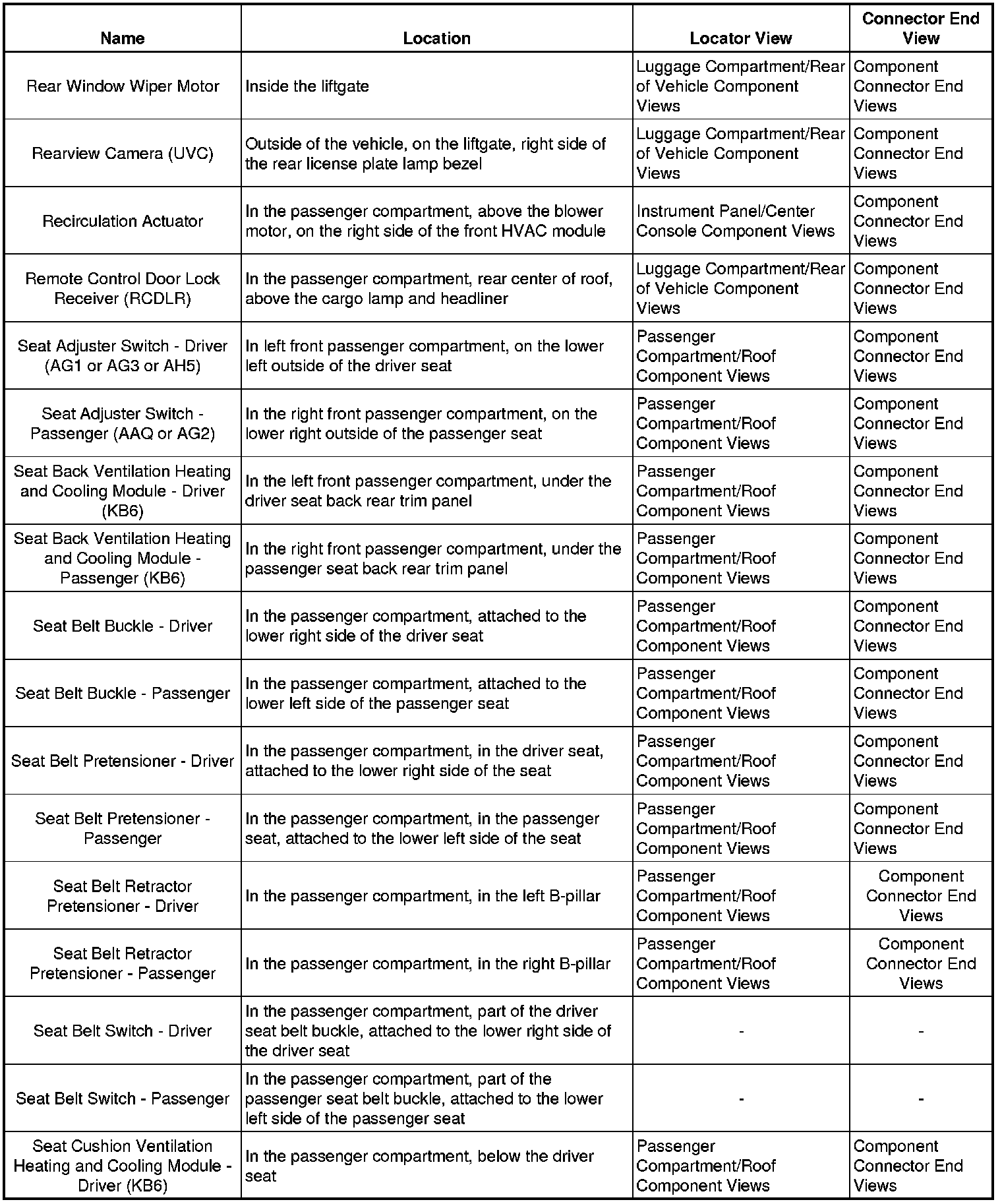

Re - Se:

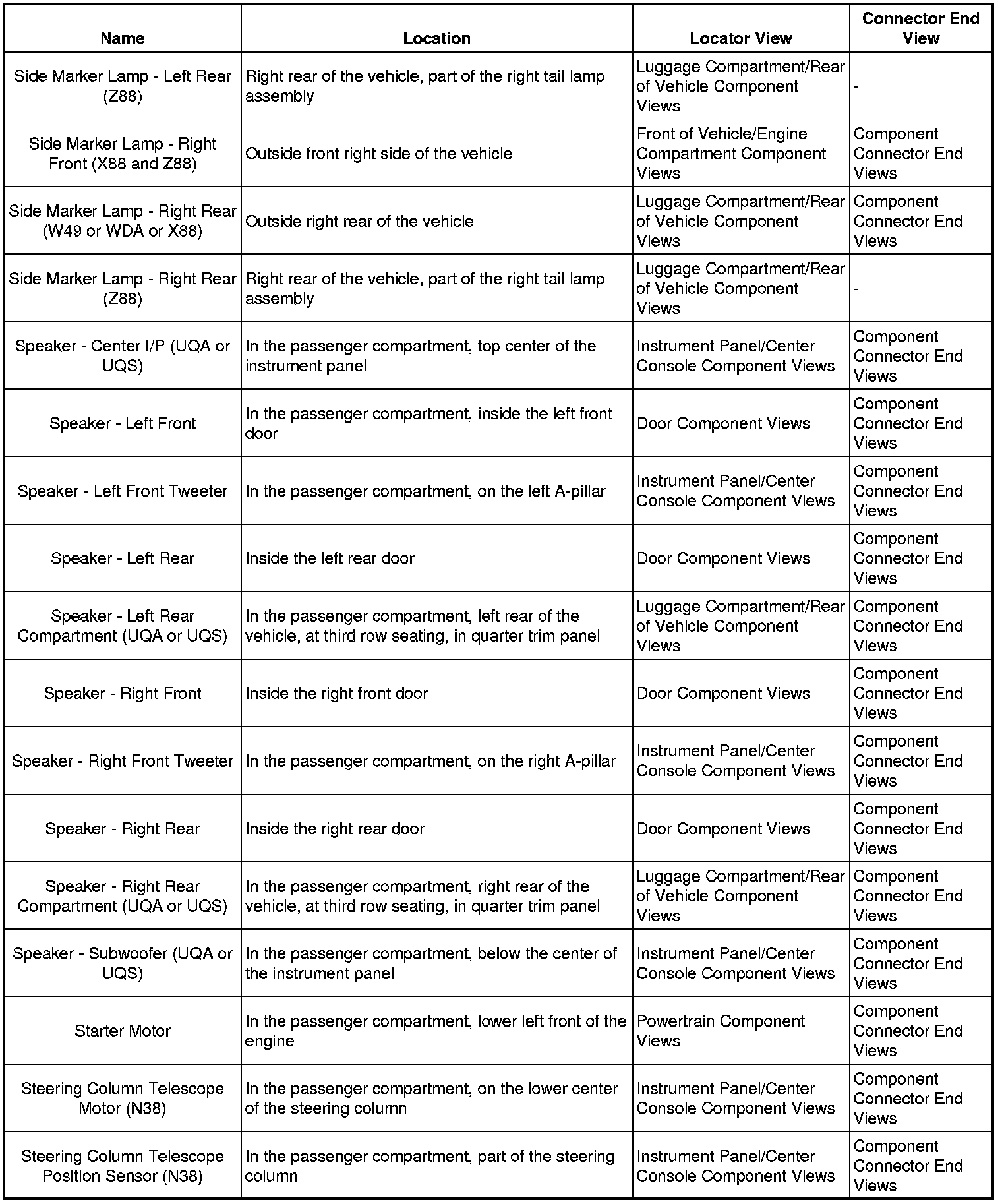

Se - Si:

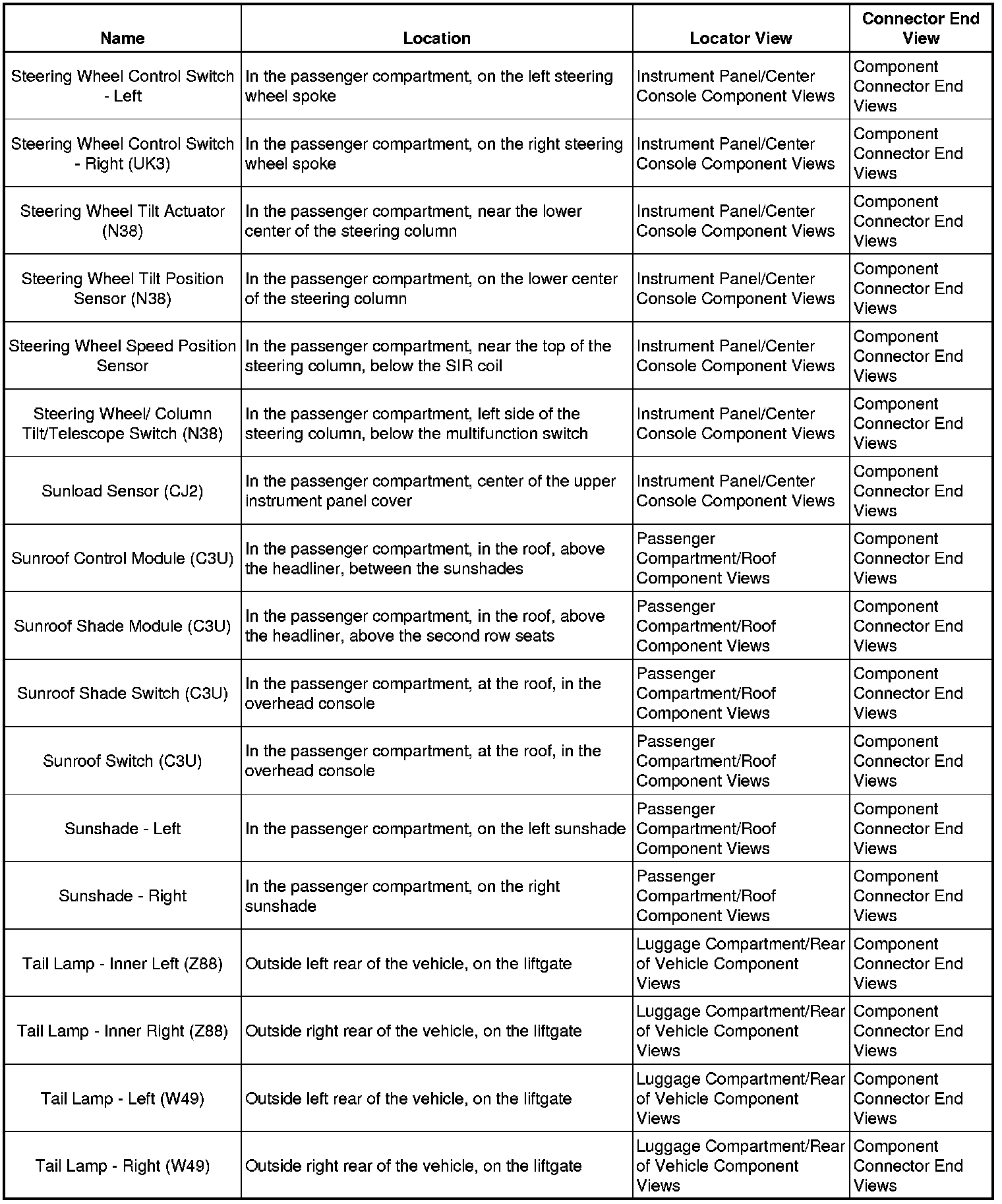

Si - St:

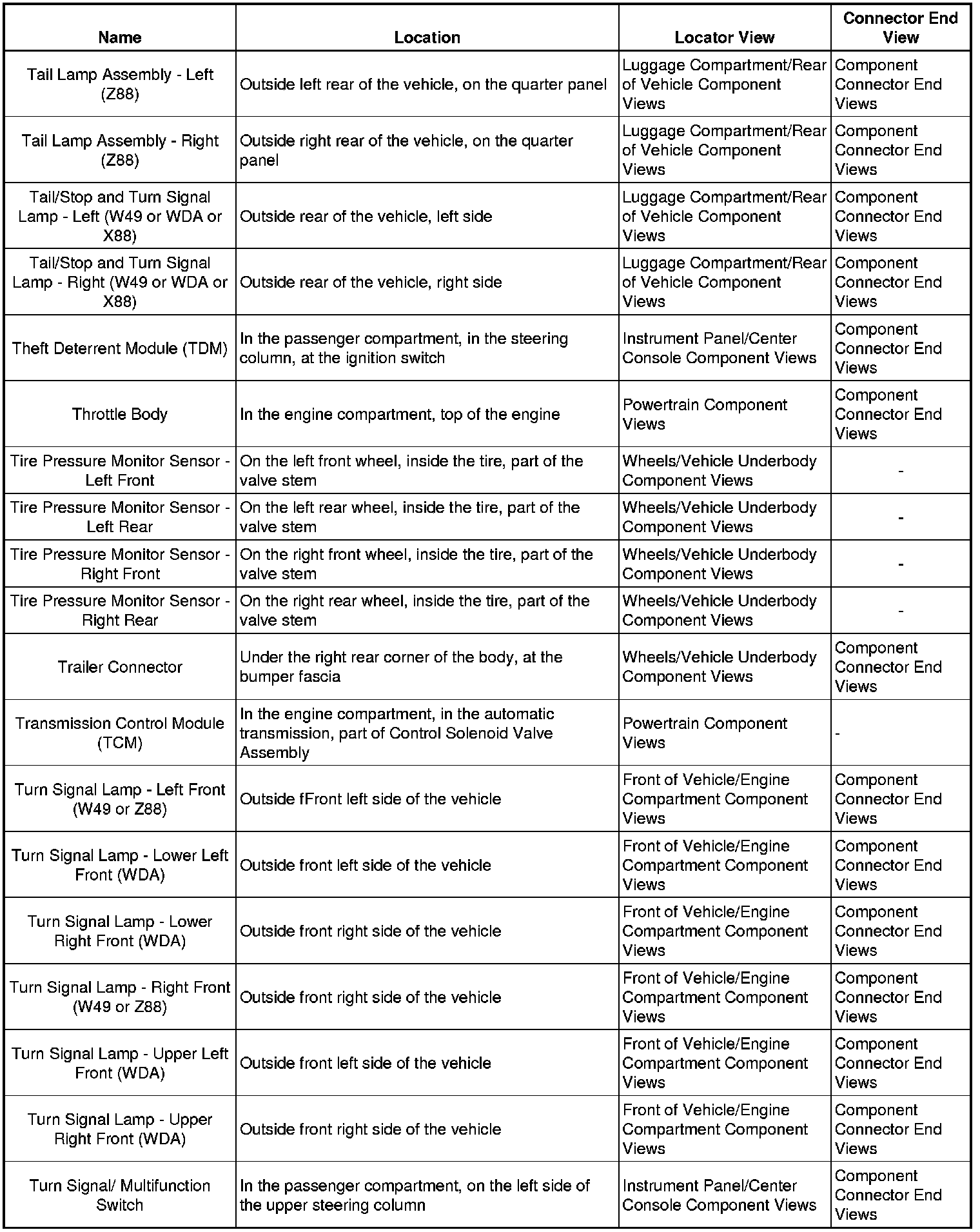

St - Ta:





Ta - Tu:

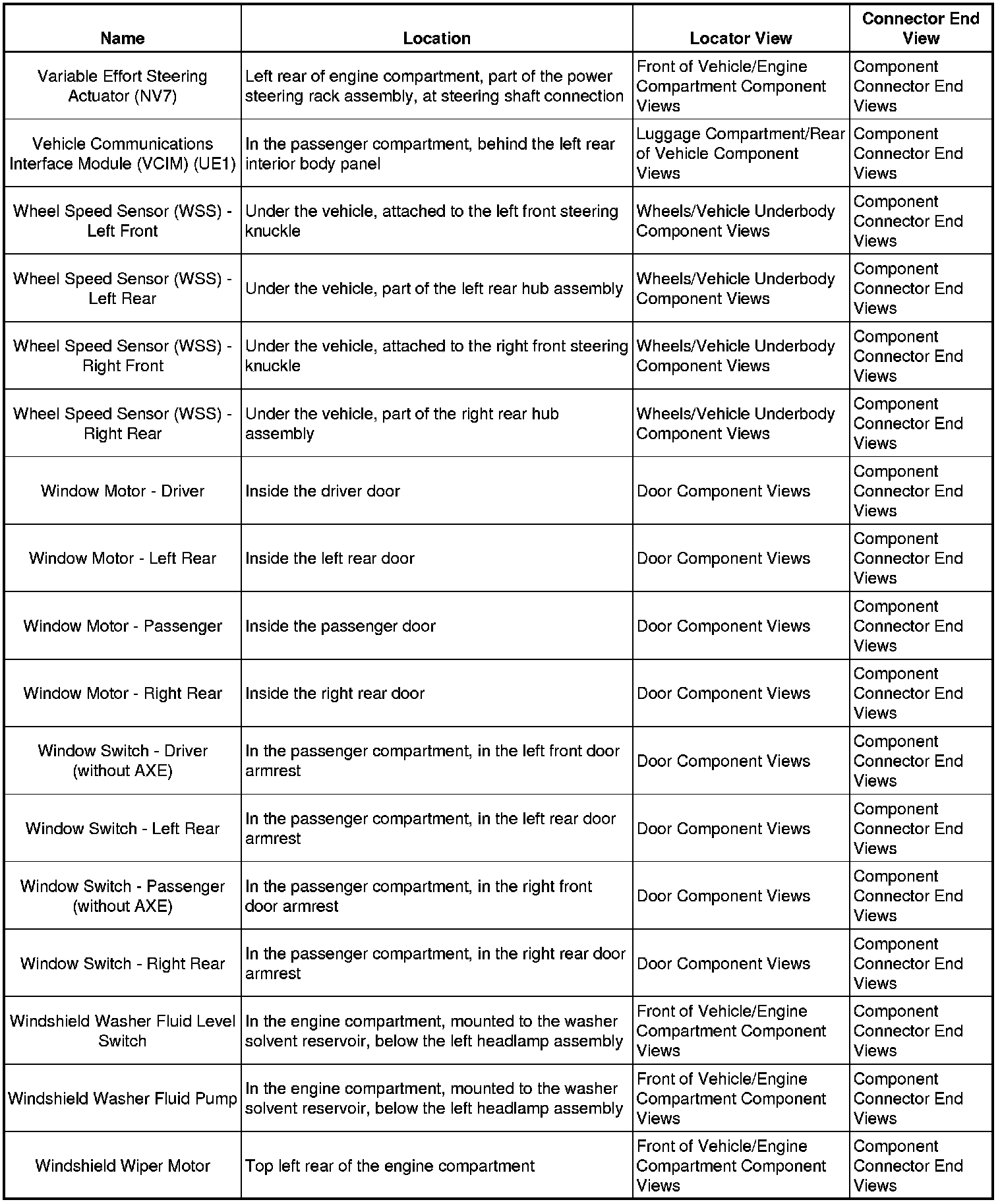

Va - Wi:

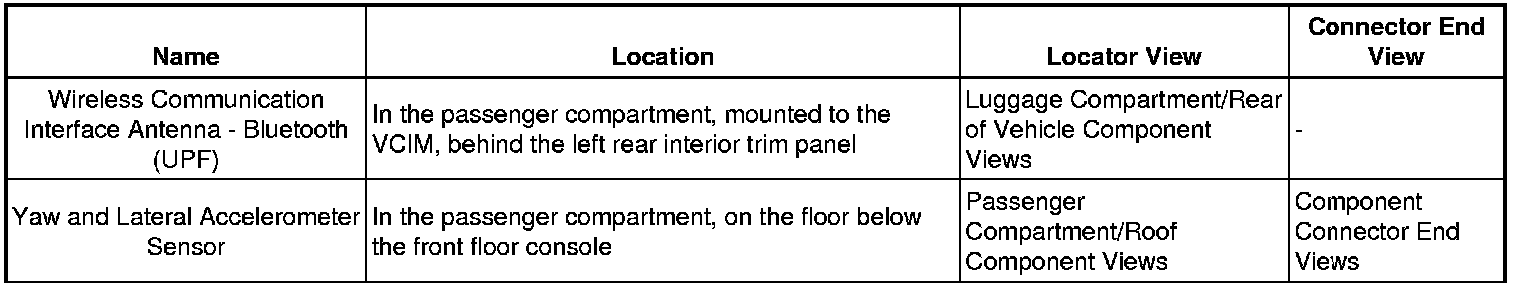

Wi - Ya:
