Marker Lamp




Component Connector End Views

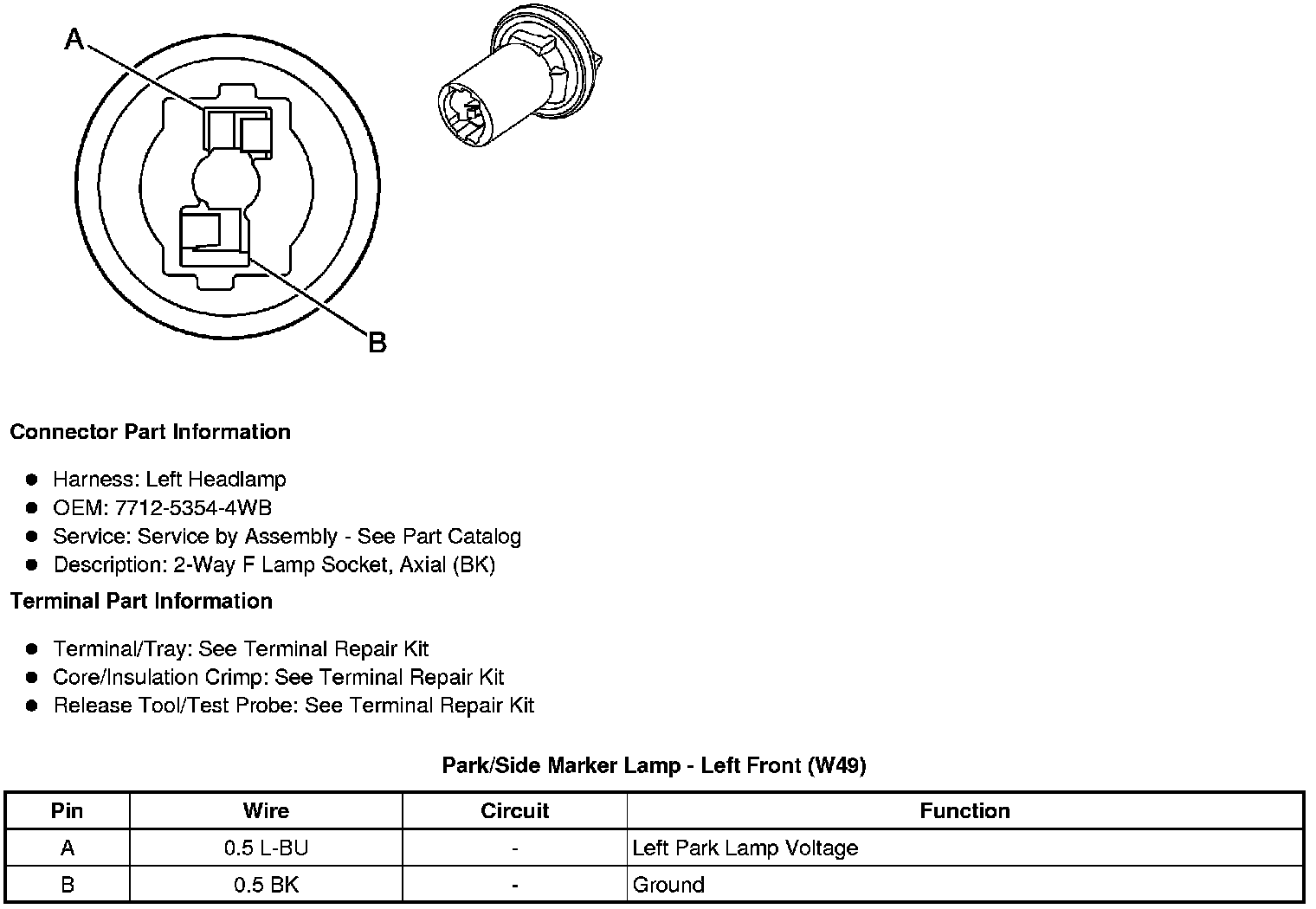

Park/Side Marker Lamp - Left Front (W49)

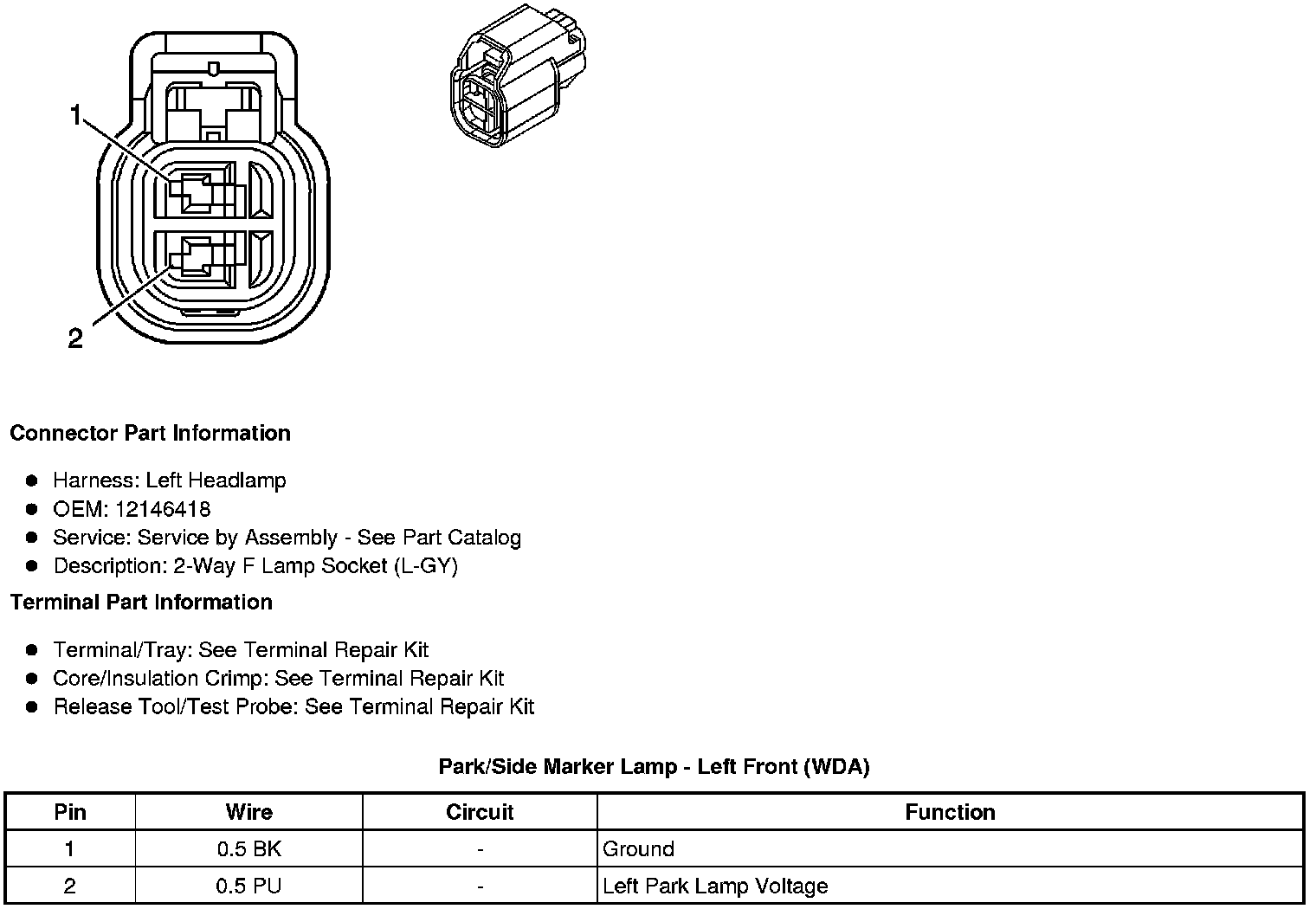

Park/Side Marker Lamp - Left Front (WDA)

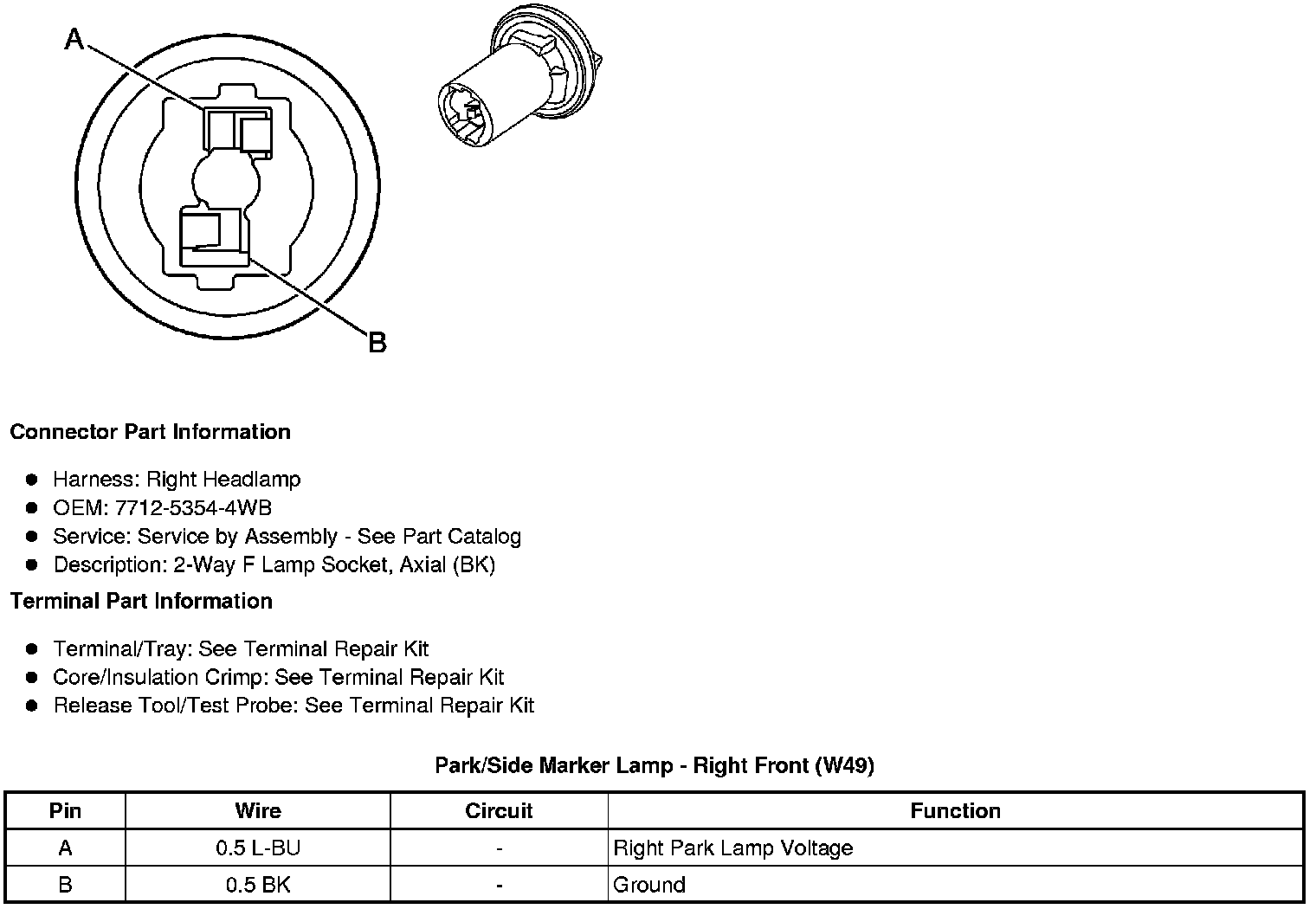

Park/Side Marker Lamp - Right Front (W49)

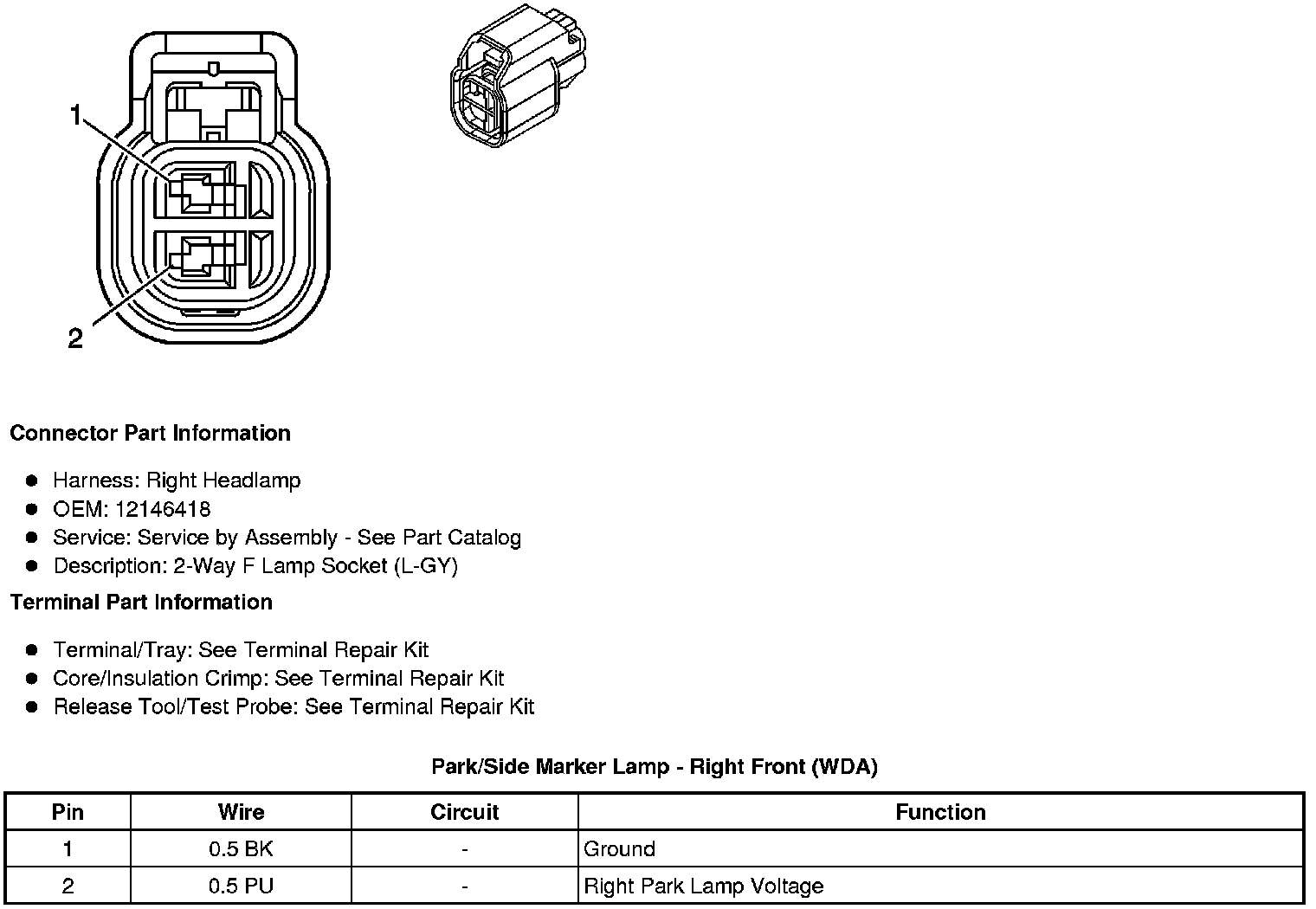

Park/Side Marker Lamp - Right Front (WDA)

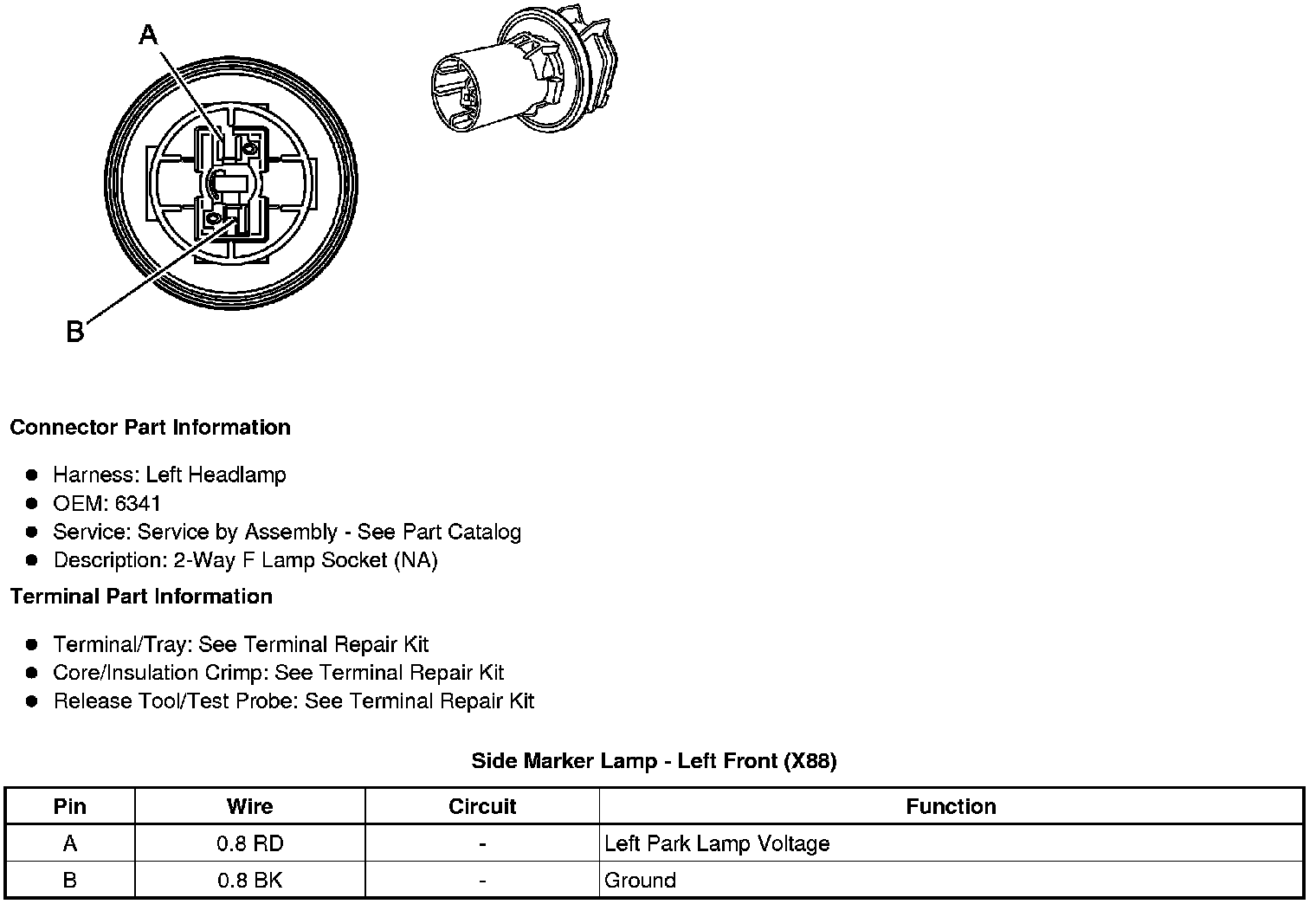

Side Marker Lamp - Left Front (X88)






Side Marker Lamp - Left Rear (W49)






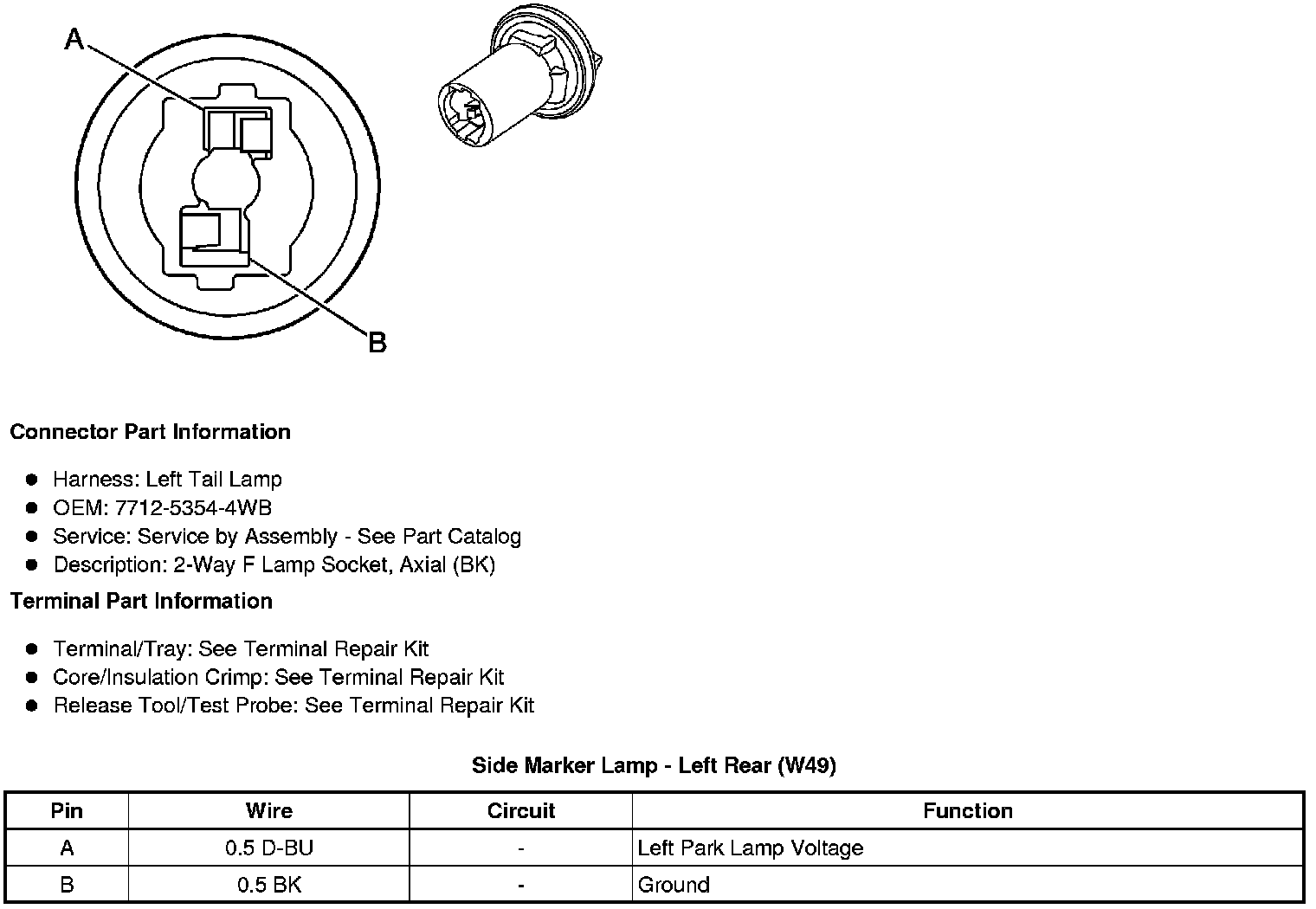

Side Marker Lamp - Left Rear (WDA)






Side Marker Lamp - Left Rear (X88)

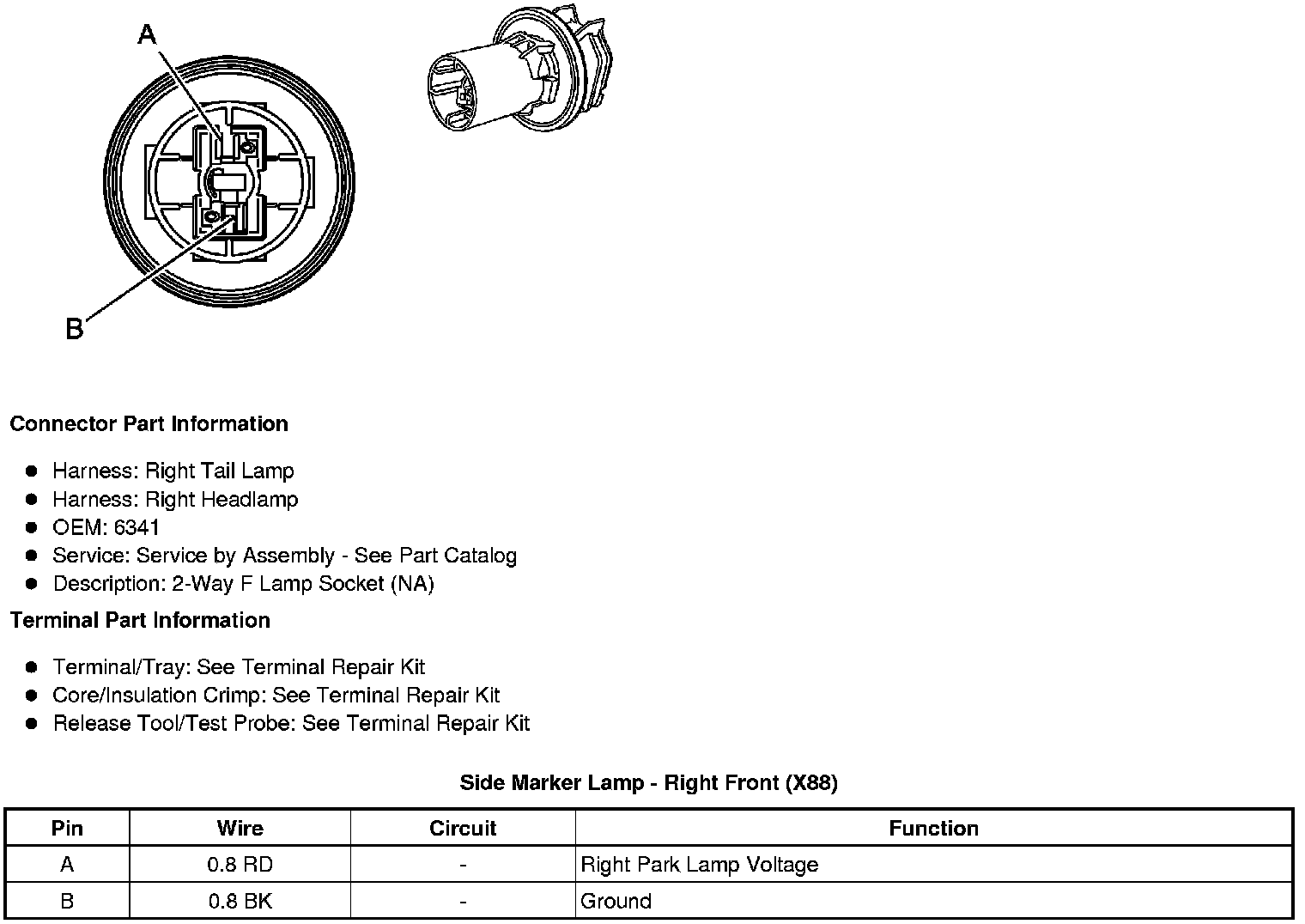

Side Marker Lamp - Right Front (X88)

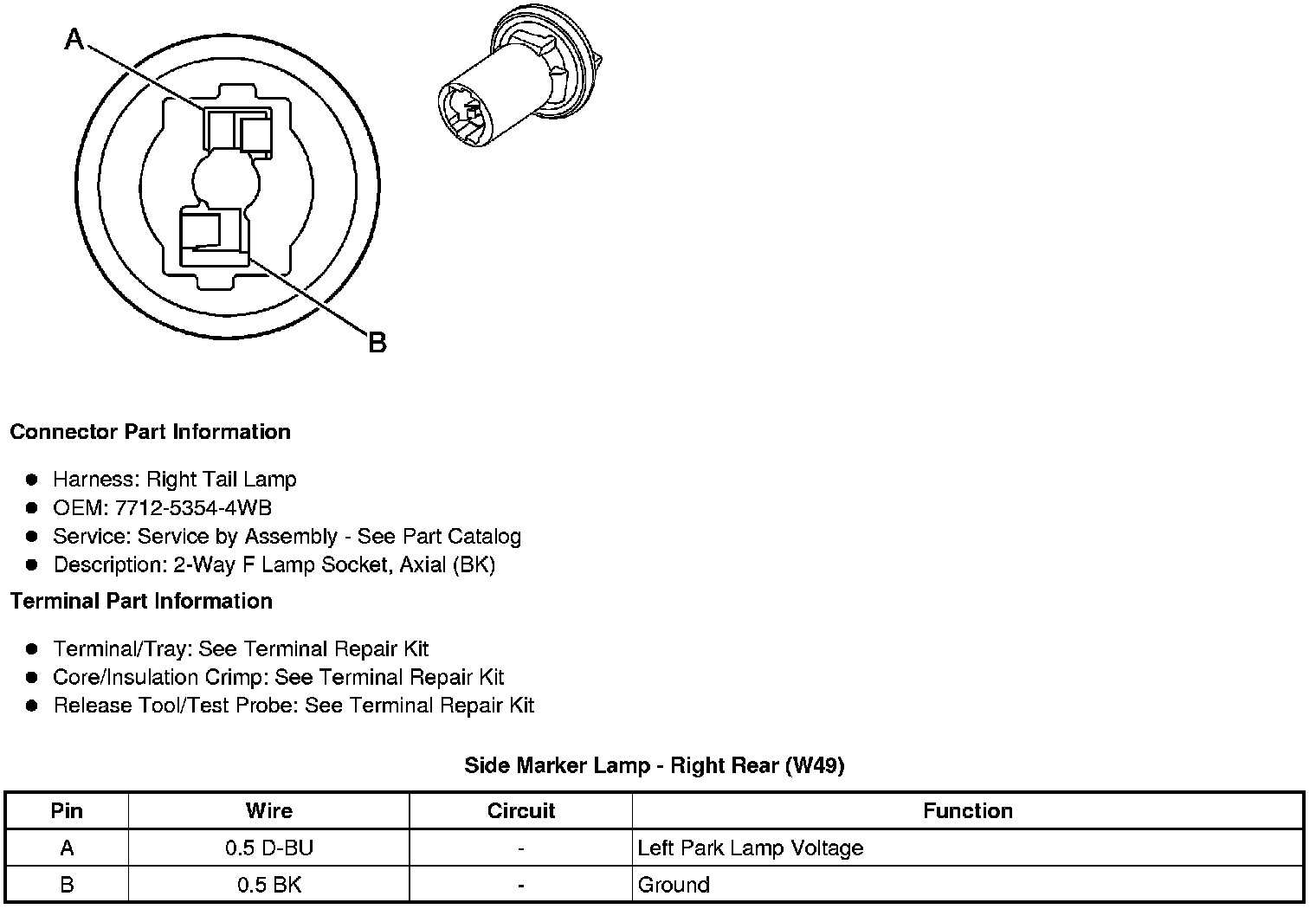

Side Marker Lamp - Right Rear (W49)






Side Marker Lamp - Right Rear (WDA)






Side Marker Lamp - Right Rear (X88)
