Sun Shade




Component Connector End Views

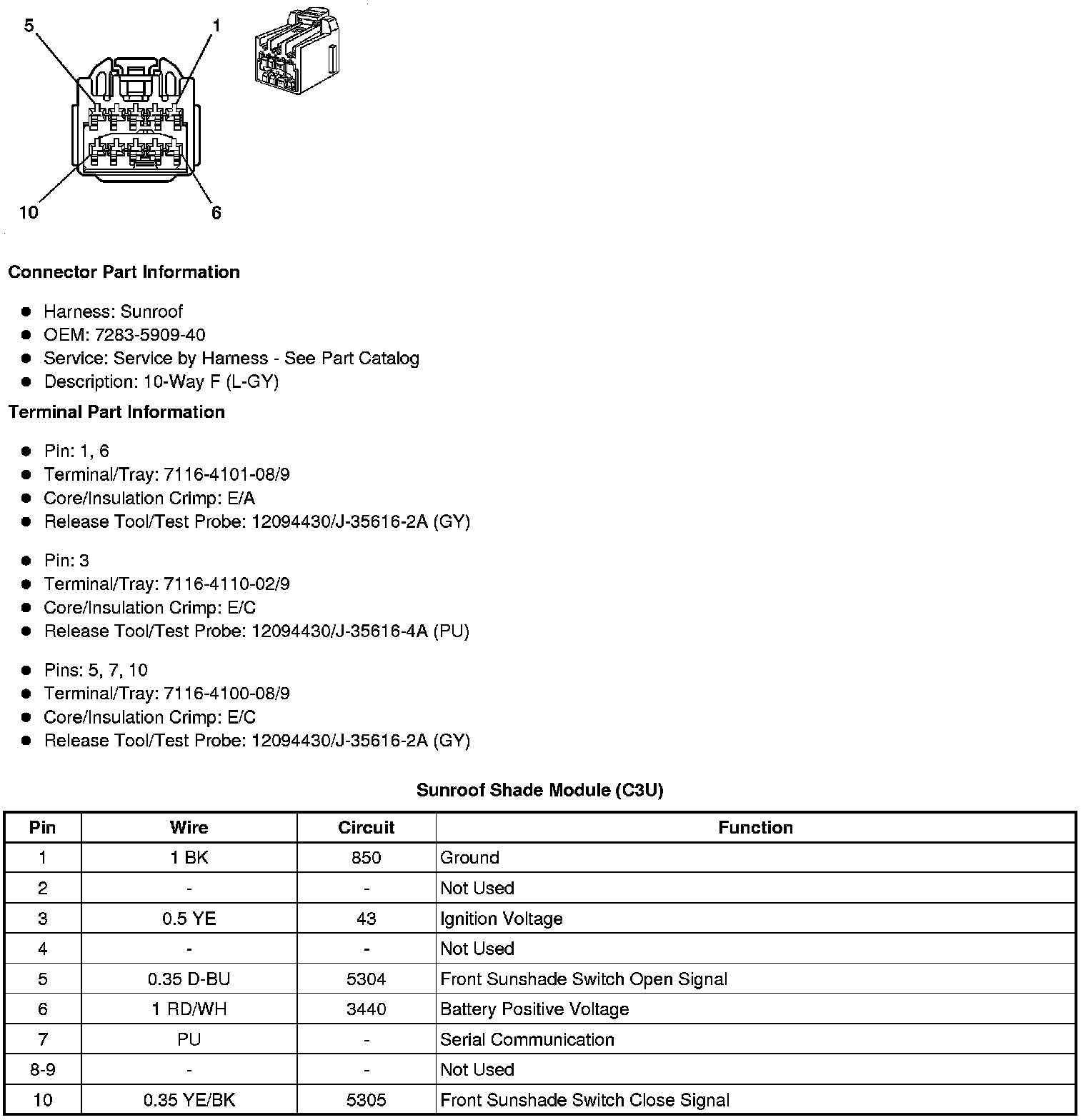

Sunroof Shade Module (C3U)






Sunroof Shade Switch (C3U)






Sunshade - Left






Sunshade - Right
