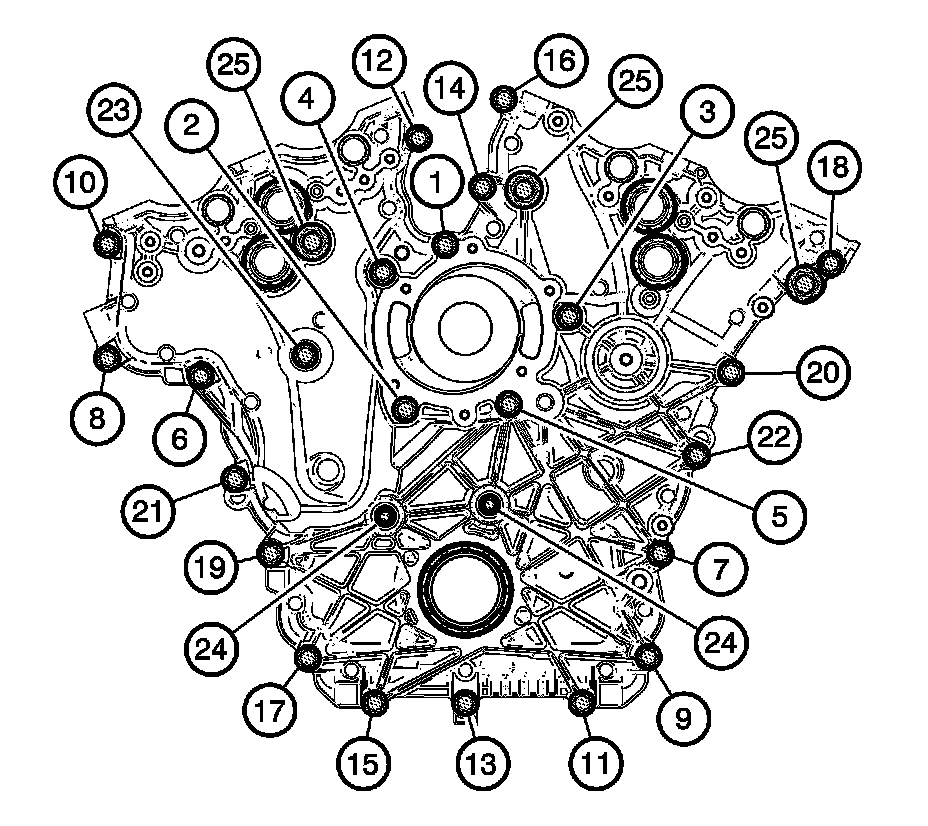

Timing Cover

Front Cover Sequence:

Engine Front Cover Stud 15 Nm (11 lb ft)
Engine Front Cover Bolt - M6 15 Nm (11 lb ft)

Engine Front Cover Bolt - M8
First Pass 20 Nm (14 lb ft)
Second Pass 20 Nm (14 lb ft)
Final Pass 60 Degrees

Engine Front Cover Bolt - M12 65 Nm (48 lb ft)
