Air Cleaner Outlet Duct Replacement

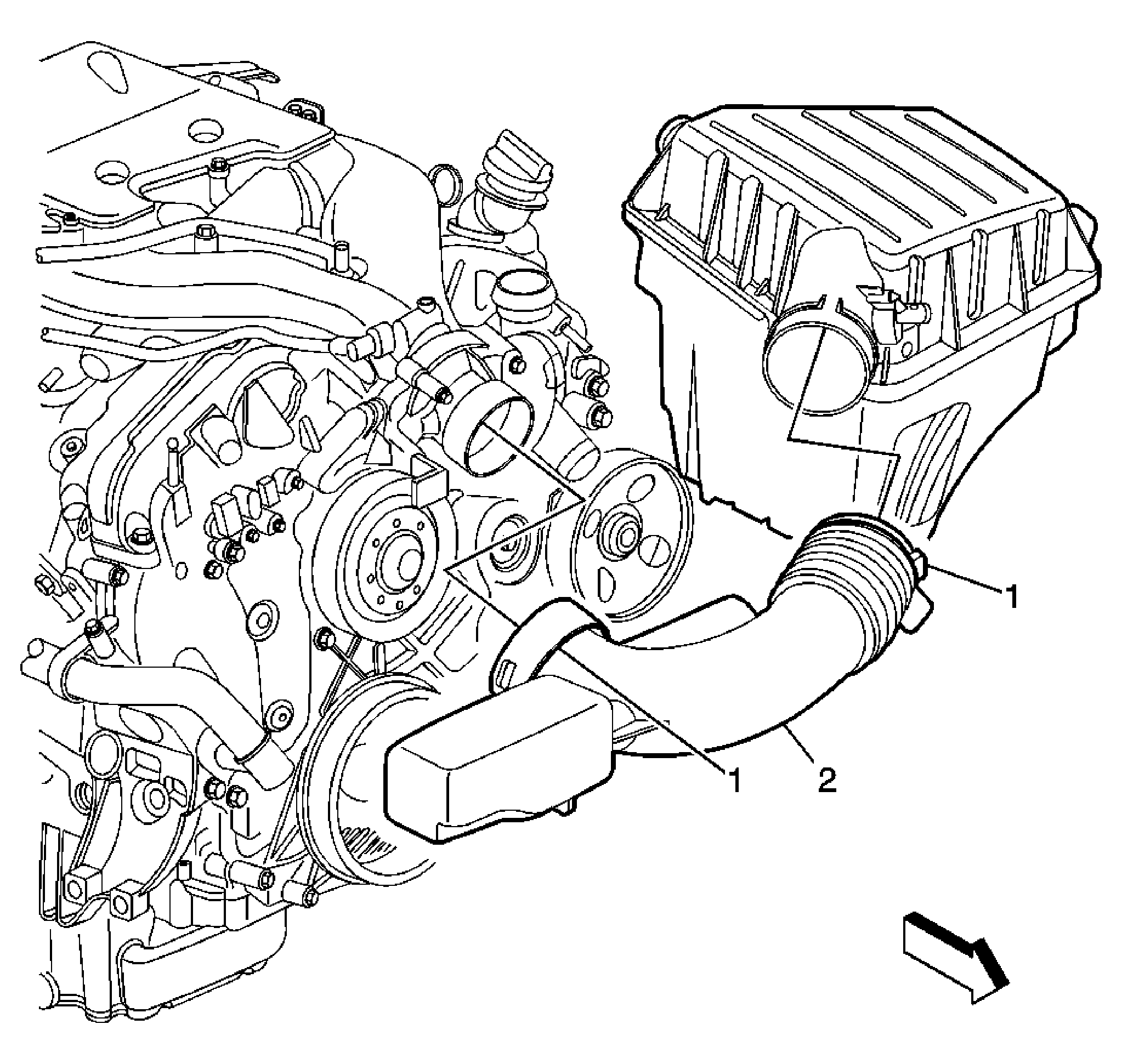

Fig 1: Air Cleaner Outlet Duct And Hose Clamps

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front intake manifold cover. Refer to Intake Manifold Cover Replacement - Front
1	Air Cleaner Outlet Duct Hose Clamp (Qty: 2) CAUTION: Refer to Fastener Caution Tighten: 4 N.m(35 lb in)
2	Air Cleaner Outlet Duct
