Engine Coolant Temperature Sensor Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Partially drain the cooling system. Refer to Cooling System Draining and Filling (LS3, L99 Static Fill) or Cooling System Draining and Filling (LLT Static Fill) or Cooling System Draining and Filling (GE 47716) . |
|

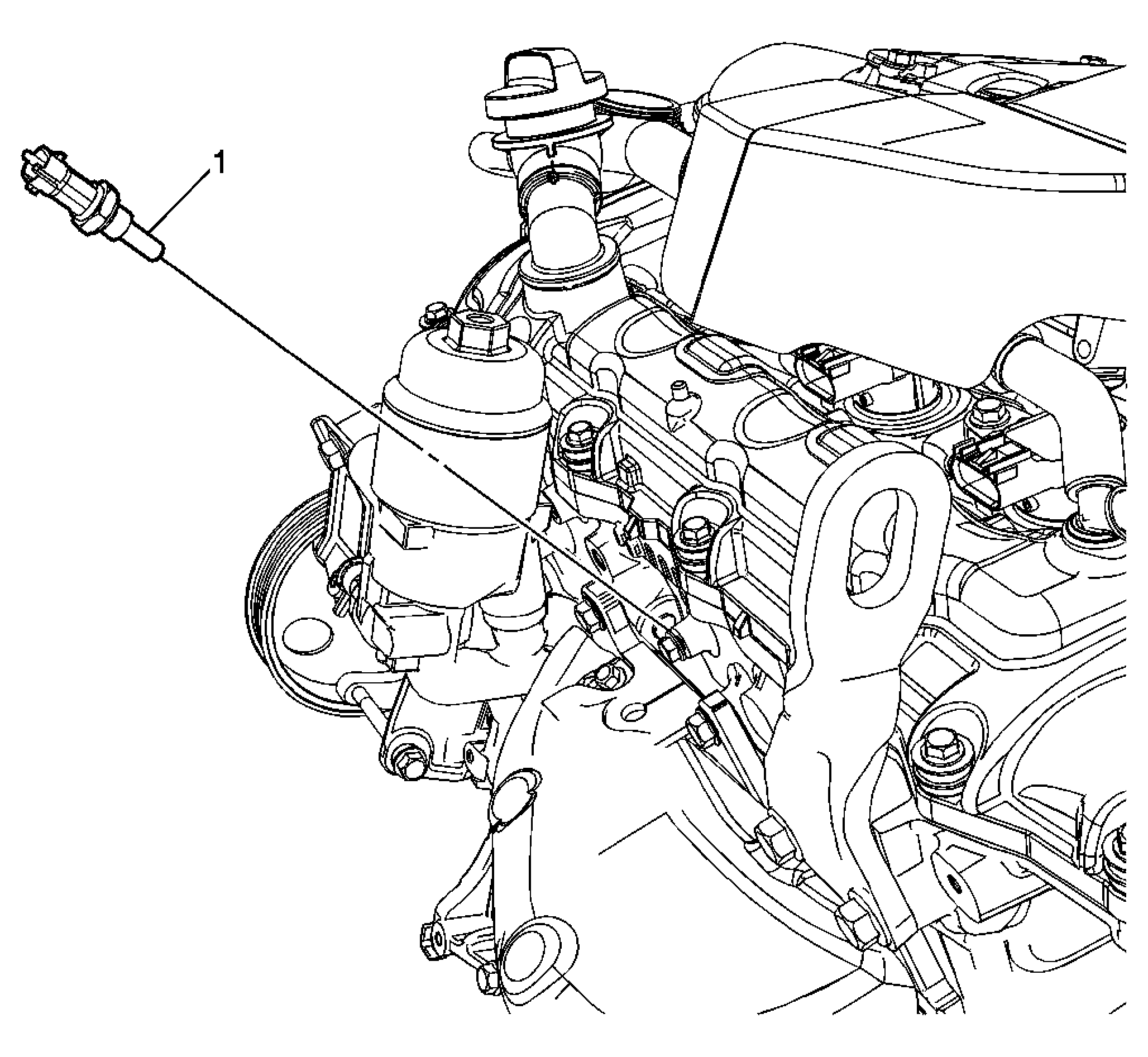

| 1 | Engine Coolant Temperature Sensor
CAUTION:
Refer to Fastener Caution
.
Tighten: 22 N.m(16 lb ft) Procedure: Disconnect the electrical connector. |
