Body Control System Wiring Schematics

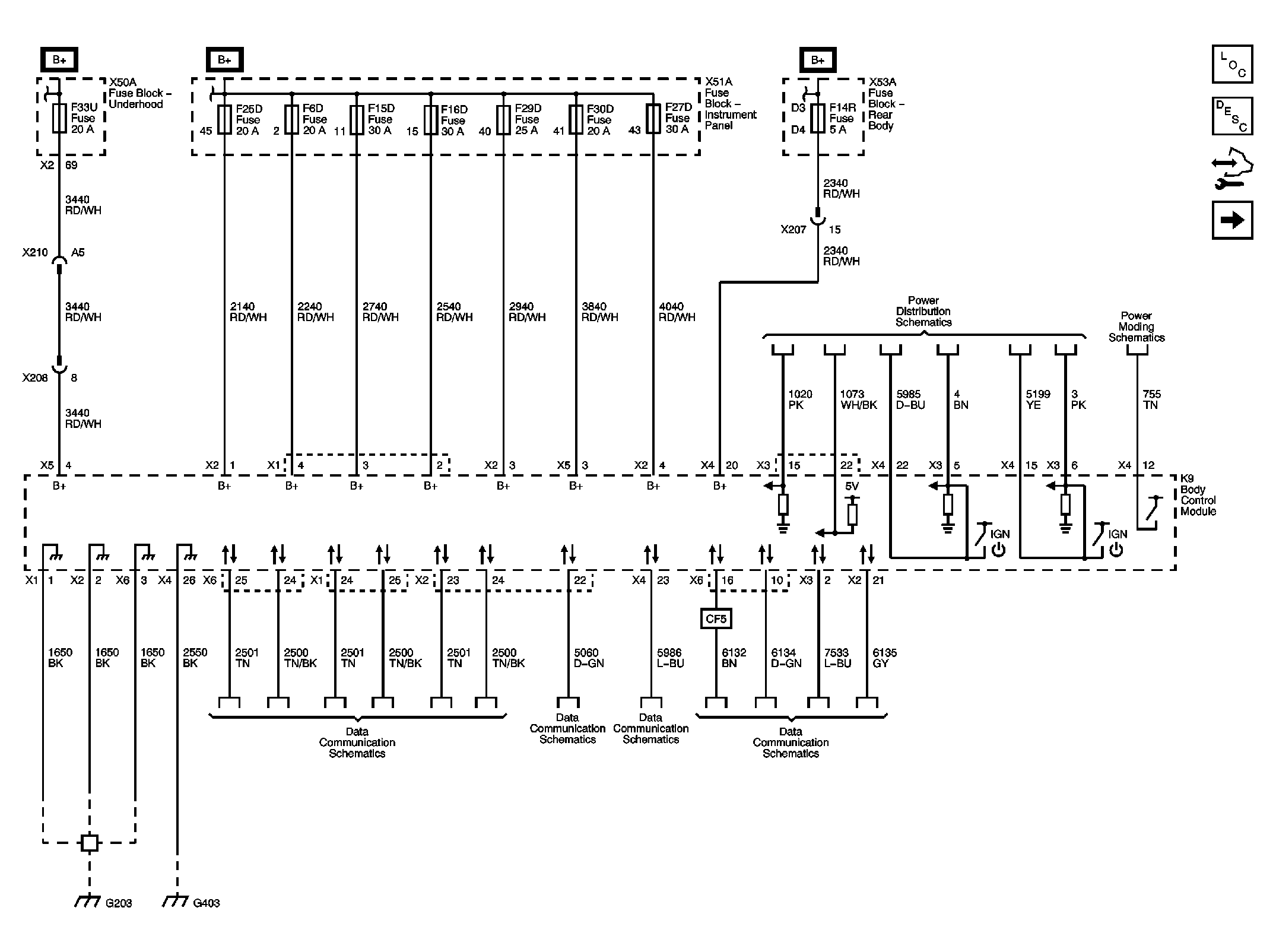

Fig 1: Power, Ground, and Data Communications Wiring Schematic
GM2404178Courtesy of GENERAL MOTORS CORP.

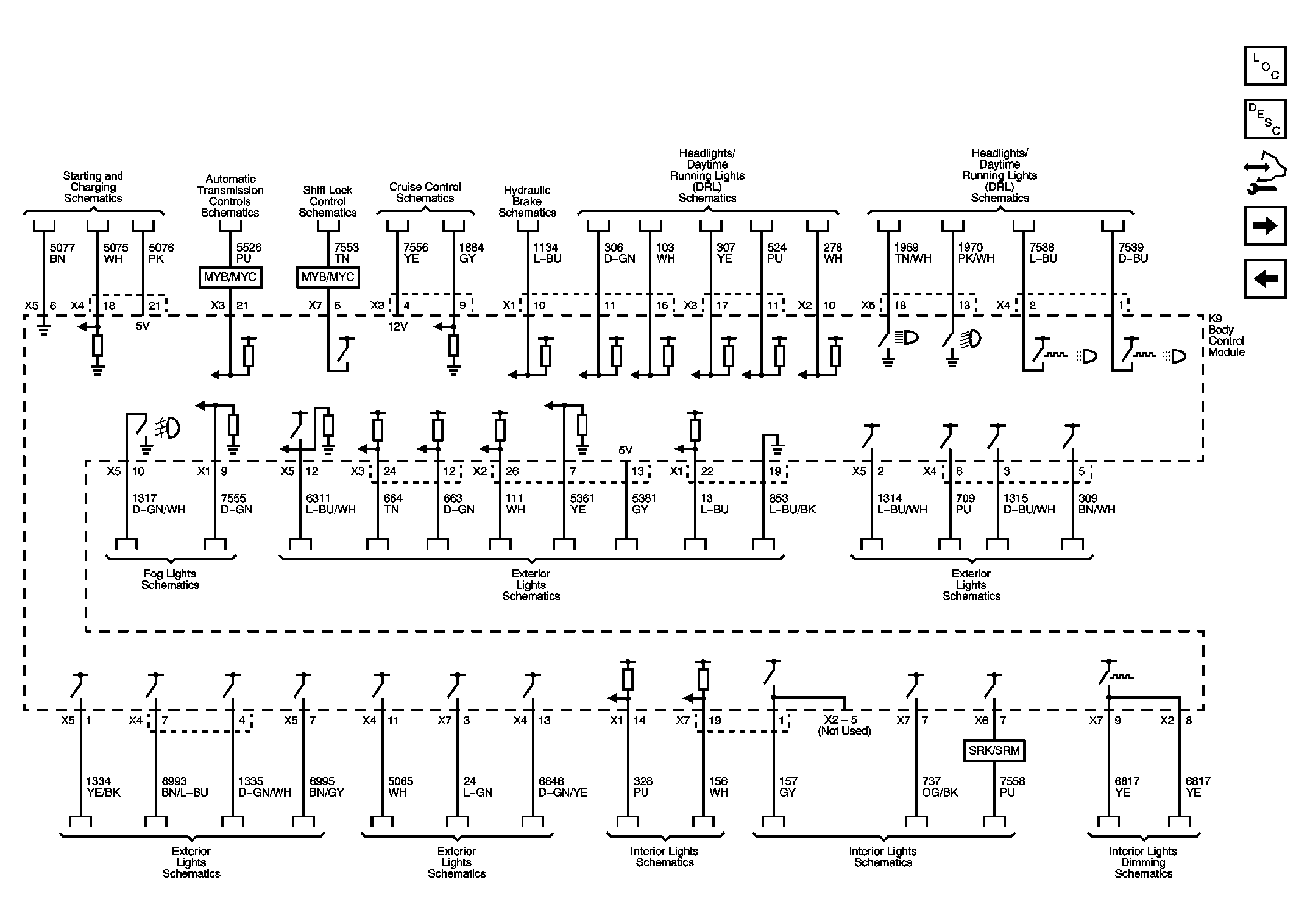

Fig 2: Wiring Schematic References 1 of 2
GM2404179Courtesy of GENERAL MOTORS CORP.

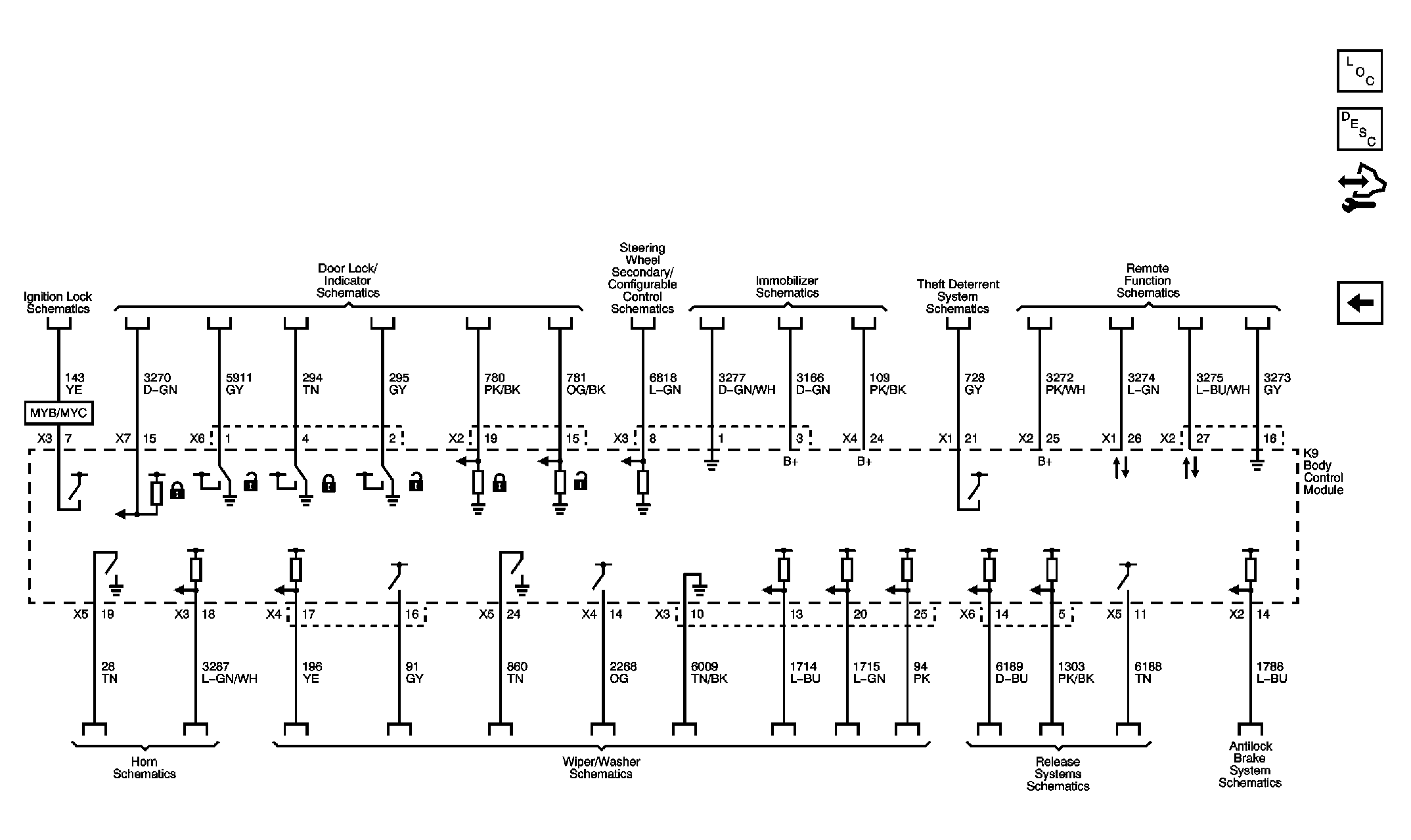

Fig 3: Wiring Schematic References 2 of 2
GM2404182Courtesy of GENERAL MOTORS CORP.
