Data Communication Wiring Schematics

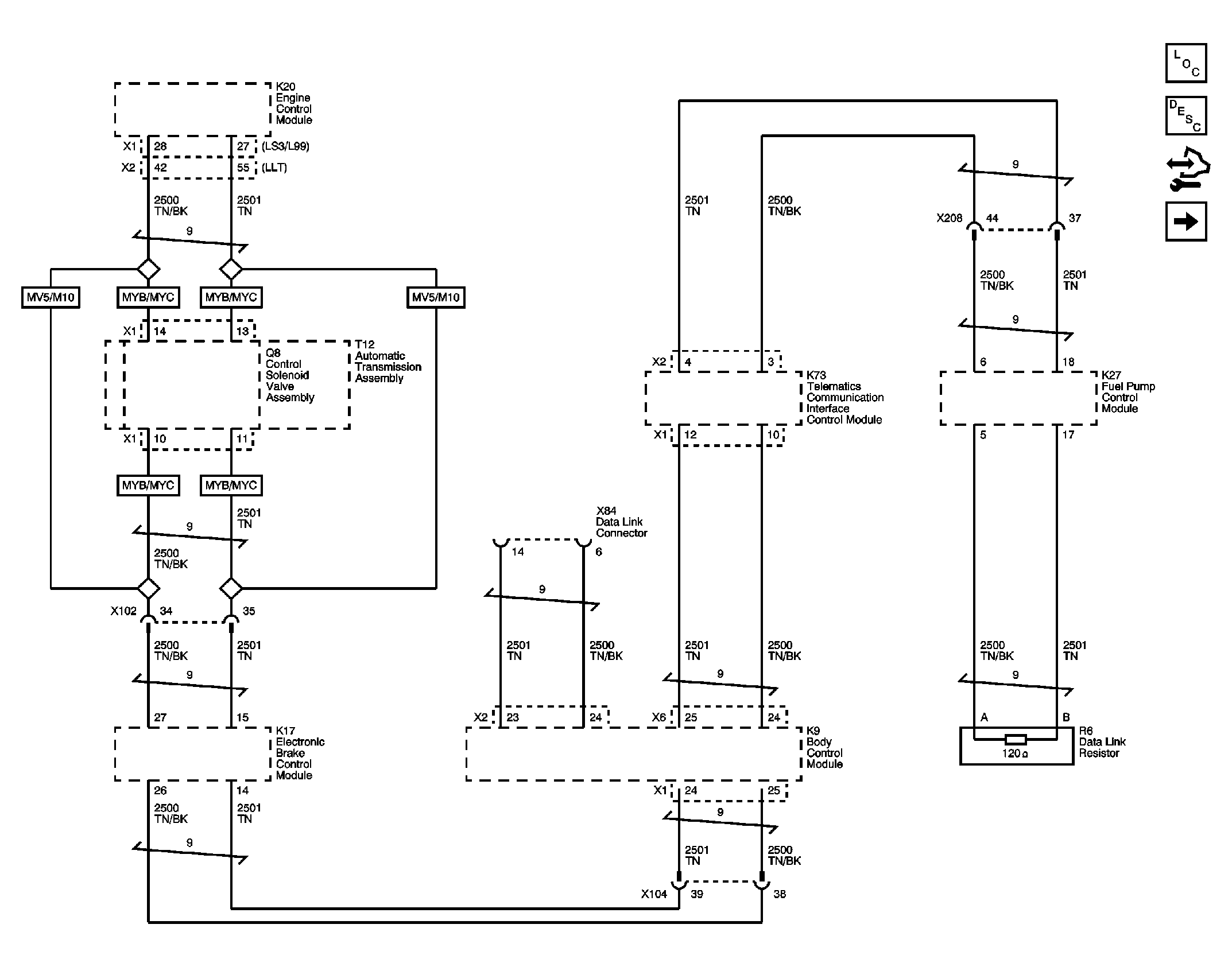

Fig 1: High Speed GMLAN Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

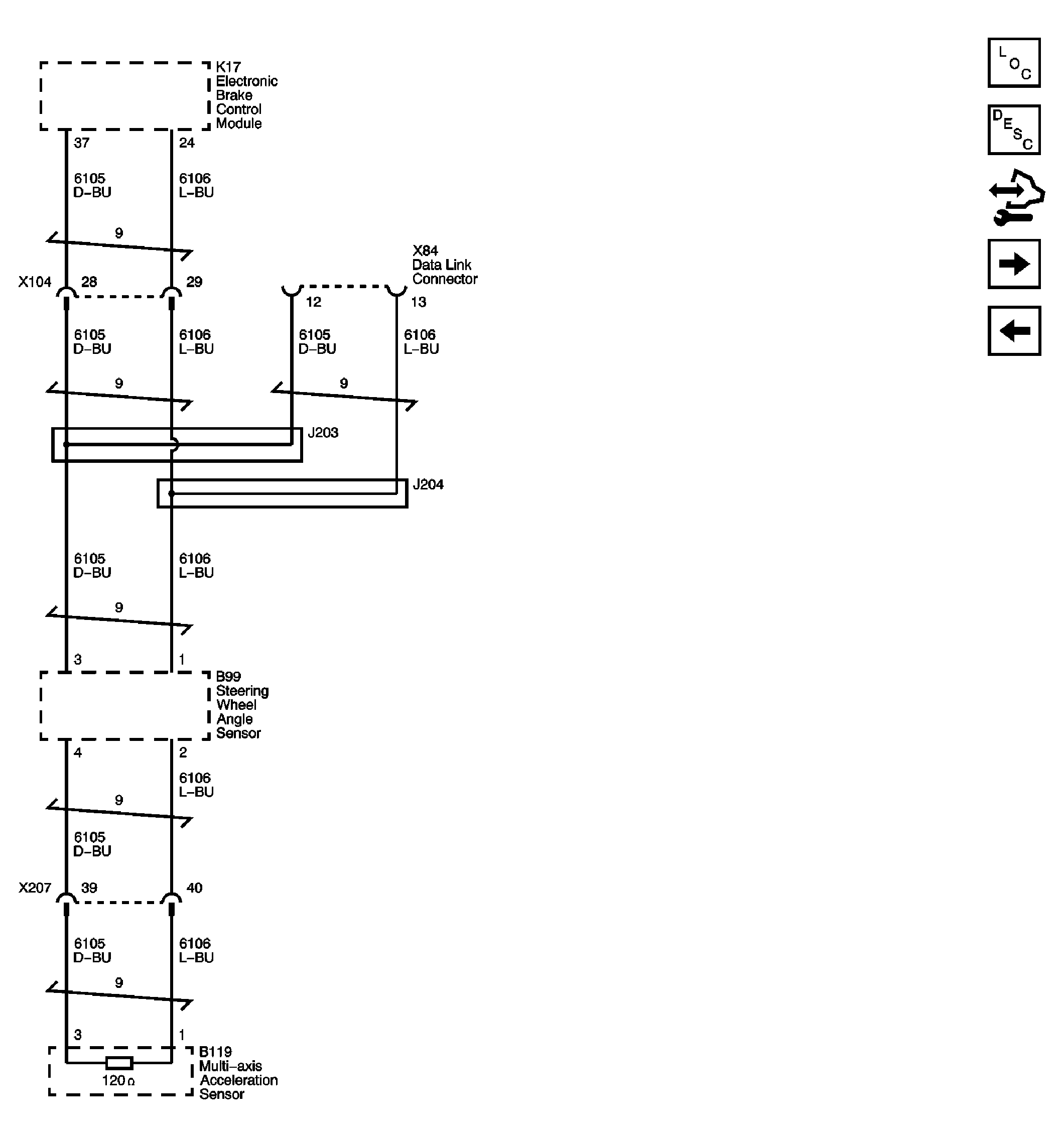

Fig 2: High Speed GMLAN Wiring Schematic - BUS 2

Courtesy of GENERAL MOTORS CORP.

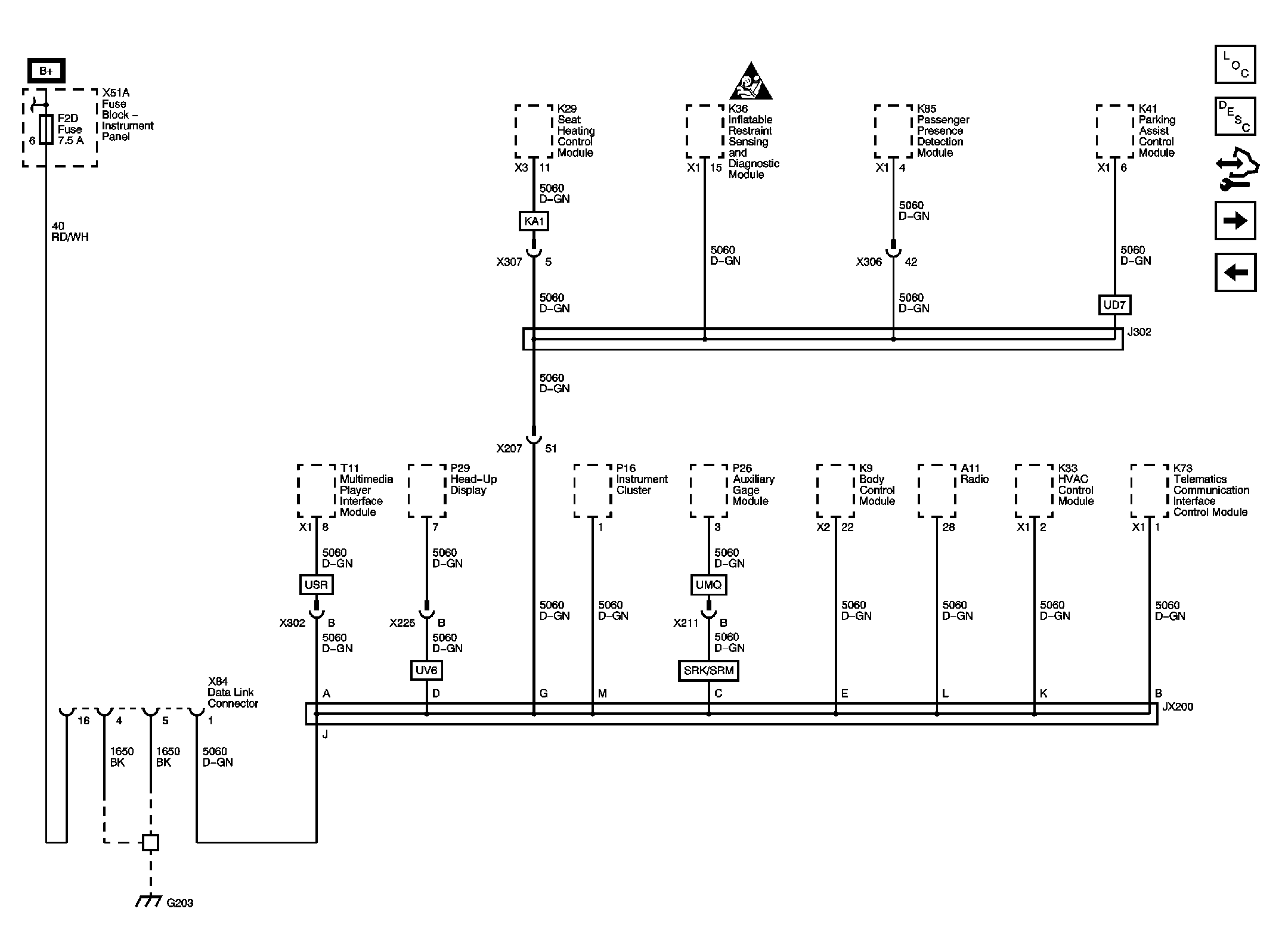

Fig 3: Low Speed GMLAN Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Communications Enable Wiring Schematic

Courtesy of GENERAL MOTORS CORP.

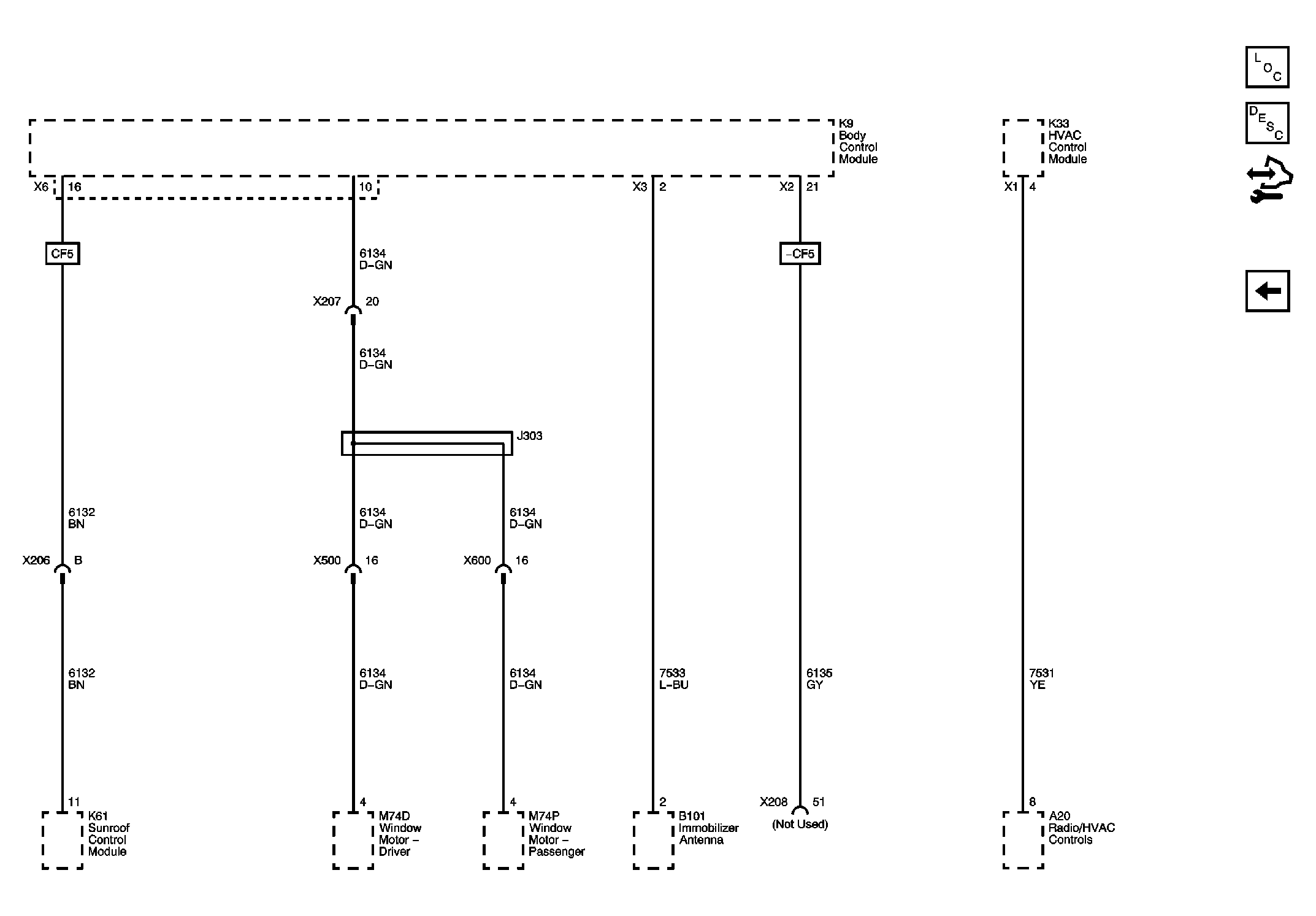

Fig 5: Local Interconnect Network Bus 1, 3, 4, 9, 11 Wiring Schematic

Courtesy of GENERAL MOTORS CORP.
