Mass Airflow Sensor with Intake Air Temperature Sensor Replacement

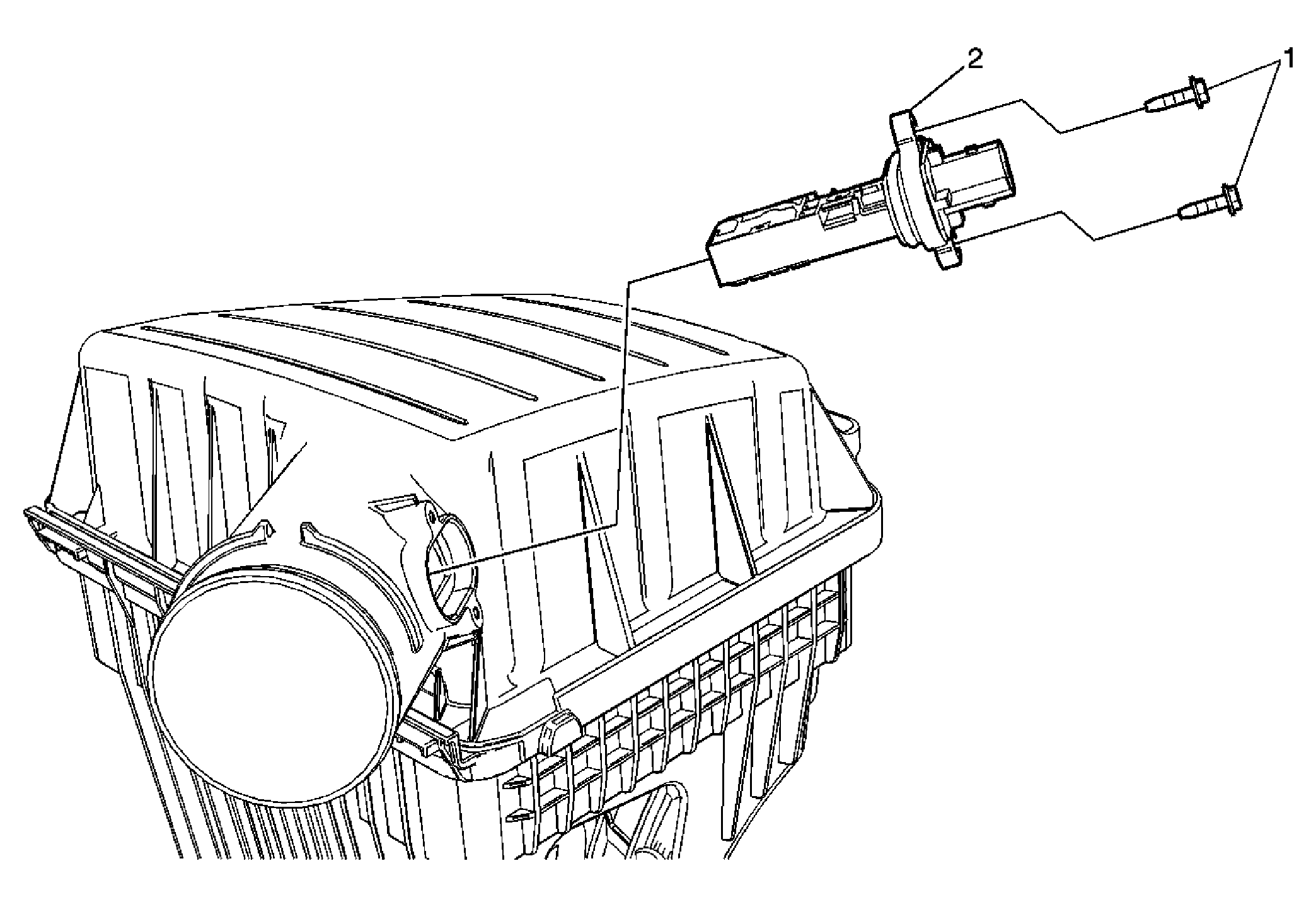

Fig 1: Mass Airflow Sensor With Intake Air Temperature Sensor And Fasteners

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mass Airflow with Intake Air Temperature Sensor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  10 N.m (89 lb in)
2	Mass Airflow with Intake Air Temperature Sensor Procedure:  Disconnect the electrical connector.
