Body Control Module: Locations

Instrument Panel/Center Console Component Views

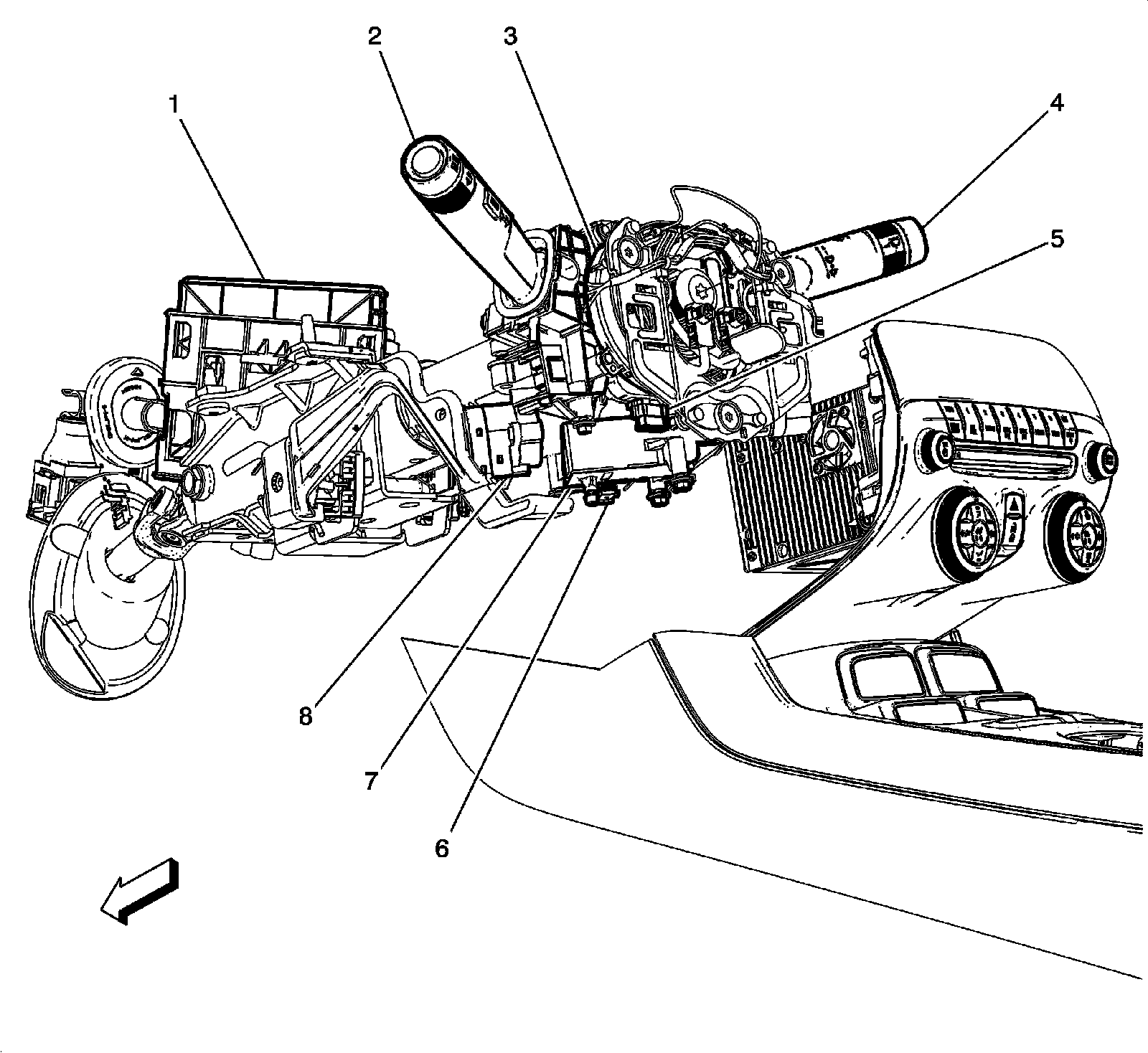

Left Center of Instrument Panel and Steering Column Components




1 - K9 Body Control Module
2 - S78 Turn Signal/Multifunction Switch
3 - X85 Steering Wheel Air Bag Coil
4 - S82 Windshield Wiper/Washer Switch
5 - B99 Steering Wheel Angle Sensor
6 - M93 Ignition Cylinder Lock Control Solenoid Actuator (MYB/MYC)
7 - B101 Immobilizer Antenna
8 - S39 Ignition Switch
