Camshaft Position Sensor




Component Connector End Views

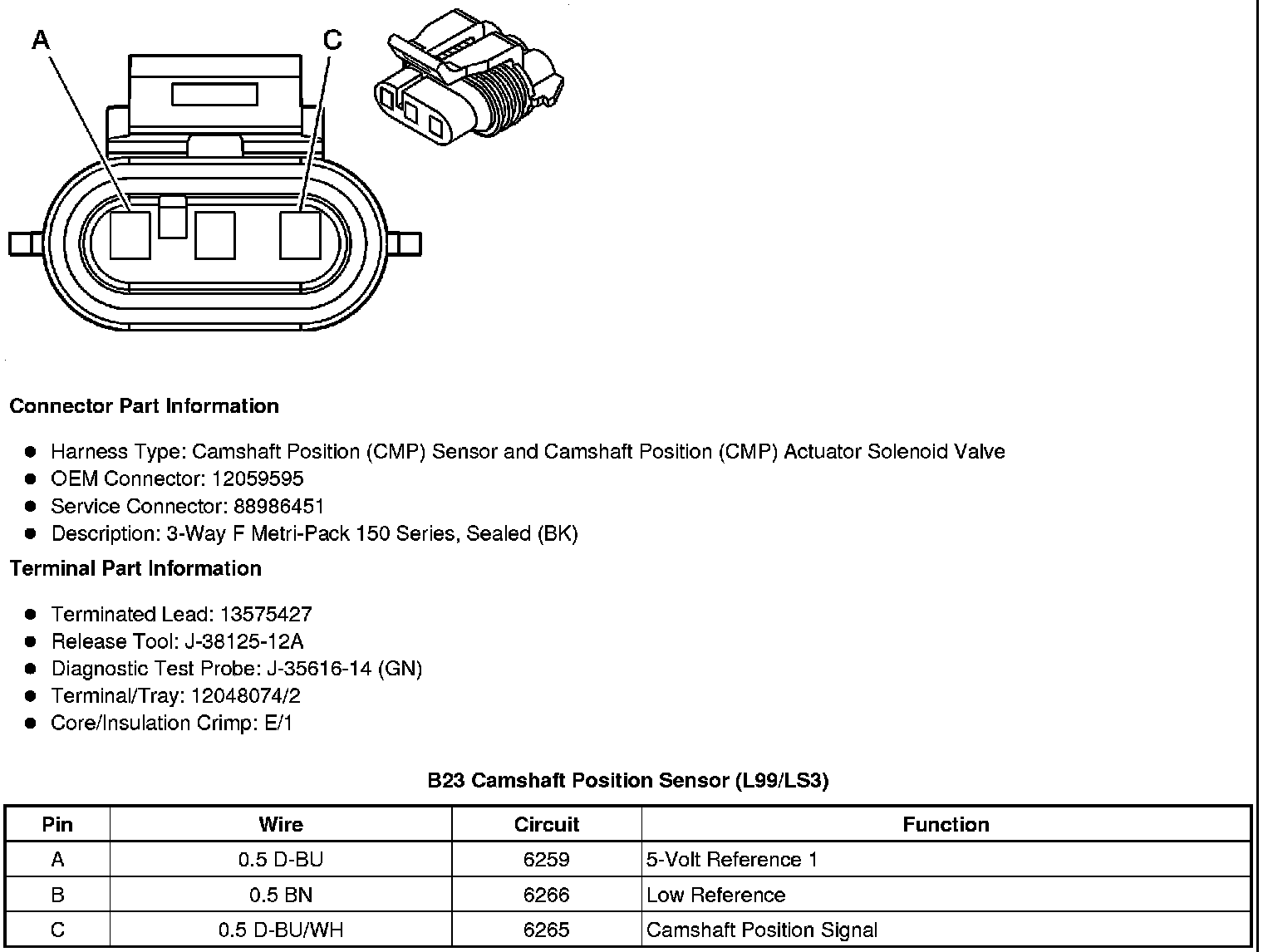

B23 Camshaft Position Sensor (L99/LS3)

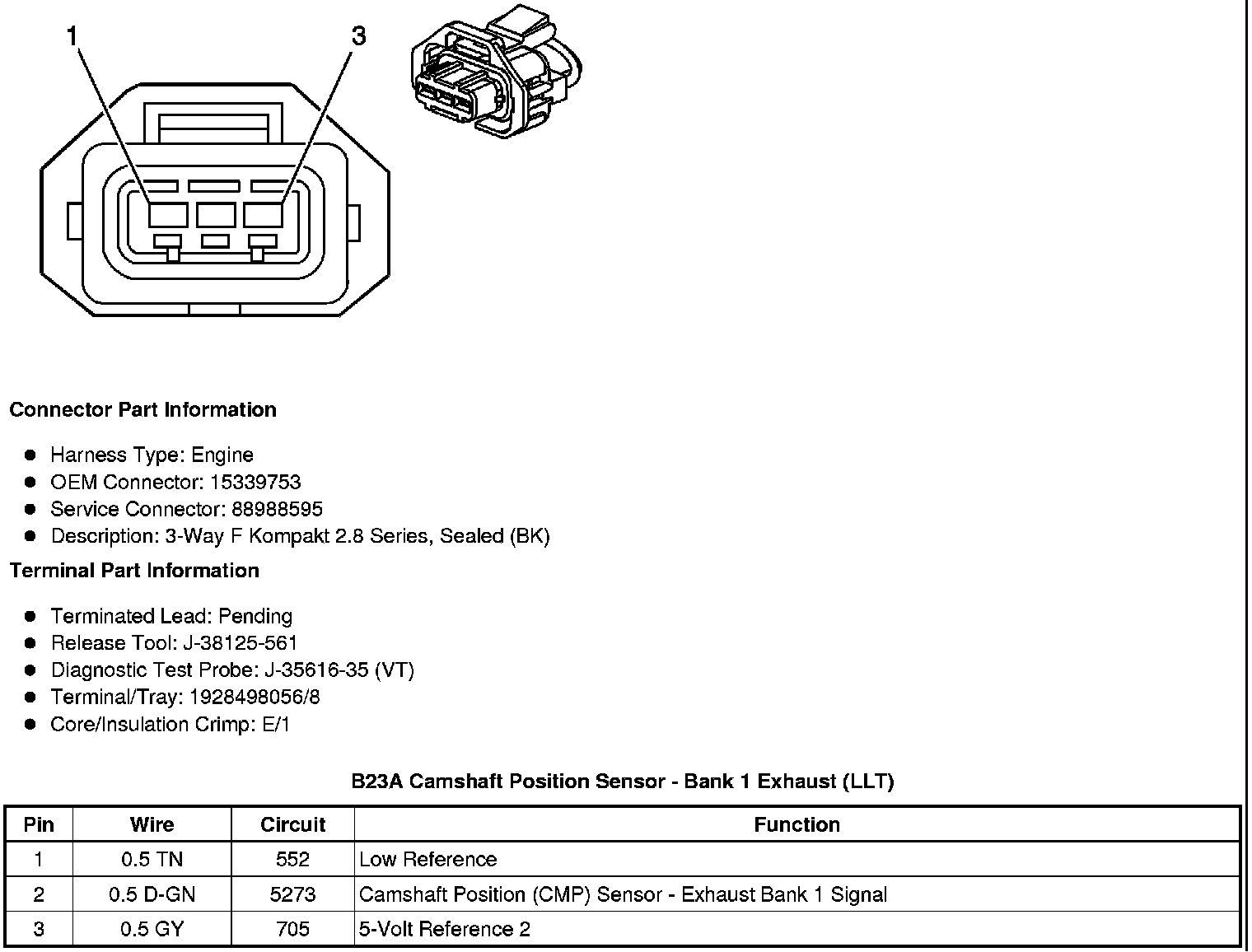

B23A Camshaft Position Sensor - Bank 1 Exhaust (LLT)





B23B Camshaft Position Sensor - Bank 1 Intake (LLT)

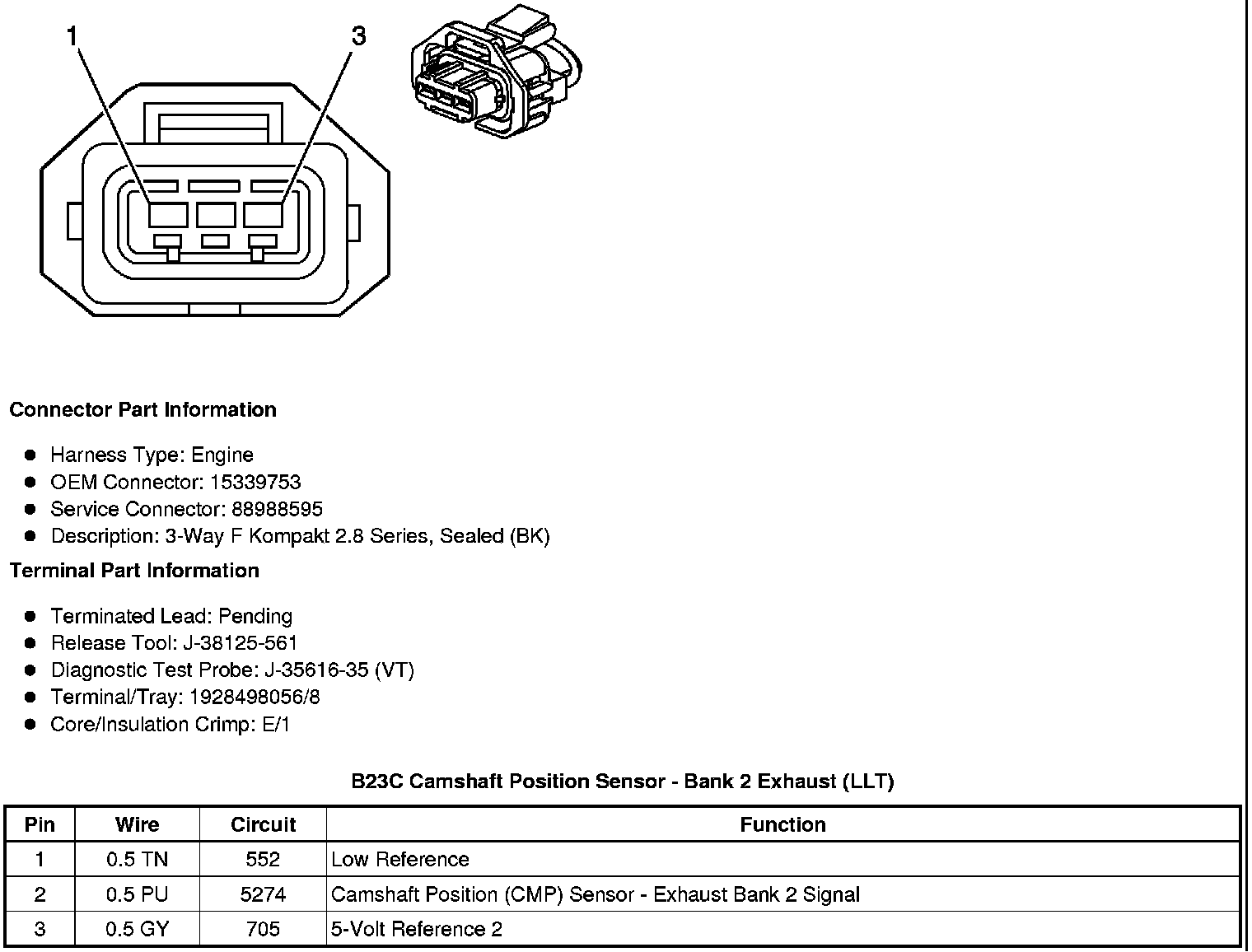

B23C Camshaft Position Sensor - Bank 2 Exhaust (LLT)





B23D Camshaft Position Sensor - Bank 2 Intake (LLT)
