Communications Control Module




Component Connector End Views

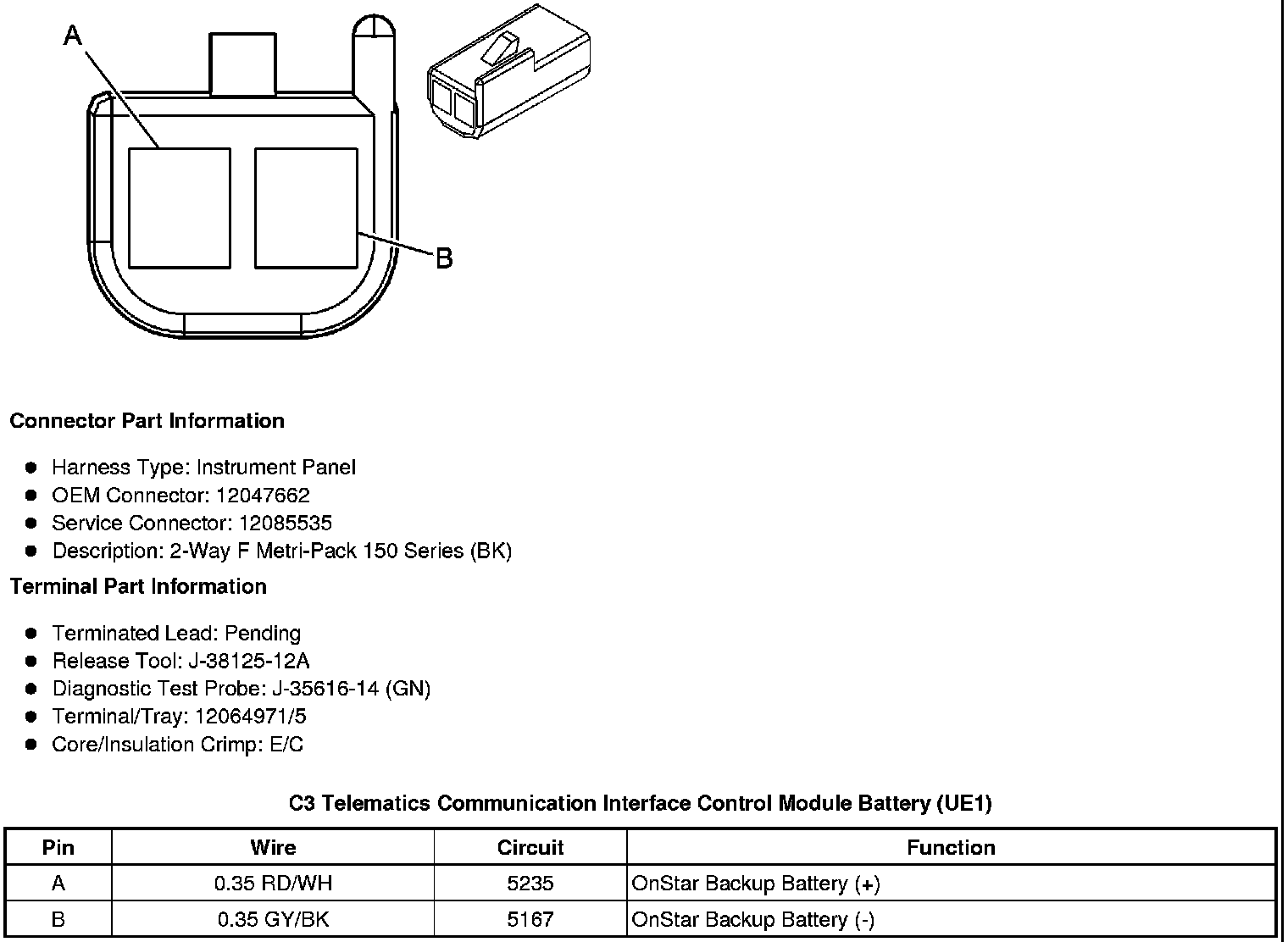

C3 Telematics Communication Interface Control Module Battery (UE1)
