Control Assembly, HVAC
Component Connector End Views

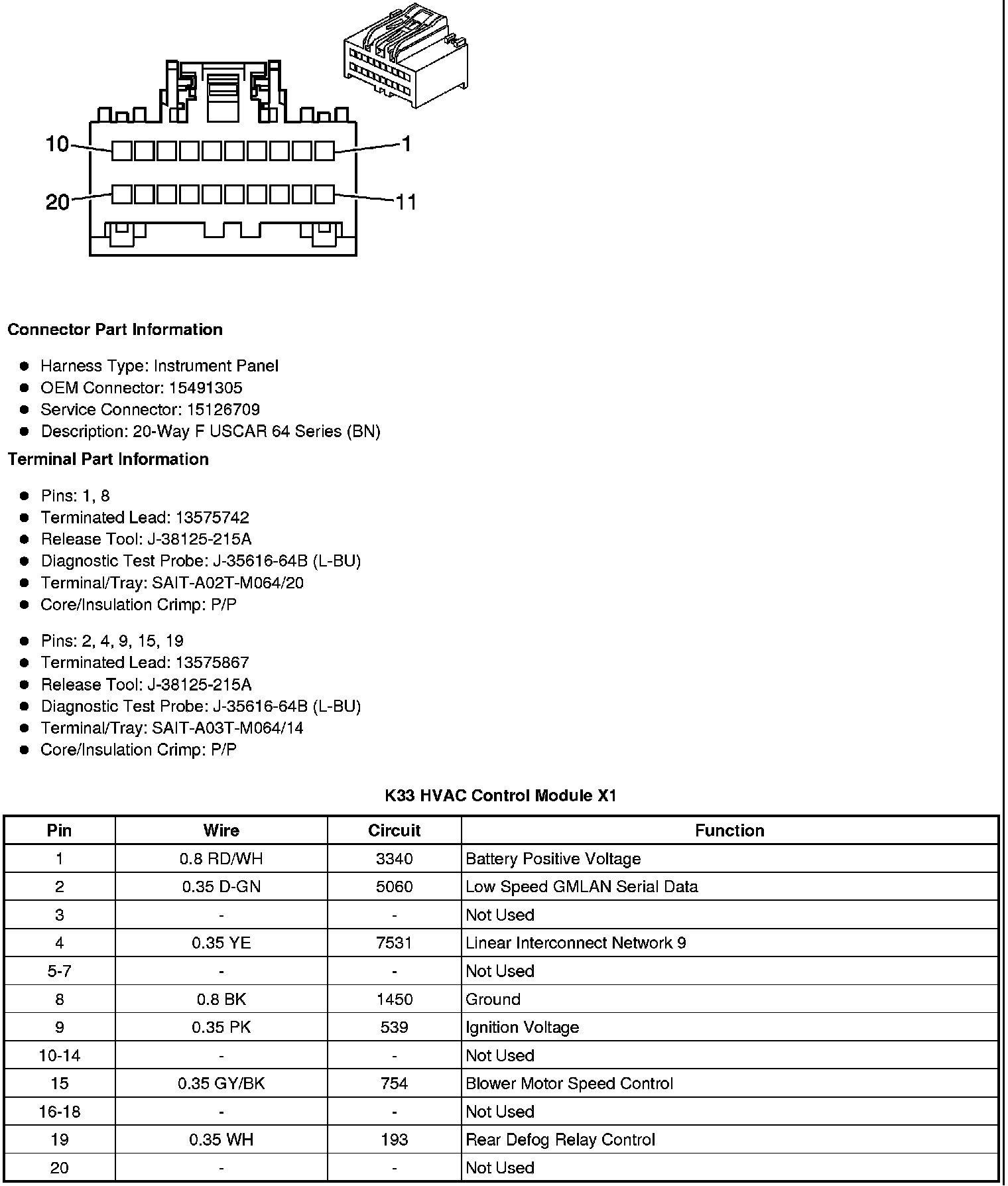

K33 HVAC Control Module X1

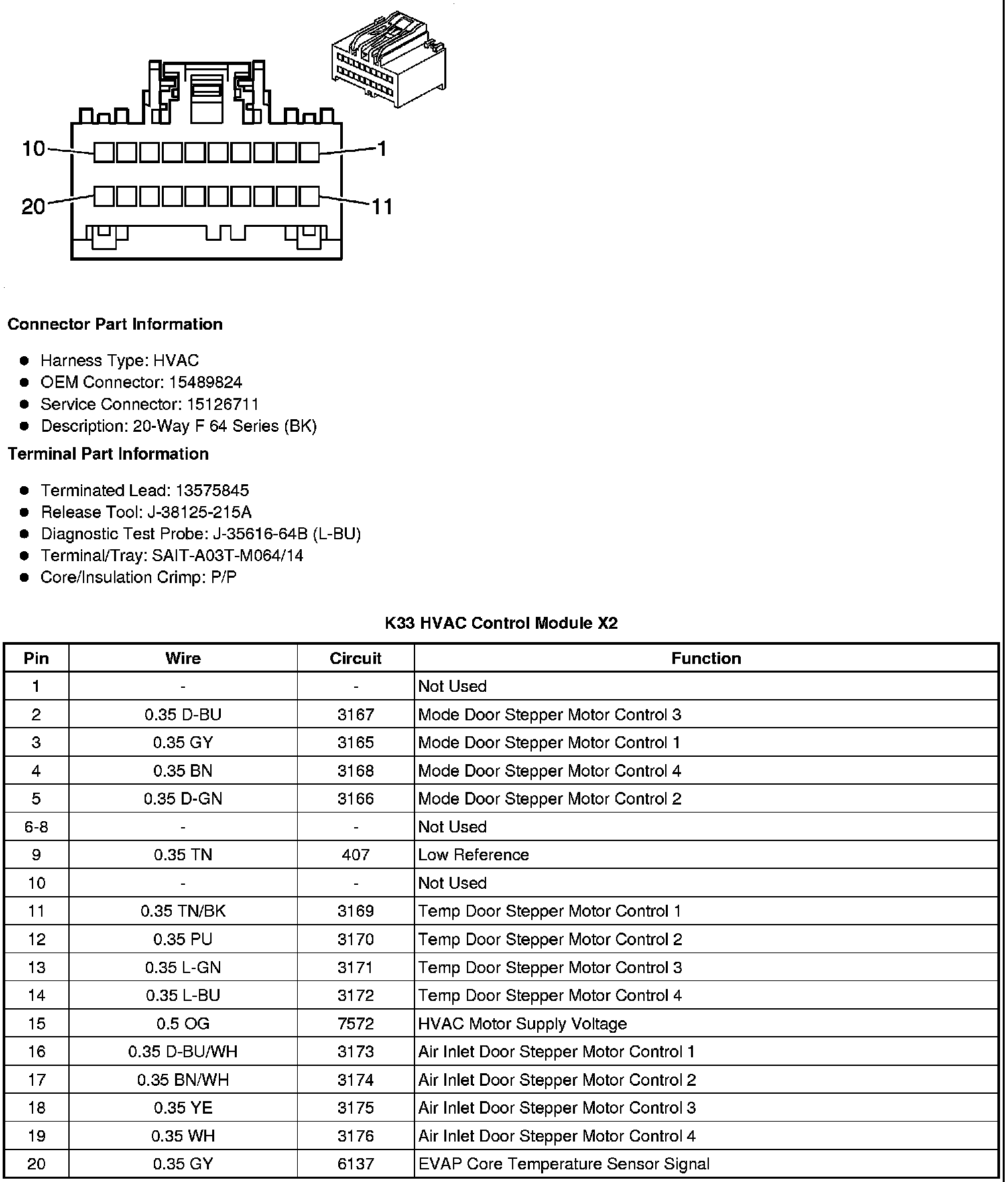

K33 HVAC Control Module X2
