Fog/Driving Lamp

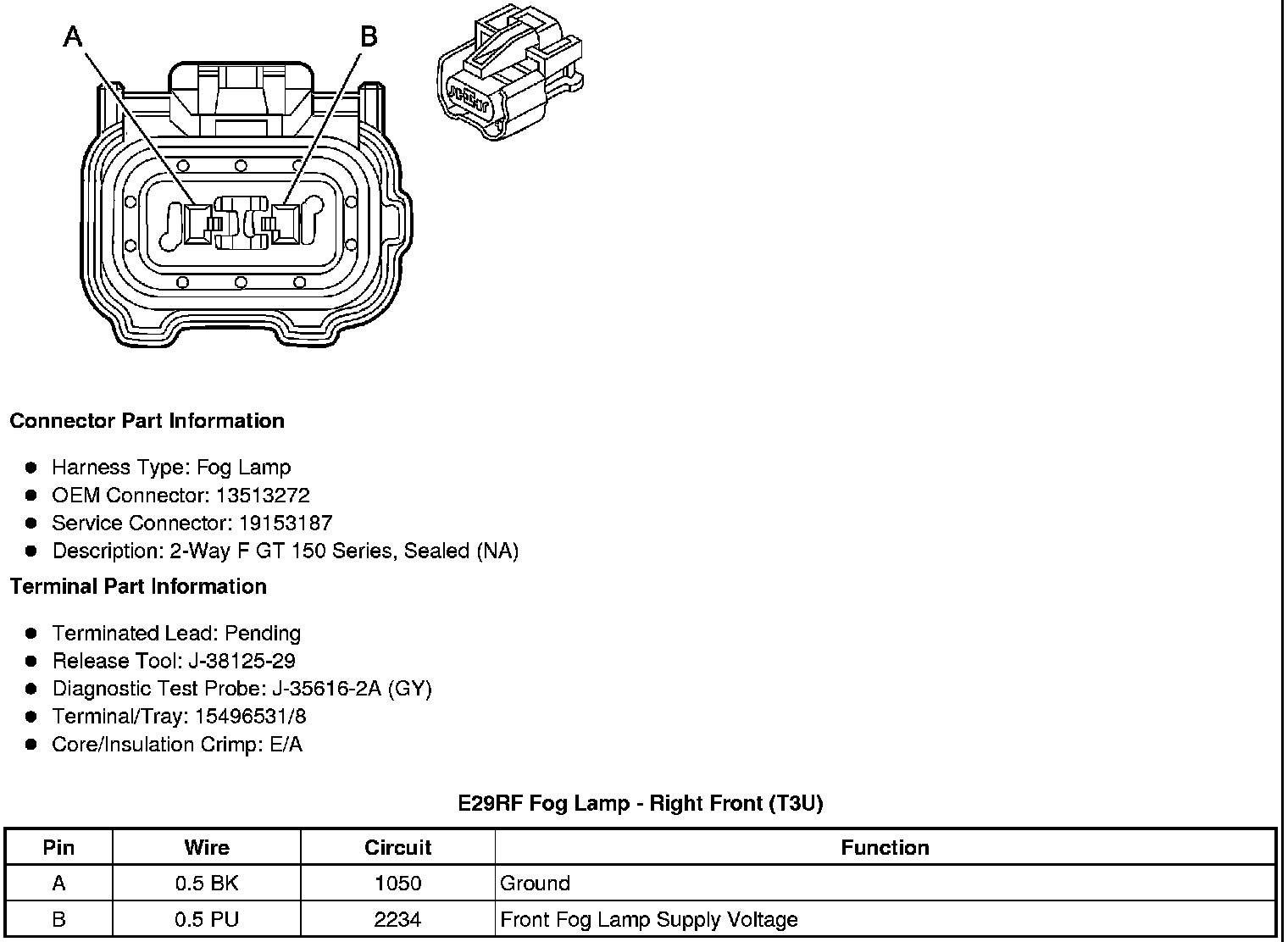

Component Connector End Views
E29LF Fog Lamp - Left Front (T3U)
E29RF Fog Lamp - Right Front (T3U)
